ELECTRIC ROLL FORMER FOR STANDING SEAM 220 V TRANSVERSAL CUTTING AND SLITTING INTEGRATED

Electric Roll former for Standing Seam 220 V Transversal Cutting and Slitting integrated Variable speed motor electric roll former for Standing Seam 220 V Transversal Cutting and Slitting Integrated Variable speed motor electric roll former for Standing Seam 220 V Electric Transversal Cutting and Slitting Integrated.

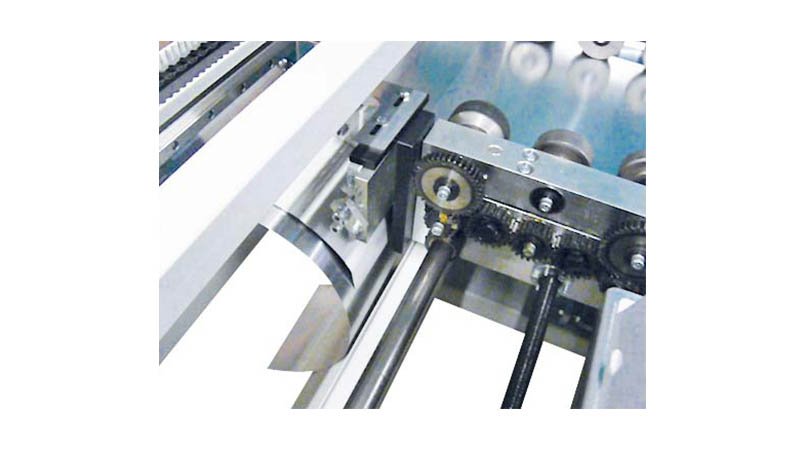

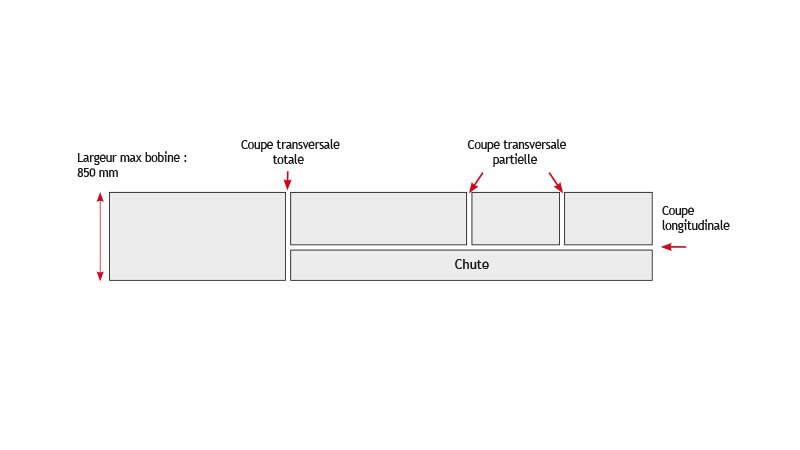

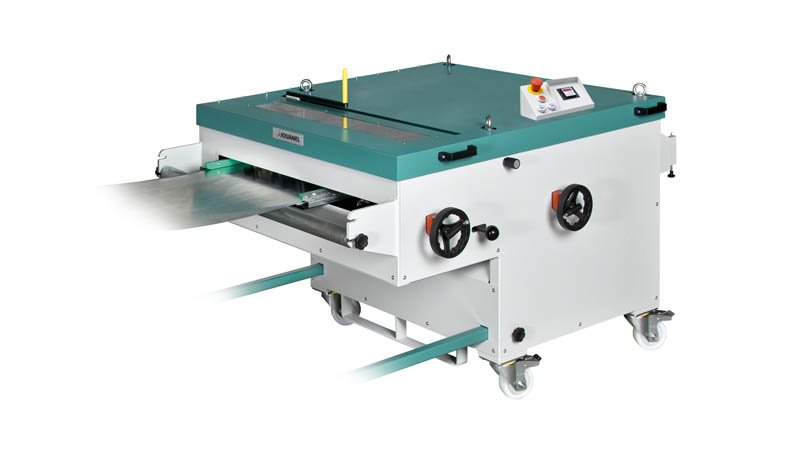

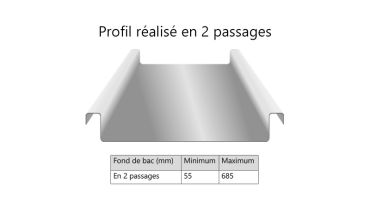

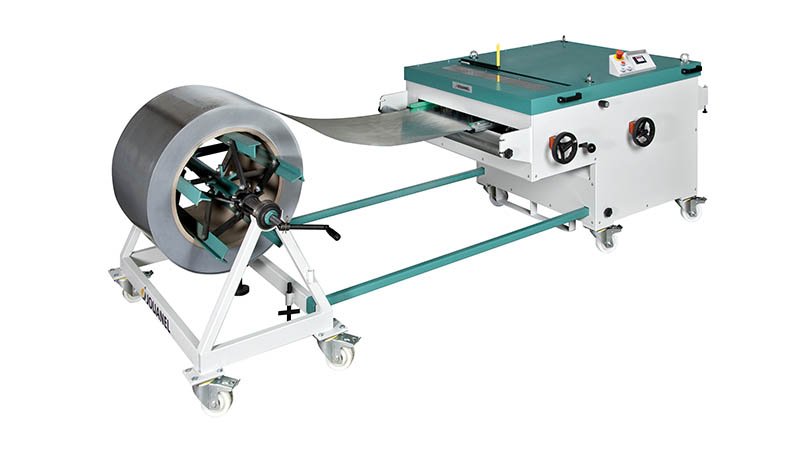

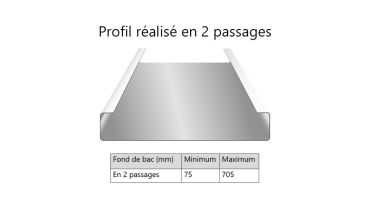

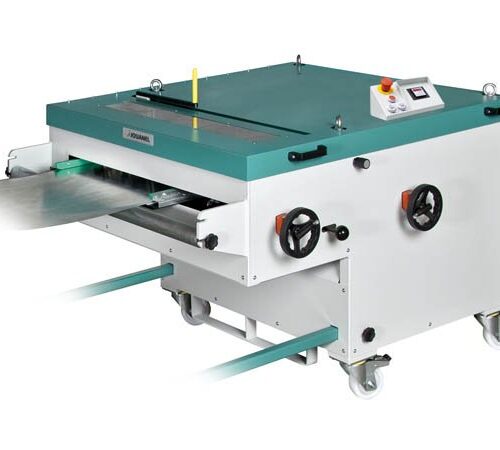

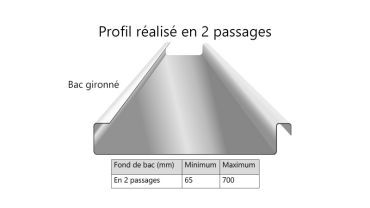

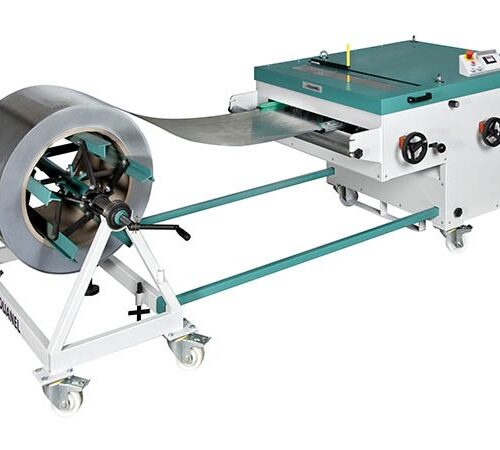

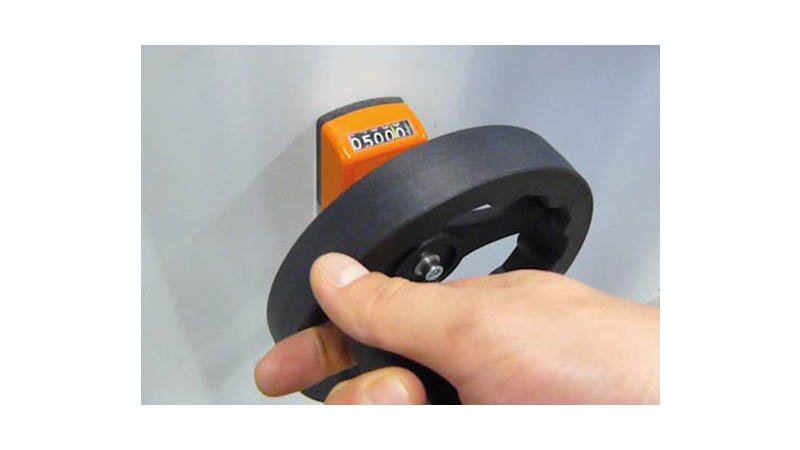

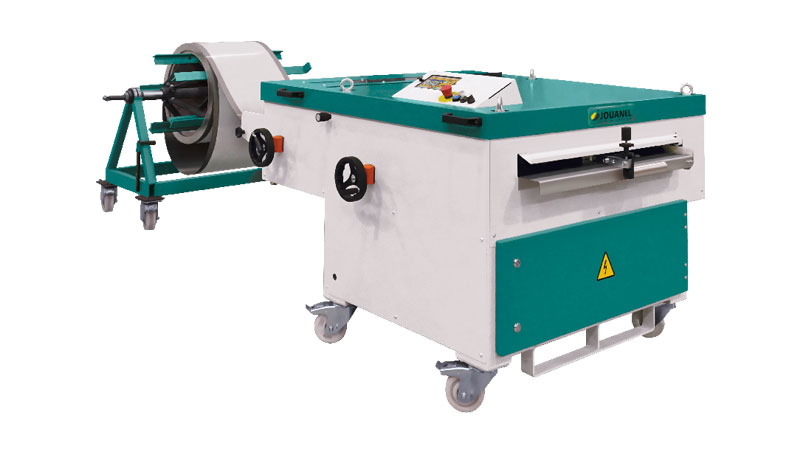

Electric roll-forming machine for the workshop or building site, reference PROBAC-BA for the production of standing seam profiles in parallel or conical trays. Full or partial manual transversal cut, longitudinal cut with or without roll-forming, infeed width and tray width adjustments by wheels and counters.

PRODUCT FEATURES

• Gross weight (kg): 496
• Dimensions (mm): 1 600 x 1380 x 1 000
• Capacity Zinc / Copper / 1050-H44 Aluminum (mm): 0,8
• Power supply (V)*:  220V – single 16 A
• Power (kW):  1,5
• Roll-forming speed (m/min): 10
• Length accuracy (repetitively) (mm): ± 15
• Minimum length of trays (mm): 400
• Slinging rings: 4

* Voltage choice to signal at the order
