The Jouanel Decoiler on Wheels DVS is a manual coil handling device for unwinding metal coils. Features include easy mobility, a 1000 kg load capacity, and adjustable expansion.
Jouavel DVS
Jouanel Manual Decoiler on Wheels
The Jouanel Mandrel Decoiler on Wheels DVS is a heavy-duty manual tool designed for unwinding coils with ease and precision. Its robust build and convenient wheel system make it ideal for use in roofing and other construction projects. With a manual expansion feature, it accommodates a variety of coil sizes, and the swivel wheels with brakes offer easy mobility and stability during operation.
Uses:
- Ideal for unwinding metal coils in roofing and construction applications
- Suitable for use in workshops and job sites requiring mobility and precise coil handling
- Manual operation for expanding and adjusting the mandrel size (from Ø 285 to 540 mm)
Product Details:

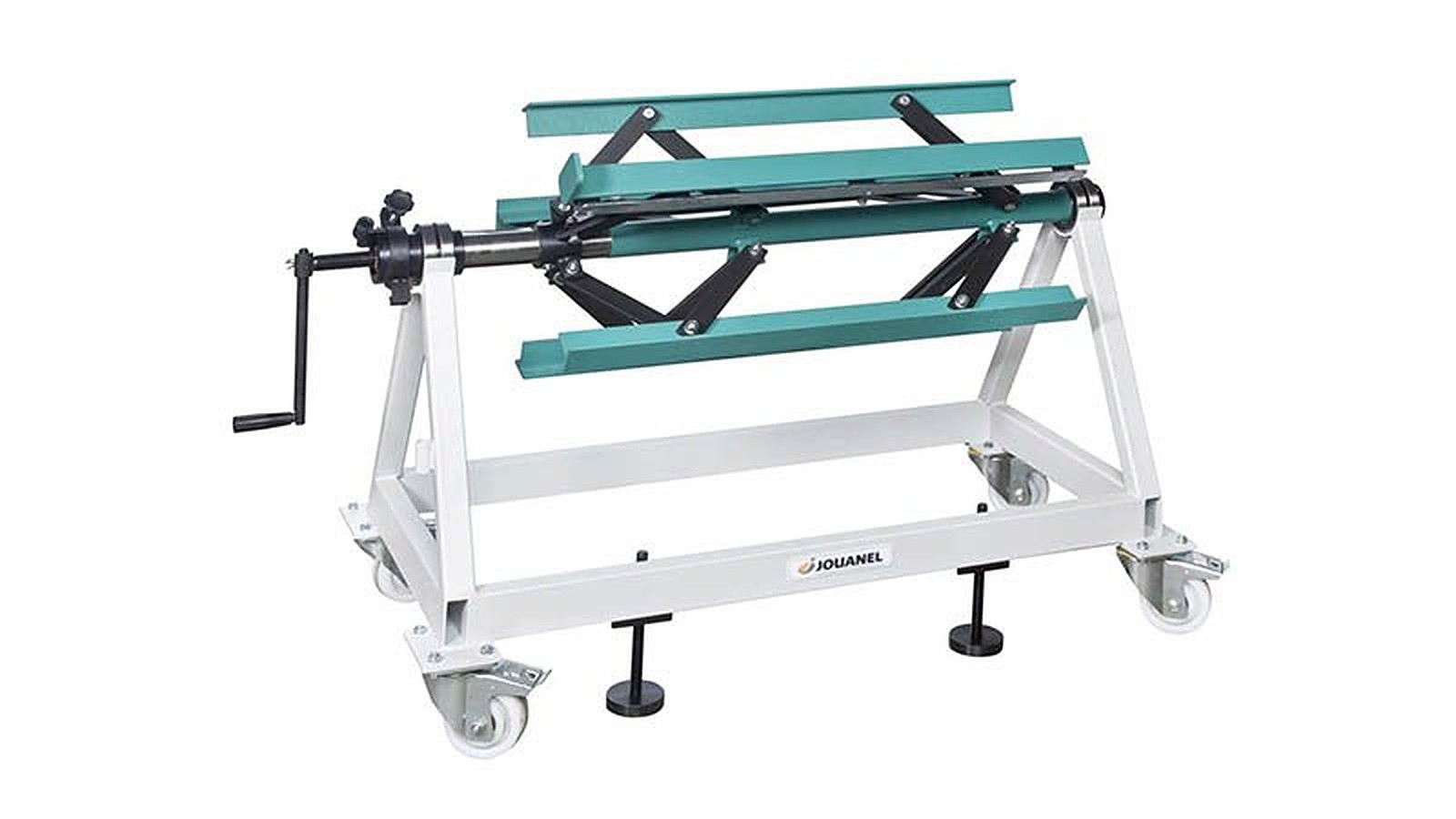

- Equipped with 4 swivelling castor wheels, each with a brake for easy mobility and stability

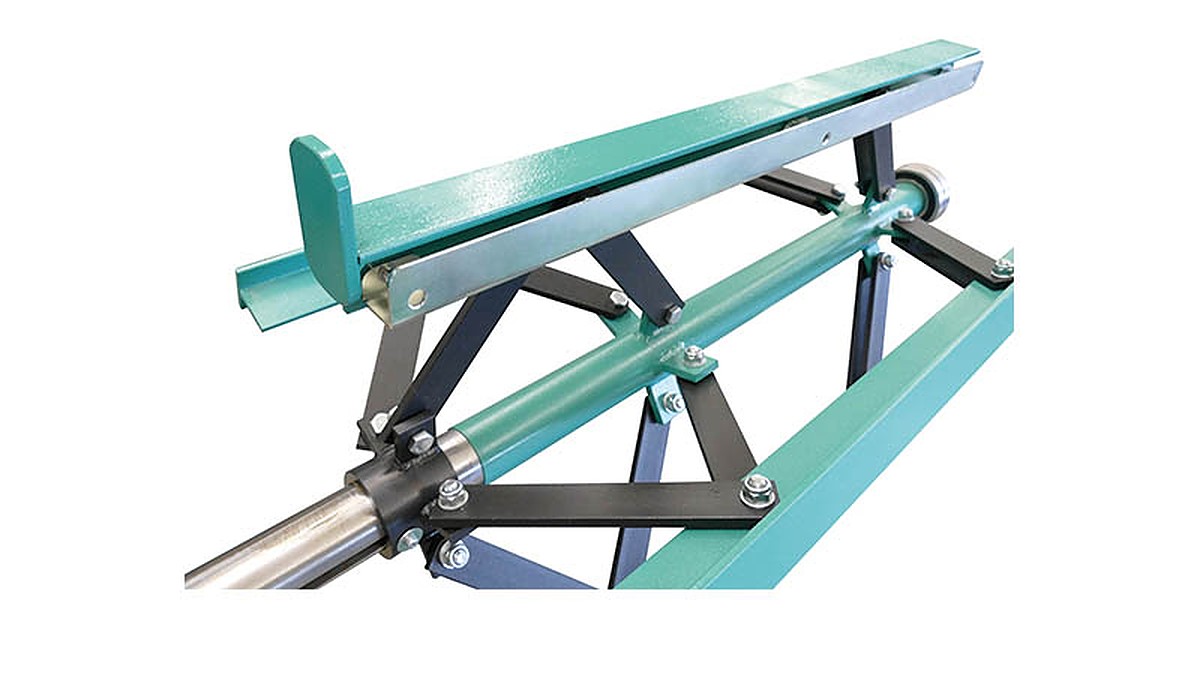

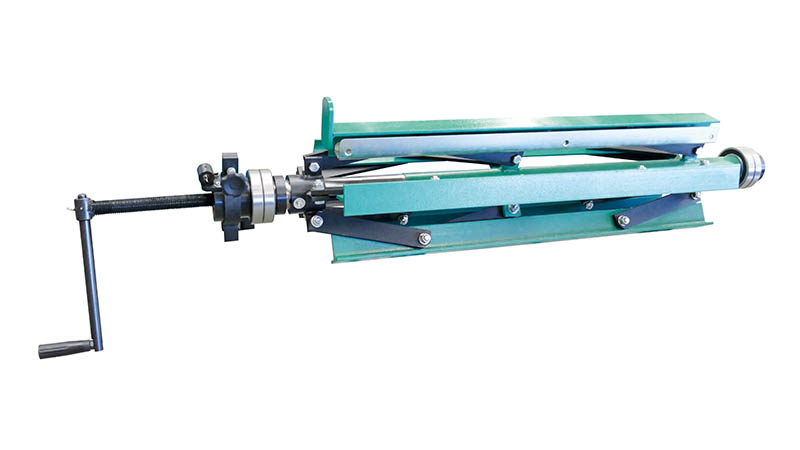

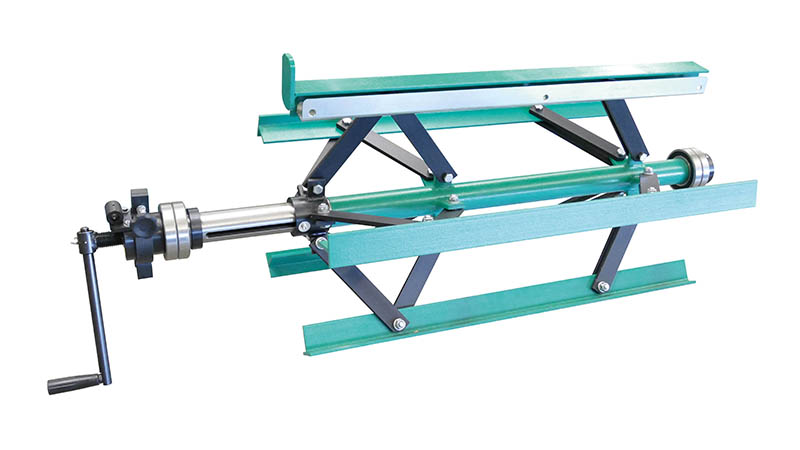

- Manual expansion from Ø 285 to 540 mm
- Maximum external diameter of the coil: 1000 mm
- Maximum width of the coil: 1250 mm

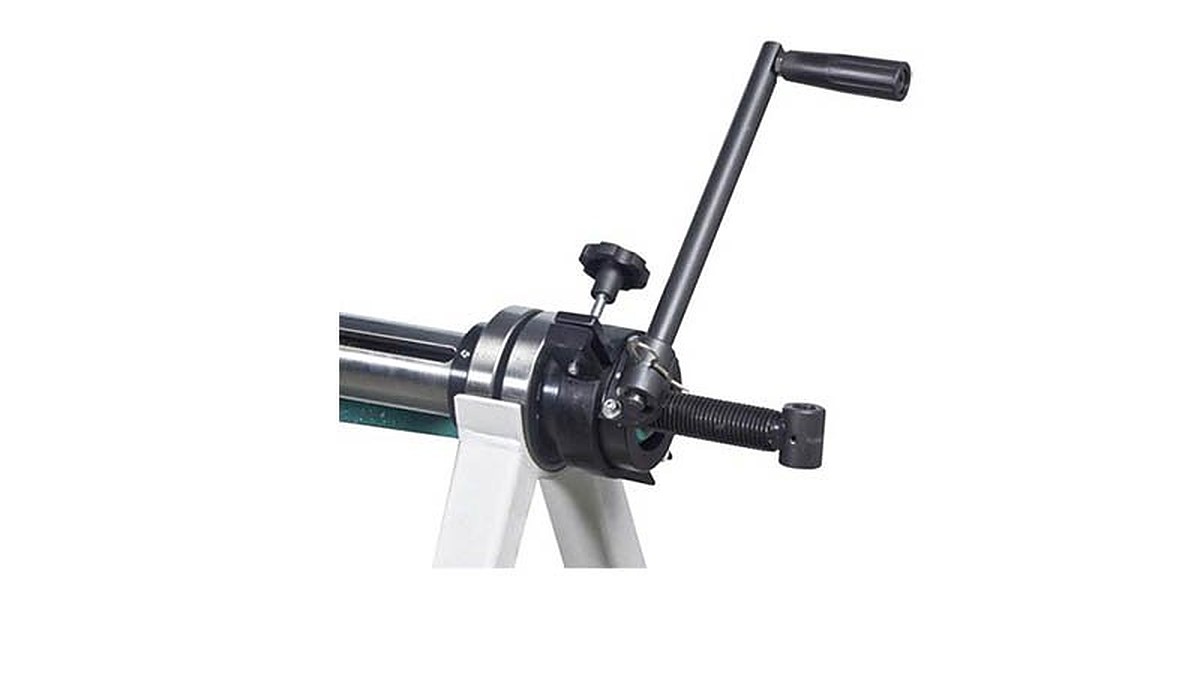

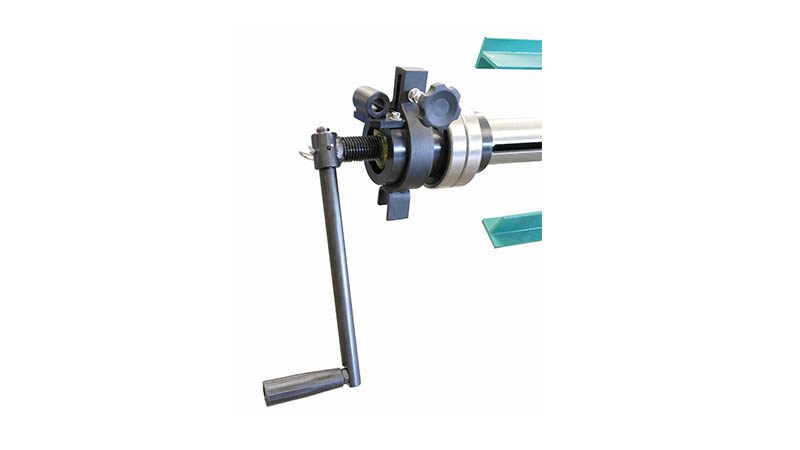

- Manual brake on the same side as the handle for quick and easy adjustment

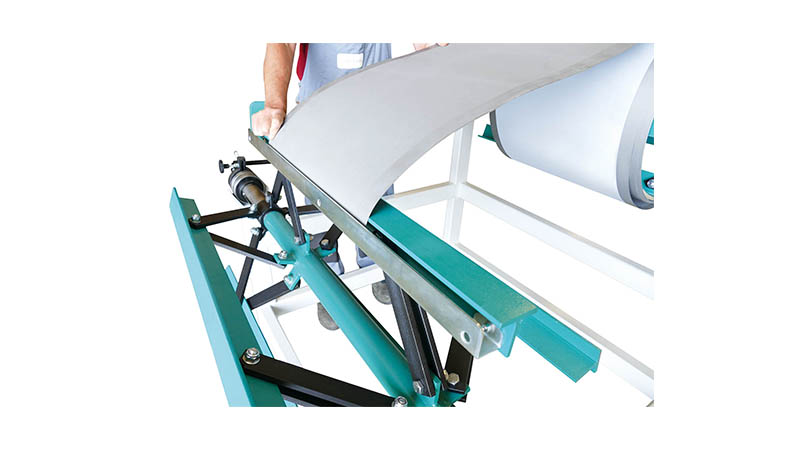

- Allows rewinding without action on the hub expander
- Maximum load capacity: 1000 kg
- Net weight: 126 kg
- Net weight of one expanding hub: 77 kg
FRIBESCO’s reasons:
Why Choose the DVS?
✅ Easy operation for maximum productivity.
✅ All functions are ready to use tool-free.
✅ Simplicity, durability, and exceptional build quality.
✅ Mobility thanks to castor wheels.
✅ Compact design, small footprint.
???? Contact us today to discuss your requirements and arrange a quotation.
