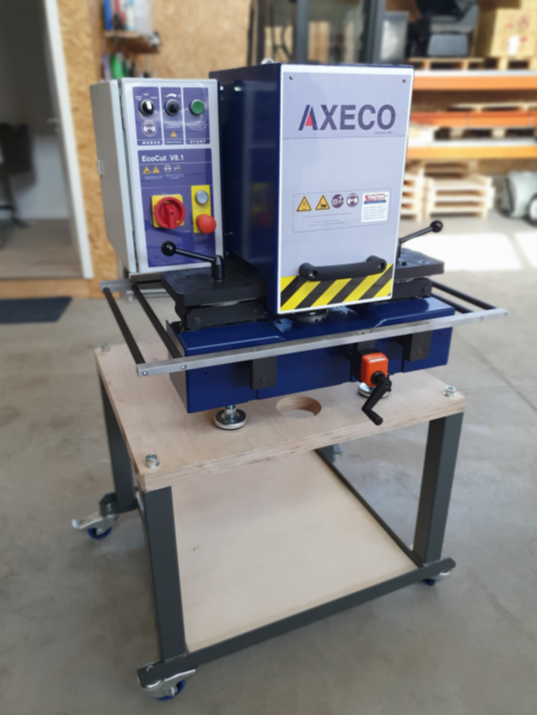

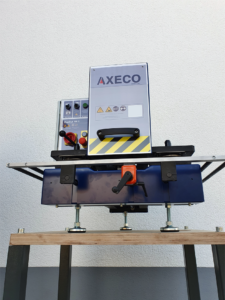

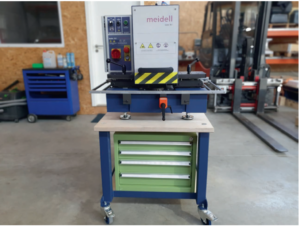

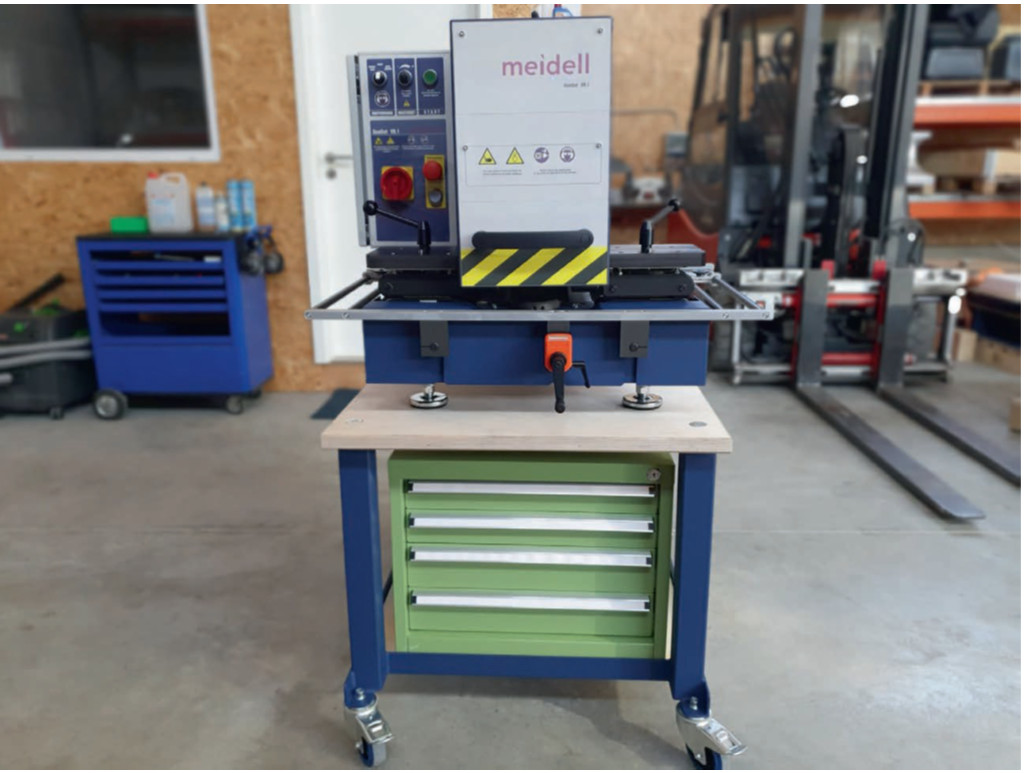

The V8 punching machine offers automatic, high-performance punching for craft and industrial use, with 120 strokes per minute. It handles steel and aluminum up to 1mm thick.

The punching machine V8 for craft and industrial applications. The EcoCut family of automatic punching machines developed from numerous applications. Dor the first time, the craftsman could use a fully automatic and transportable punch with high punching performance with a small set volume.

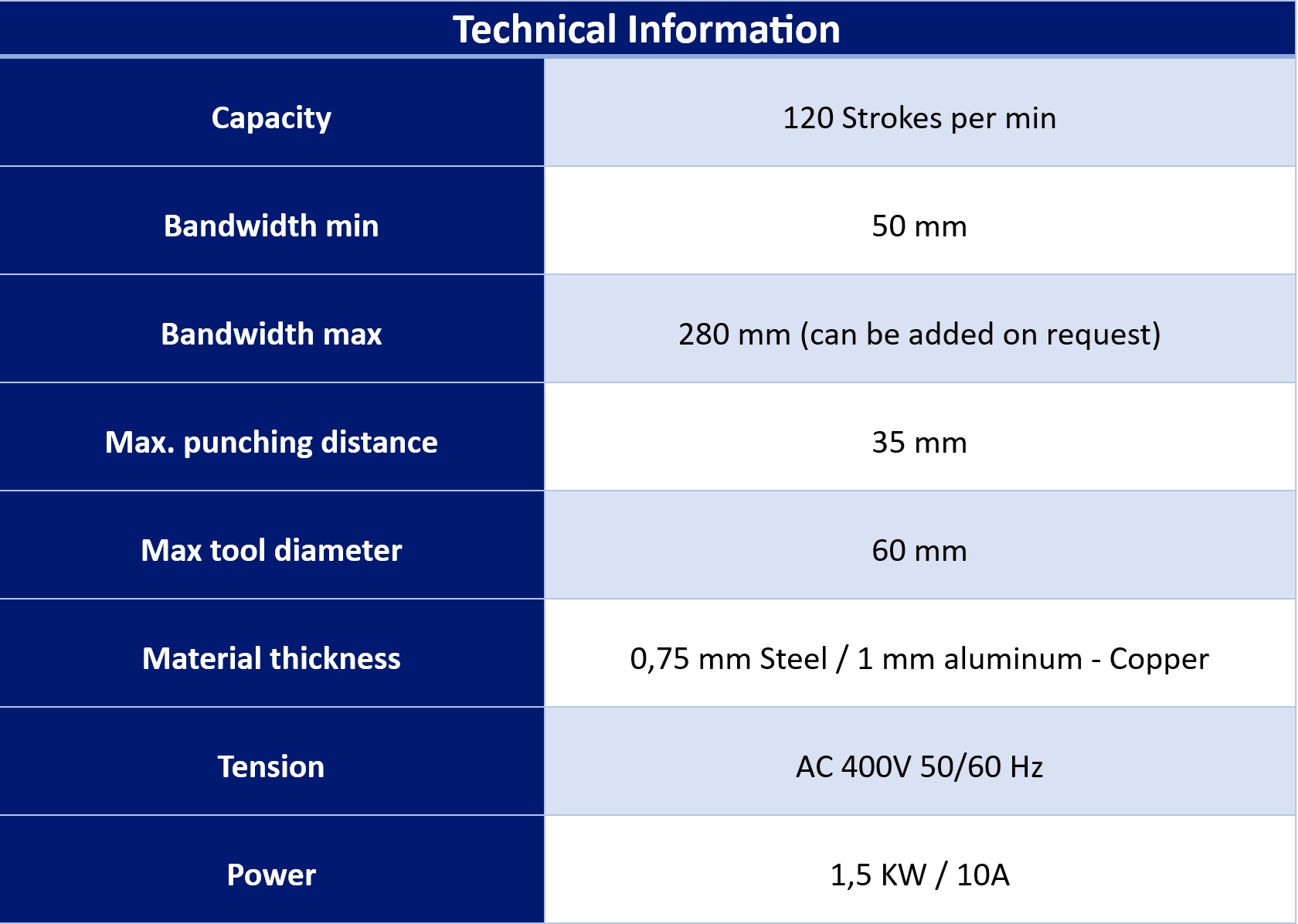

Capacity: 120 strokes per min
Bandwidth min: 50 mm
Bandwidth max: 280 mm (can be added on request)
max. punching distance: 35 mm
max tool diameter: 60 mm
material thickness: 0,75 mm Steel / 1 mm aluminum – Copper

Tension: AC 400V 50/60 Hz
Power: 1,5 KW / 10A
