The IMAC Punching Machines combine precision, stability, and automation with a robust electro-welded steel structure and advanced CNC control for seamless operation. Featuring high-speed performance of up to 450 strokes per minute, they ensure efficiency, accuracy, and ease of use with intelligent repositioning, quick-change systems, and optimized working tables.
Details

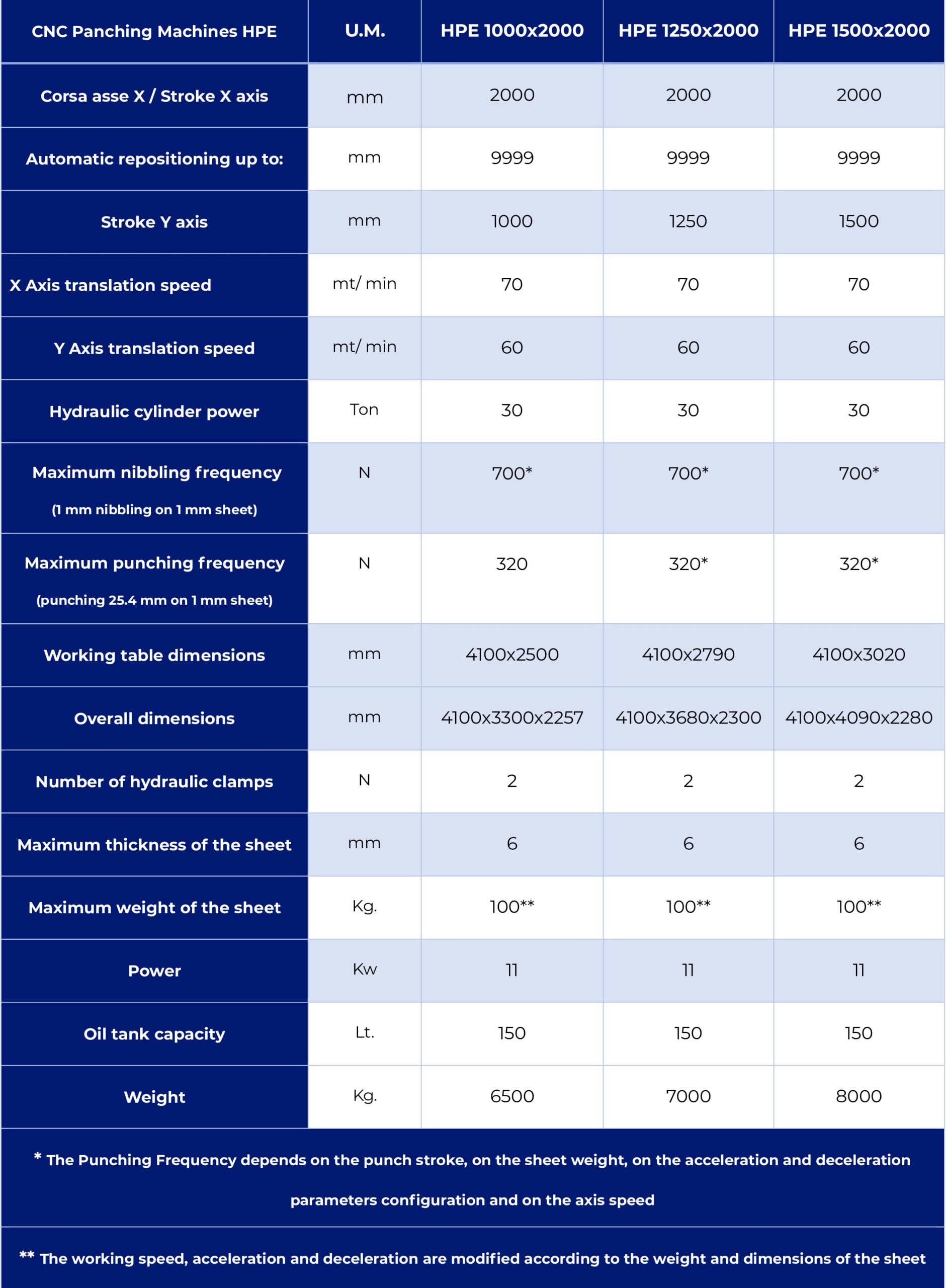

HPE IMAC works up to 700 strokes per minute.
The IMAC Punching Machines are equipped with:
- C-shaped structure in high carbon steel.
- X-axis: linear guides and rectified guides with sphere recirculation screws, operated by brushless motors
- Y-axis: Two guide rails with ball screw spindles, driven by brushless motors.
- Z-axis: Hydraulic cylinder with adjustable punch stroke, tailored to the punch’s sharpening condition and the sheet’s thickness.
- Excellent work table design for optimal performance.
- High-quality brushes fitted to the worktable for efficient debris removal.
- Selector for manual, semi-automatic, or automatic working modes.
- CNC numerical control for precise operation.
- USB port for importing and exporting programs.
- Ethernet port for connectivity.
- Speed variation selector allowing adjustment from 5% to 100%.

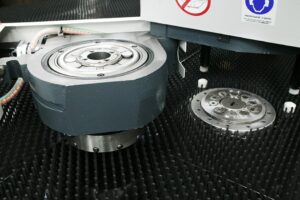

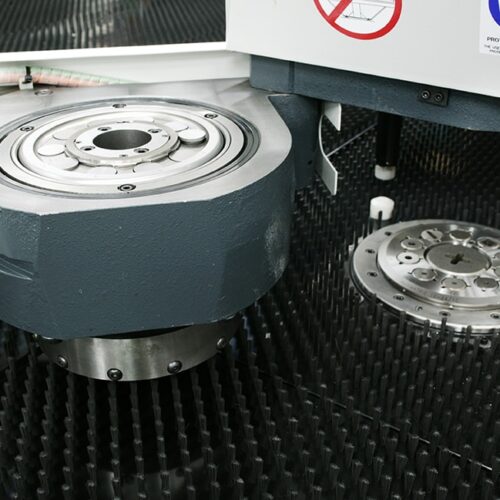

- Quick-change system for punches and dies, operated by hydraulic cylinders.
- Anti-collision function to prevent clashes between clamps and automatic part handling.
- Automatic clamp repositioning up to 9999 mm, calculated by the computer.

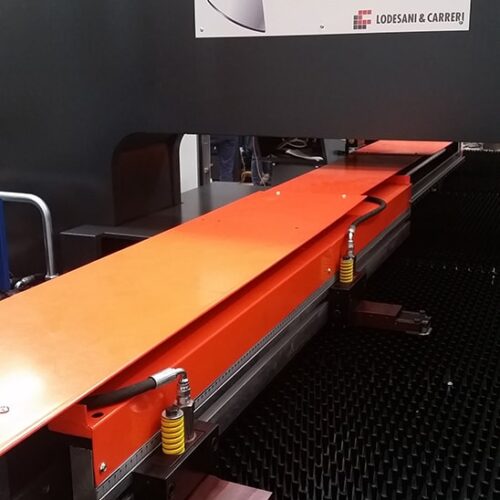

- Sheet clamping using two hydraulic cylinders for secure holding.
- Adjustable repositioning speed for high precision during operations.
- Pedals for automatic clamp movement.
- Large scrap collection box for efficient waste management.
- External hydraulic power unit for easier and faster maintenance and inspectionn
