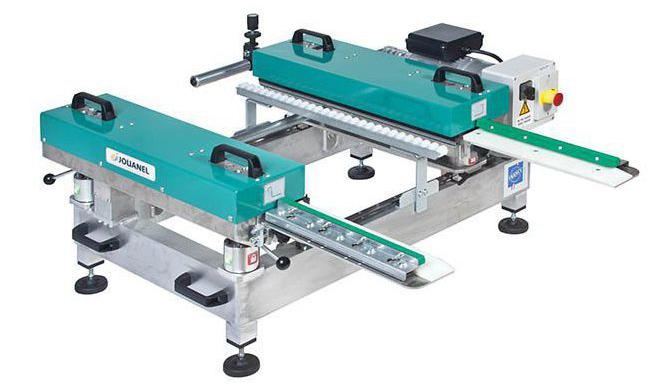

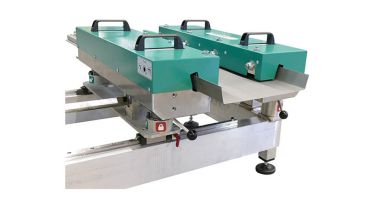

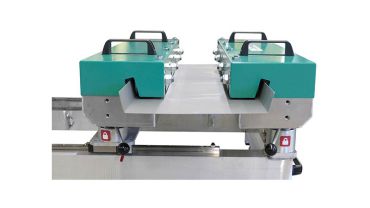

Extra roll-forming unit reference PROBAC-TASS for making cleat roofing trays directly on the worksite. These units can only be used with the roll-forming machine reference PROBAC-CPRO

• Switches from shaping standing seam trays to cleat roofing trays
• On the same machine by simply changing the units

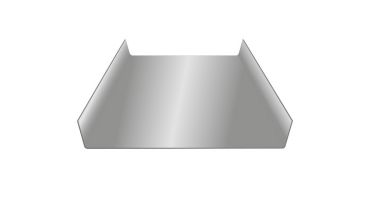

• Roll-forms cleat roofing trays directly on the worksite, no length limit (profiles 35 to 45 mm)
• Easy height adjustment and profile edge angles
• Disassembles without tools, transportable and easy to set up
• Only one set of entry guides regardless of the profile to be shaped
• 4 roller sets ensure good quality profiling

Maximum sheet width (mm): 720
Maximum capacity zinc, copper, 1050-H44 aluminum (mm): from 0,6 to 1,0
Profile edge height (mm): from 35 to 45

• Power supply: 220V single-phased
• Power: 1.1 kw
• Roll-forming speed: 9m/mm
• Forward motion in a continuous operation, control by switch
• Backward motion, control by switch
• Emergency stop system
