Details

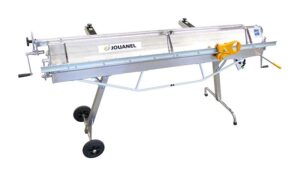

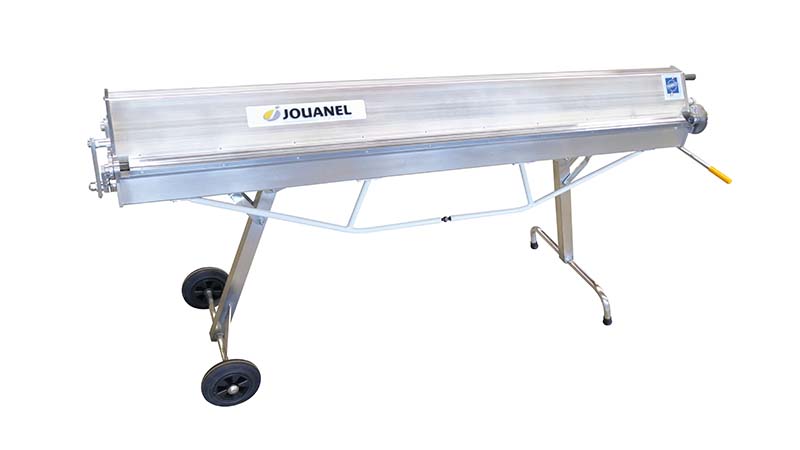

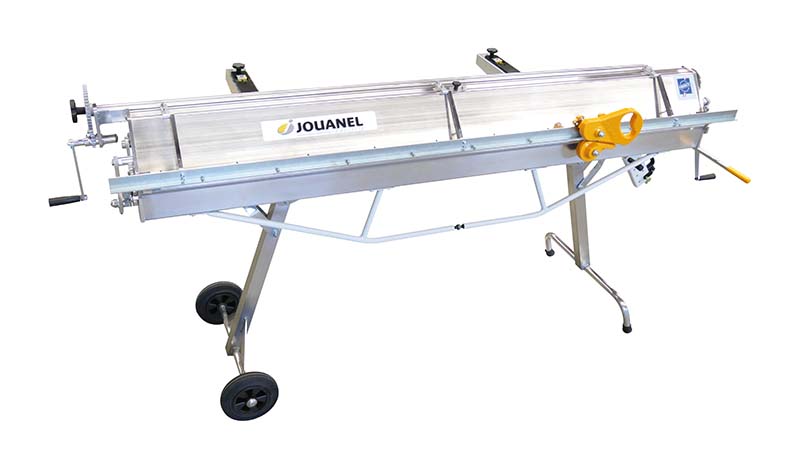

The Jouanel PCA2040 is built for high-productivity site work where longer sheet lengths are required.
The PCA 2040 advantage

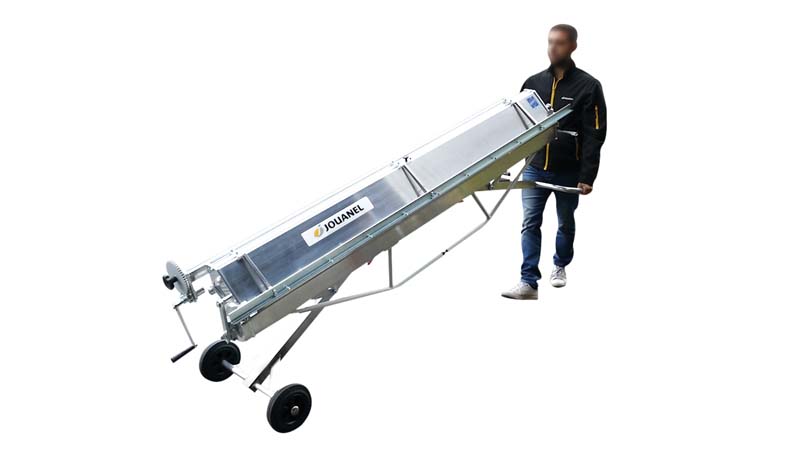

- Single-Person Operation: Despite its 2-metre length, its 80kg weight and integrated wheels allow one person to move and set it up.
- Versatile “3-in-1” System: Equipped with the right accessories, it functions as a comprehensive station to cut, fold, and bead on-site.
- Adjustable Ergonomics: Features a crank handle system to adjust the working height, ensuring operator comfort during long shifts.

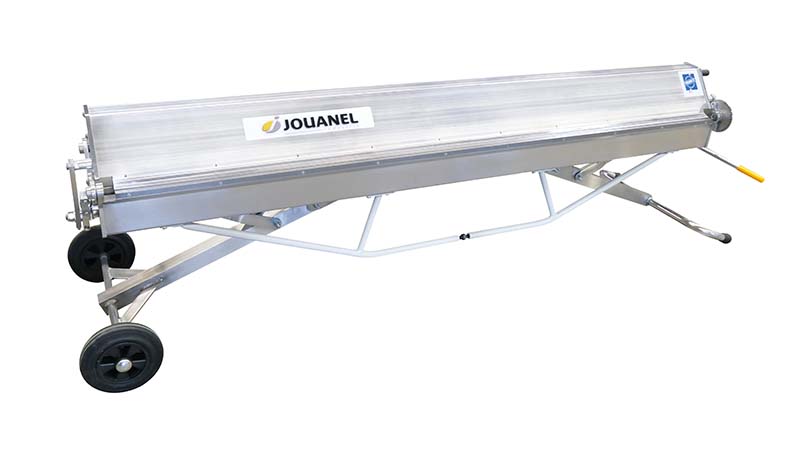

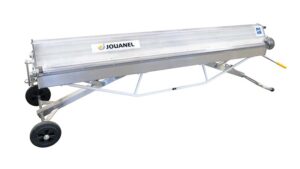

- Extreme Portability: The machine can be folded down for compact transport in service vehicles, saving valuable space.

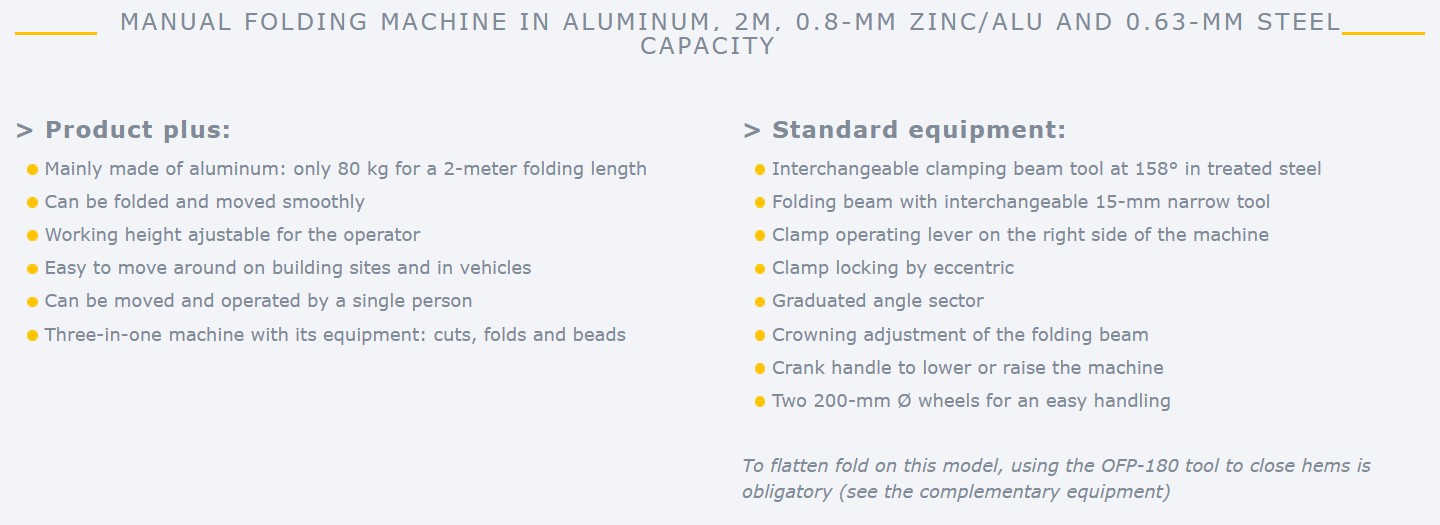

Standard configuration:
- Exchangeable clamping beam tool in treated steel
- Clamp operating lever on the right side of the machine
- Clamp locking by eccentric
- Graduated angle sector
- Crowning adjustment of the folding beam

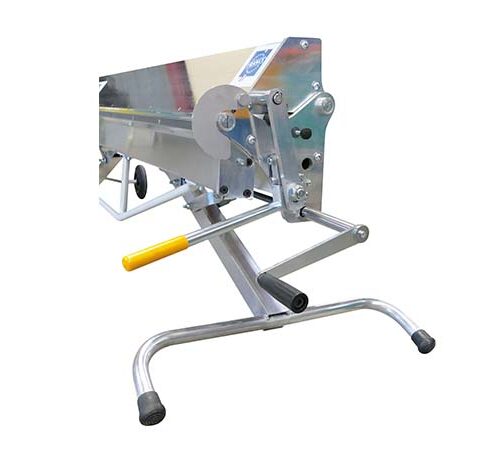

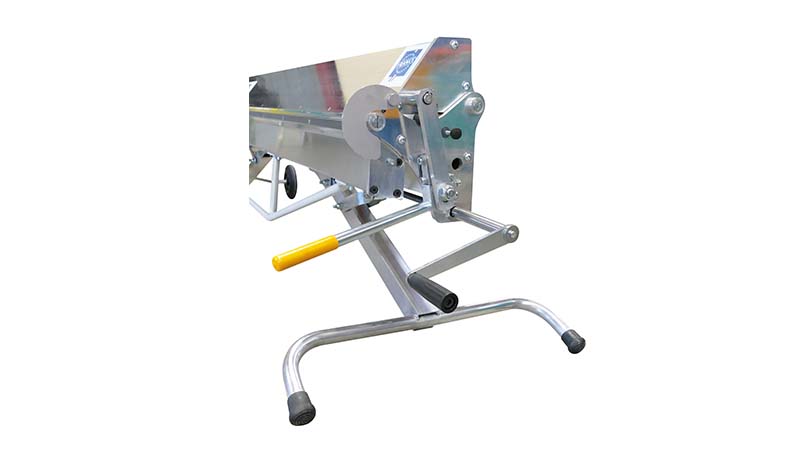

- Crank handle to lower or raise the machine
- Two 200-mm Ø wheels for easy handling.
Tools/Options

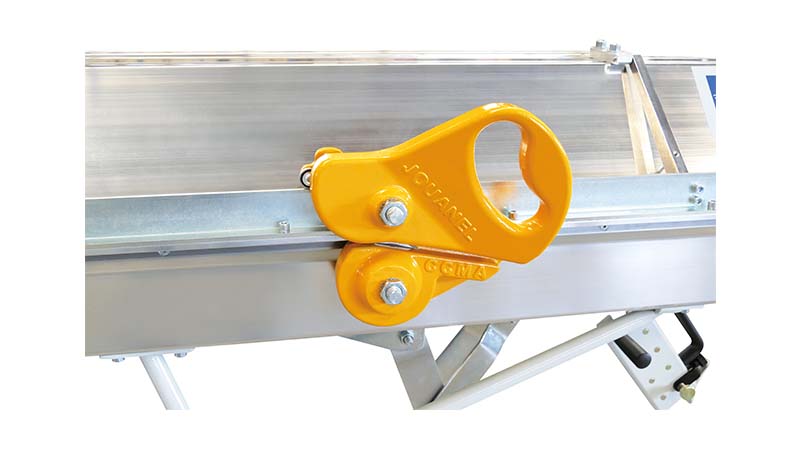

- CCMA Roller Shear: High-precision slitting device for clean scribe cuts (0.7mm steel).
- Guide Rail: A 2-metre hinged guide rail specifically for the CCMA roller shear.
- Geared Beading Accessory: Geared-down aluminium beading tool for effortless rounding of 2m edges.

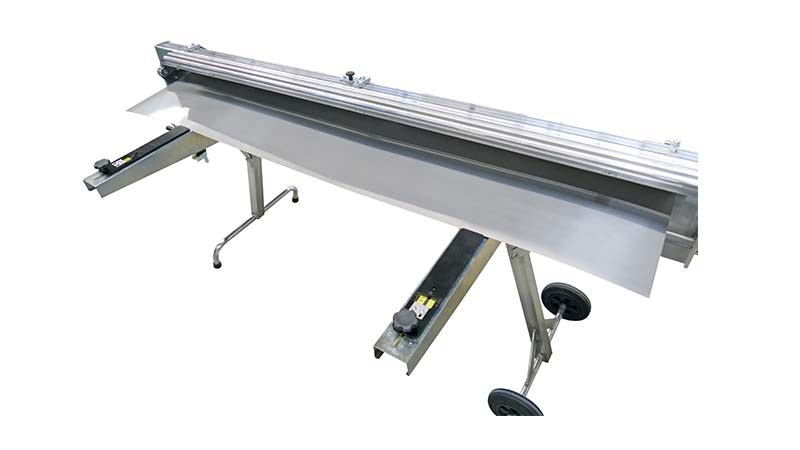

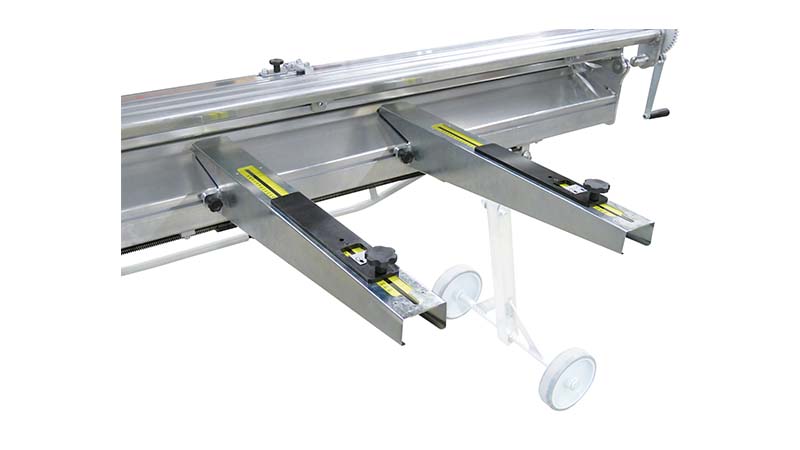

- Sliding Back Gauges: Set of 2 back gauge arms, adjustable from 55mm to 510mm for repeatable positioning.

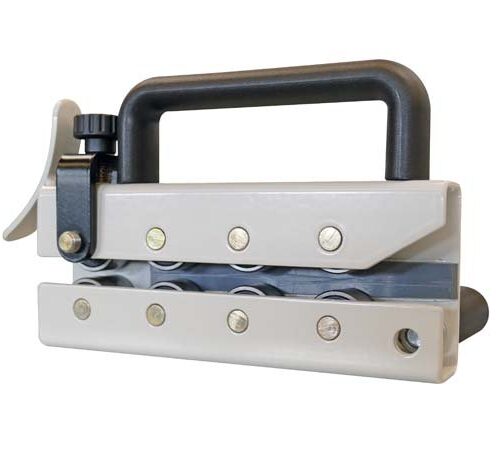

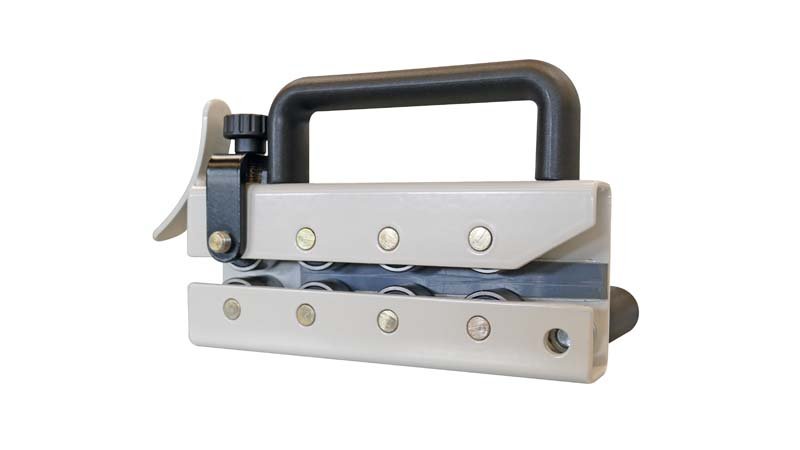

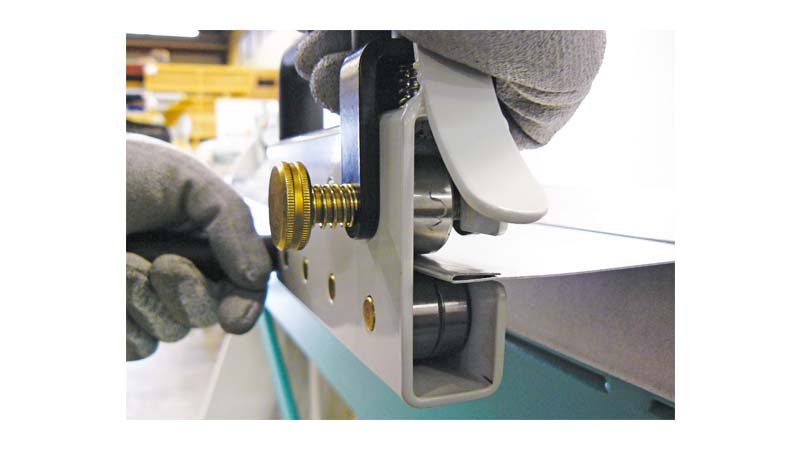

- Seam Closing Tool: OFP-180 tool for finishing 180° hems from a 135° pre-bend.

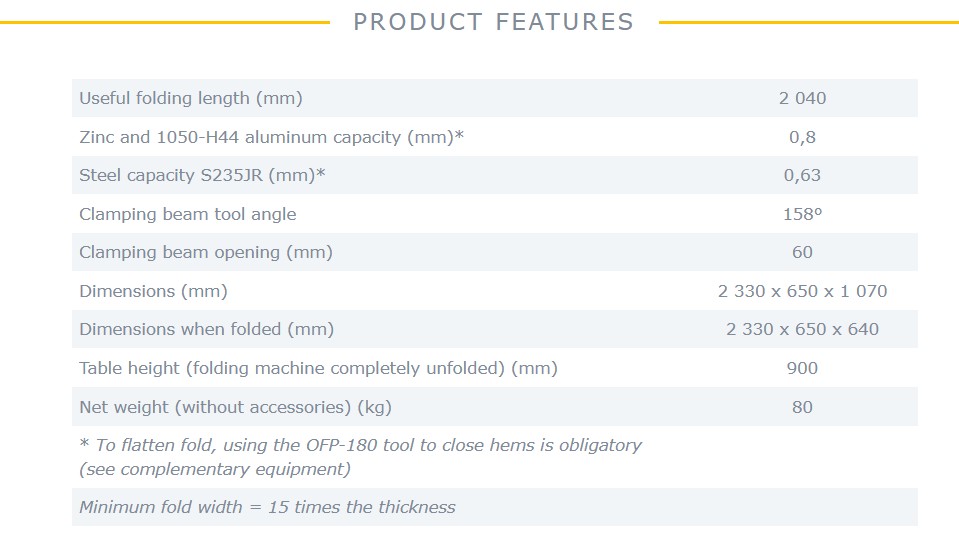

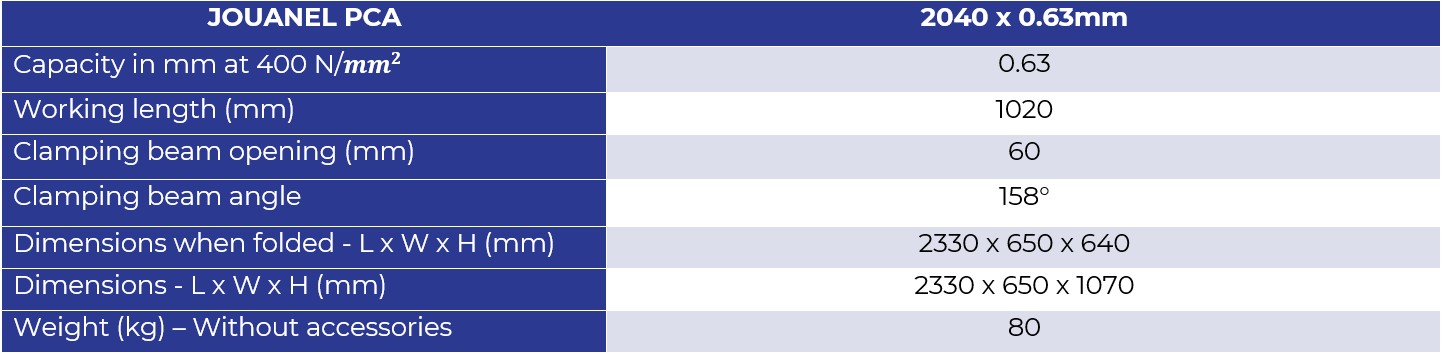

Technical Data
FRIBESCO’s reasons:
Why Choose the PCA folder?
✅ Compact “Van-Friendly” Design: Engineered with a foldable frame.
✅ High-Precision Long Folds: Integrated crowning adjustment allows you to fine-tune the folding beam
✅ Effortless Mobile Setup: Built-in heavy-duty wheels and a foldable frame.
✅ Three-in-One Site Solution: Highly adaptable with optional integrated tools, allowing you to cut, fold, and bead.
✅ Crank-Adjustable Ergonomics: The unique height-adjustable frame allows you to set the machine to your specific comfort leve.
The Jouanel folder gives professional roofers the edge: faster throughout, consistent accuracy, and long-term reliability.
???? Contact us today to discuss your requirements and arrange a demo.
The Jouanel PCA2040 is the larger sibling of the PCA1020, offering a full 2-metre working length while maintaining a lightweight aluminium construction.
At only 80kg, it is exceptionally light for its size, designed to be operated and moved by a single person.
