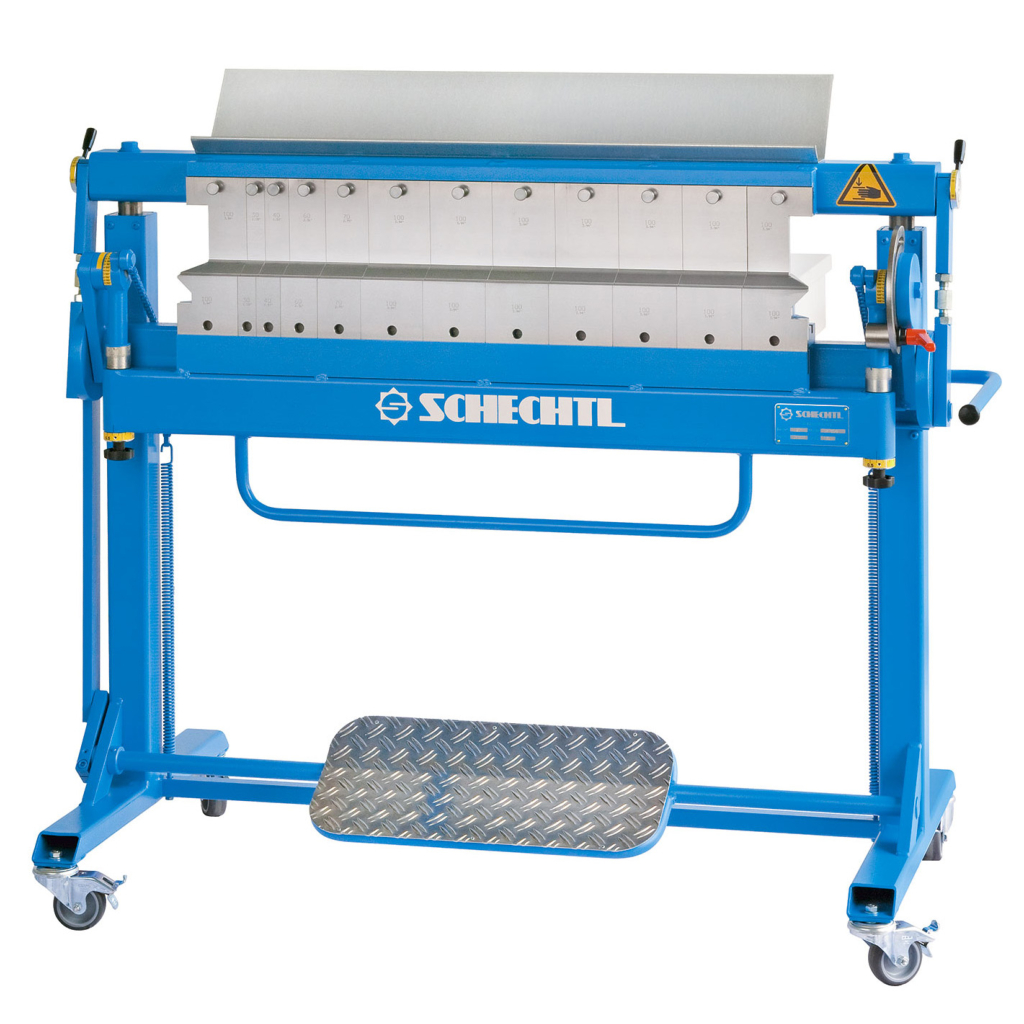

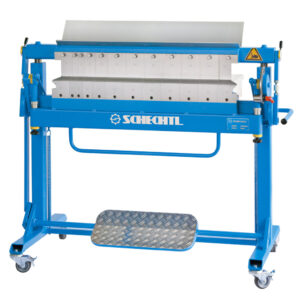

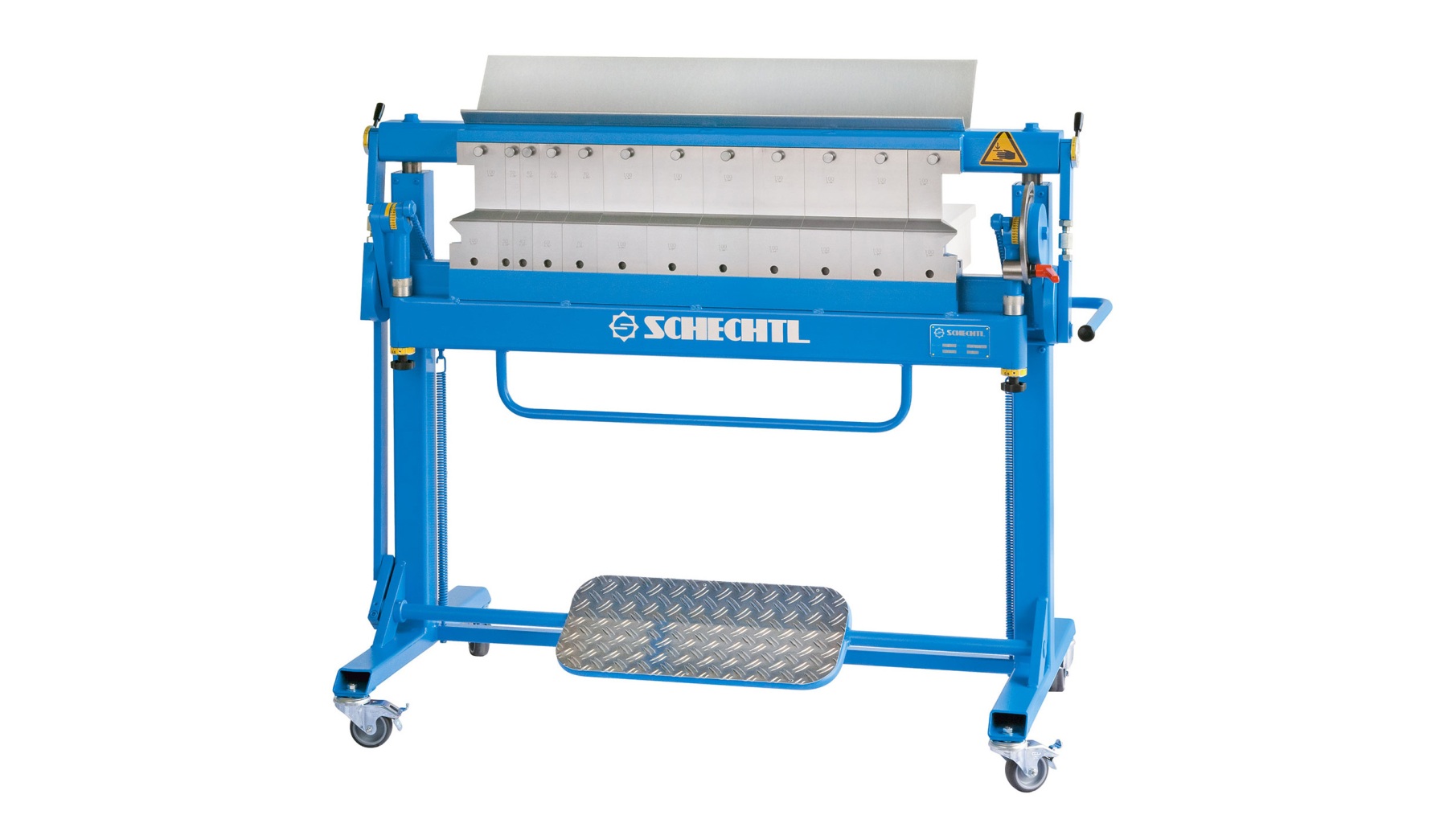

Schechtl UKV

Details

The UKV is a “multi-talent” strong specialist for small batches and one-off production.

Applications & Best uses

Complex Box Forms: Perfect for fabricating boxes, cassettes, and trays that require bending on all four sides.
Detailed Architectural Profiles: Used extensively in roof and facade construction for custom flashings and chimney caps.
Custom Metalwork: Ideal for automotive chassis work, switch boxes, and prototypes where precision joining is required.

The UKV advantage

Segmented Versatility: Unlike standard folders, the UKV features segmented tools on all three beams (clamping, lower, and bending), offering “XXL” free space for complex geometries.
Patented Quick-Clamping: Rearrange or remove segments in seconds without any tools or screws, drastically reducing setup times between different profiles.
Stronger Construction: Compared to the UK series, the UKV features reinforced beam elements, allowing it to handle thicker materials (up to 2.0 mm steel) over longer working lengths.
Hands-Free Operation: Includes a standard foot pedal for clamping, allowing the operator to use both hands to position the sheet accurately.
Maintenance-Free: Built with durable steel welded frames and maintenance-free bearings for long-term industrial reliability.

Standard configuration:

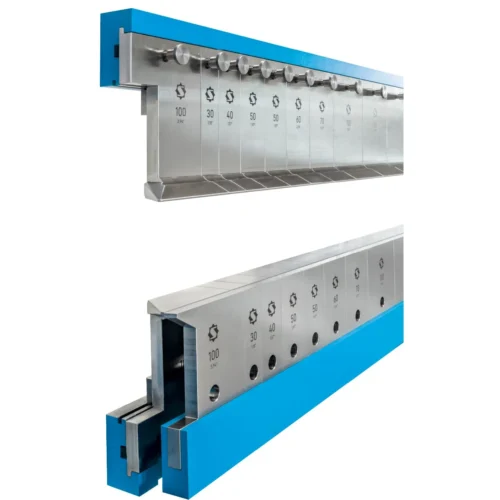

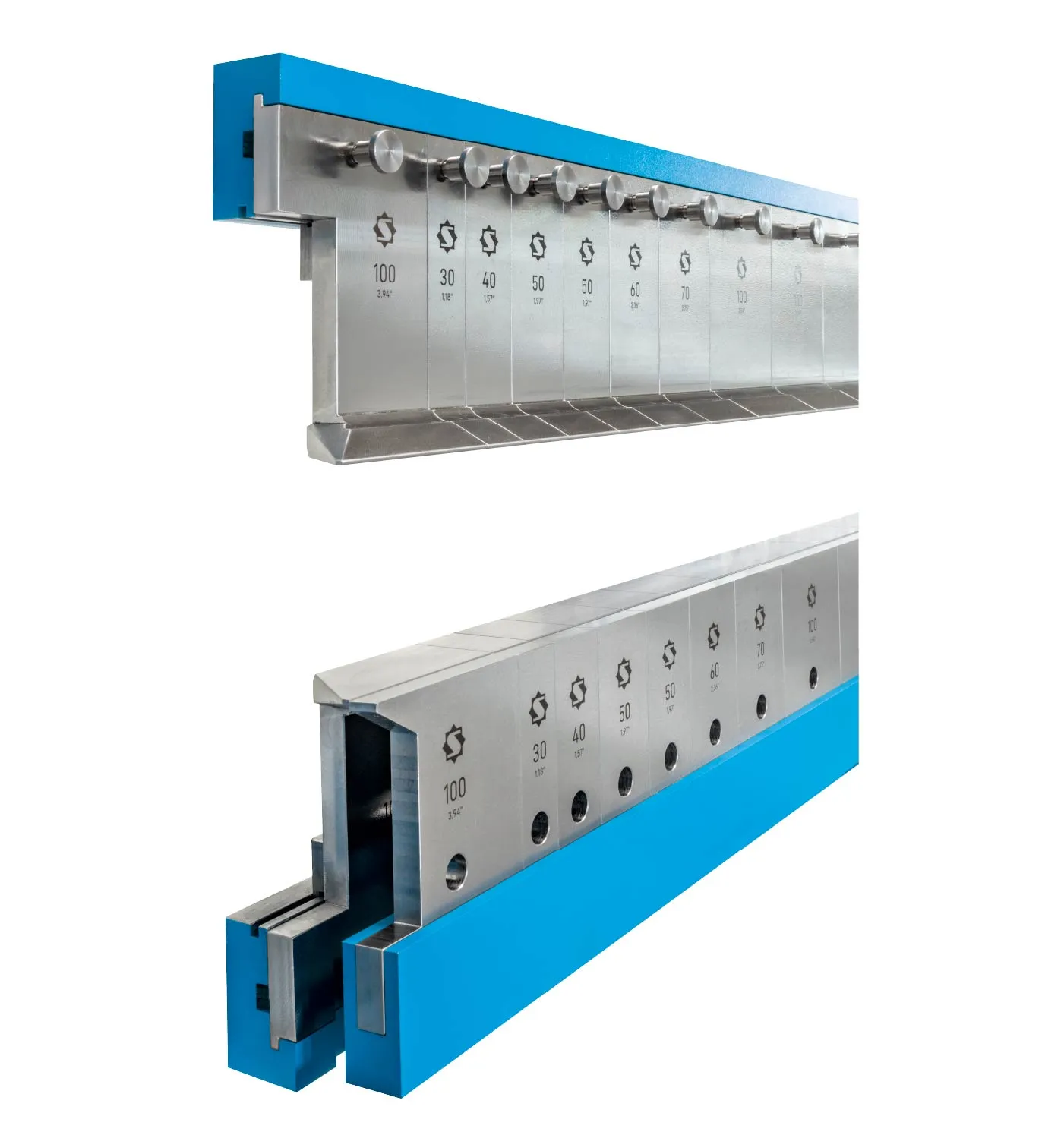

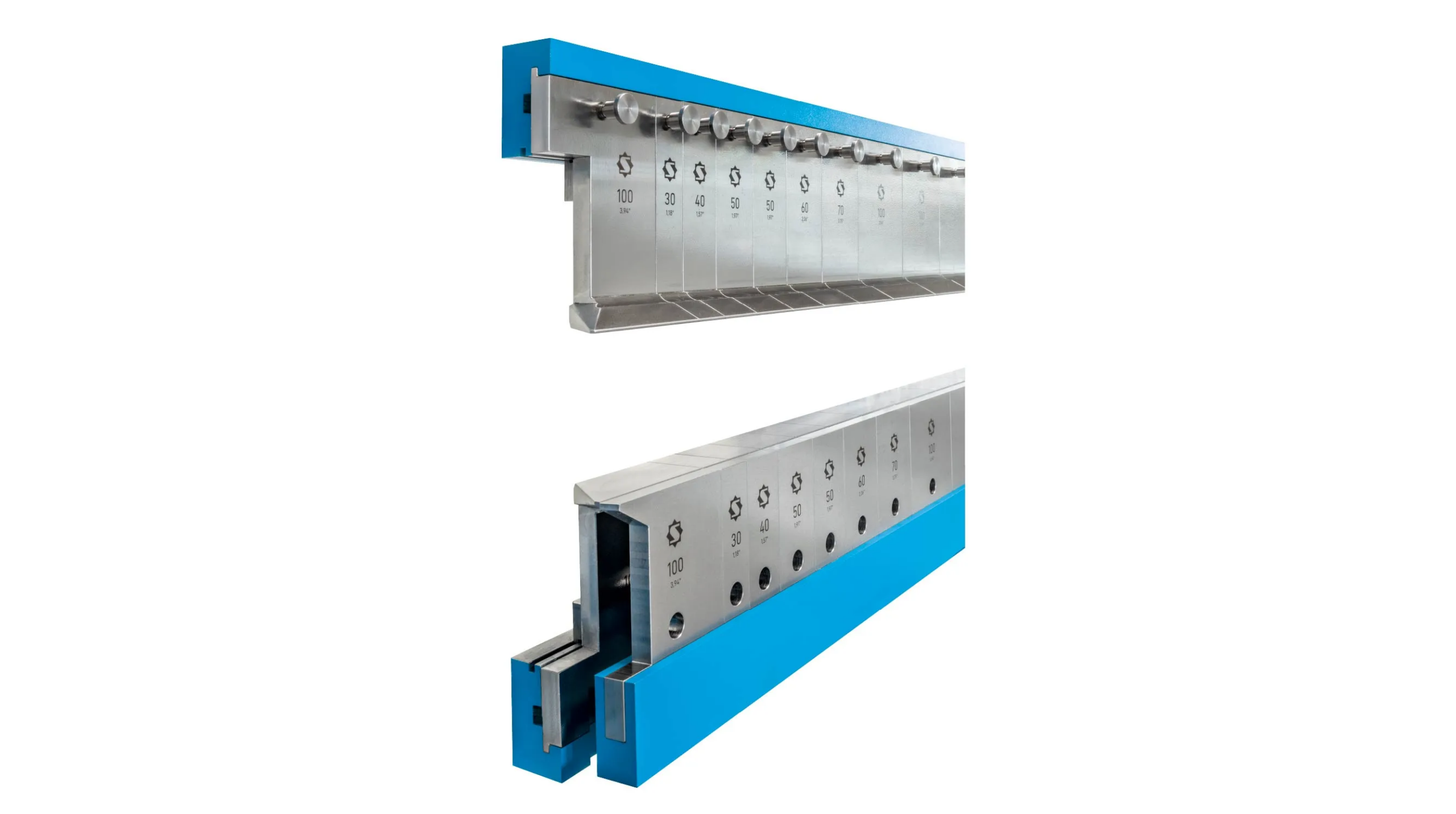

Quick Clamping System: Patented tool-free adjustment for segments on the clamping, lower, and bending beams.

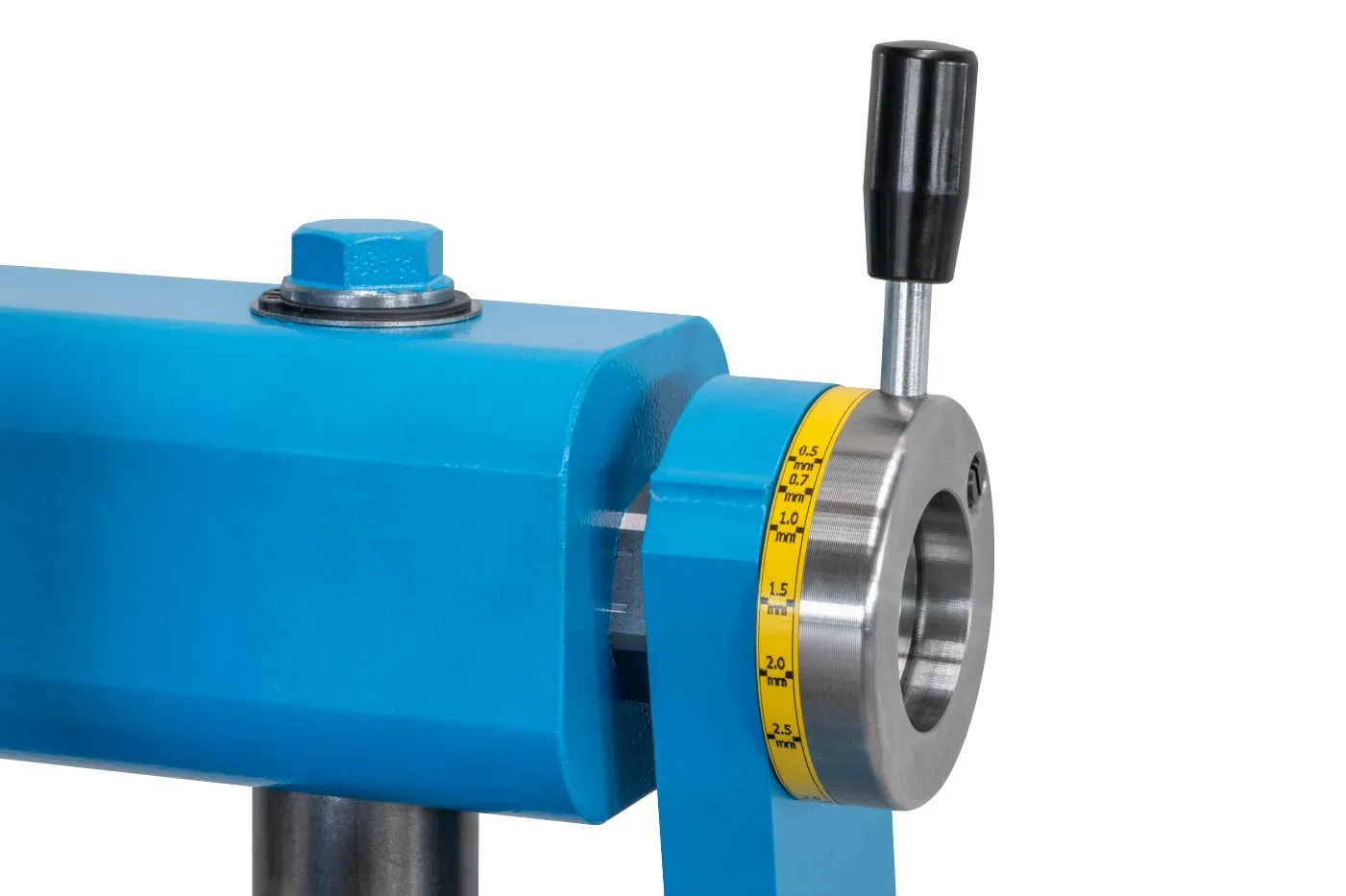

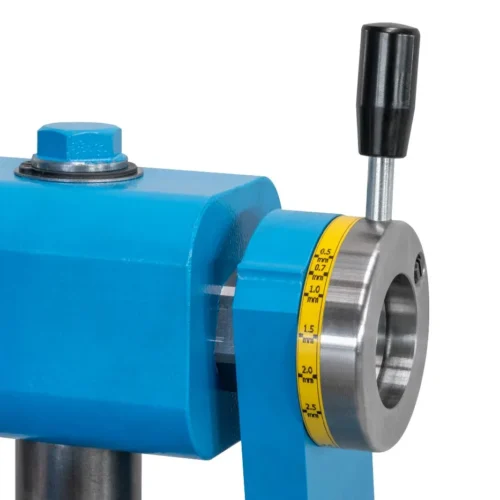

Quick, tool-free adjustment of the clamping beam clamping pressure.

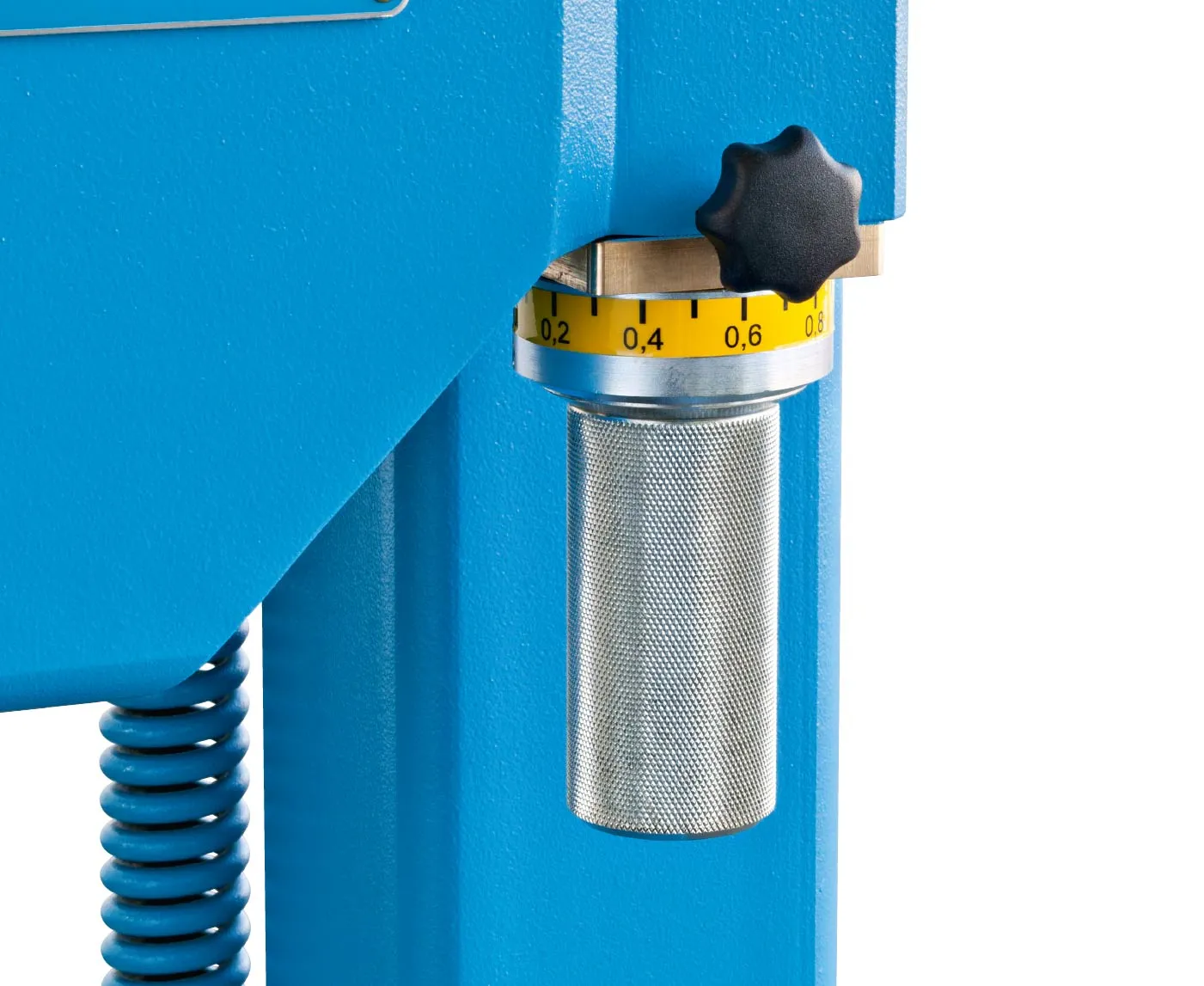

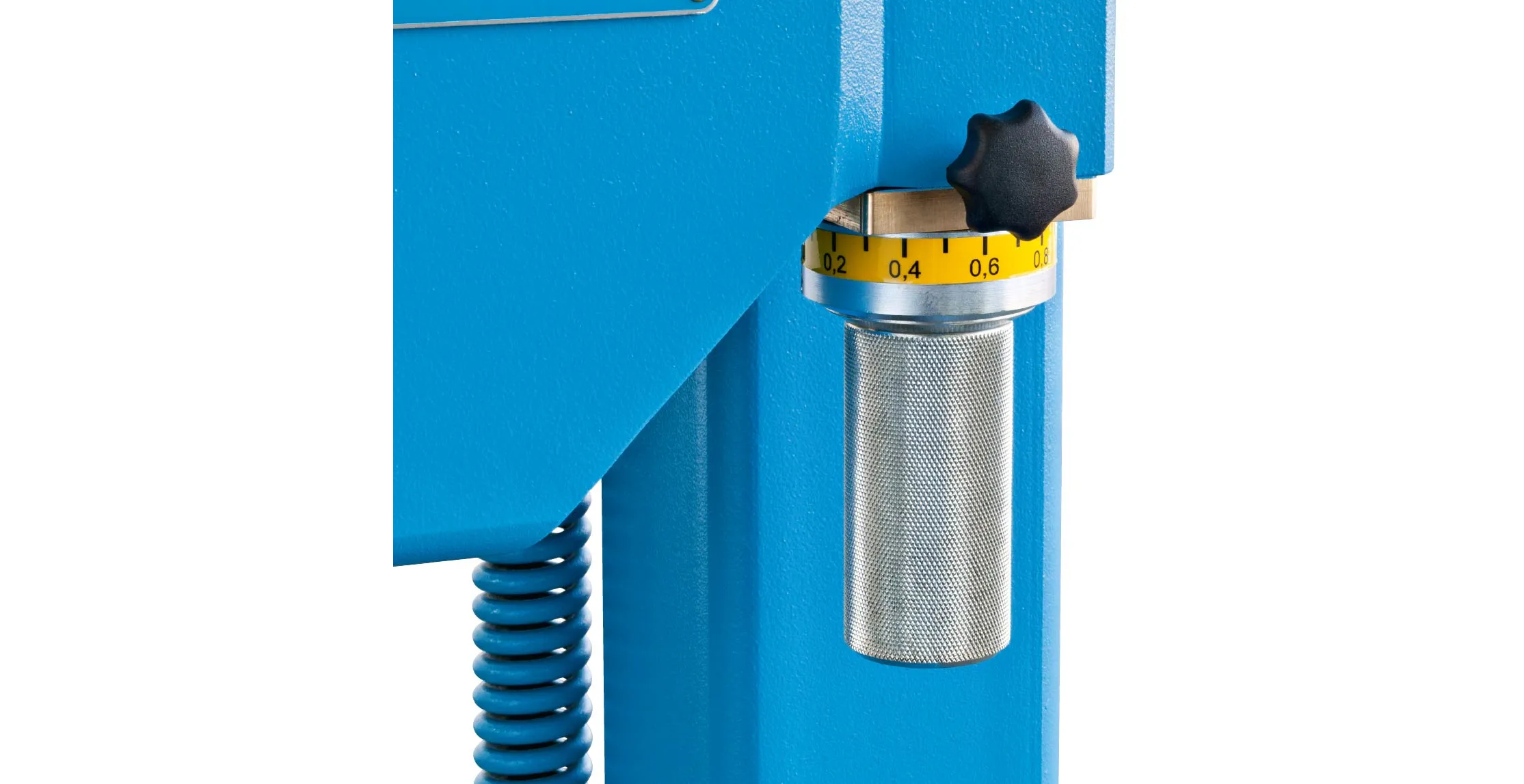

Tool-free adjustment for lowering the bending beam.
Foot Pedal: For hands-free clamping and operation.

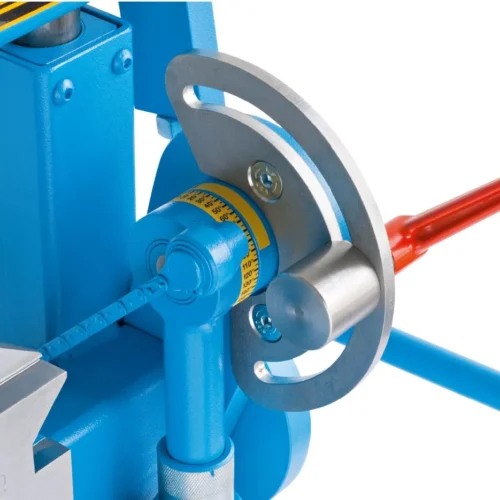

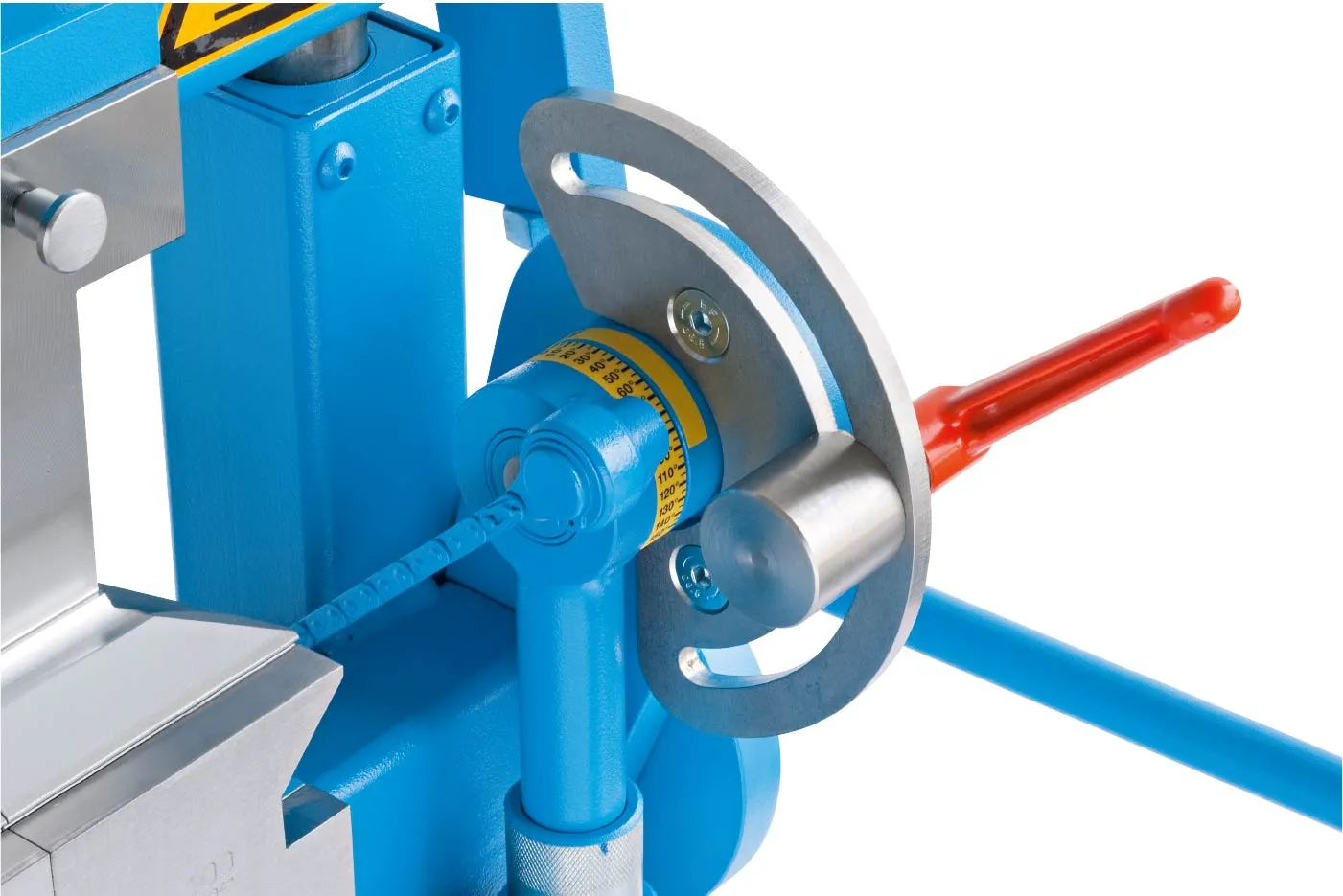

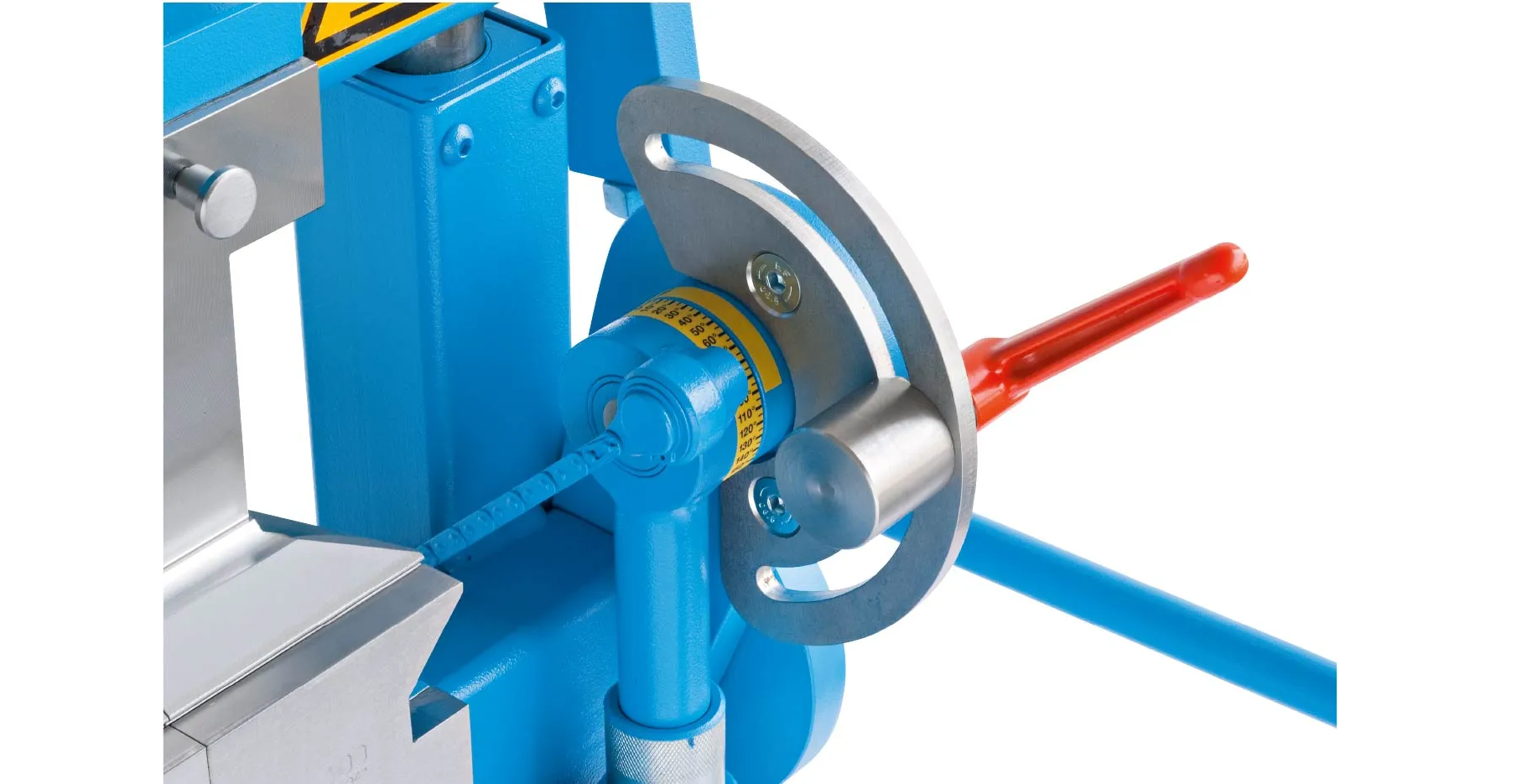

Bending Angle Limitation: A mechanical stop for consistent, recurring bending operations.
Segment Radius: Standard segments on the clamping beam come with a 1.1 mm radius.

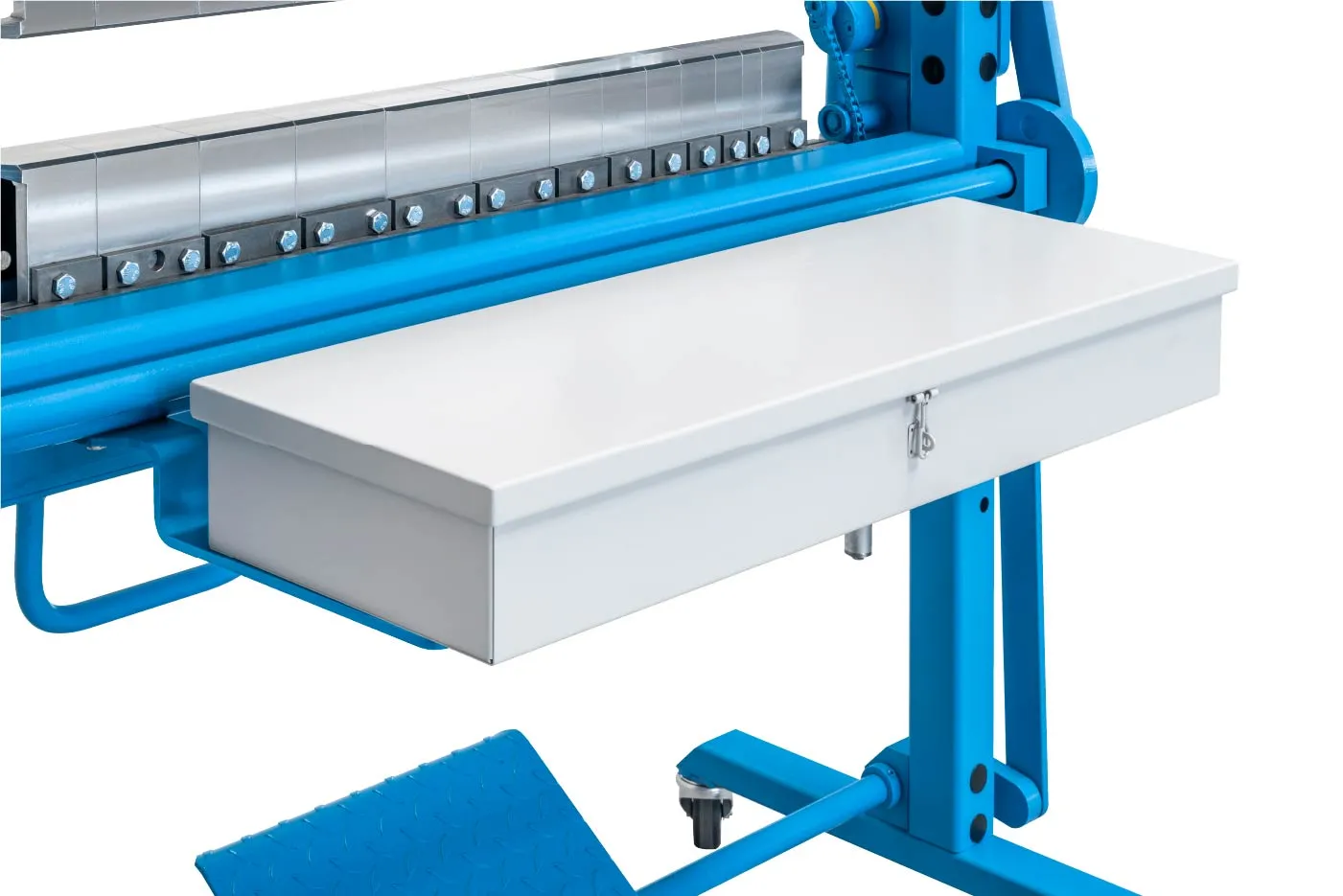

Storage Box: Integrated tray/box for segment storage, which also serves as a workpiece support.

Tools/Options

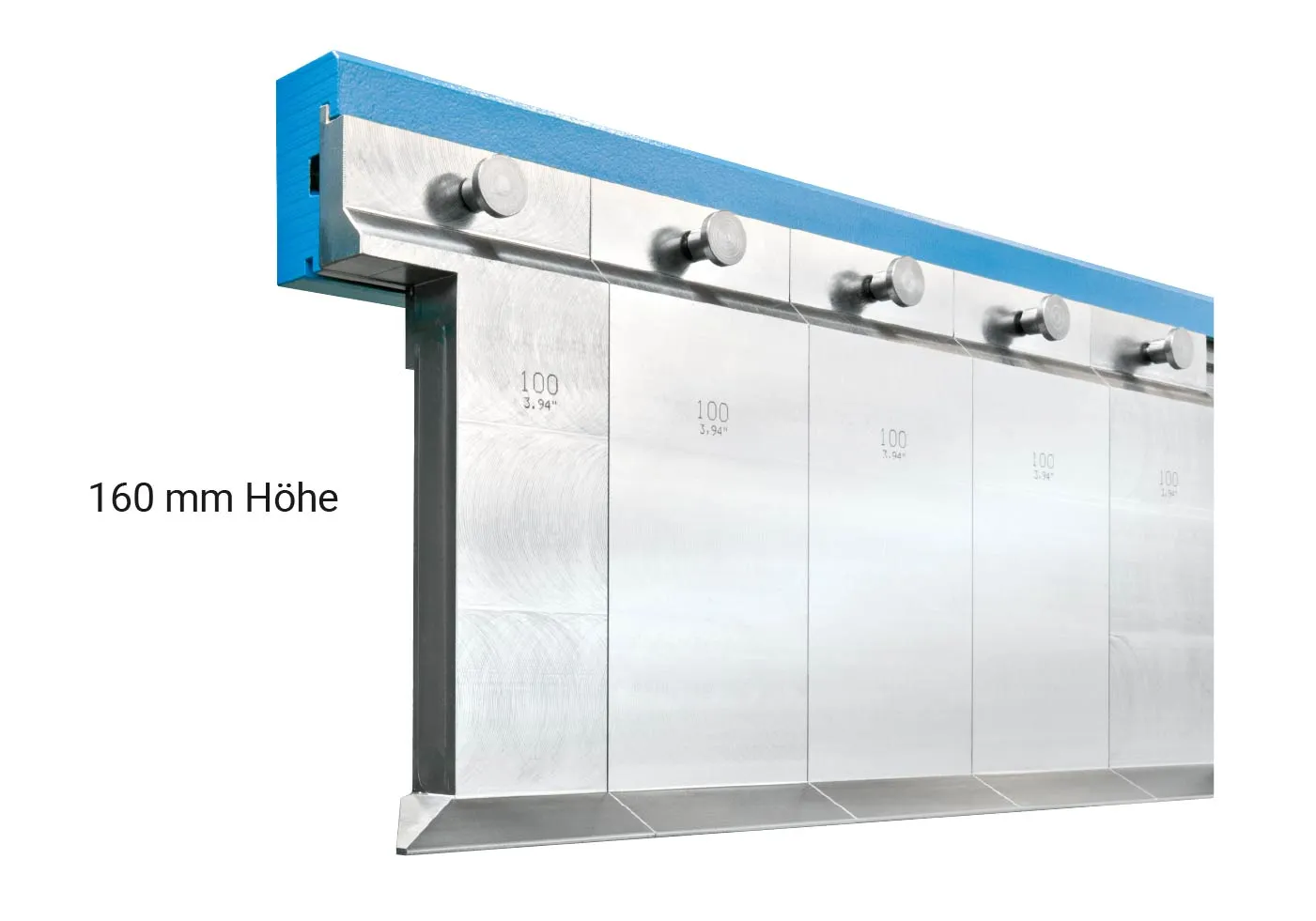

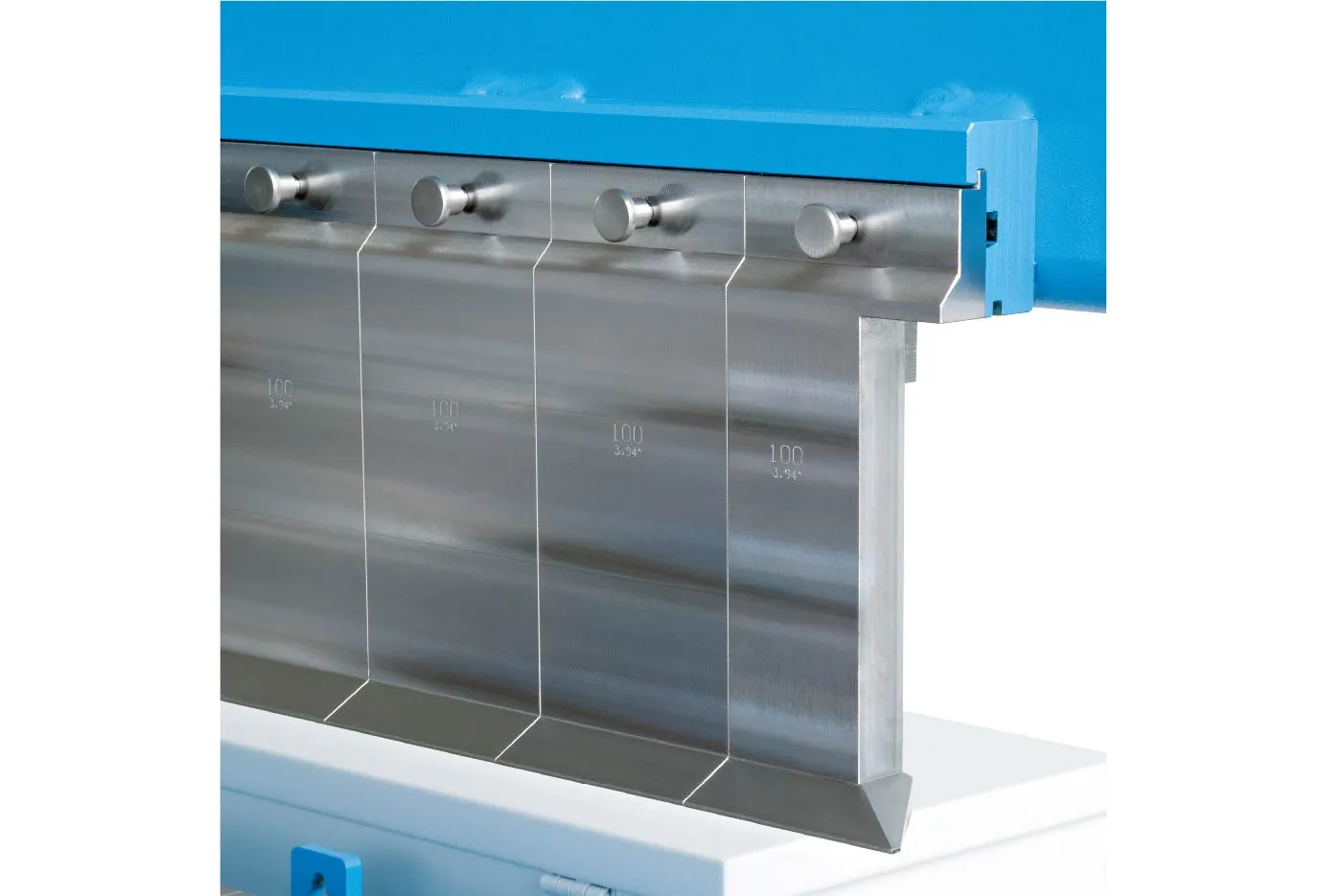

Higher Segments: Upgrade to 140 mm, 160 mm, or even 180 mm high segments for the upper beam for massive box clearance.

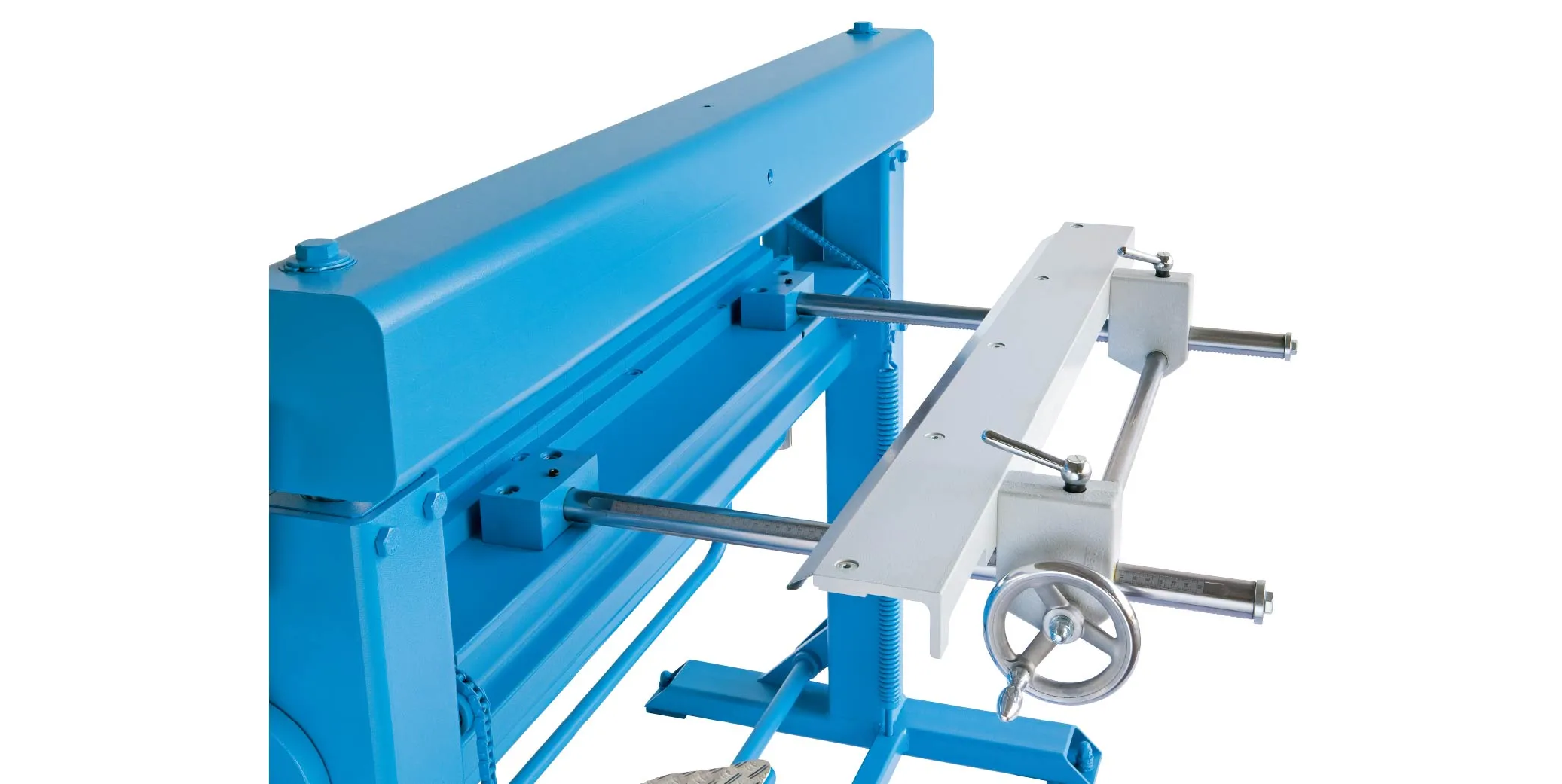

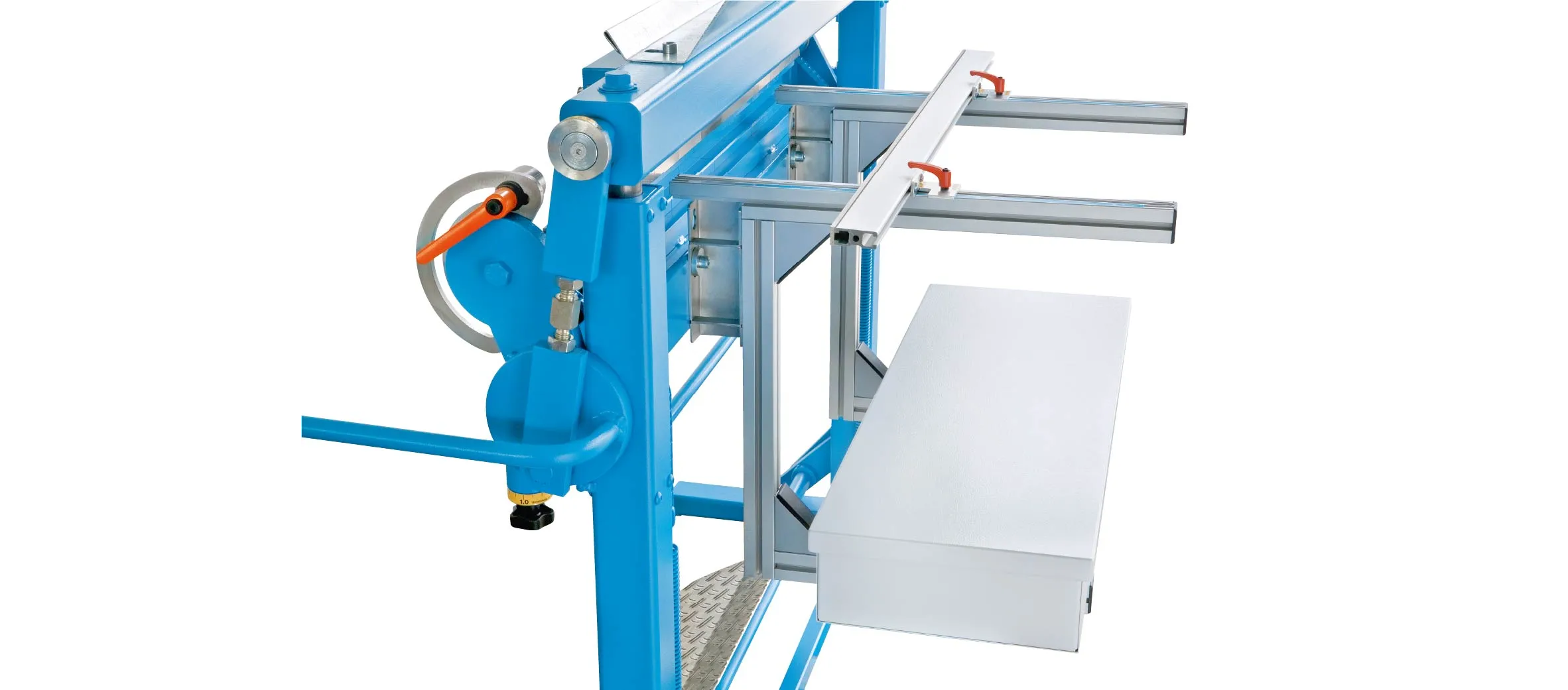

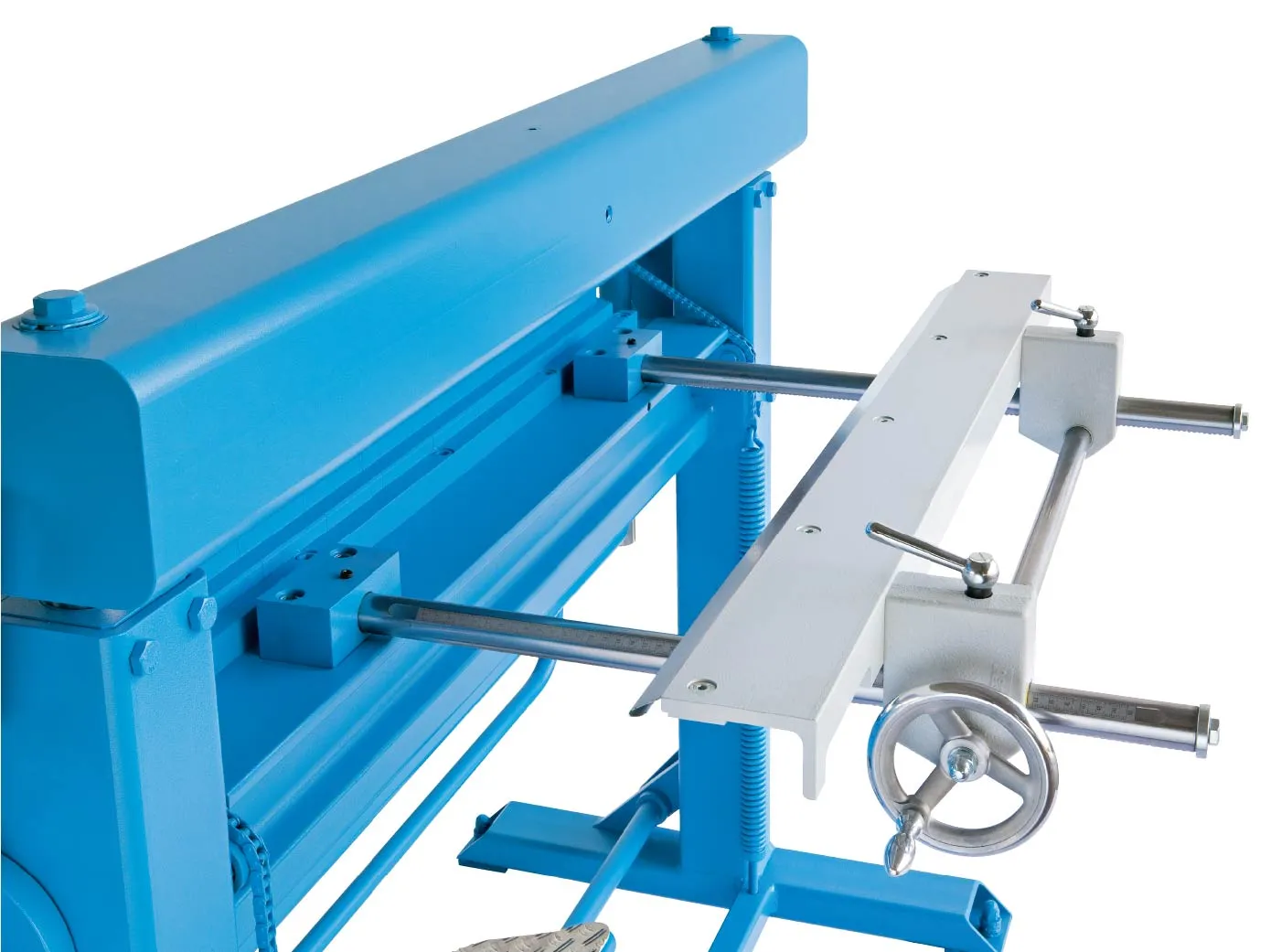

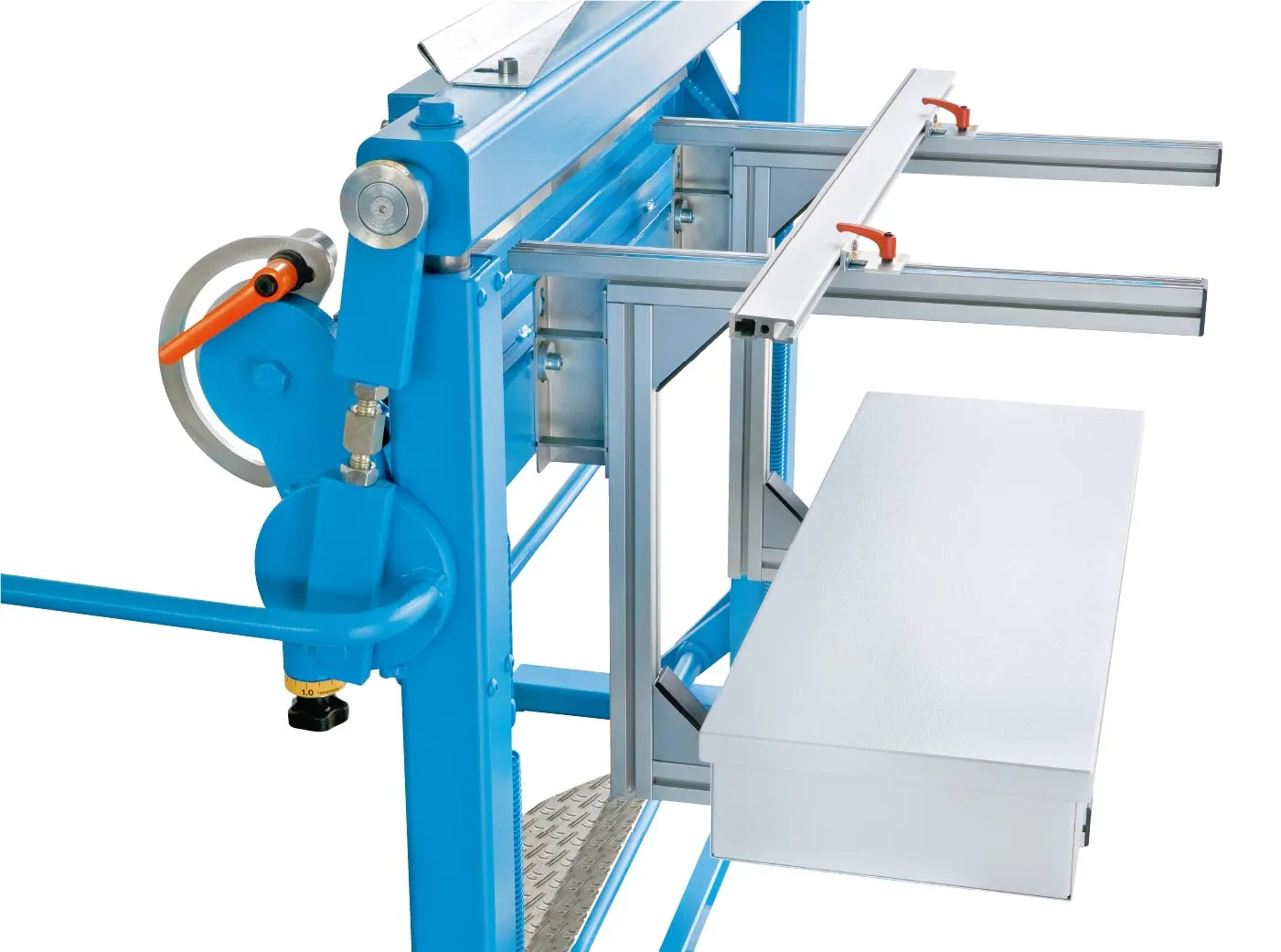

Backgauge Systems: Options for Aluminium T-slot (60–500 mm) or Spur Rack (60–500 mm) for precise repeatability.

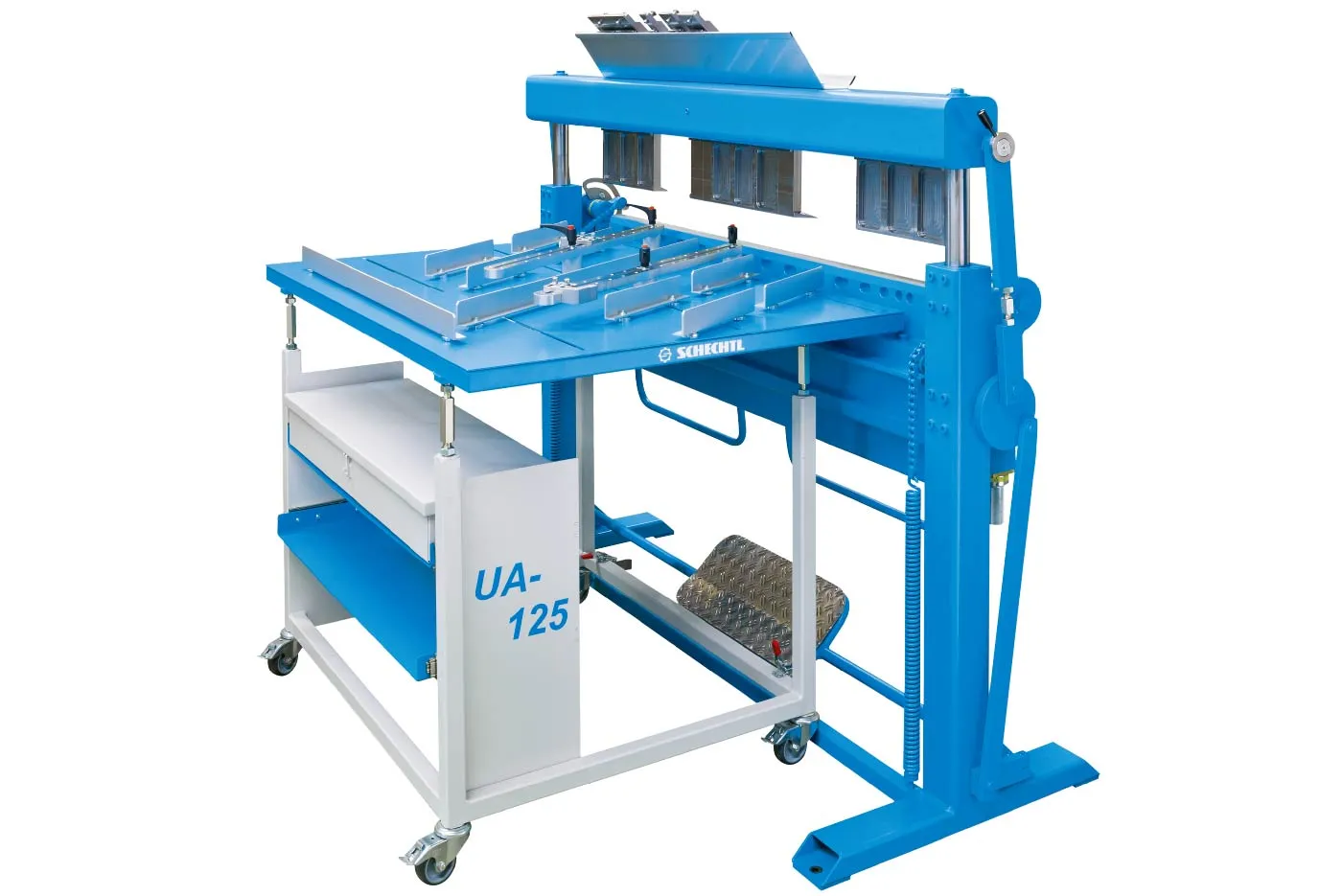

Universal Backgauge Table UA125: A mobile support table for handling larger sheets.

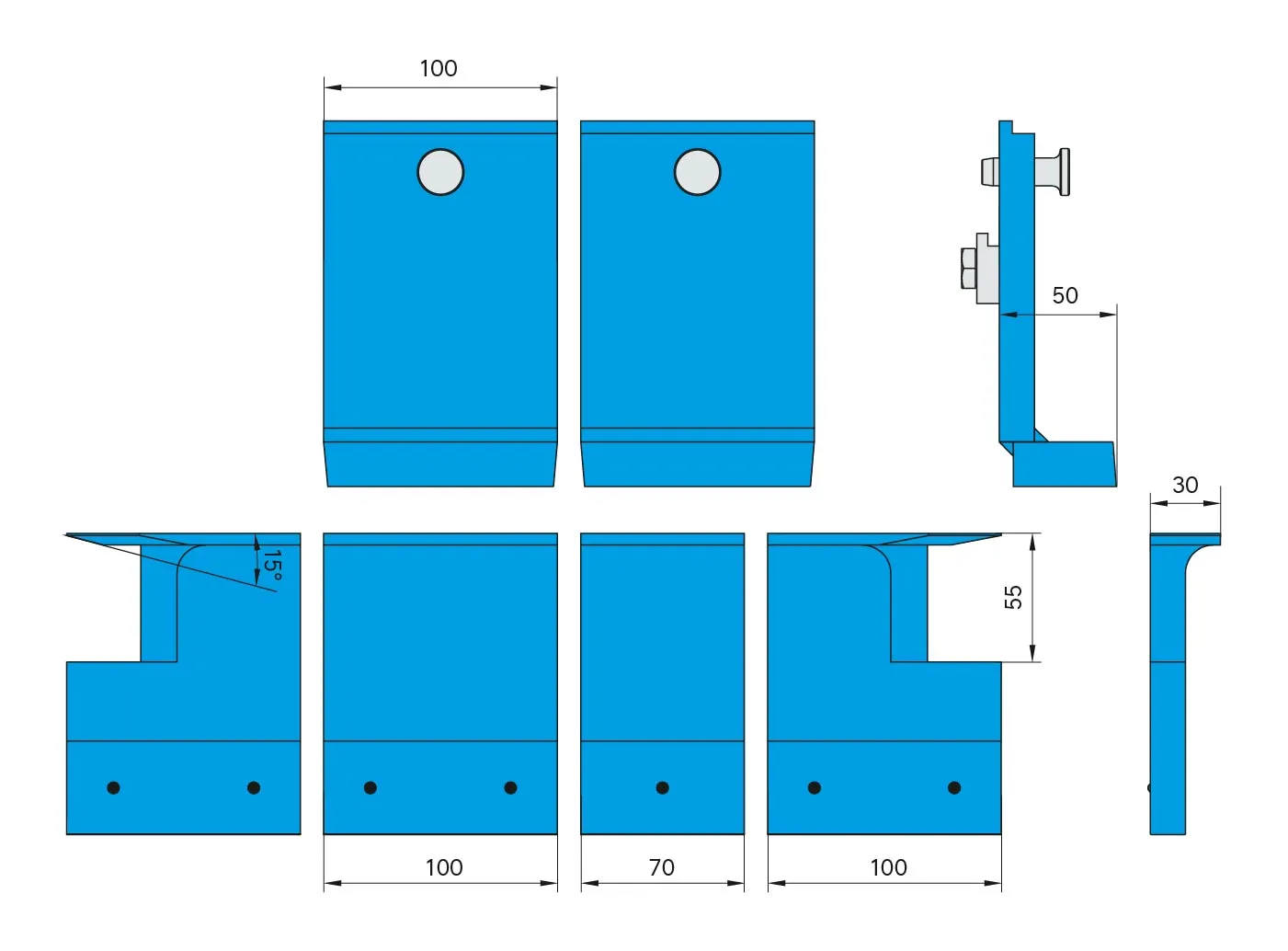

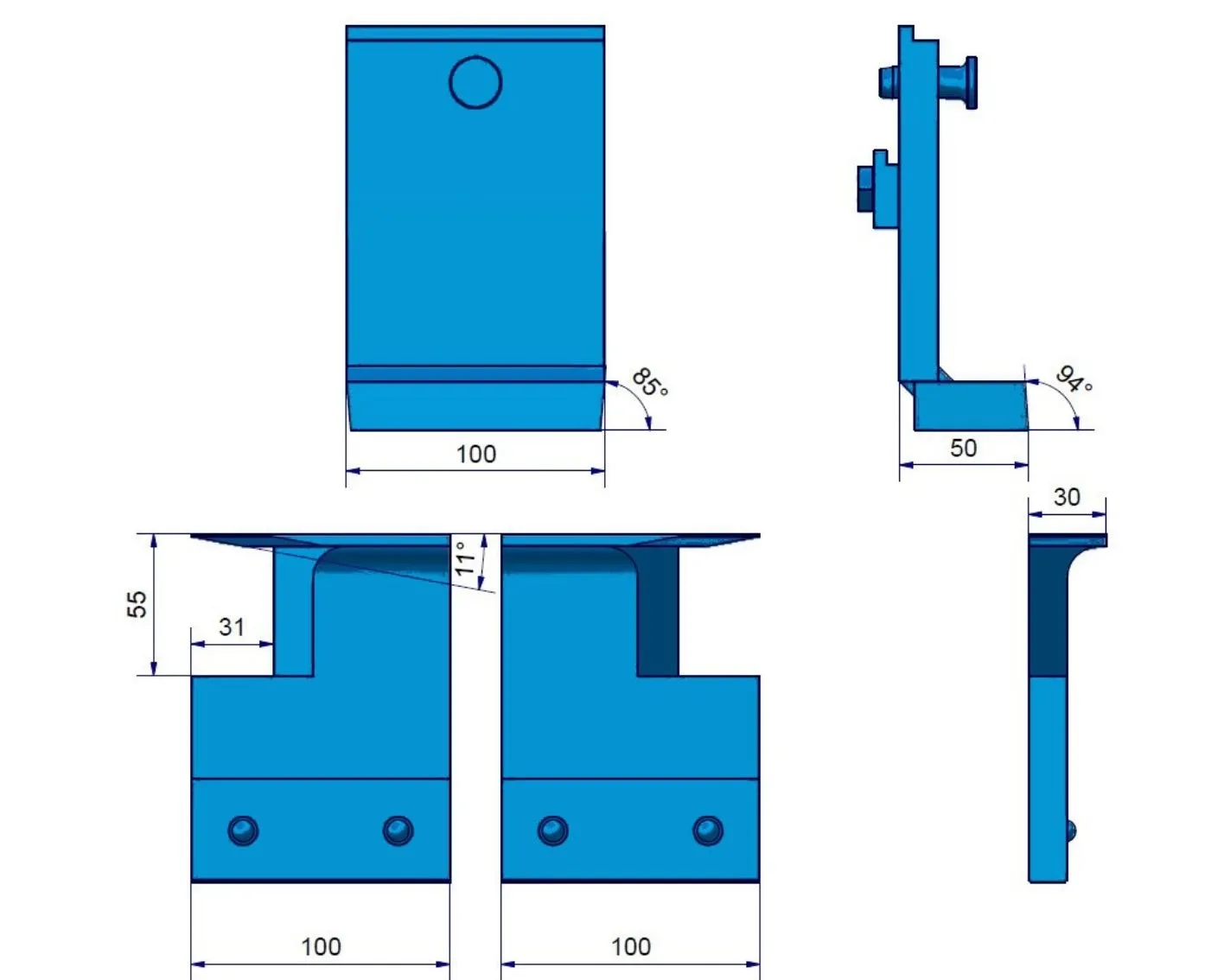

Window Sill Inserts: Standard (3x) or Variable (6x) versions for specialised architectural work.

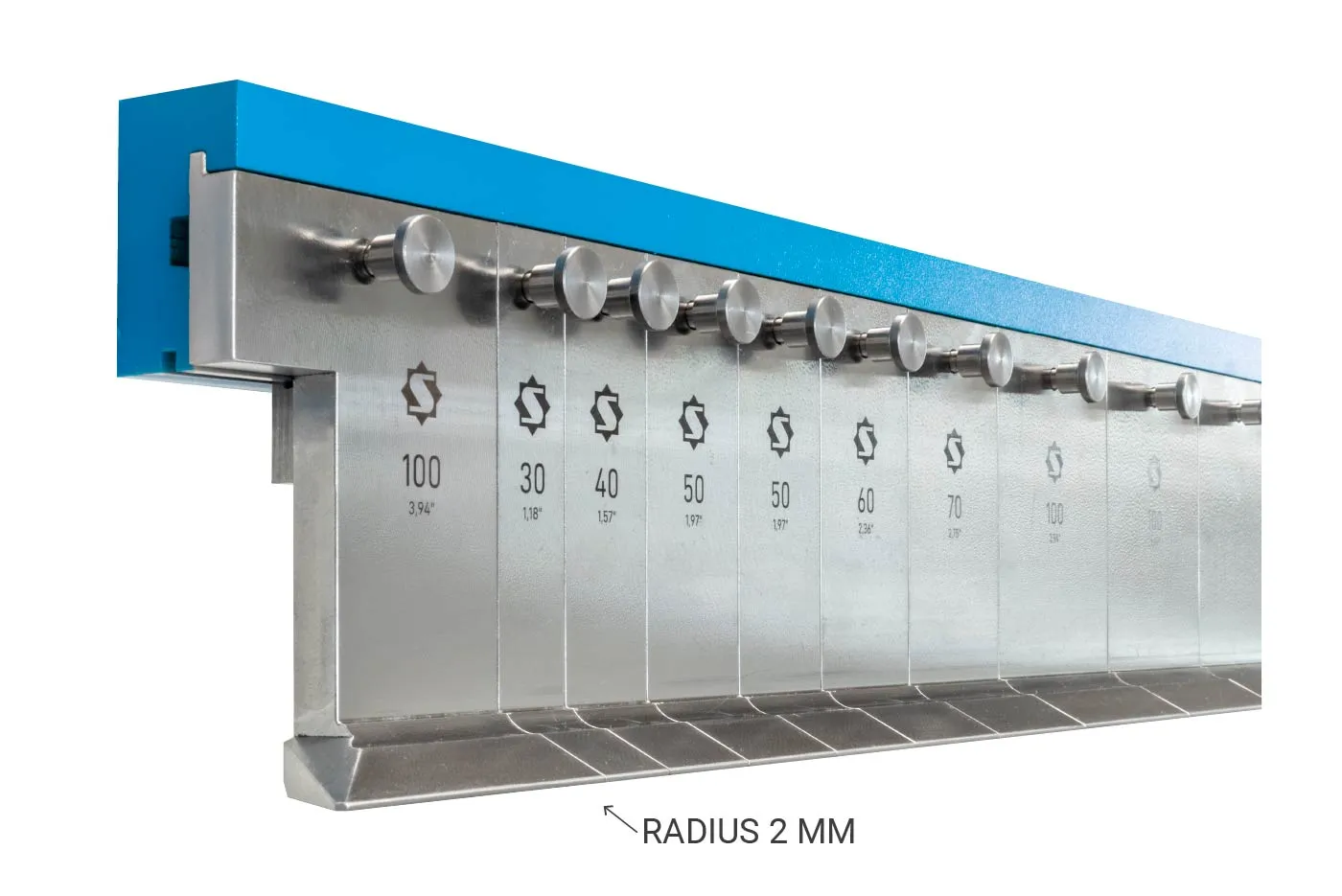

Radius Segments: Exchangeable 2.0 mm or 3.0 mm radius tools for bending sensitive materials without surface damage.

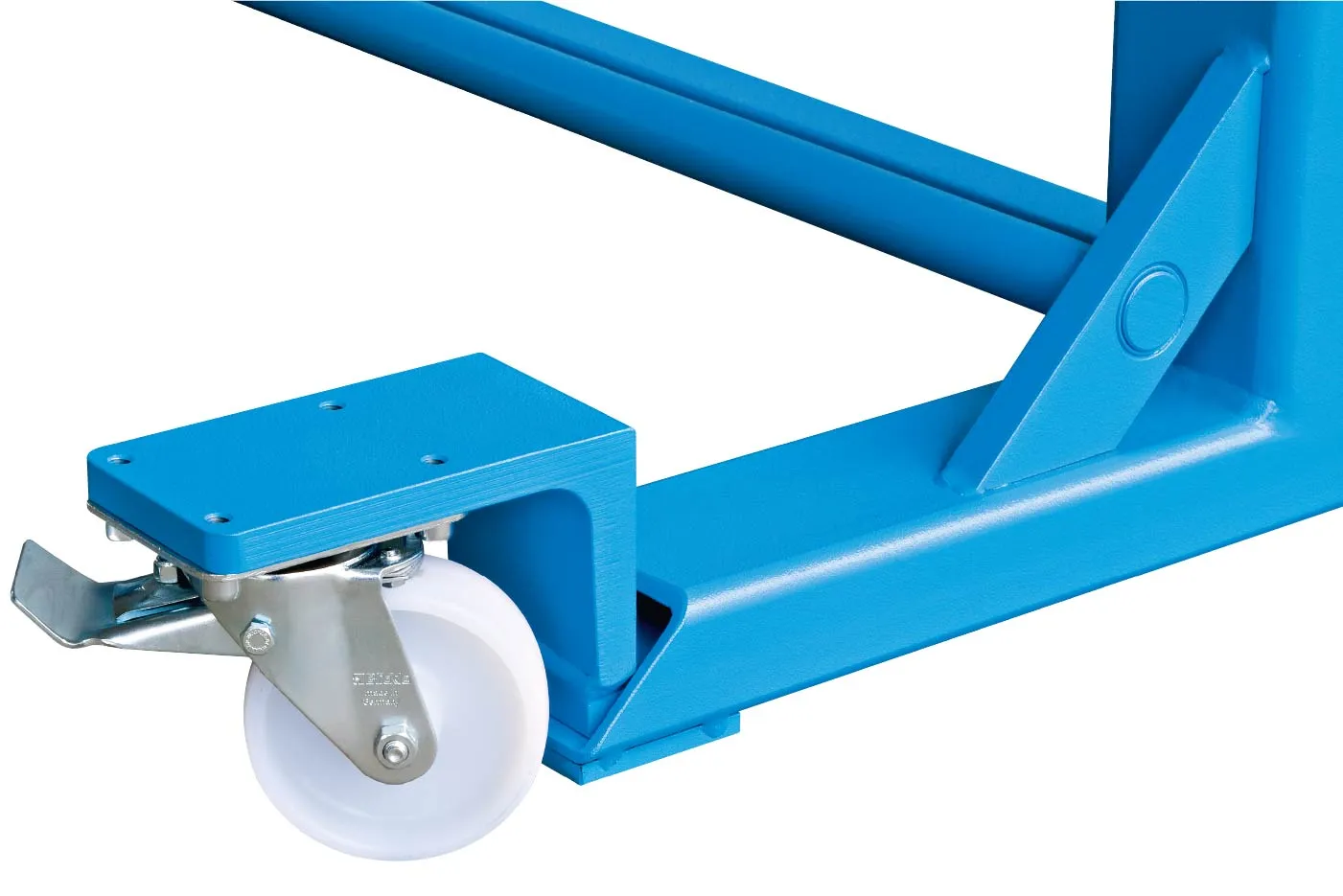

Castor wheels: make it mobile and roll it into position when needed.

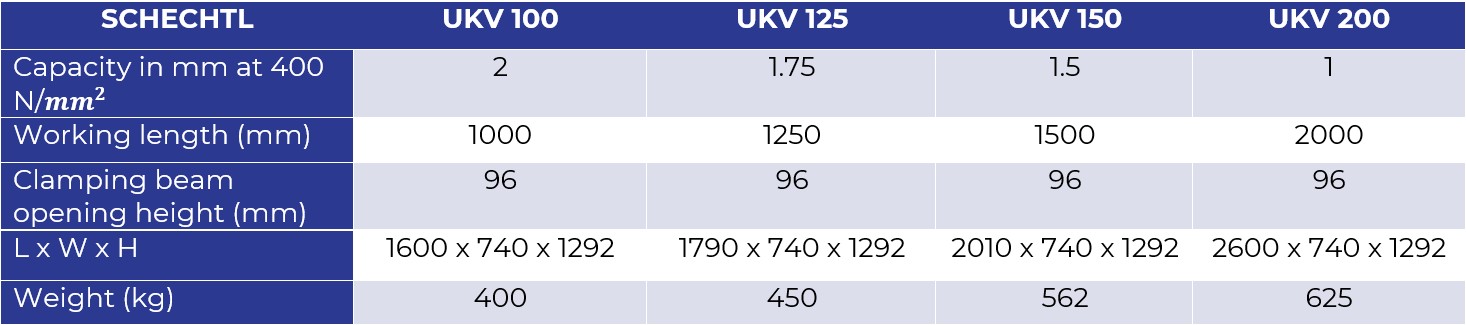

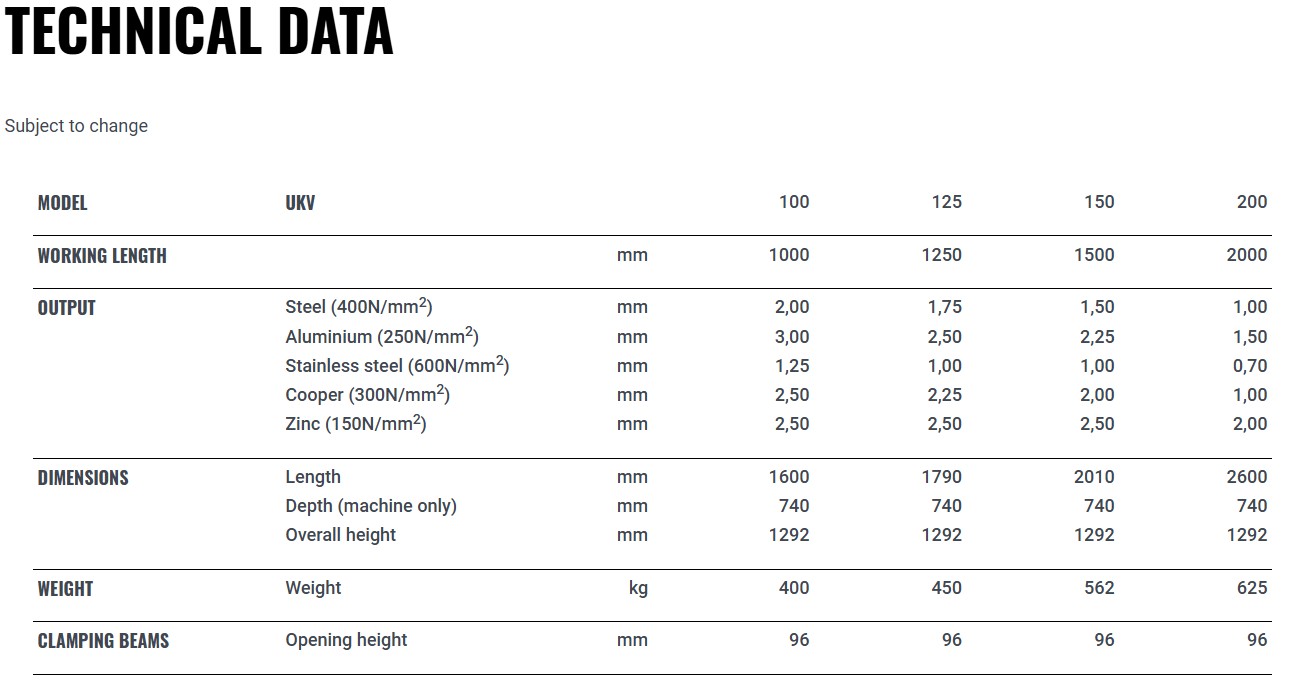

Technical Data

FRIBESCO’s reasons:

Why choose the UKV folder?

✅ Maximum Free Space: Segmented tools on all three beams.
✅ Industrial-Grade Power: Capable of bending up to 2.0 mm steel, offering significantly more capacity than the portable TBS or standard UK models.
✅ Tool-Free Efficiency: The original Schechtl quick-clamping system for all segments.
✅ Mobile Workshop Flexibility: Standard with swivel castors and a locking brake.
✅ Ergonomic Design: The back-friendly working height and standard foot pedal clamp ensure comfortable, one-man operation even for complex tasks.

The Schechtl folder gives professional roofers the edge: faster throughout, consistent accuracy, and long-term reliability.

???? Contact us today to discuss your requirements and arrange a demo.

Brochure

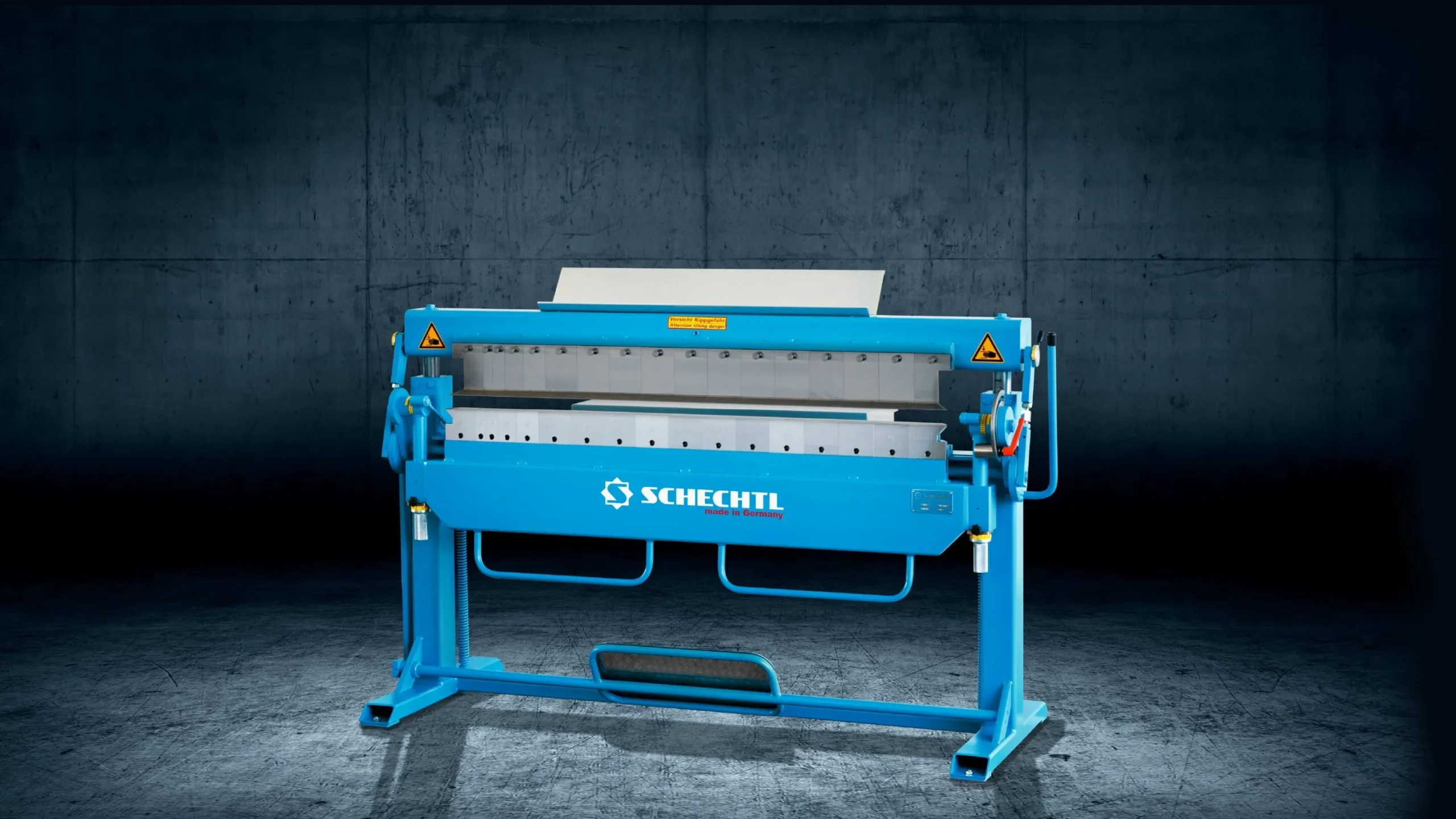

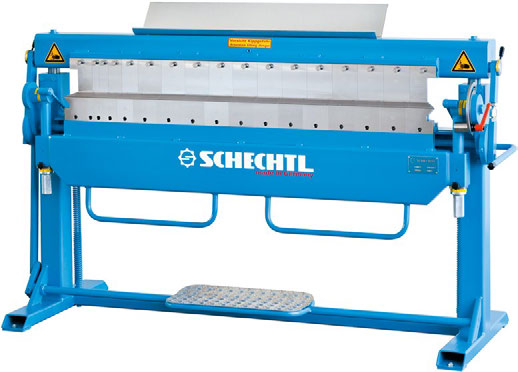

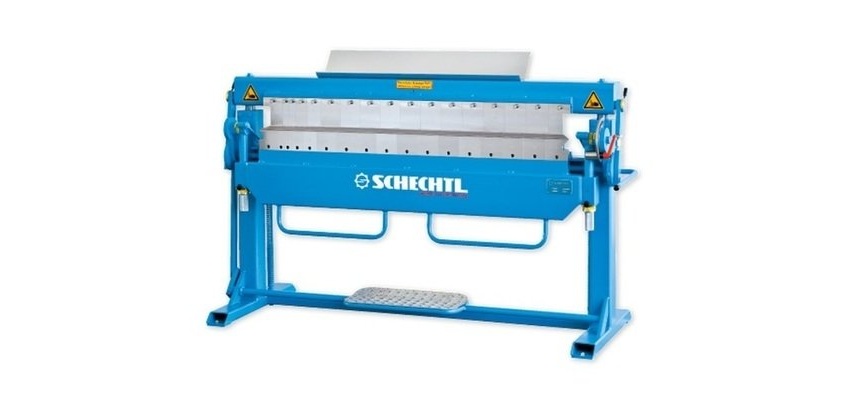

The Schechtl UKV is a versatile, hand-operated segment bending machine (box and pan brake) that serves as the “stronger sibling” to the standard UK series.
