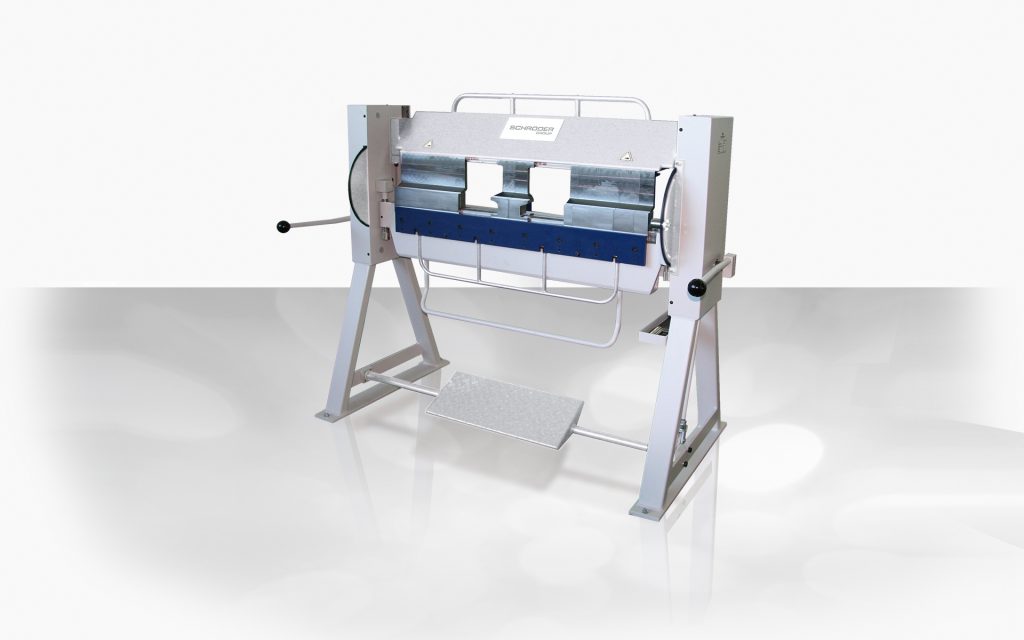

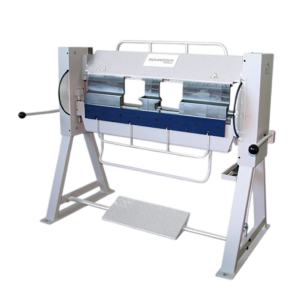

Schroeder ASK II

Details

Designed for professionals who handle more than just simple bends.

Applications & Best uses

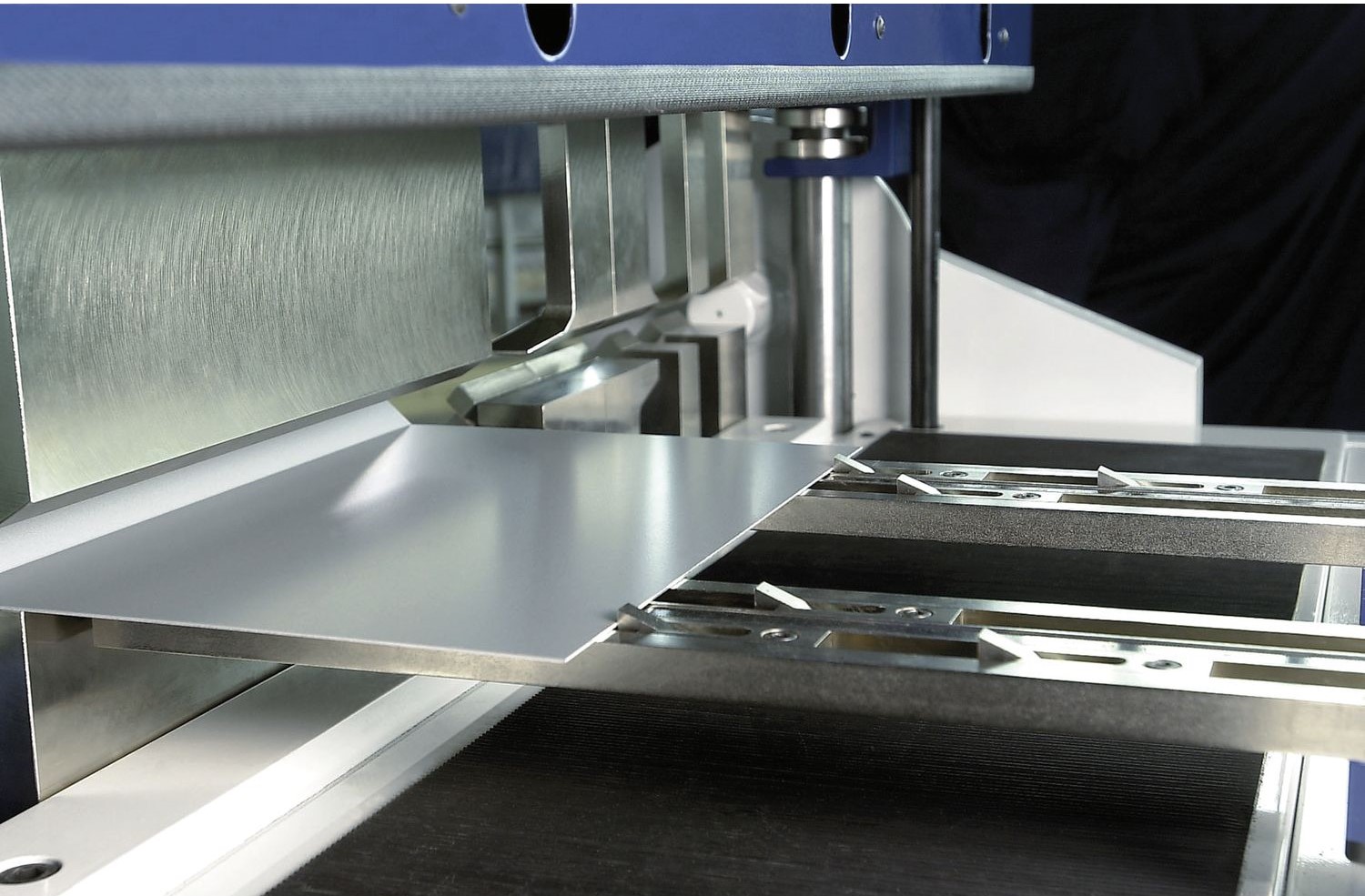

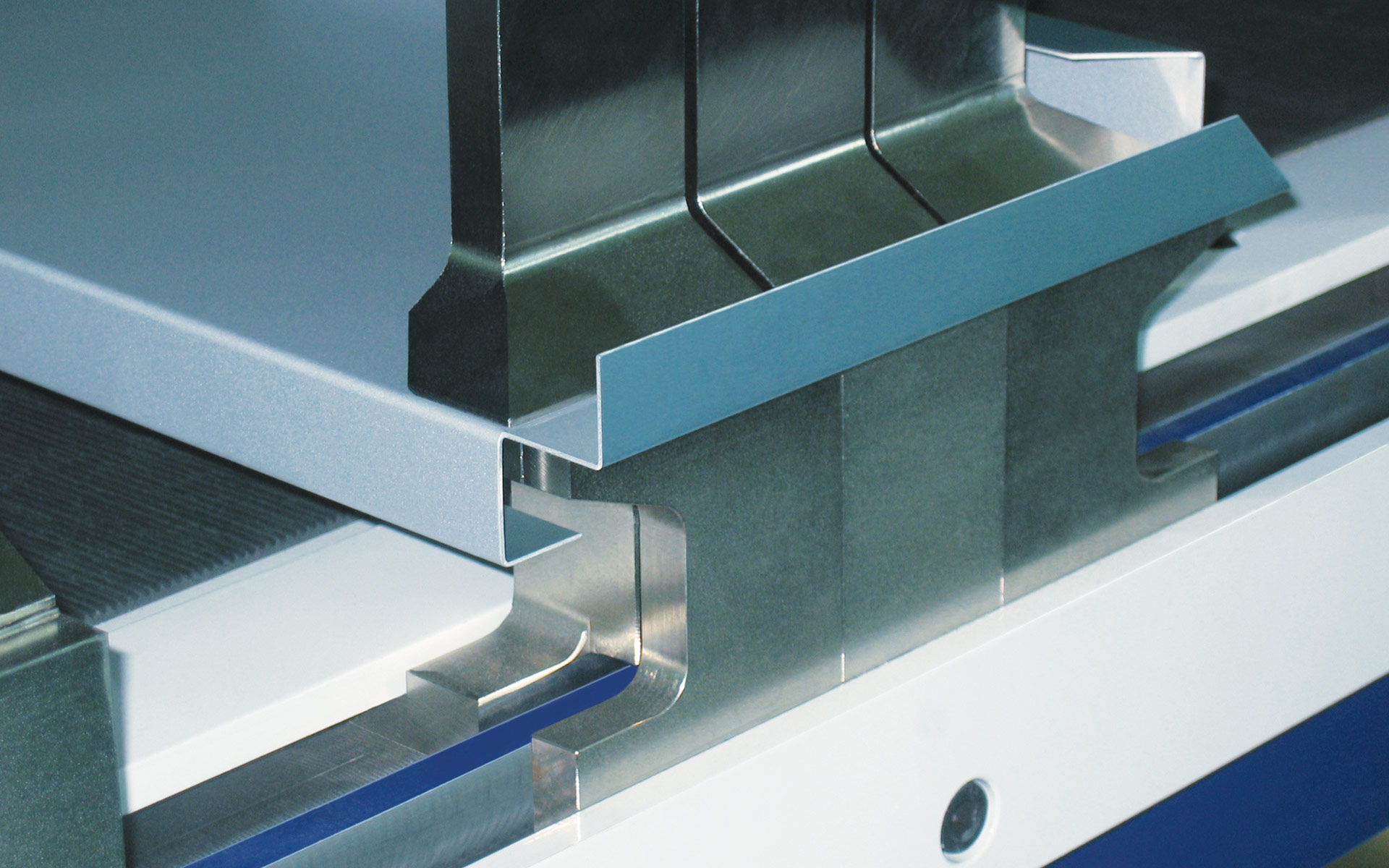

Box and Pan Folding (Cassettes)

The defining feature of the ASK II is its fully segmented tooling on the clamping, bottom, and folding beams. This allows for gaps between tools, enabling you to:

Four-Sided Bending: Easily create boxes, covers, trays, and façade cassettes.
Pre-Bent Flanges: Fold complex parts without damaging existing bends.

Architectural Metalwork

A staple in the architectural trade for custom exterior building components:

Window Sills: Form watertight sills with complex crushed folds or safety edges.
Flashings & Profiles: Create roof flashings, wall copings, and chimney claddings.
Guttering: Fabricate specialised brackets and custom end-caps with ease.

The ASK II advantage

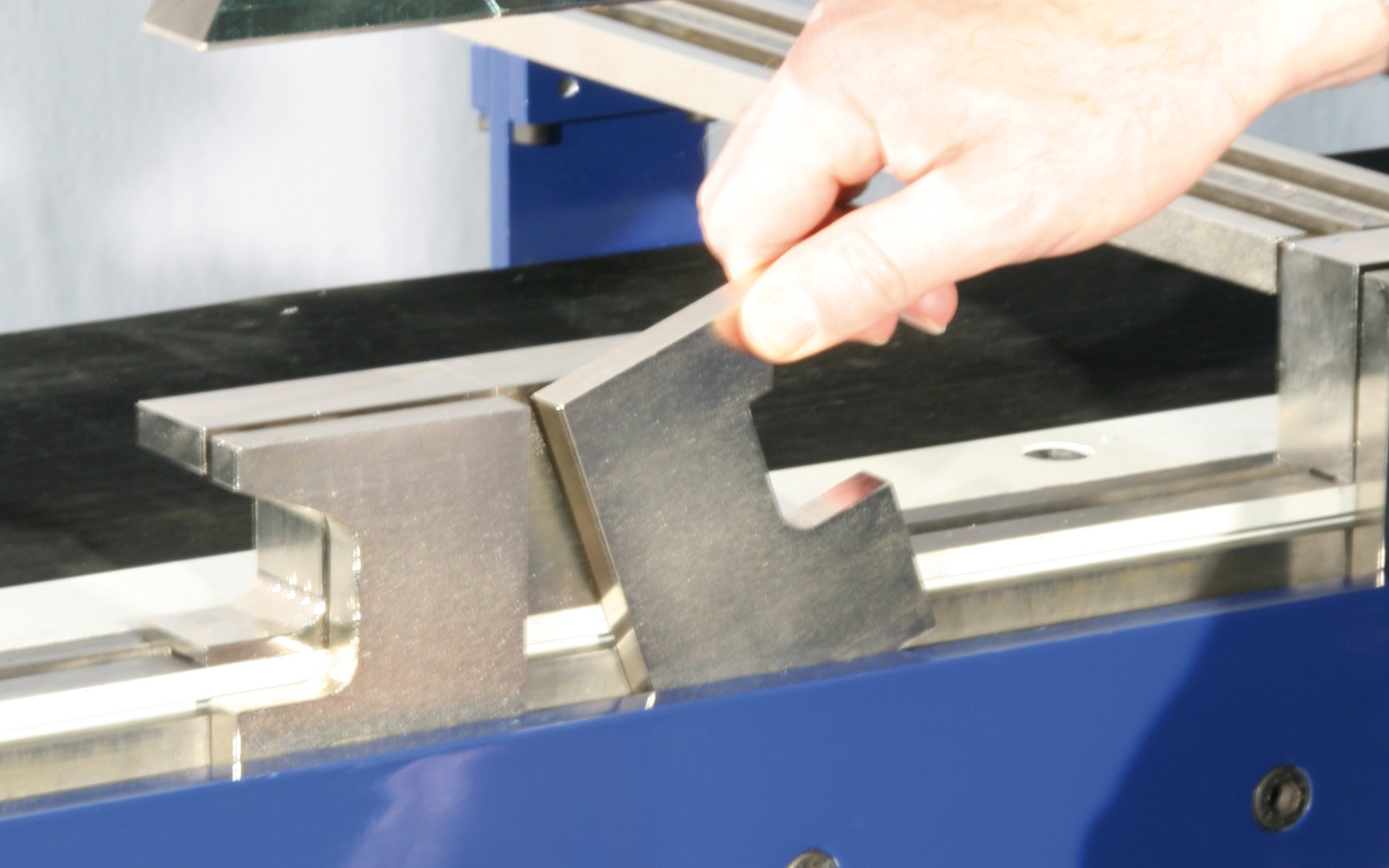

Patented Quick-Clamping System

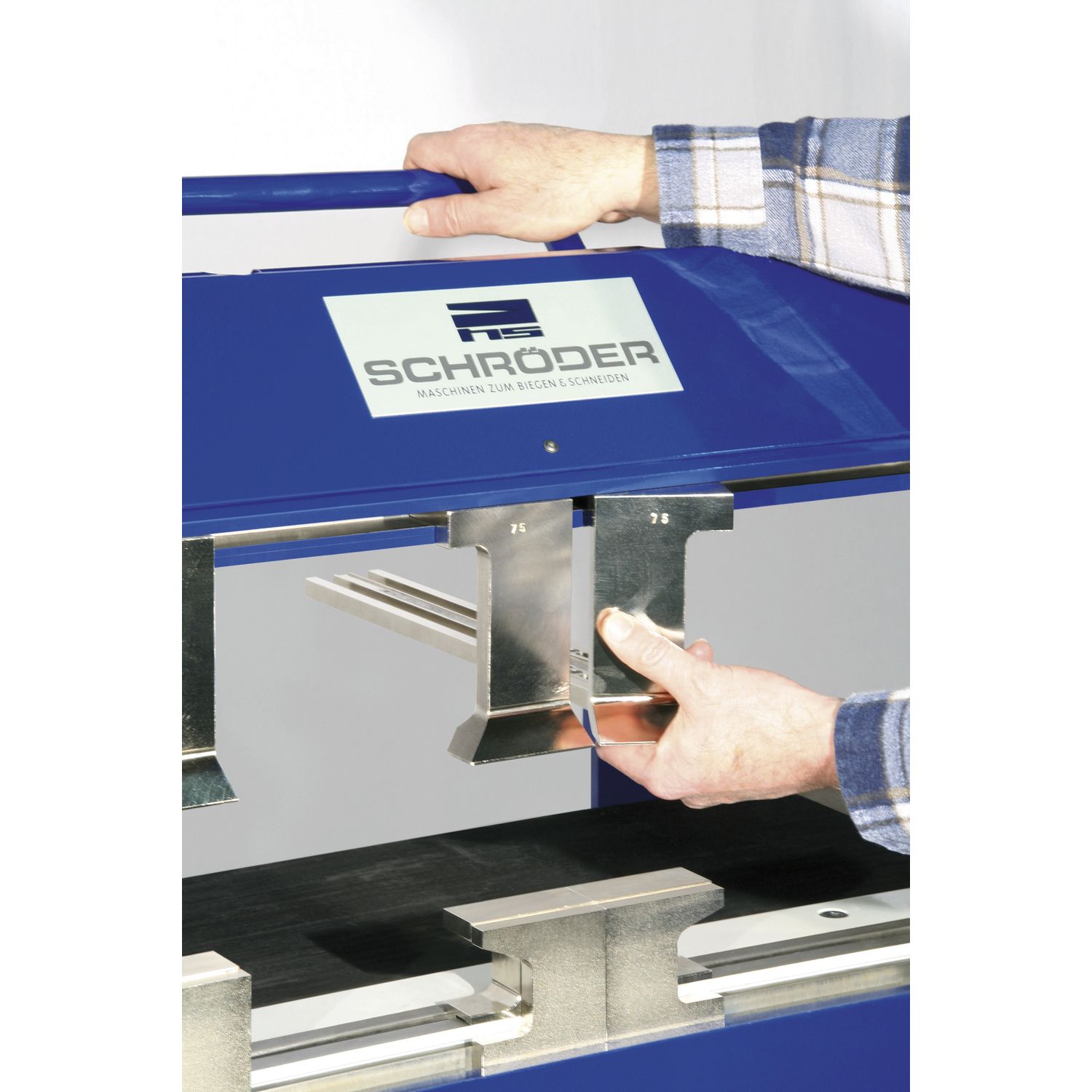

Schroeder’s patented eccentric quick-clamping device on both the clamping and folding beams allows you to change tools or adjust your setup with a single hand movement, resulting in a near-zero re-equipping time and a seamless workflow.

Hands-On Performance:

Two-Stage Clamping Drive: Instantly adjust for different tool heights.
Ergonomic Foot Pedal: Keeps your hands free to position sheet metal with 100% accuracy.
Precision Pipe-Guided Beam: Maintains absolute alignment even when folding high-strength steel.

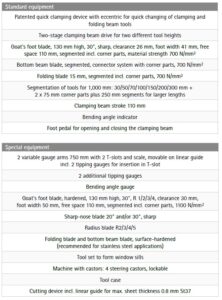

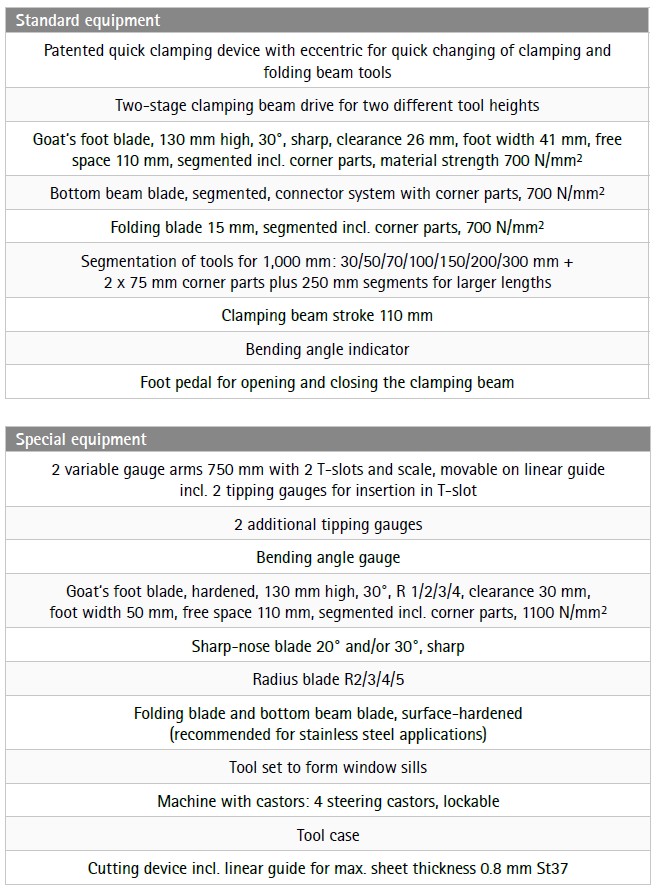

Standard configuration:

Patented quick clamping device with eccentric for quick changing of clamping and folding beam tools
Two-stage clamping beam drive for different tool heights

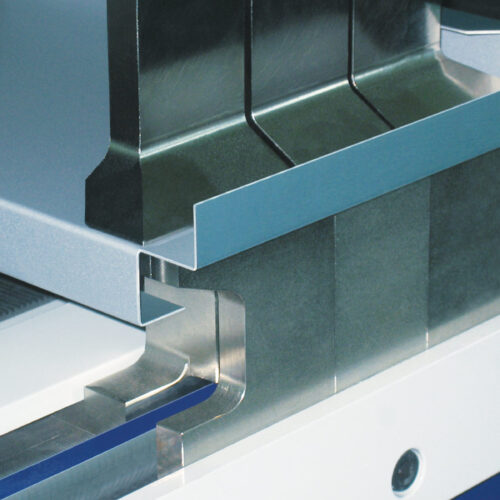

Goat’s foot blade, H = 130 mm, 30°, sharp, clearance 26 mm, foot width 41 mm, free space 110 mm, segmented incl. corner parts, material strength ca. 700N/mm²
Bottom beam blade, segmented, connector system with corner parts, ca. 700 N/mm²
Folding blade 15 mm, segmented incl. corner parts, ca. 700 N/mm²
Segmentation of tools for 1,000 mm: 30/50/70/100/150/200/300 mm + 2 x 75 mm corner parts; + 250 mm segments for the longer machines
Clamping beam stroke 110 mm
Bending angle indicator
Angle gauge
Foot pedal for opening and closing the clamping beam

Tools/Options

Clamping beam

Hardened goat’s foot blade, H = 130 mm, 30°, R 1/2/3/4, clearance 30 mm, foot width 50 mm, free space 110 mm, segmented incl. corner parts – ca. 1100 N/mm²
Sharp-nose blade 20° ca. 700 N/mm²
Sharp-nose blade 30° ca. 700 N/mm²
Radius blade R2/3/4/5 ca. 700 N/mm²
Tool set to form window sills

Folding and Bottom beam

Surface-hardened – (recommended for stainless steel applications)

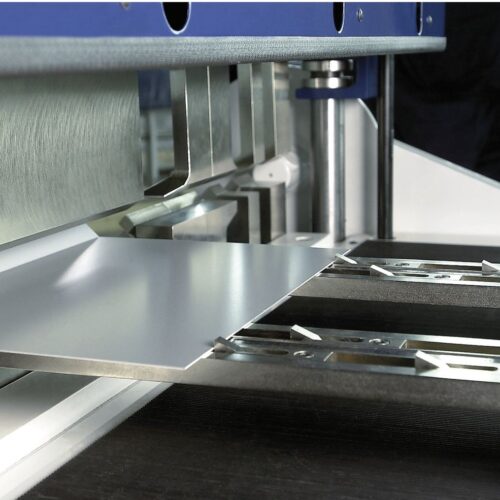

Table and back gauge

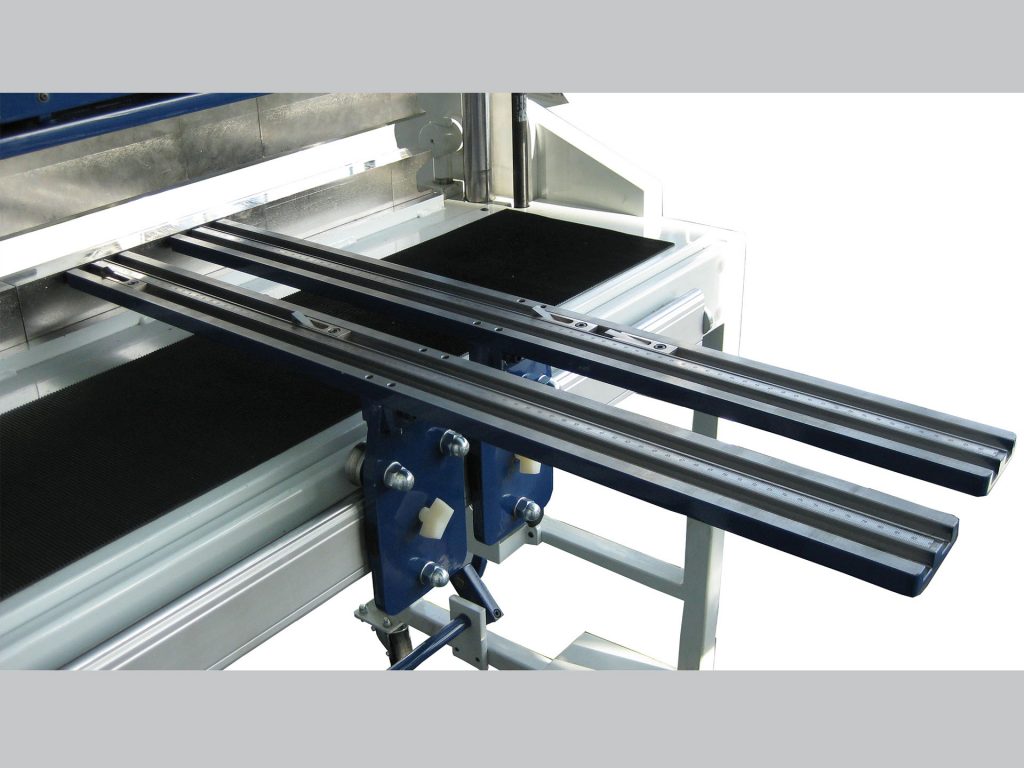

2 variable gauge arms 750 mm, with 2 T-slots and built-in scale, movable on a linear guide, including 2 tipping gauges for insertion in T-slot

Others

Tool case

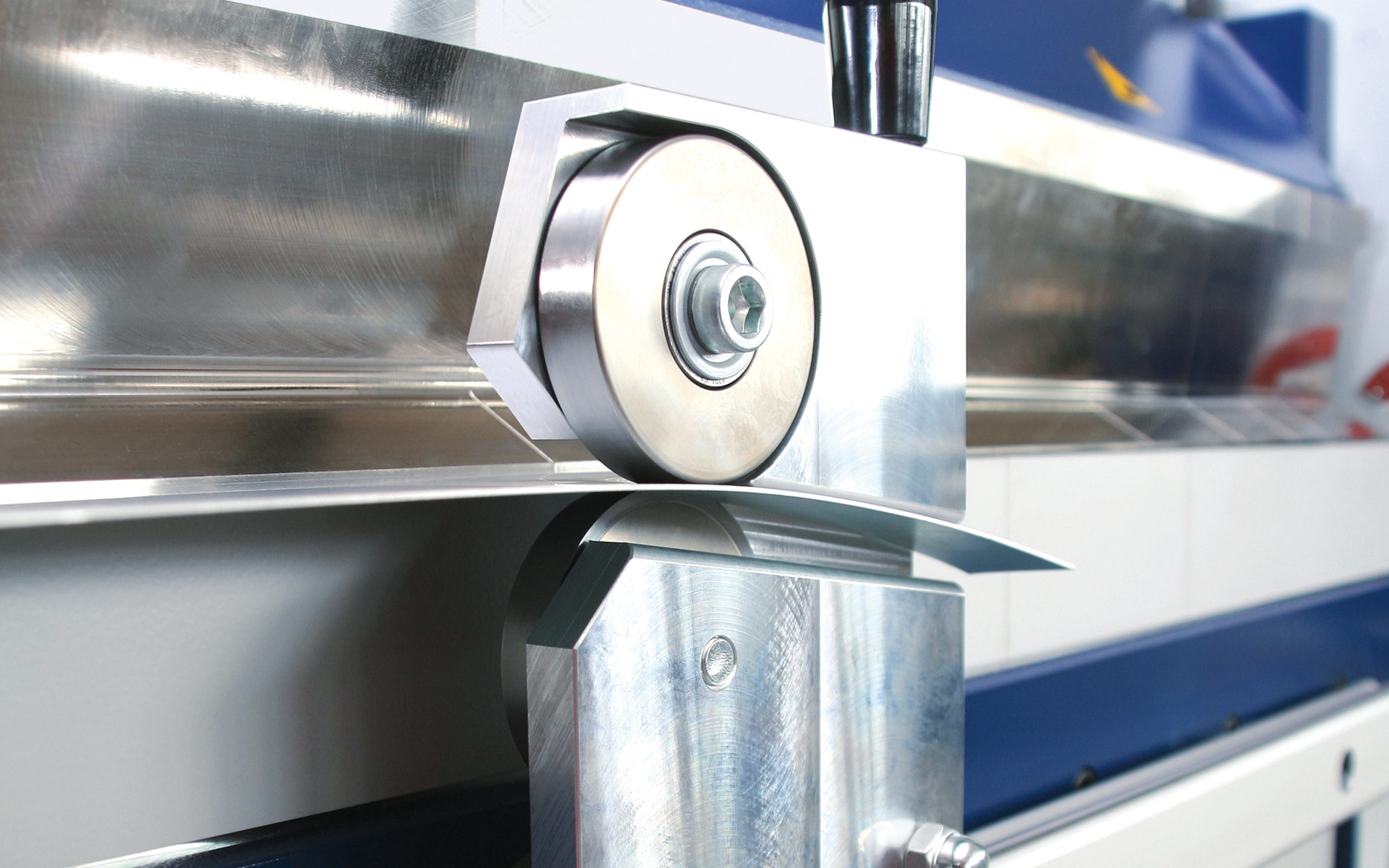

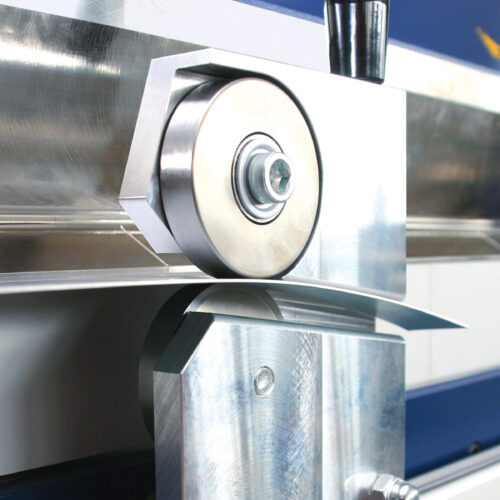

Slitting device
Castor wheels for the base frame

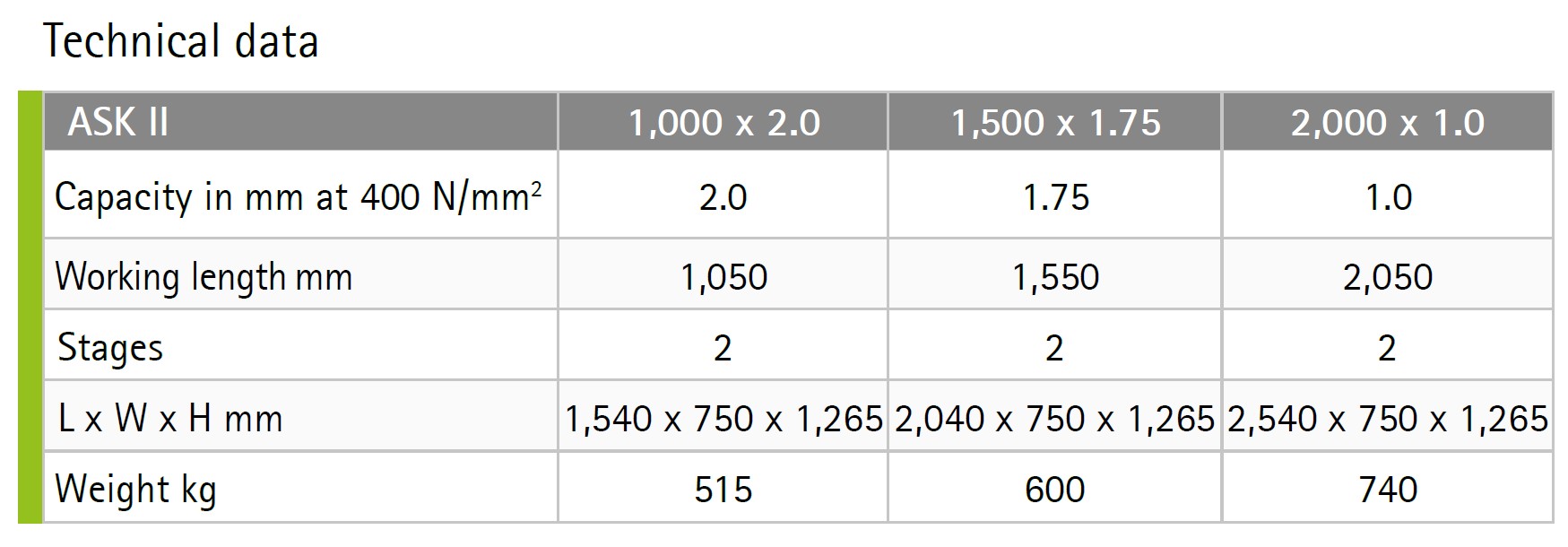

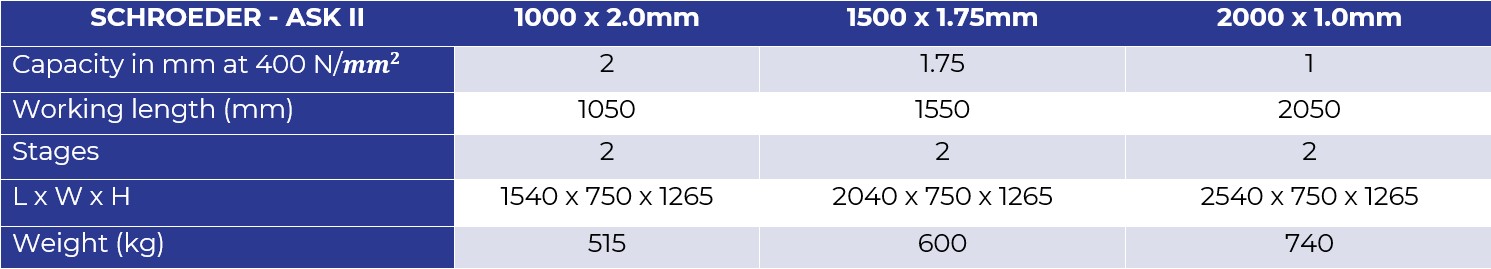

Technical Data

FRIBESCO’s reasons:

Why Choose the ASK II folder?

✅ Extreme Versatility: It handles complex profiles and box-and-pan folding with ease, making it a true “all-rounder.”
✅ Patented Quick-Clamping System: Change tools or adjust your setup with a single hand movement
✅ Precision through rigid design: torsion-resistant steel construction ensures that every bend is perfectly straight and consistent
✅ Customisable Tooling System: a wide range of sharp, radius, and goatsfoot tools available
✅ Long-Term Durability Built to industrial standards

The Schroeder folder gives professional roofers the edge: faster throughout, consistent accuracy, and long-term reliability.

???? Contact us today to discuss your requirements and arrange a demo.

Brochure

The segment folding machine ASK II is a very robust machine with a very high bending capacity. Moreover, it has a 2-stage drive adjustable via a stop cam as standard.
