Details
Software control
- POS 3000 3-D Graphic control on swivelling arm
- Radius function
- Remote maintenance via the Internet
- External programming (PC-Version 1. Licence)
Back gauge
- Gauge table 1700 mm as U-shape divided support plates with steel balls
- Lateral angle gauge right and left side 1500 mm (outside)
- Suction plates in gauge table, controlled via POS 3000
- 2 pneumatic pop-up square arms assembled on the aisle side, program-controlled
- The gauge axis in the front
Clamping beam
- Clamping beam stroke: 850 mm
- Clamping beam geometry: 180°

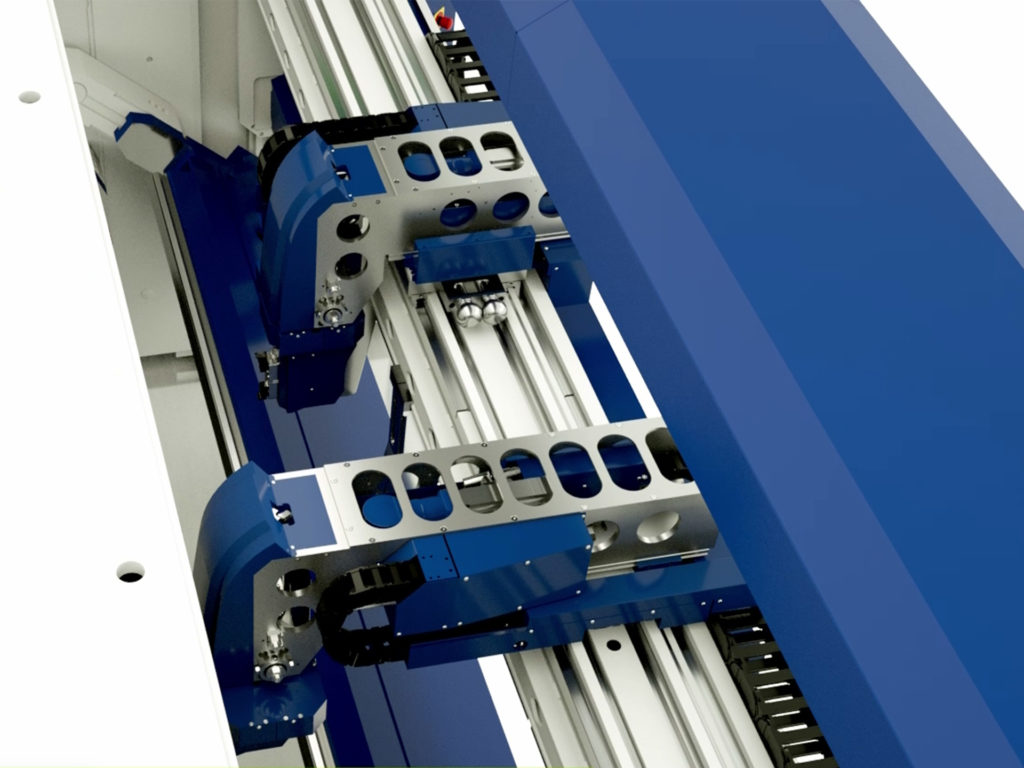

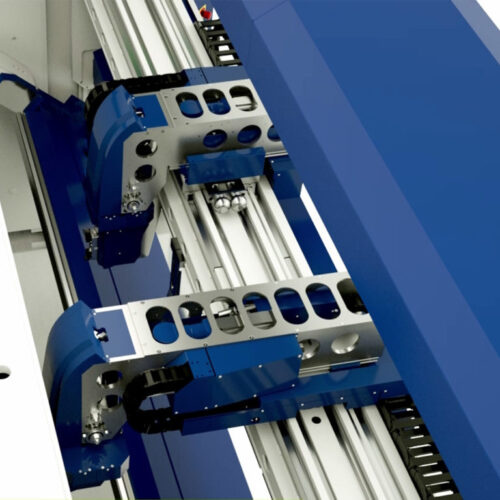

- Fully automatic tool changer WZS 6500: for clamping beam tools with a hydraulic tool clamping device (a total of 8 axes) for max. tool height of 500 mm,
two asynchronously movable tool changers with one gripper unit each

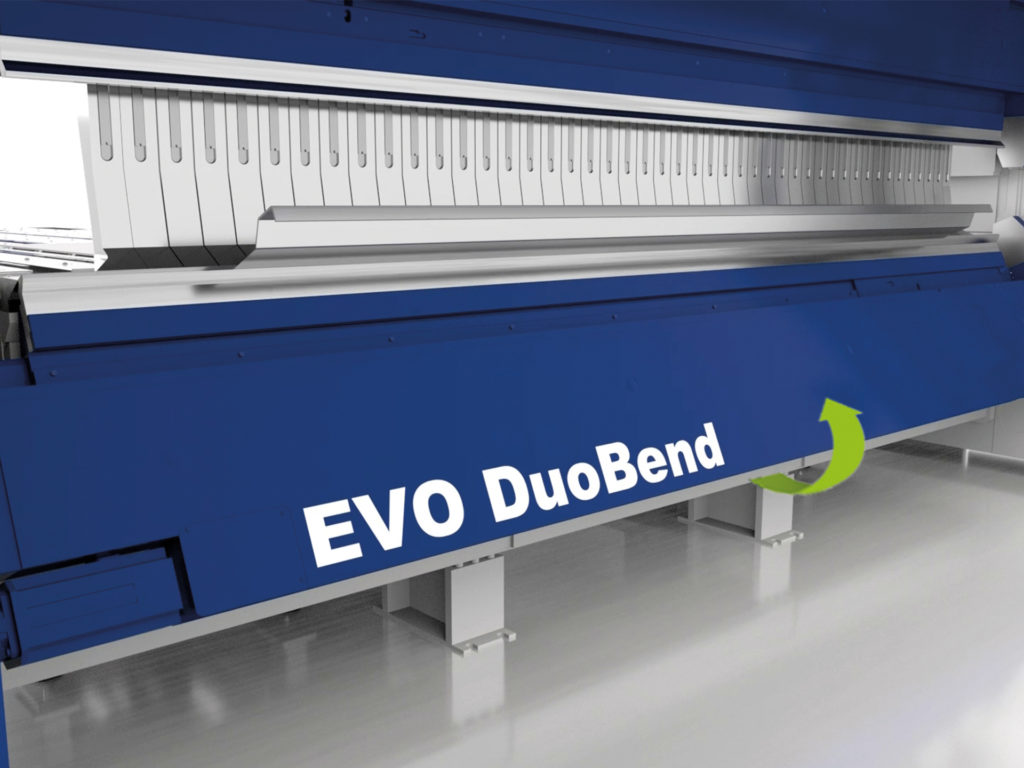

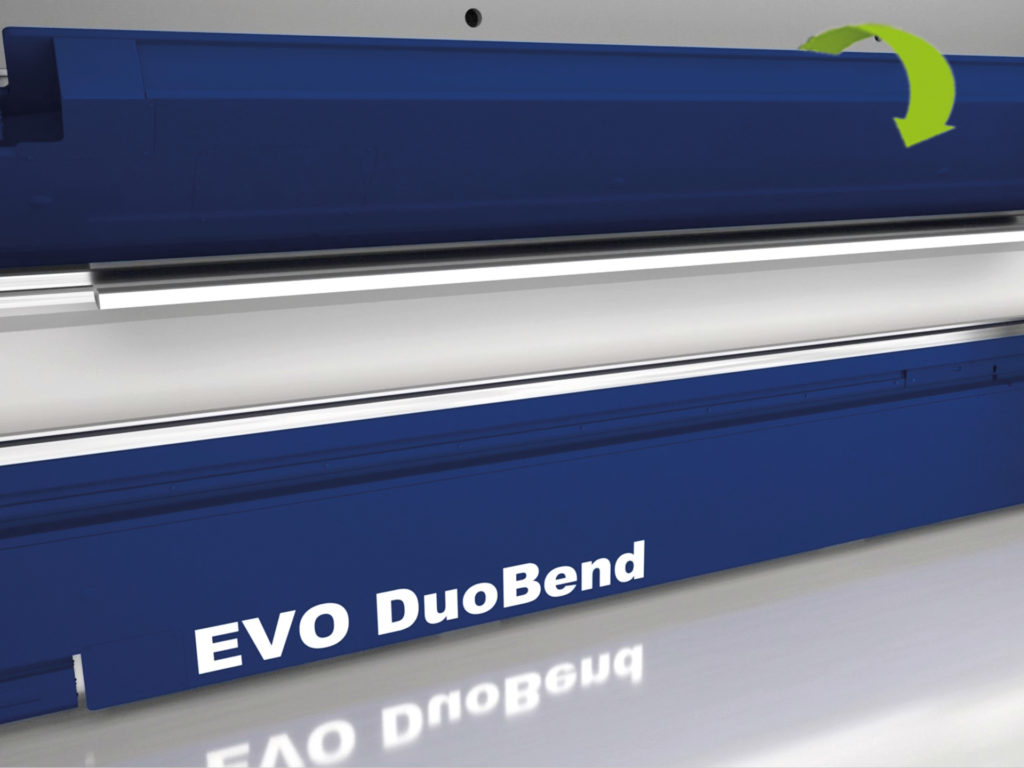

Folding beam
- Two folding beams, program-controlled
- Mechanic tool clamping device (screwed) (WZS 19000)
- Motorized folding beam adjustment 150 mm
- Motorized folding centre adjustment 370 mm
- The motorized central crowning device in both beams
Work safety
- Protection via light curtain controlled by safety-PLC for operation
- from the rear
- Safety fence with lateral access door
Others
- Standard machine without tools
- Working height 1160 mm
- Footswitch, anchor plates incl. dowels, decentralized lubrication system
- Air conditioner on both switch cabinets
Tools/Options
Special equipment
Software control
- SCHRÖDER Unfold software
Back gauge
- Side table left, or right, sheet support table closed with ball rollers
- Pneumatically lowerable gauge fingers (2 sectors 850/1700 mm)
- Back gauge extension right and/or left with pneumatically lowerable gauge fingers (balls in table), combinable with side table
- Gripper gauge system:
U-shaped table 2000 mm, movement range 150 – 2150 mm, 2 lateral moveable pneumatic grippers
Additional gauge options:
– 2 gauge fingers
– 2 suction plates
(gauge options cannot be used in combination)
2 additional side tables on left and right, sheet support table closed with ball rollers to extend the table up to machine width
Safety
- Additional equipment for 2-man-operation control in accordance with accident prevention rules required
Others
- Voltage transformer 52 kVA
- Overseas packaging
Tools
- Various folding beam, clamping beam, and bottom beam tools
Software

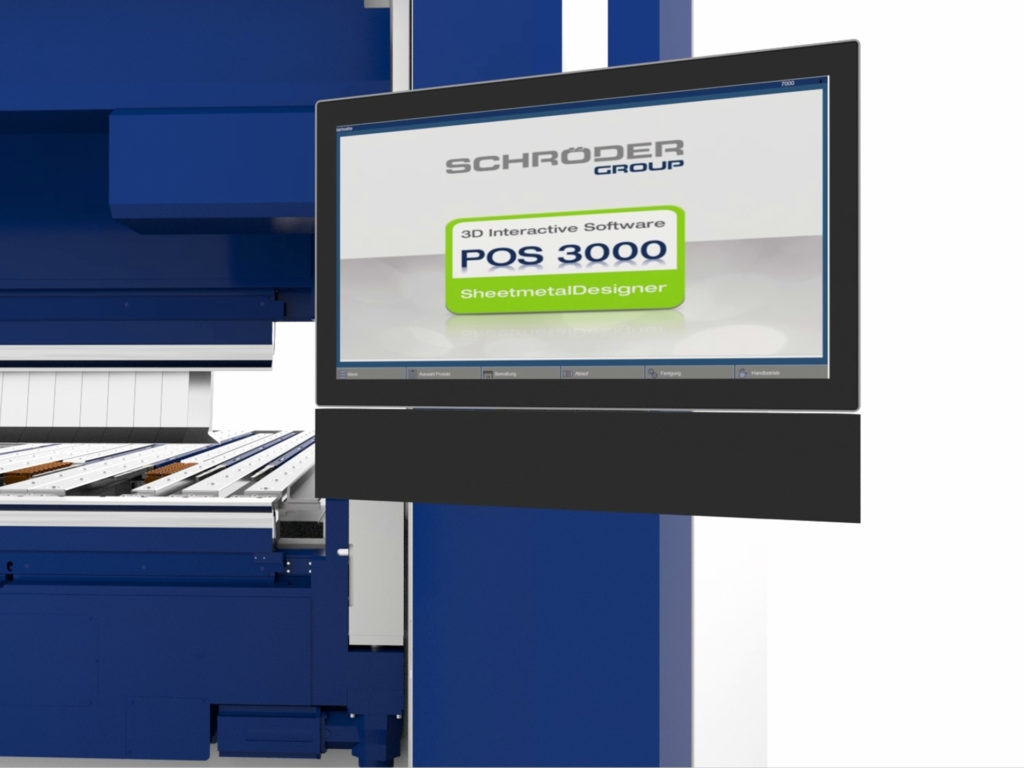

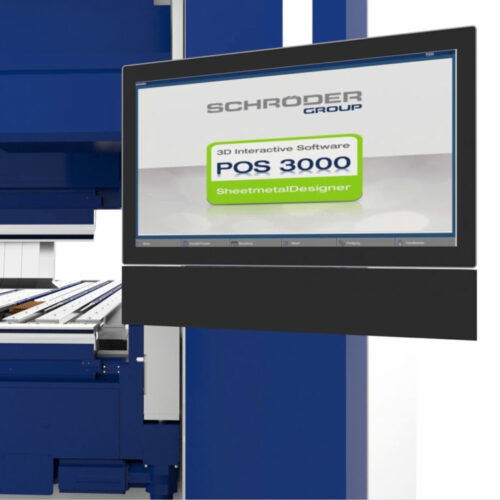

POS 3000 3D graphic control:
Interactive sheet design
POS 3000 3D graphical controls is one of the most powerful controls on the market, and because both the hard- and software come from a single provider, the SPB Evolution UD and POS 3000 3D graphical controls are a perfect match.
Working with POS 3000 is extremely comfortable:
Clearly laid-out product selection, including a search function and navigation in submenus, enables the operator to select work steps and connect them in the production plan menu to create sequences. Individual product profiles can be designed very quickly via the intuitive finger-activated drawing feature. The exact dimensions may be entered and changed in the dimensioning menu. In order to check and coordinate with the customer, the drawing may be outputted on paper using a printer.
Using the program that is created, the software generates the optimal sequence of bends, including automatic collision and threshold value monitoring. The folding angle and cut are corrected automatically using interpolation from the database

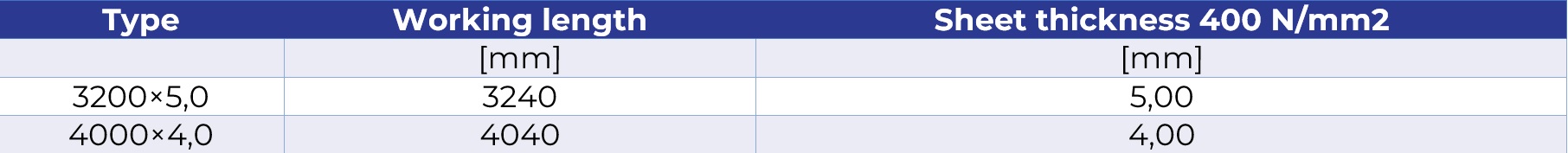

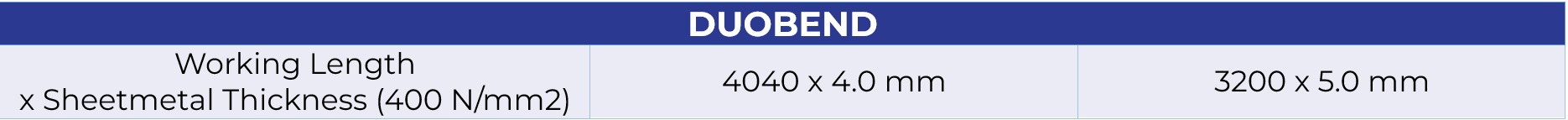

Technical Data

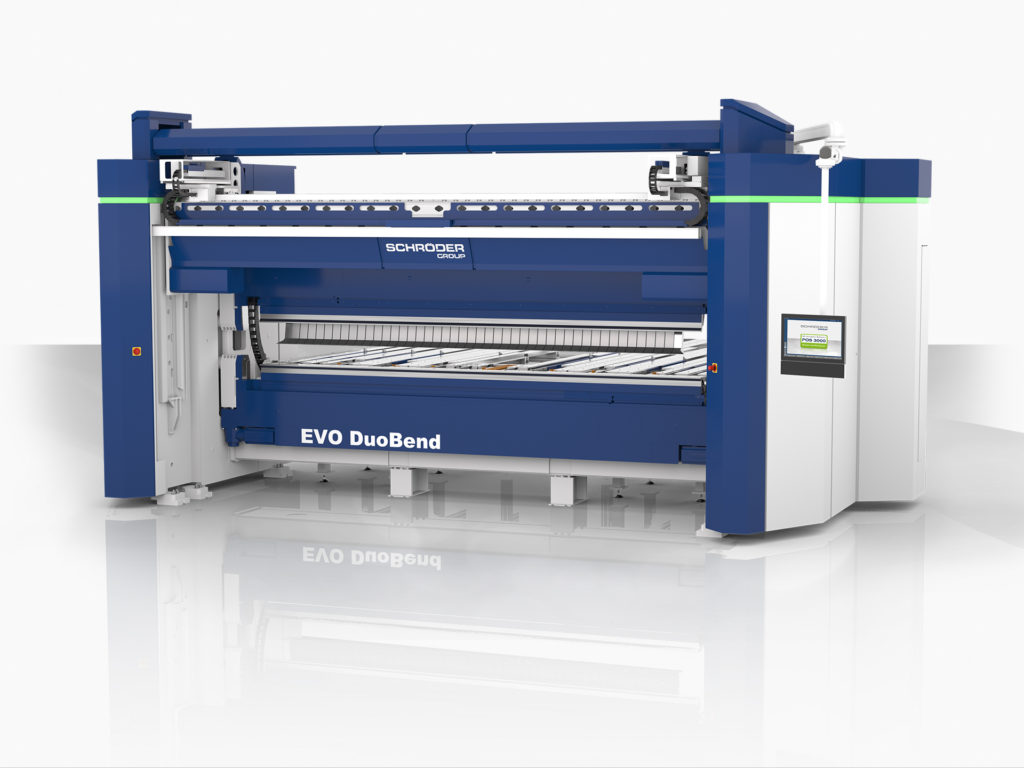

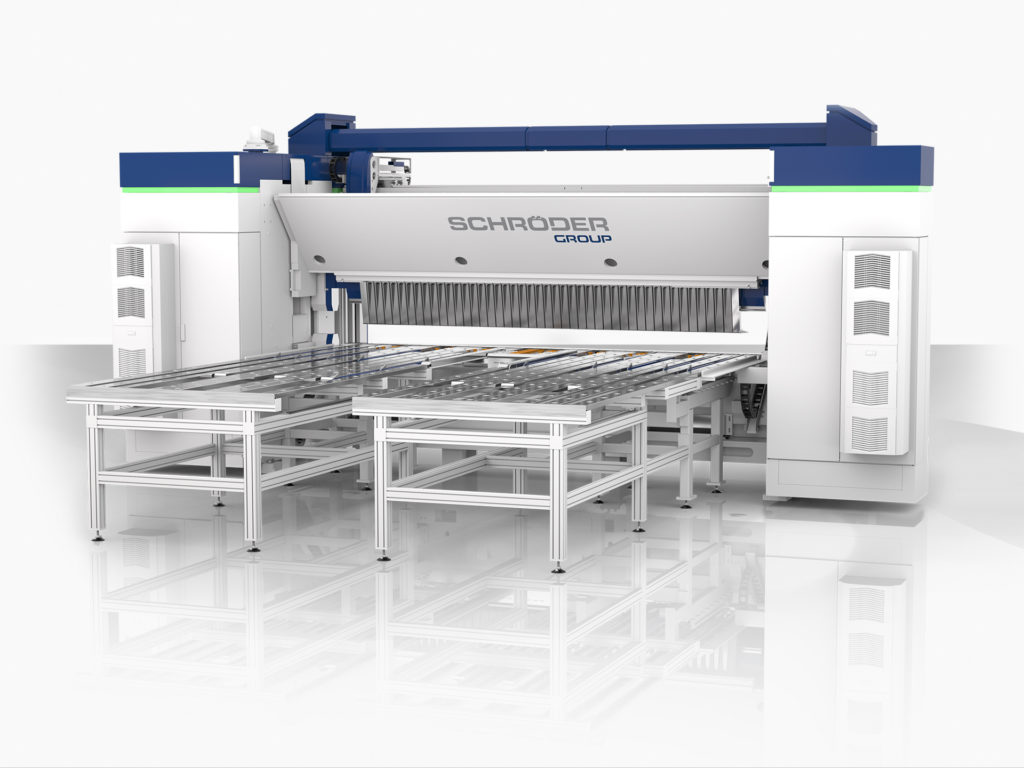

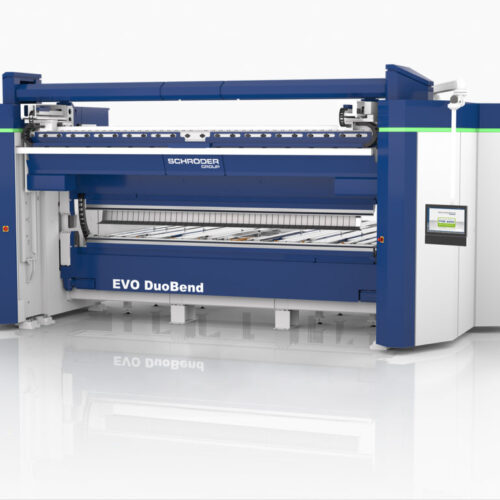

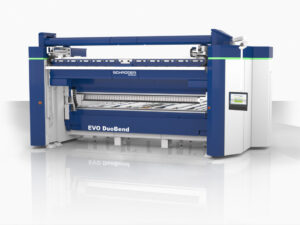

The new motorized folding machine EVO DuoBend owes its name „DuoBend“ to its two independently operated folding beams. With the EVO DuoBend, the Schröder Group is once again increasing its flexibility in the area of sheet metal folding many times over Products for container construction, vehicle construction or conventional folding applications, such as heavy sheets with counter bends, can be manufactured efficiently.
EVO DuoBend
POS3000
Tools Changer
EVO DuoBend
