SCHROEDER EVO HEAVY DUTY

Details

Standard Configuration

Software control and options:

Graphic control POS 2000 Professional
Monitor in front of the machine, integrated into the casing – rotatable
Radius function
PC Version (external programming), 1. license
Remote maintenance (connection via RJ45 network cable to be provided by customer)

Gauge

Motorized back gauge MAH 25R, working range 30 – 1600 mm, motorized adjustment via ball screws
sheet support table with balls

Clamping beam

Stroke 500 mm
Geometry 45°
Tool clamping WZS 2500 with hydraulic clamping

Folding beam

Max. bending angle: 180°
Tool clamping WZS 1000 with mechanic clamping
Motorized folding beam adjustment 60 mm
Motorized crowning device

Bottom beam

Motorized bottom beam adjustment 60 mm
Tool clamping WZS 17000 with mechanic clamping

Work safety

Footswitch movable on guide rail

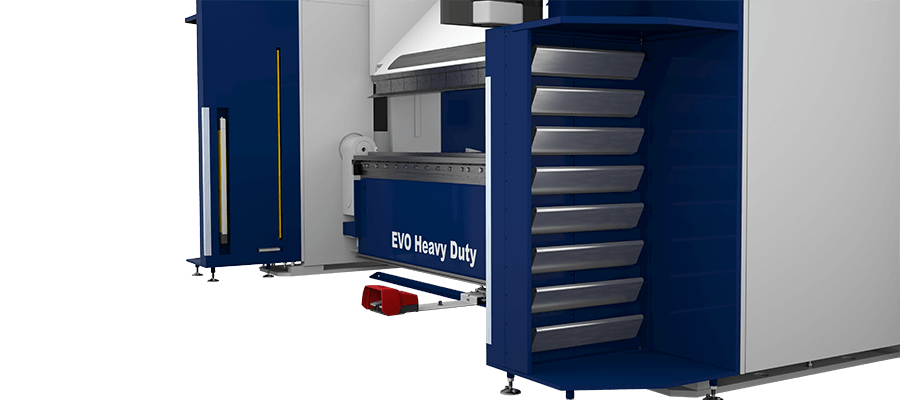

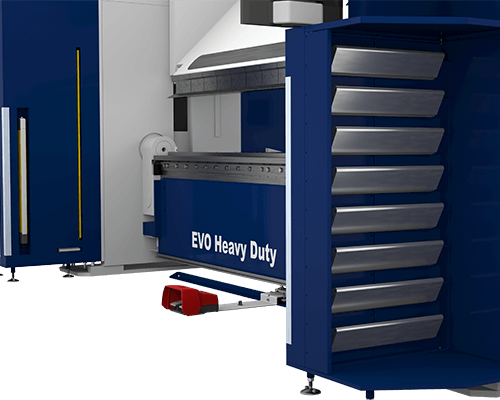

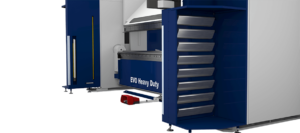

Safety enclosure on the left and right of the machine with two shelves each

Tools

Bottom beam blade without finger grooves (Min. gauge dimension 120 mm) or with finger grooves (Min. gauge dimension 30 mm), tools hardened, nitrate
Folding blade 2-piece, h = 110 mm, width = 18 mm, and reinforced folding blade, 2-piece h = 110 mm, width = 112 mm
All tools ca. 1100 N/mm², inductive hardened, phosphate
Standard machine without clamping beam tools

Others

The motor drive 37 kW
Anchor plates incl. dowels

Tools/Options

Special equipment

Software control

POS 3000 3D Graphic control, DXF-Import and more processor capacity – Unfold software „SCHRÖDER Unfold. “

Back gauge

Thanks to its modular system, the motorized back gauge MAH 25R 30-1600 mm can be extended to J- or U-gauge: J-shape 30 – 1600/3200 mm or U-shape 30 – 3200 mm
Angle gauge on the right or left side, adjustable
Gripper gauge system MAH21, gauge table 120 – 2000 mm, reinforced sheet supports with balls movement range 1880 mm, four pneumatic grippers fixed screwed (minimum height clamping beam tool 80 mm)

Safety

Additional equipment for 2-man-operation control in accordance with accident prevention rules is required
Safety package Plus: Light barrier package in front, RFID switch to secure the side doors

Others

Tool cabinet WZS 2500
Cabinet on the left for storage of goat‘s foot segments
Cabinet on the right for storage of sharp nose blade SA 45 segment length 500 and 540 mm as well as 2 shelves
Package „operation from the rear“: 2nd monitor on the rear incl. height-adjustable support arm system HMA-Lift and rear lighting 3x PROFILIGHT LED, 2nd foot switch on the rear, access security in front via light barriers.
Covering of hydraulic unit, Voltage transformer 52 kVA

Software

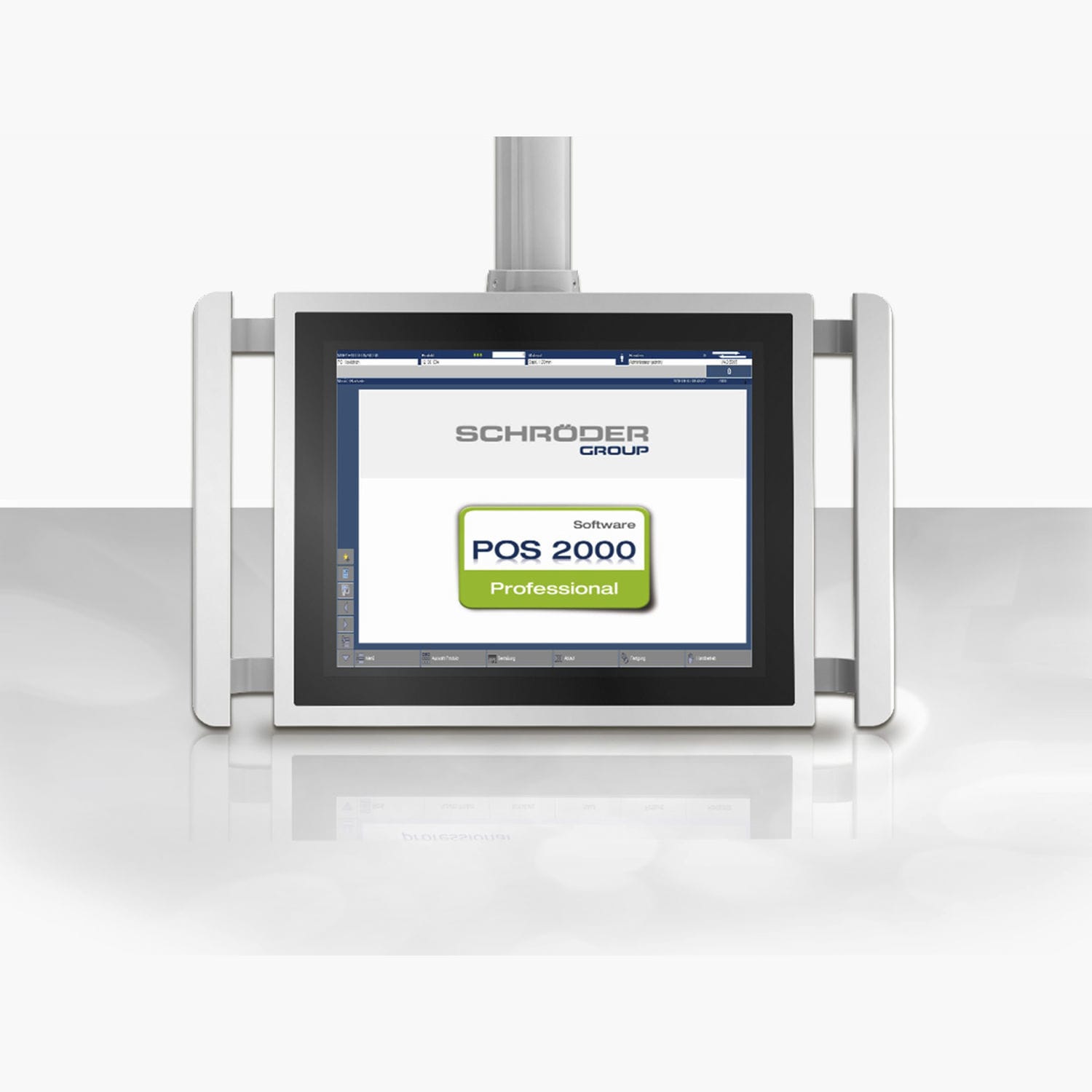

POS 2000 Professional

The standard for industrial folding machines

The proven POS 2000 Professional makes programming a folding machine fast and comfortable.

The desired program components can be selected from a comprehensive and expandable catalogue. The angle and side dimensions can be easily changed by pressing the monitor.

The control software displays exactly what the machine is doing: The folding machine, workpiece, and tool are shown schematically and updated for every bending step. Anyone who programs work preparation away from the machine can test the quality of their program using the bending simulation, which effectively avoids waste and delays during production.

The software not only controls the machine but also offers assistance to the user: for each bending step, all of the necessary operator activities, like turning, rotating, etc., are displayed.

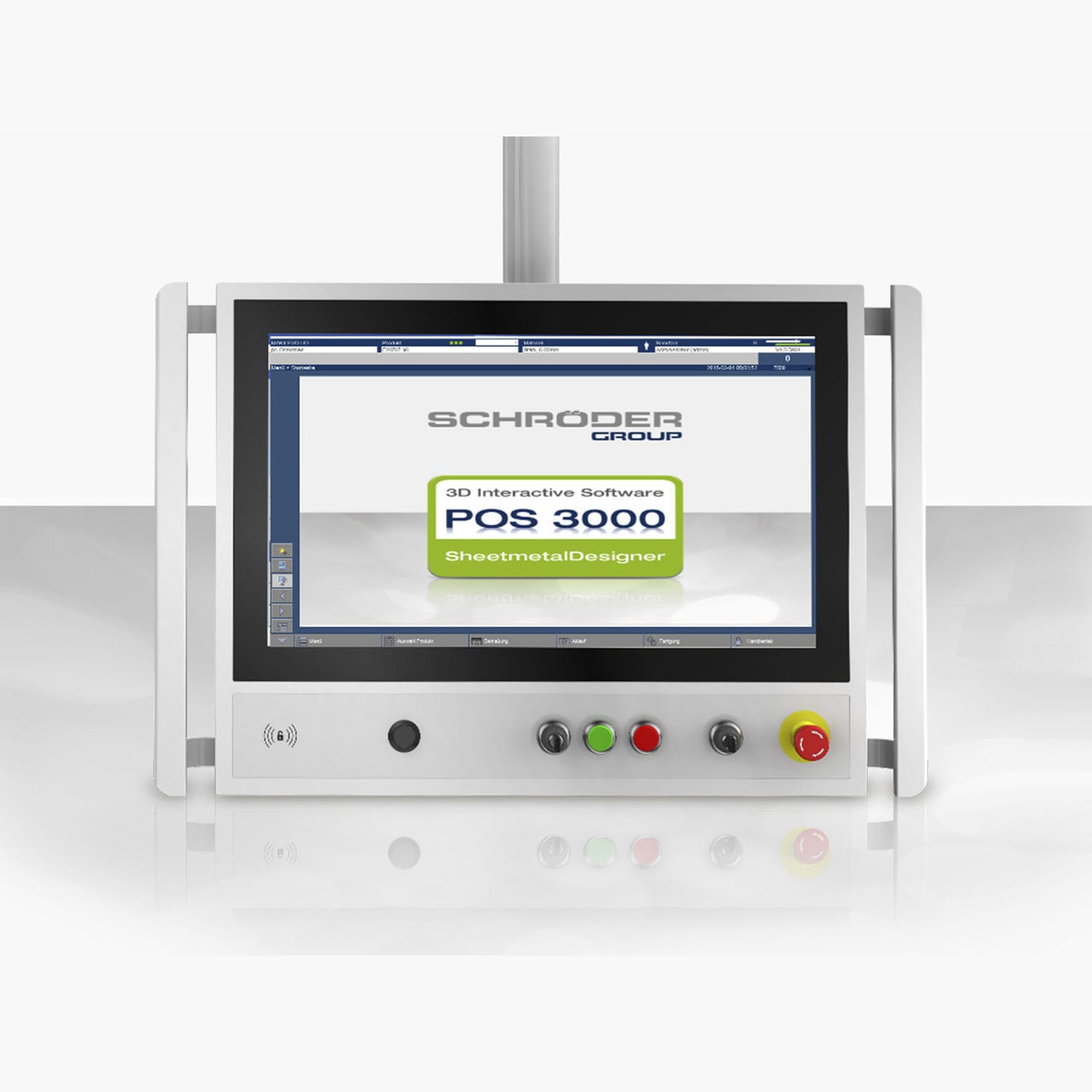

POS 3000 3D graphic control

Interactive sheet design

POS 3000 3D graphical control is one of the most powerful controls on the market. Because both the hardware- and software come from a single provider, the PowerBend Professional and POS 3000 3D graphical control are a perfect match.

Working with POS 3000 is extremely comfortable:

Clearly laid-out product selection, including a search function and navigation in submenus, enables the operator to select work steps and connect them in the production plan menu to create sequences.

Individual product profiles can be designed very quickly via the intuitive finger-activated drawing feature. The exact dimensions may be entered and changed in the dimensioning menu. In order to check and coordinate with the customer, the drawing may be outputted on paper using a printer.

Using the program that is created, the software generates the optimal sequence of bends, including automatic collision and threshold value monitoring. The folding angle and cut are corrected automatically using interpolation from the database.

Unfold software – Schröder Unfold

Uncomplicated and simple

In order to coordinate hardware and software perfectly, Hans Schröder Maschinenbau developed unfold software to calculate the blank size of the sheet and the program with effortless precision.

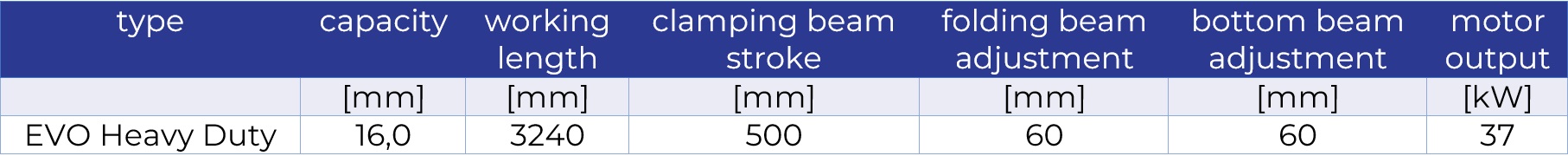

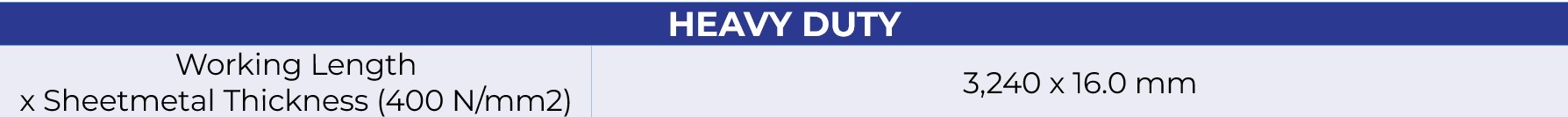

Technical Data

Brochure

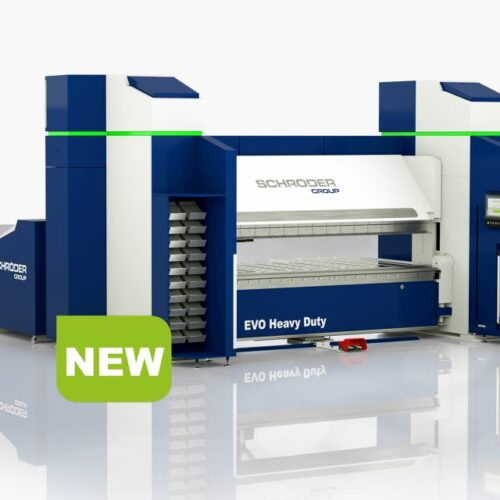

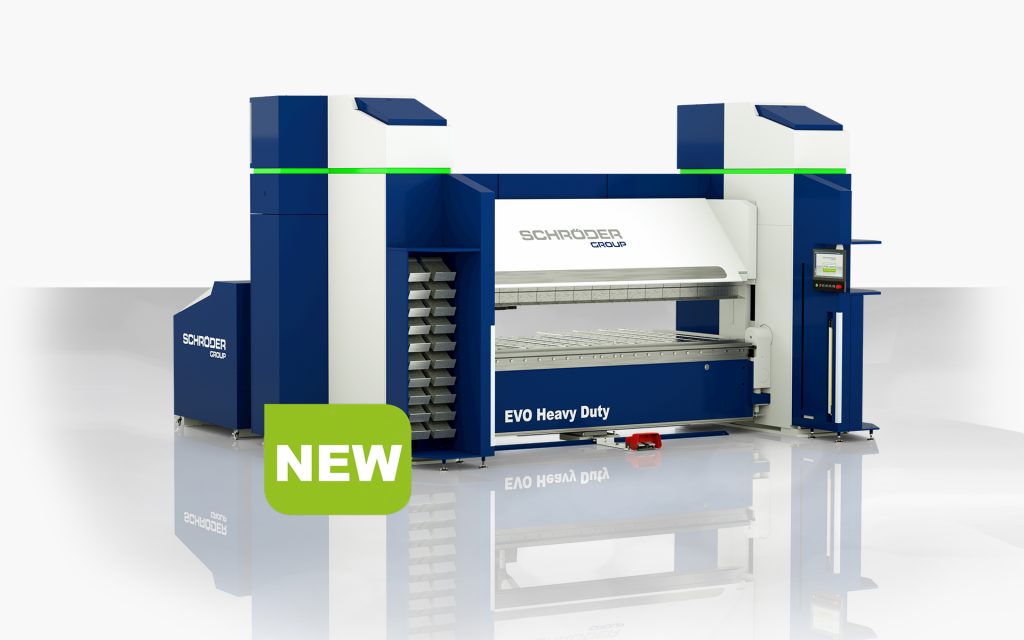

The sheet metal folder EVO Heavy Duty is our strongest folding machine that is able to bend up to 16 mm thick sheets over a working length of 3240 mm. We set standards in industrial folding and combine maximum precision with the highest possible bending performance.
