SCHROEDER MAK 4

Details

Standard equipment

Software control

Graphic control POS 2000 Professional on the swivelling arm with positioning gauge 10 – 1 000 mm incl. sheet support table Radius function

Clamping beam

Clamping beam stroke: 400 mm (optionally 620 mm)
Sharp nose blade 30°, R 1.5, surface-treated (phosphated)
Clamping beam with recirculated ball screws
Hydraulic tool clamping device (WZS 2000)

Folding beam

Folding blade 42 mm, divided, surface-hardened (nitrated)
Folding beam drive on both sides
Motorized folding beam adjustment, program-controlled
Motorized central crowning device (WZS 3000)

Bottom beam

Bottom beam blade, one-piece
Motorized bottom beam adjustment, program-controlled

Others

Piece counter, tool set, foot switch
Tools with material strength ca. 1100 N/mm²

Tools/Options

Special equipment

Software control

PC Version (external programming), 1st licence
POS 3000 3D Graphic control, DXF-Import and more processor capacity
Remote maintenance

Table and back gauge

Sheet support table with balls 10 – 1,000 mm
POS 2000 Professional with gauge 10 – 1500 mm and 2 gauge sectors with pneumatic lowering device Back gauge extension to U-gauge (U-shape 3200 mm or 4000 mm)

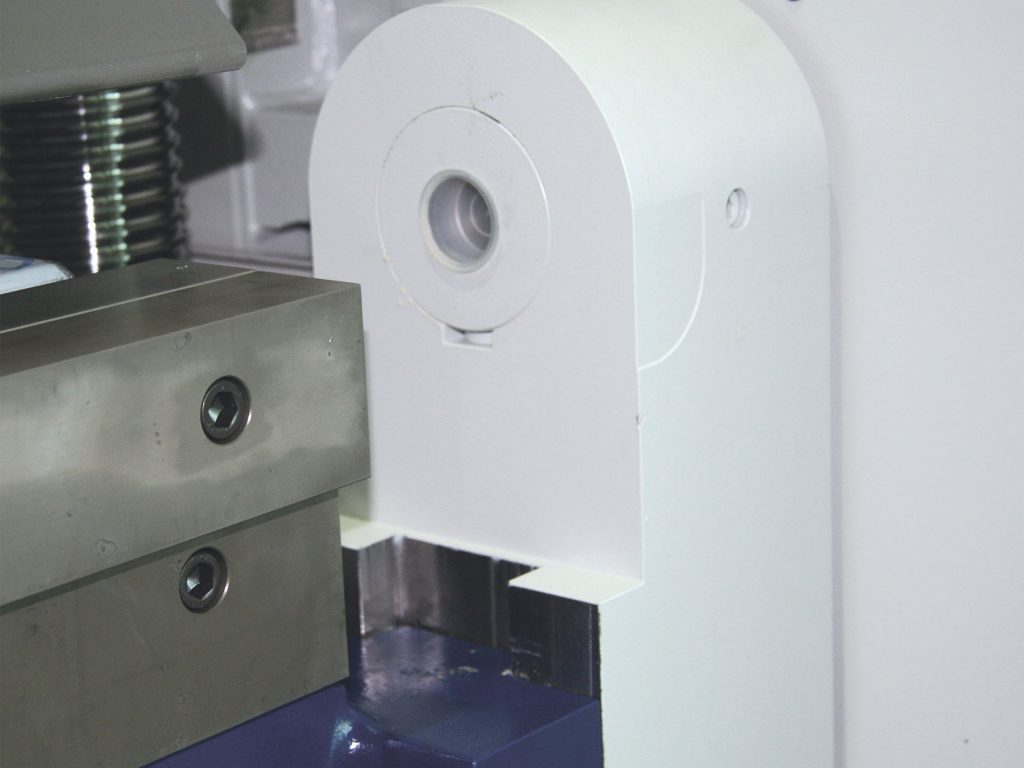

Basis: POS 2000 Professional 10 – 1,000 mm Several gauge sectors with the pneumatic lowering device, angle gauge, balls in the table

Safety

Additional equipment for 2-man-operation control in accordance with accident prevention rules is required

Others

2nd footswitch for operation from the rear
Foot switch on the rail for lateral movement
For operation from the rear, access security in front via light barriers

Software

POS 2000 Professional

the standard for industrial folding machines
The proven POS 2000 Professional makes programming a folding machine fast and comfortable. The desired program components can be selected from a comprehensive and expandable catalogue, and the angle and side dimensions can be easily changed by pressing the monitor.
The control software displays exactly what the machine is doing: The folding machine, workpiece, and tool are displayed schematically and updated for every bending step. Anyone who programs preparation of the work away from the machine can test the quality of their program using the bending simulation, which effectively avoids waste and delays during production.
The software not only controls the machine but also offers assistance to the user: all of the necessary operator activities, like turning, rotating, etc., are displayed for each bending step.

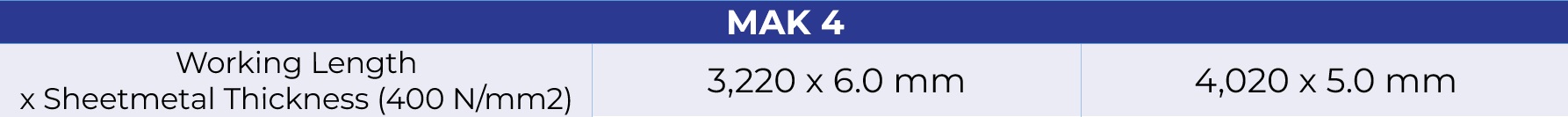

Technical data

Brochure

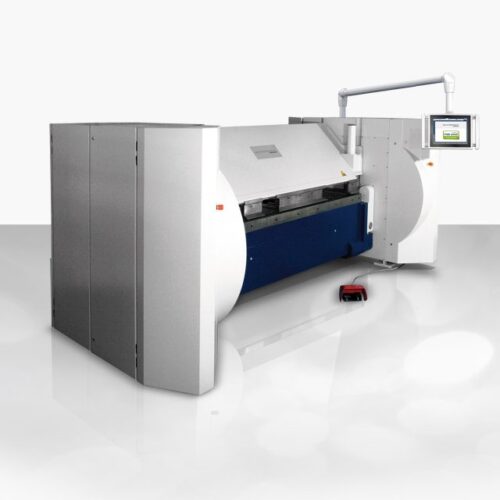

The motorized folding machine MAK 4 can be described as the most powerful and precise among all Schröder Power Folders. With a maximal working length of 5000 mm and a maximum bending capacity of 8 mm, the “giant” is designed for a hard and double-shift day.
