SCHROEDER SPB EVOLUTION UD

Details

Standard configuration:

Software control

POS 3000 3-D Graphic control on swivelling arm
Radius function
Remote maintenance via the Internet

Back gauge system

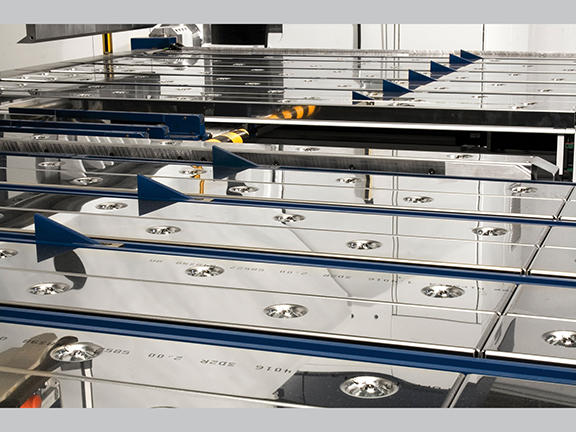

Positioning gauge 10 – 3400 mm, 10 – 4250 mm in U-shape with sectors, pneumatic pop-up gauge fingers, steel balls in sheet support table. The square arm is 1500 mm on the left and right sides. The segmented support plates can be removed to make room for downflange applications.

Clamping beam

Clamping beam stroke 650 mm
Clamping beam geometry 180°
Hydraulic tool clamping of the clamping beam

Folding beam

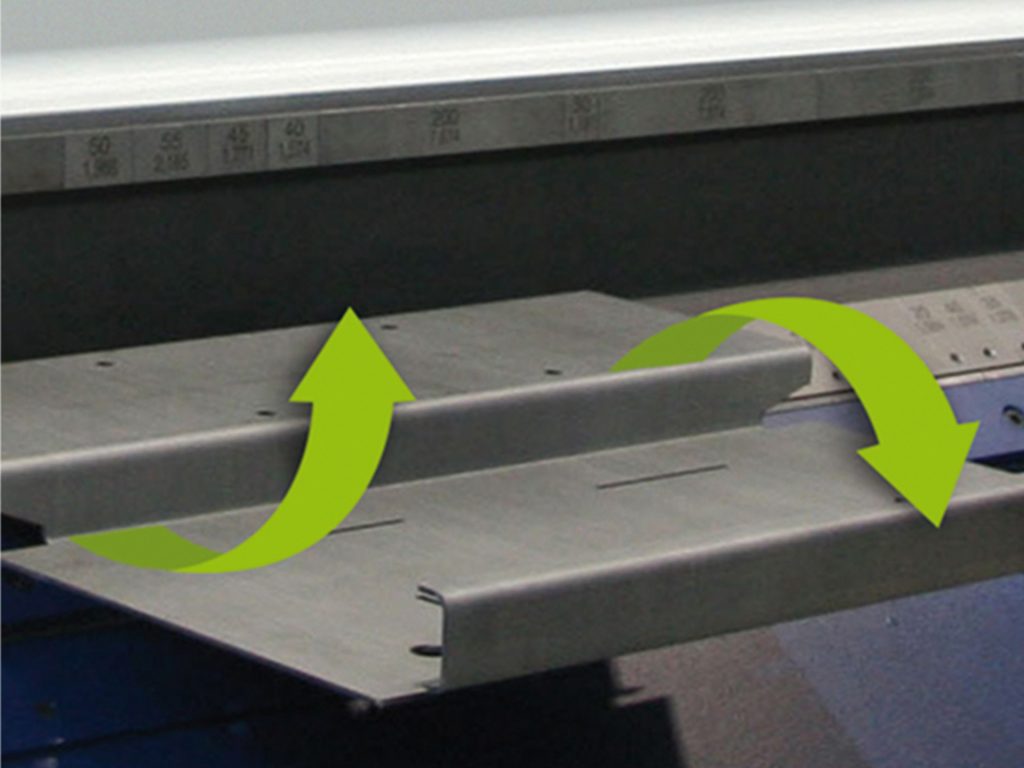

Up’n Down folding beam, automatically controlled via POS 3000
Pneumatic tool clamping device
Motorized folding beam adjustment 200 mm
Central crowning device motorized
Centre point adjustment, converter-controlled drive

Work safety

Protection via light barrier controlled by safety-PLC for operation from the rear
Safety package for operation from the front, incl. 2nd foot switch on the rail for lateral movement

Others

Footswitch
Anchor plates, incl. dowels

Tools

Standard machine without tools

Tools/Options

Special equipment:

Clamping beam

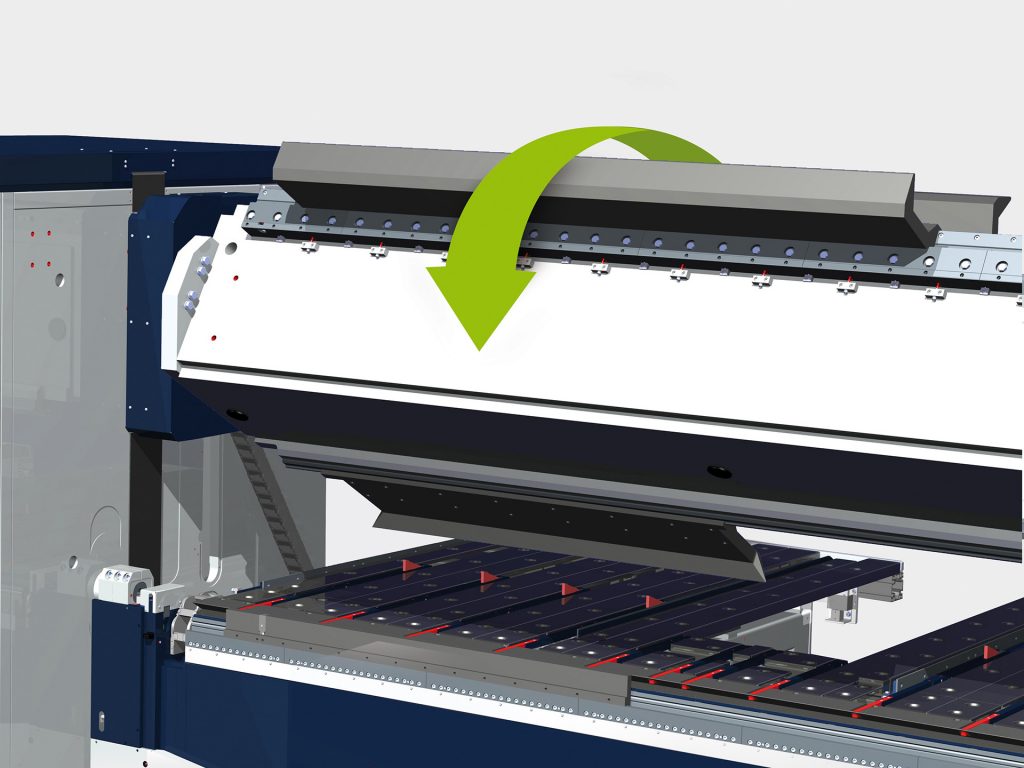

Rotating the clamping beam as an automatic tool changes the system, including the tool clamping device for 2nd tool station
(not in connection with clamping beam stroke)
Increase of clamping beam stroke Z-axis to 830 mm (not in connection with rotating clamping beam)

Control

External programming
Schröder Unfold software

Back gauge

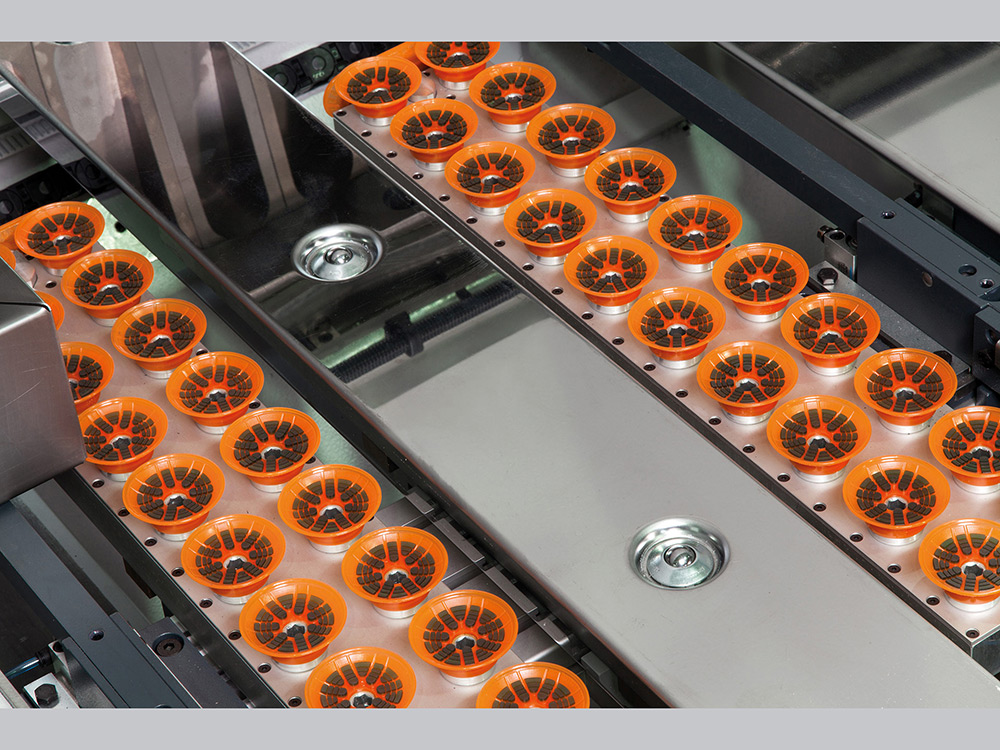

Suction plates in gauge table, program-controlled incl. two pneumatic pop-up square arms assembled aisle side

Others

Tool cart for blades, rails and segmented tools
Voltage transformer 18 kVA
Air conditioner on both switch cabinets
Overseas packaging

Safety

Additional equipment for 2-man-operation control by accident prevention rules required

Tools

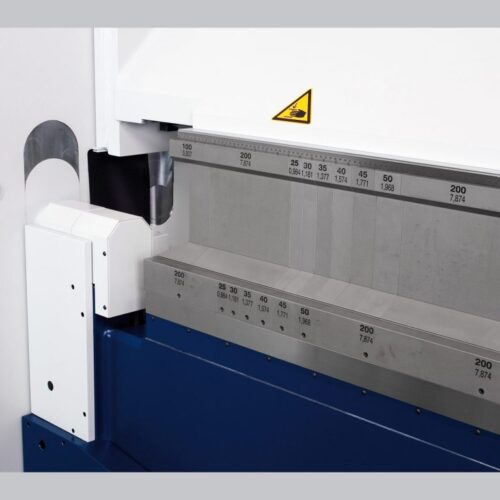

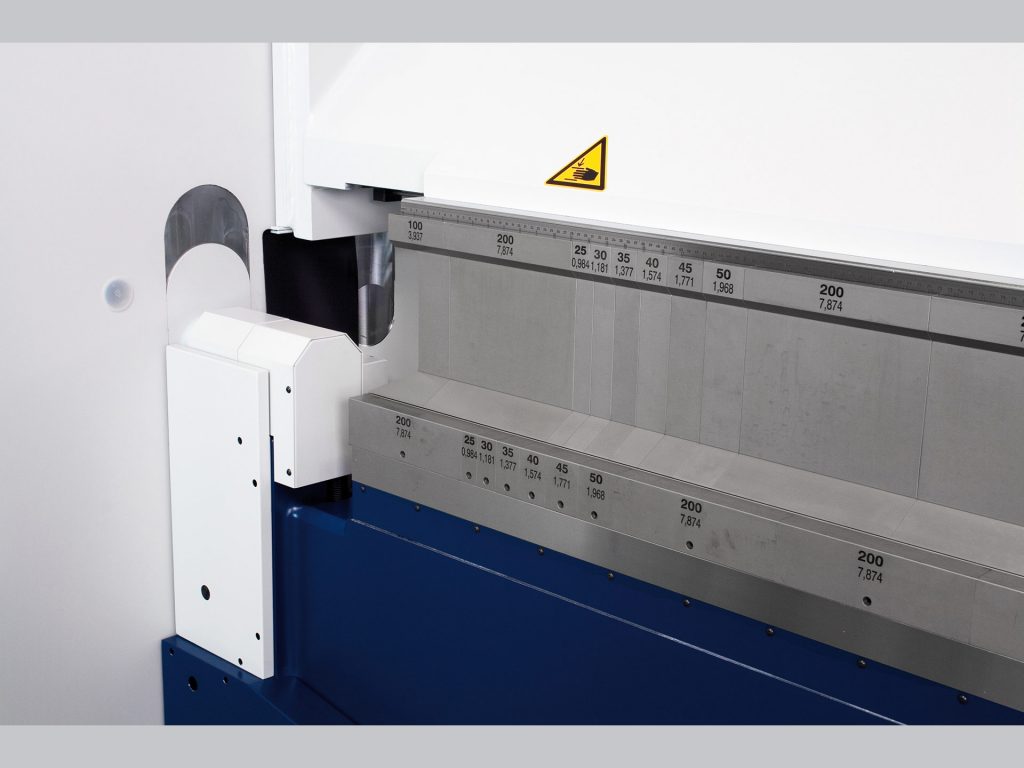

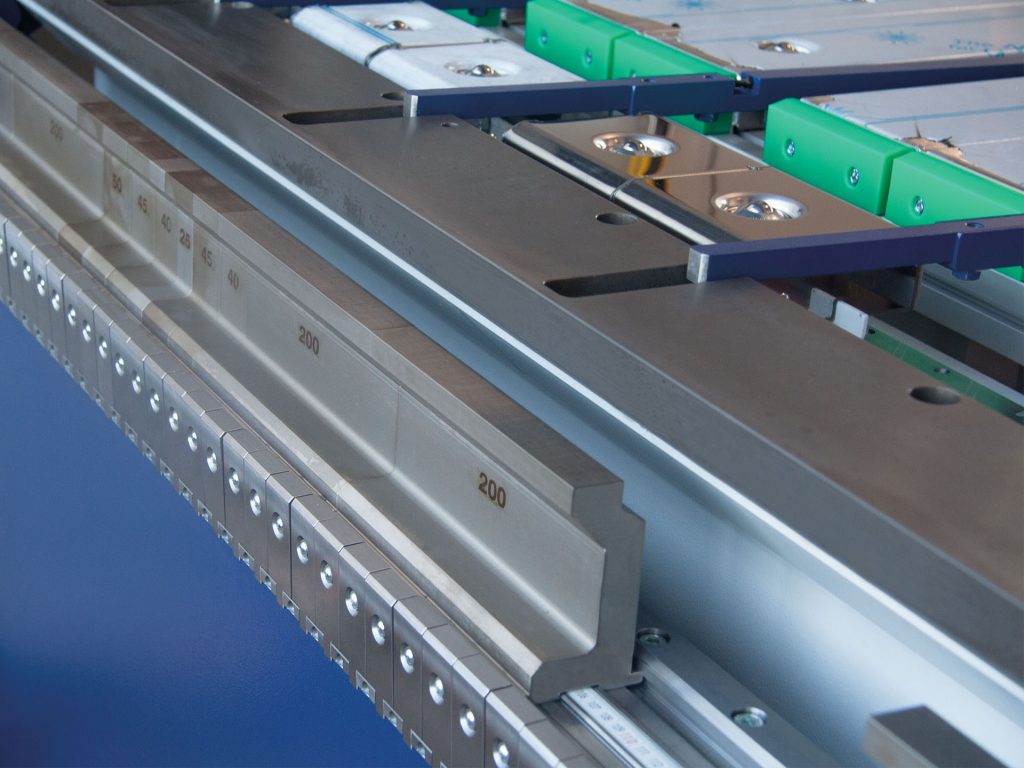

Various clamping beam, folding beam and bottom beam tools

Software

POS 3000 3D graphic control

Interactive sheet design
POS 3000 3D graphical controls are among the most powerful controls on the market. Because both the hardware and software come from a single provider, the SPB Evolution UD and POS 3000 3D graphical controls are a perfect match.

Working with POS 3000 is extremely comfortable:

Clearly laid-out product selection including a search function and navigation in submenus enables the operator to select work steps and connect them in the production plan menu to create sequences. Individual product profiles can be designed quickly via the intuitive finger-activated drawing feature. The exact dimensions may be entered and changed in the dimensioning menu. The drawing may be output on paper using a printer to check and coordinate with the customer.

Using the program created, the software generates the optimal sequence of bends, including automatic collision and threshold value monitoring. The folding angle and cut are corrected automatically using interpolation from the database.

Unfold software – Schröder Unfold

Uncomplicated and simple

Hans Schröder Maschinenbau developed unfold software to coordinate hardware and software perfectly, calculating the blank size and programming with effortless precision.

Technical Data

Brochure

Success Stories

Morz Siegle&Epple

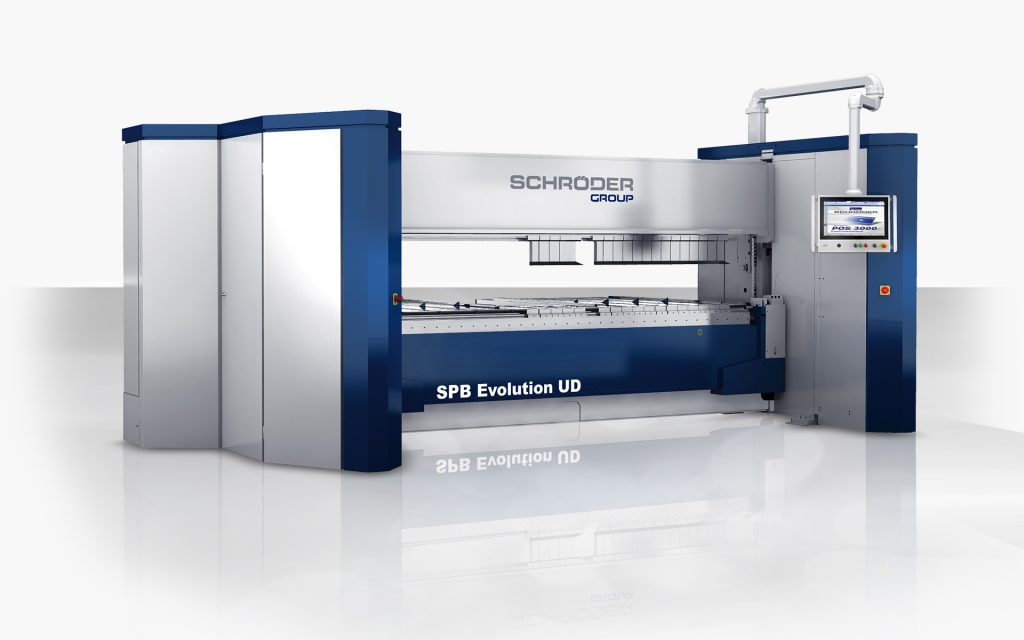

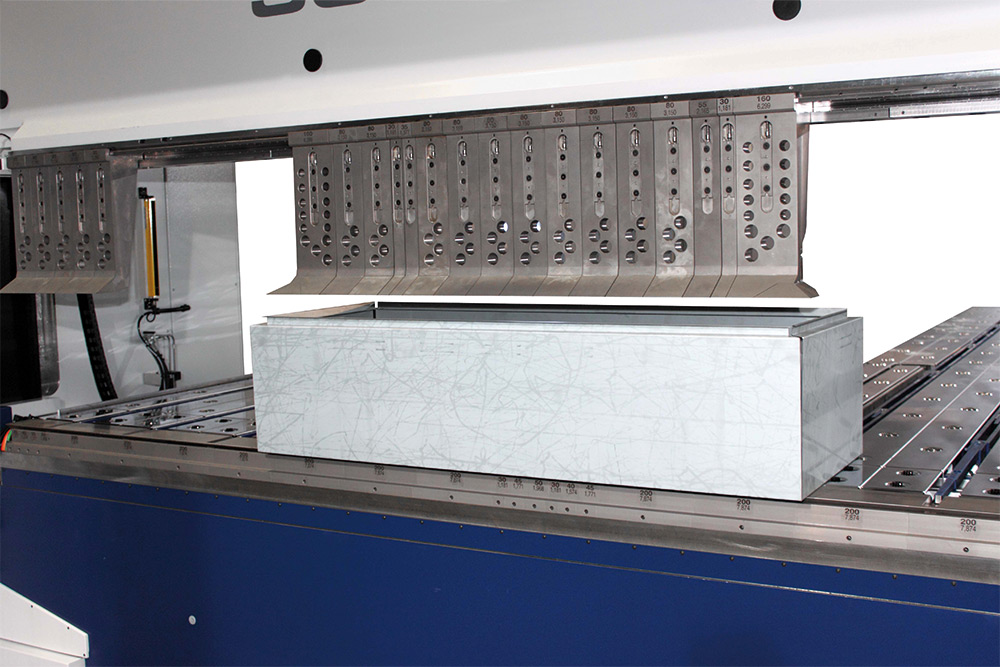

The SPB Evolution UD is a further development of the proven ServoPowerBend concept. This versatile industrial folding machine unifies power, speed, and precision. Its folding beam’s up-and-down technology allows more processing steps in shorter times and minimizes handling costs.
