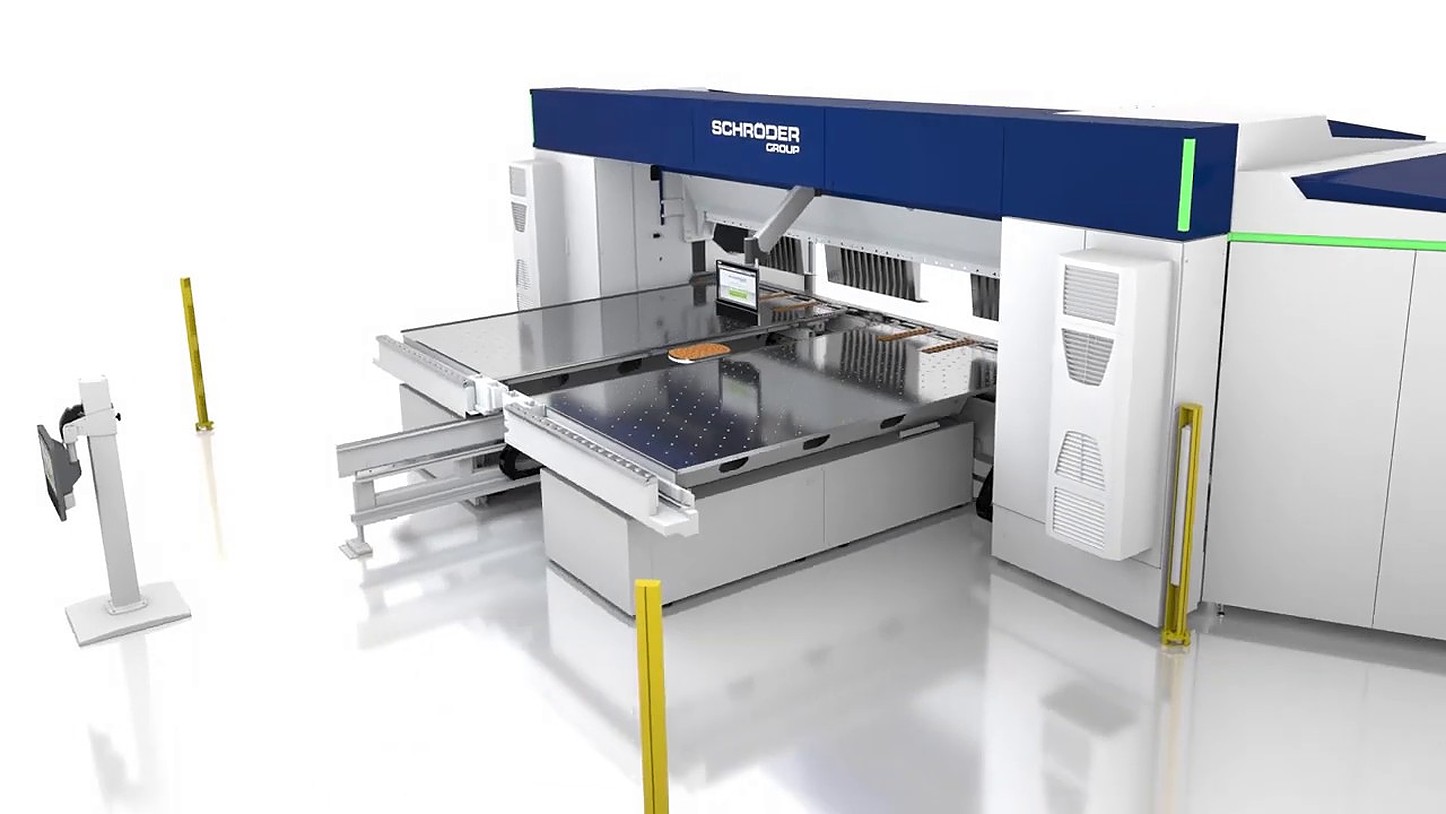

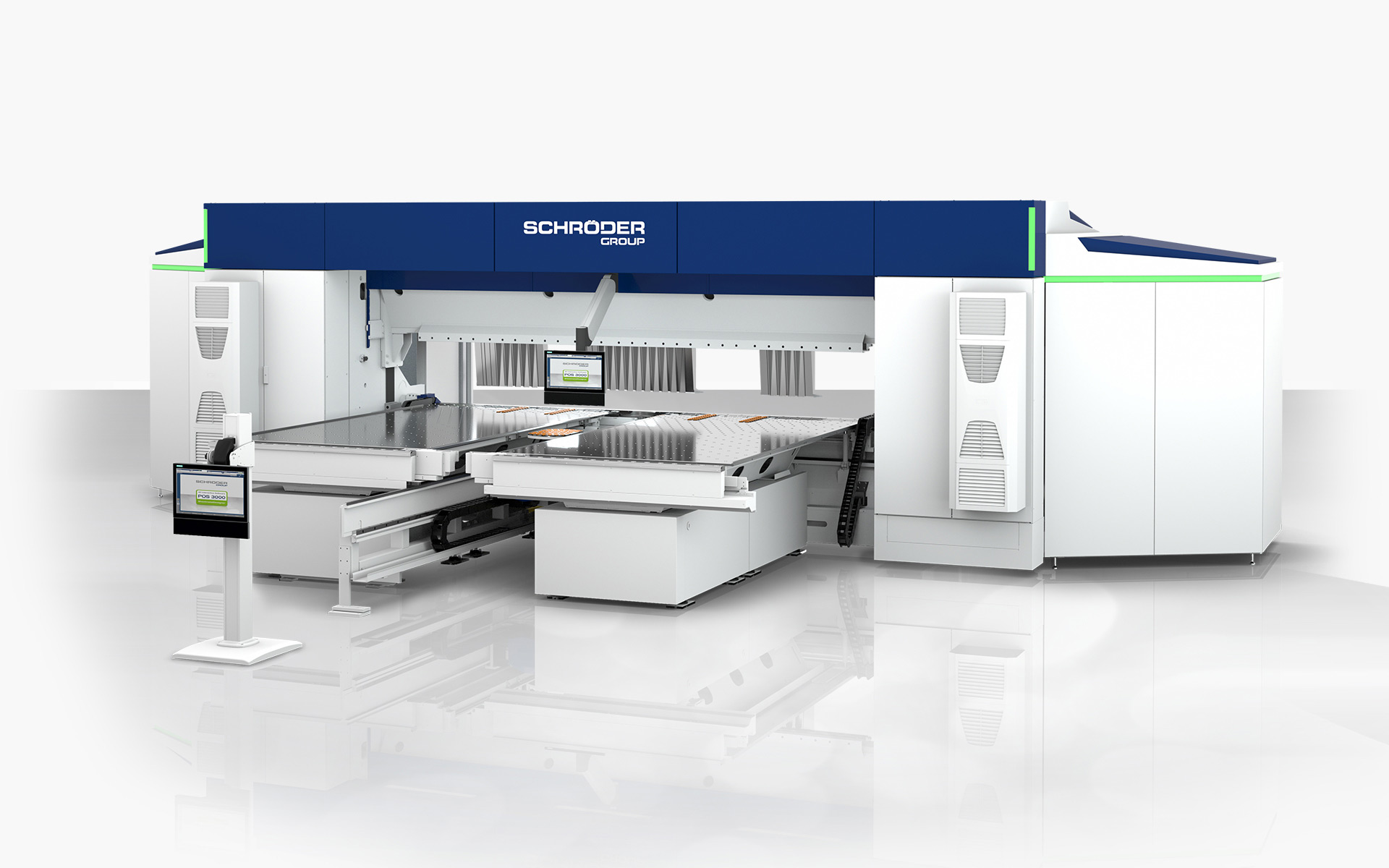

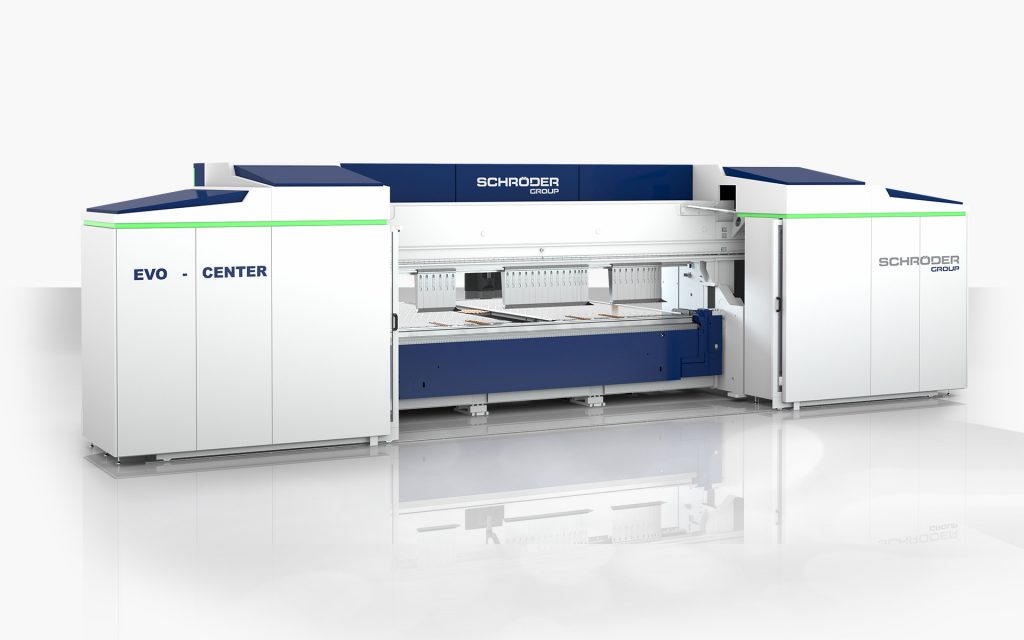

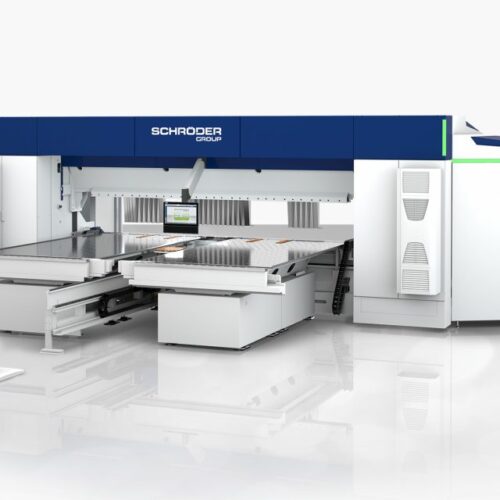

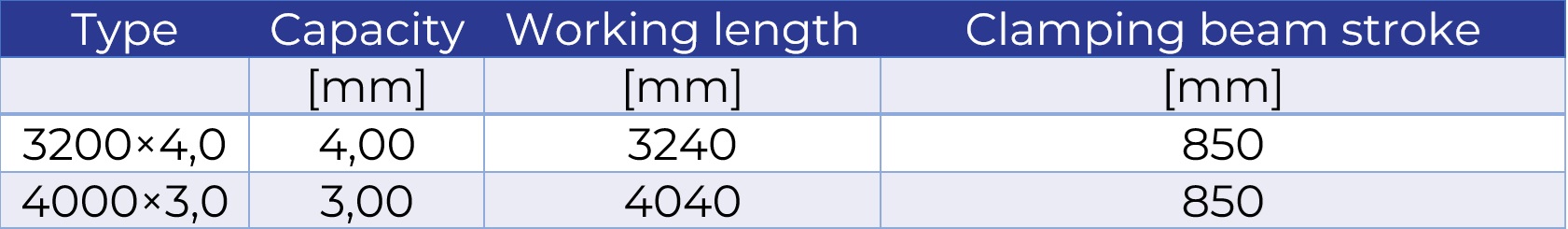

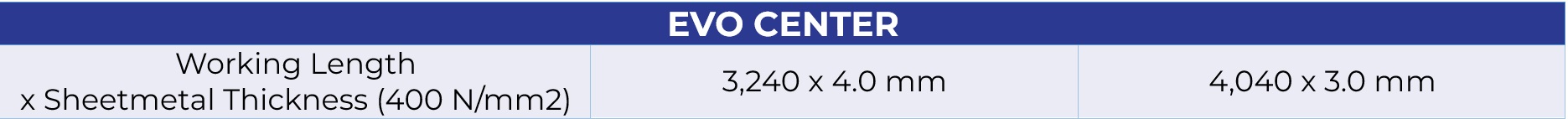

SCHROEDER EVO CENTER

Details

Standard configuration:

Software control

- POS 3000 3-D graphic control with 22″ TFT Touch-Screen colour display movable via guide rail
- Radius function
- Remote maintenance via the Internet
- External programming

Gauge system

- Gauge table 1700 mm as U-shape, segmented support plates with steel balls
- Lateral angle gauge right and left side 1500 mm (outside)
- Suction plates in gauge table, controlled via POS 3000
- two pneumatic pneumatic pop-up square arms assembled on the aisle side, program-controlled
- The gauge axis in the front

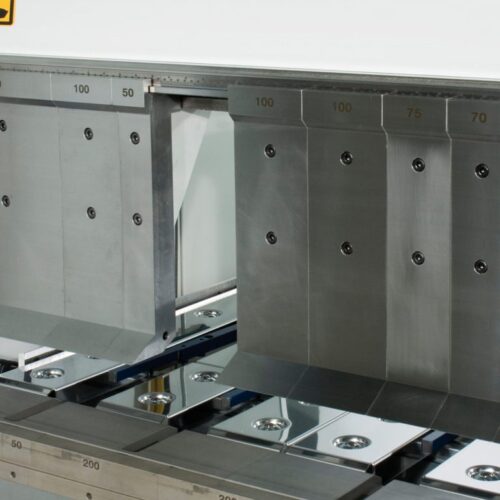

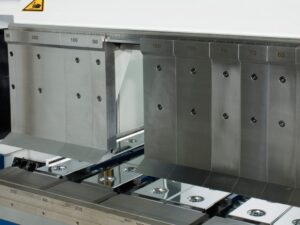

Clamping beam

- Clamping beam stroke: 850 mm
- Clamping beam geometry: 180°
- Tool clamping, hydraulic
- Fully automatic tool changer for clamping beam tools for max. Tool height 400 mm

Folding beam

- Up‘n Down folding beam, program-controlled
- Tool clamping, pneumatic
- Adjustment, motorized: 200 mm
- The central crowning device, motorized
- Motorized centre point adjustment, converter-controlled drive

Work safety

- Protection via light curtain for operation from the rear
- Safety at the front via double-leaf sliding door

Others

- Standard machine without tools
- Air conditioner on both switch cabinets
- Footswitch with two pedals incl. protection cover
- Anchor plates incl. dowels

Tools

- Standard machine without tools

Tools/Options

Special equipment

Clamping beam

Fully automatic tool changer (WSZ 6000) with a hydraulic tool clamping device (a total of 8 axes) for max. Tool height of 500 mm (without toolings), two asynchronously movable tool changers with one gripper unit each incl. safety fence with lateral access door incl. air conditioner on both switch cabinets Central lubrication, program-controlled via POS 3000

Folding beam

Additional option: automatic tool changer for folding beam tools with pneumatic tool clamping device WZS 7200 incl. one folding beam toolset

Back gauge

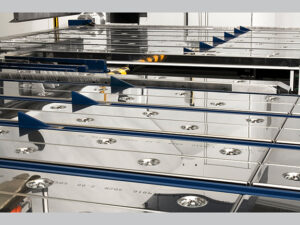

Side table left or right, sheet support table closed with ball rollers (see graphic p.7) – Pneumatically lowerable gauge fingers (2 sectors 850/1700 mm)– Back gauge extension right and/or left with pneumatically lowerable gauge fingers (balls in table), combinable with side table

Safety

Additional equipment for 2-man-operation control in accordance with accident prevention rules is required

Others

External programming (PC-Version)– Voltage transformer 52 kVA– Air conditioner on both switch cabinets

Software

POS 3000 3D graphic control

Interactive sheet design

POS 3000 3D graphical controls are one of the most powerful controls on the market. Because both the hardware and software come from a single provider, the SPB Evolution UD and POS 3000 3D graphical controls are a perfect match.

Working with POS 3000 is extremely comfortable:

Laid-out product selection, including a search function and navigation in submenus, enables the operator to select work steps and connect them in the production plan menu to create sequences. Individual product profiles can be designed quickly via the intuitive finger-activated drawing feature. The exact dimensions may be entered and changed in the dimensioning menu. The drawing may be output on paper using a printer to check and coordinate with the customer.

Using the program that is created, the software generates the optimal sequence of bends, including automatic collision and threshold value monitoring. The folding angle and cut are corrected automatically using interpolation from the database.

Unfold software – Schröder Unfold

Uncomplicated and simple

Hans Schröder Maschinenbau developed unfold software to coordinate hardware and software perfectly to calculate the blank size and program with effortless precision.

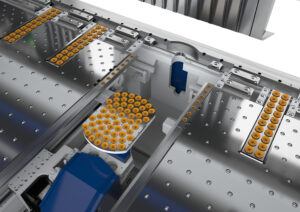

Tool changer

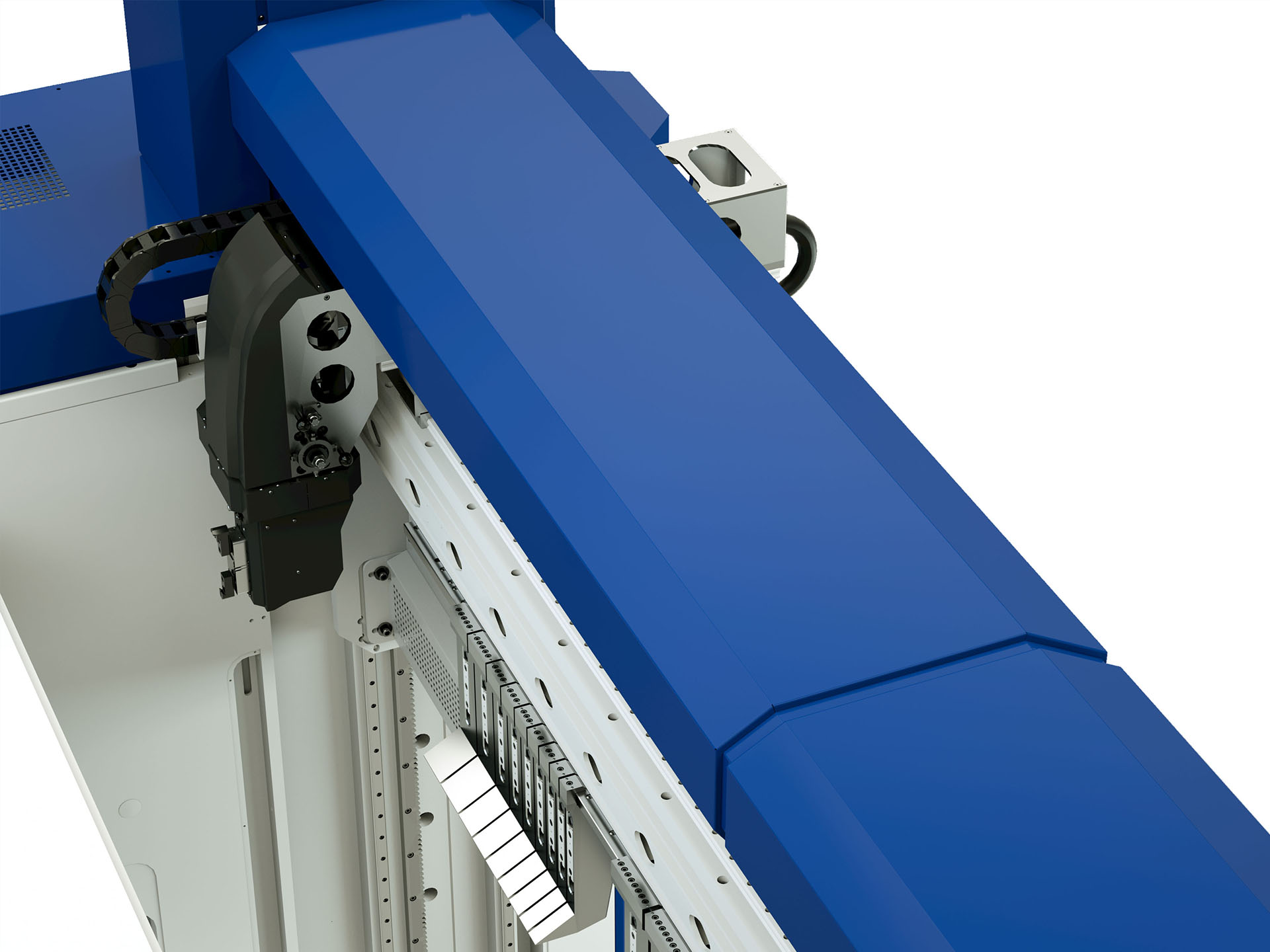

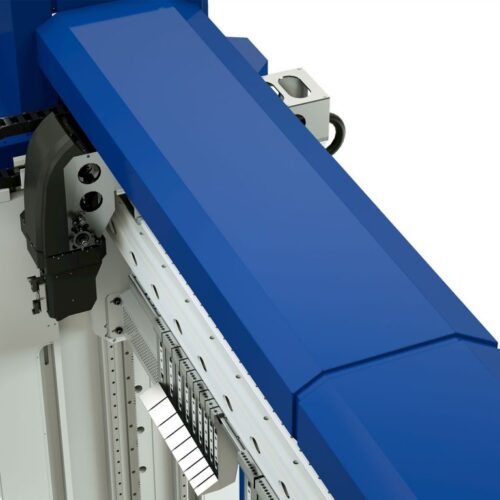

Fully automatic full changer

Automated tool changer of the 3rd generation

From now on, the fully automated tool changer will be an equipment option for the folding machine EVO Center. The newly designed tool changer does not need an additional tool changing portal, instead a twin robot arm handles one tool each, independently and simultaneously. Segmented tools for a tool change are located in two side panels on the left and right sides of the machine.

Details

Fully automated tool changer for clamping beam tools with hydraulic tool clamping device for max. tool height 400 mm. Twin robot arm handles one tool each, independently and simultaneously (incl. one folding beam tool set).
