SHARP RAIL 20° R 1.5 MM WITH CLICK SYSTEM

• Sharp rail for the clamping beam
• Radius 1.5 mm

INSERT RAIL 10 MM

• Insert rail 68/10 mm for the bending beam

INSERT RAIL 24 MM

• Insert rail 68/24 mm for the bending beam

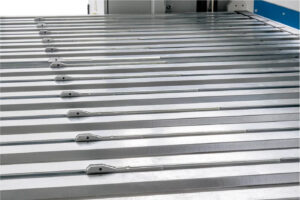

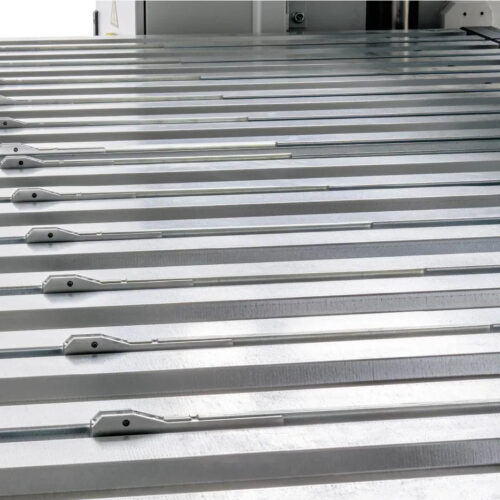

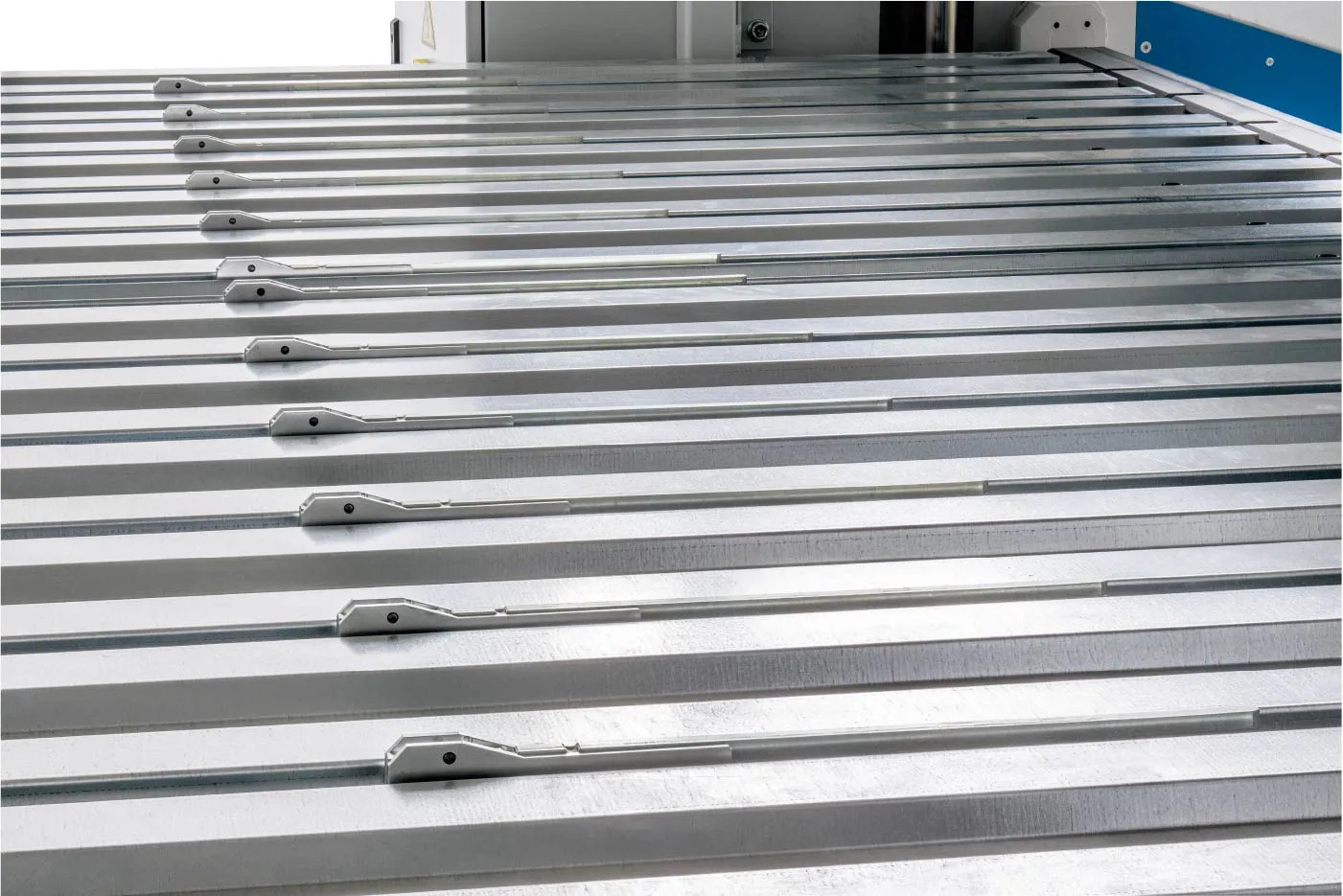

MOTORIZED BACKGAUGE 6-1000 MM

• Motorized backgauge for precise
  positioning of the sheets
• The backgauge fingers automatically move to the correct position with every new bending section.
• For optimum adjustment to the workpiece, all backgauge fingers are freely positionable over the entire bending length.

TWO FOOT SWITCHES

• The following models are supplied with a second foot switch as standard:
• machines with a working length of 4 m
• machines with ST control and working length of 2.5 m and 3 m

ADD-ONS – OPTIMISE YOUR MAE:

VSP MANUAL CROWNING OF THE BENDING BEAM

• Manual adjustment of the pretension by the operator

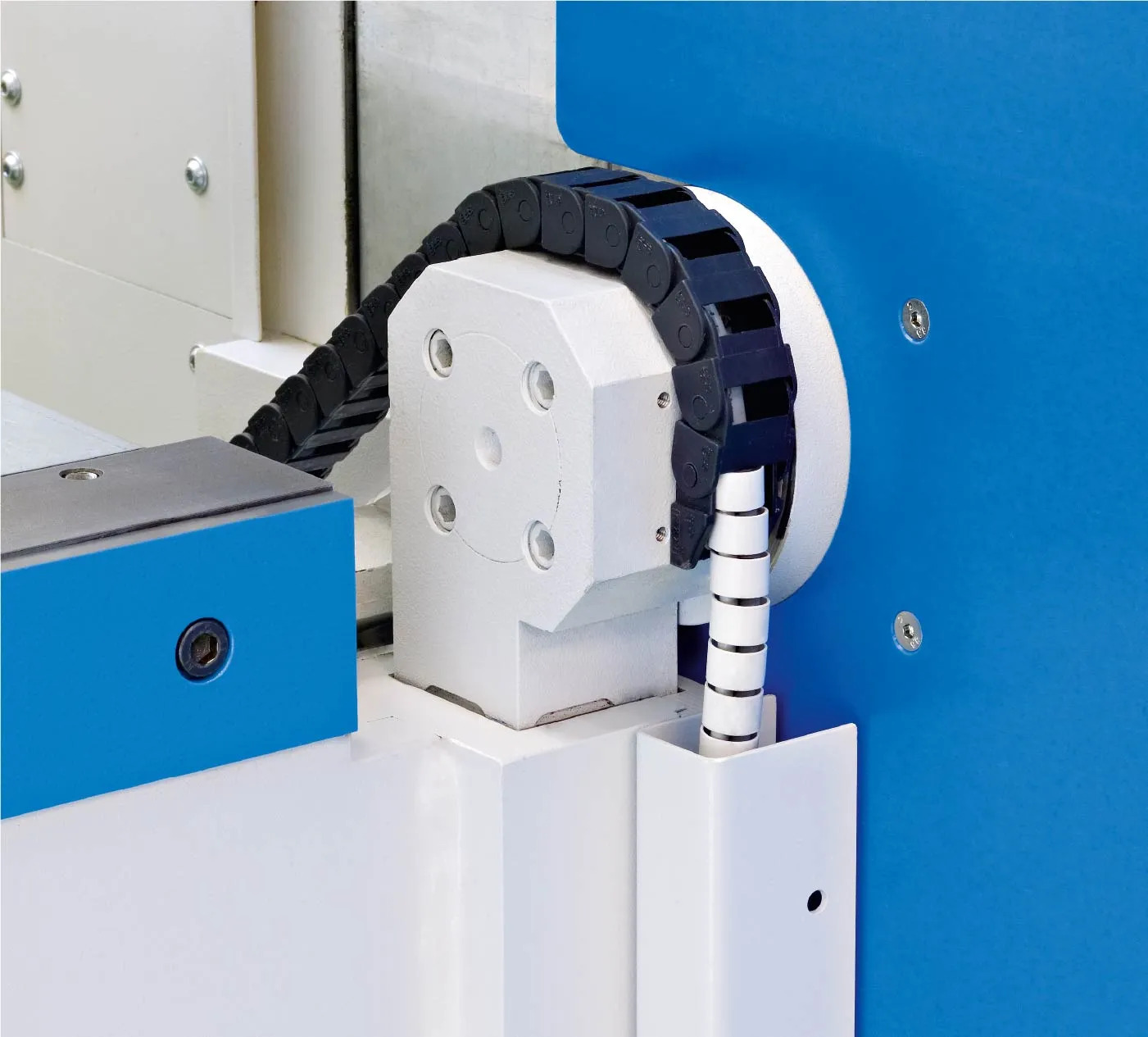

MBA MOTORIZED BENDING BEAM LOWERING

• For faster bending sequences and added precision

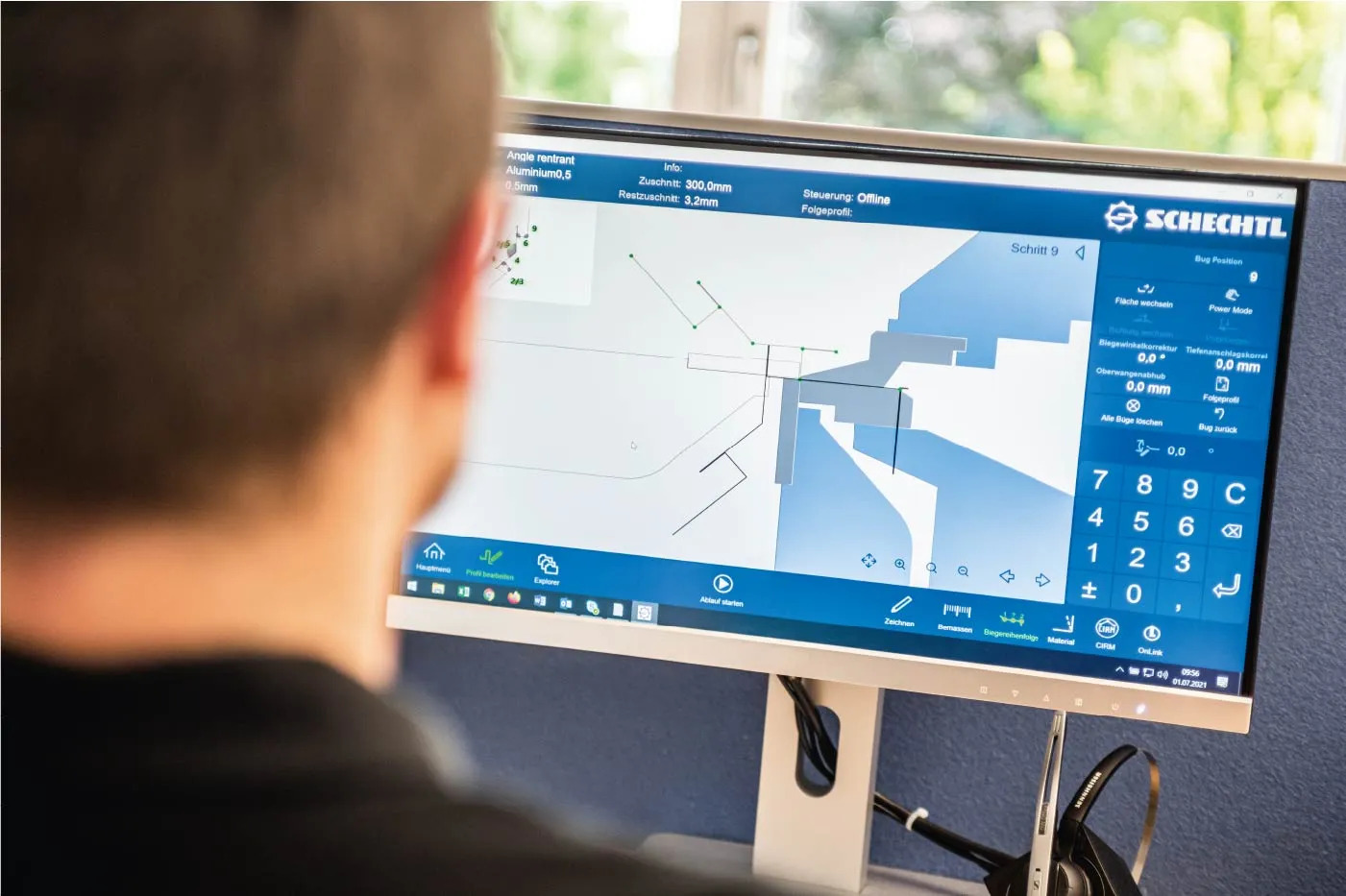

PC OFFLINE SOFTWARE

For efficient task preparation at your office workstation

• The PC offline software allows you to create
  and edit profiles at the PC
• The profile data can then be transferred
  to the machine

Test it free of charge: demo licence required!

Test and experience the PC offline software for 30 days.
Simply request a free demo licence at service@schechtl.de.

CNC S-TOUCH

INTUITIVE. EASY. FASTER.

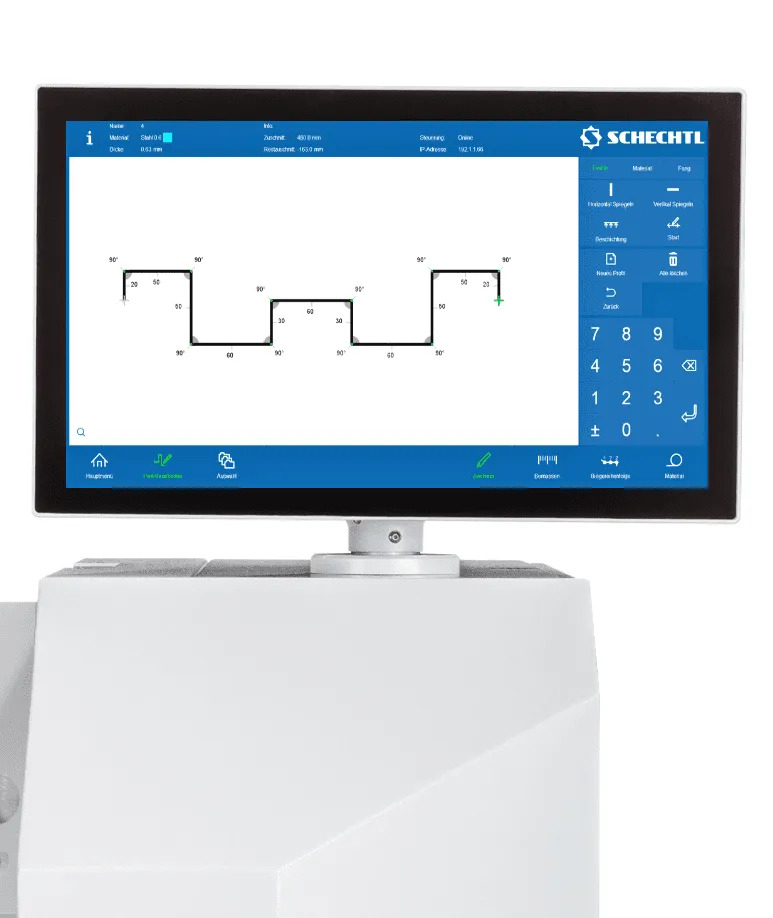

Draw complex bending sequences with your fingertips and graphic control

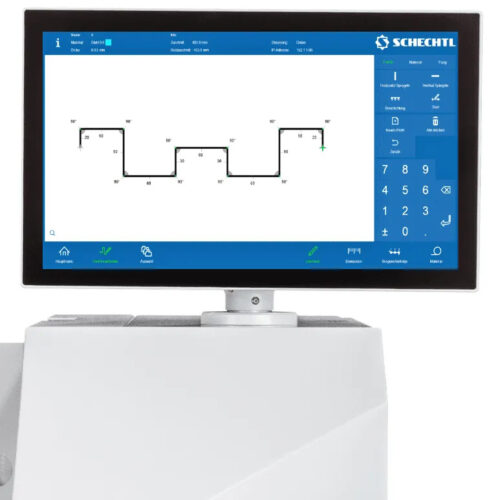

With the CNC S-Touch, sheet metal profiles are created simply and interactively with
your fingertip on the display and detailed in a dimensioning menu. The control system automatically recognises how the workpiece needs to be turned and repositioned and which tools are required.

• 21.5″ LCD Touch colour display with high-resolution graphics
• USB port for backup and transfer of programs
• Integrated WLAN
• Remote Support (TeamViewer)
• Graphic representation of the bending process
• Graphic representation of the position of the inserted sheet before every bend
• Operator guidance in text – each work step is explained visually
• Correct profiles directly by tapping the desired limb
• Bending angle correction can be programmed
• Set repetitions for special bend radii
• Quick entry mode and sketch selection
• Cutting program for roller shear
• Permanent storage of all programs
• Freely selectable program name
• Search for profiles via name
• Select from 16 languages
• Logging of machine data and runtimes
• Bending precision and convenience through motorised backgauge 1000 mm

Brochure    Catalogue

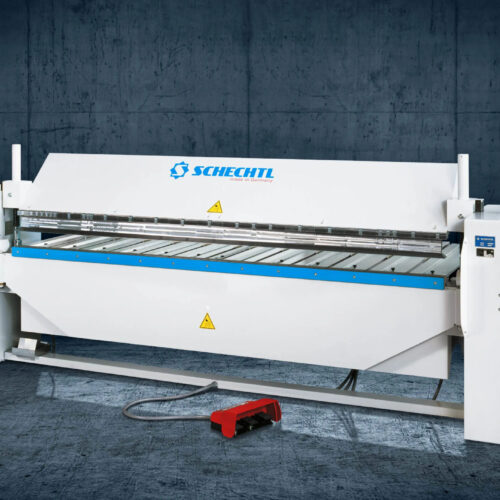

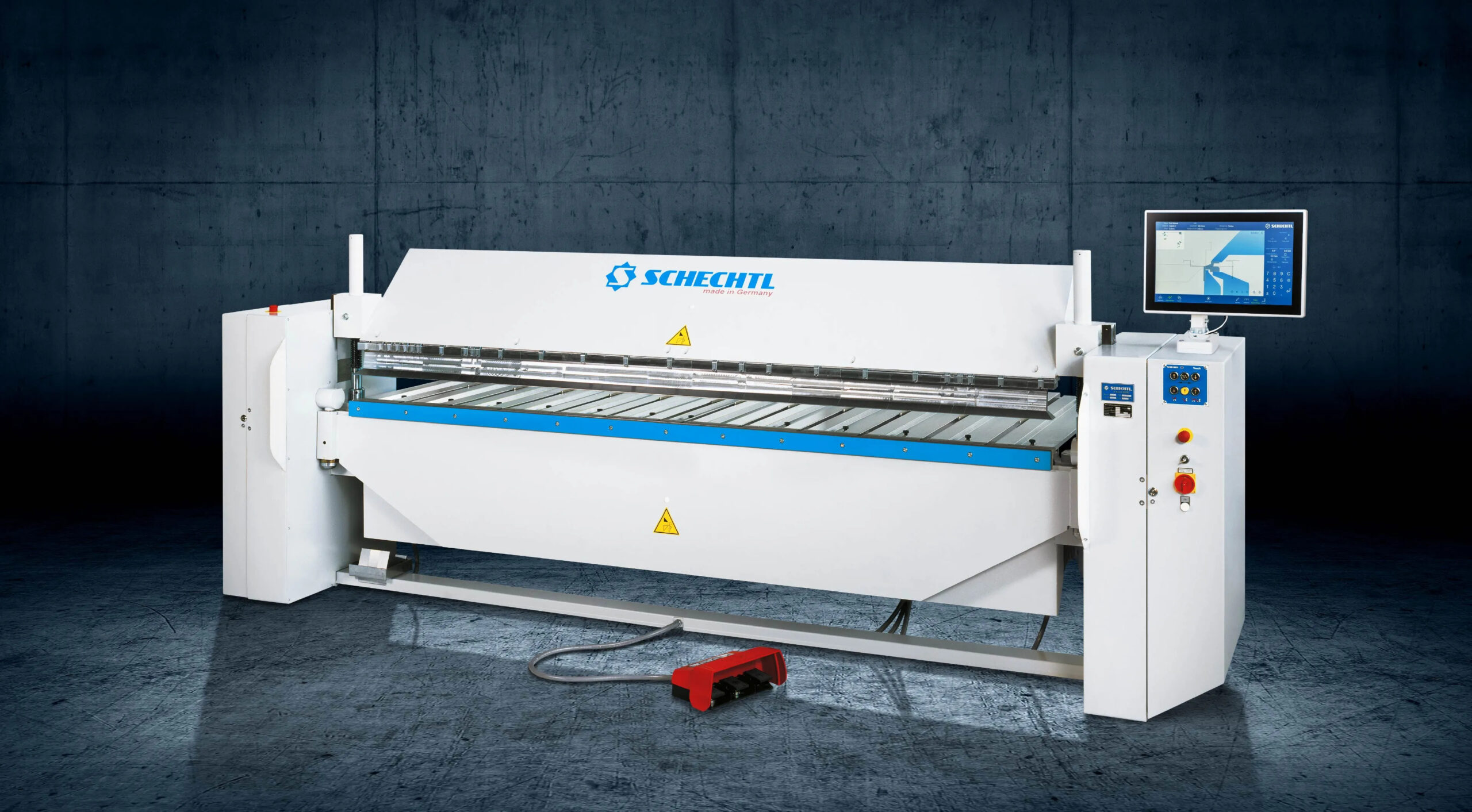

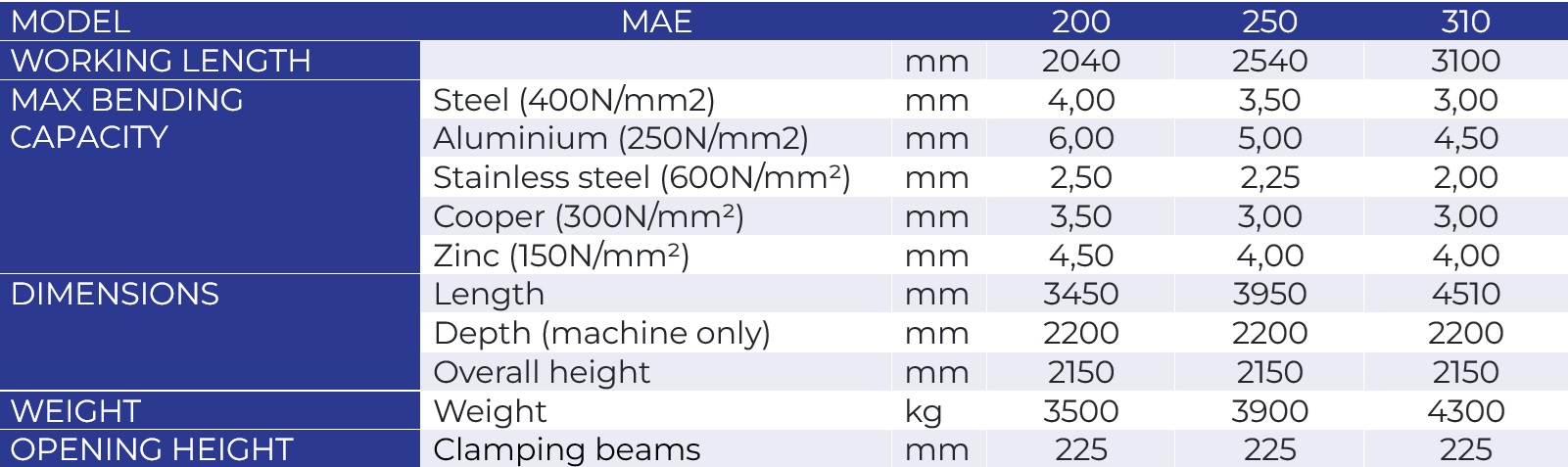

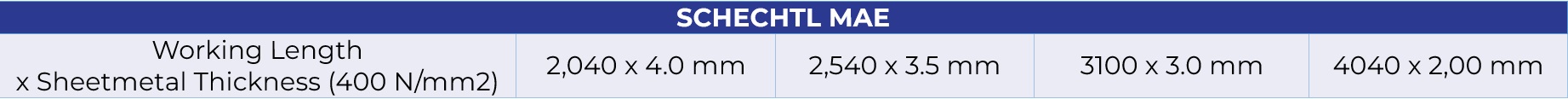

With its powerful spindle drive, the Schechtl MAE is the strongest in our range of motorized swivel bending machines. The click system comes as standard, minimises set-up times and allows easy retrofitting of special tools at any time. At the same time, the solid, torsion-free welded construction ensures a long machine service life even with consistently heavy loads.
