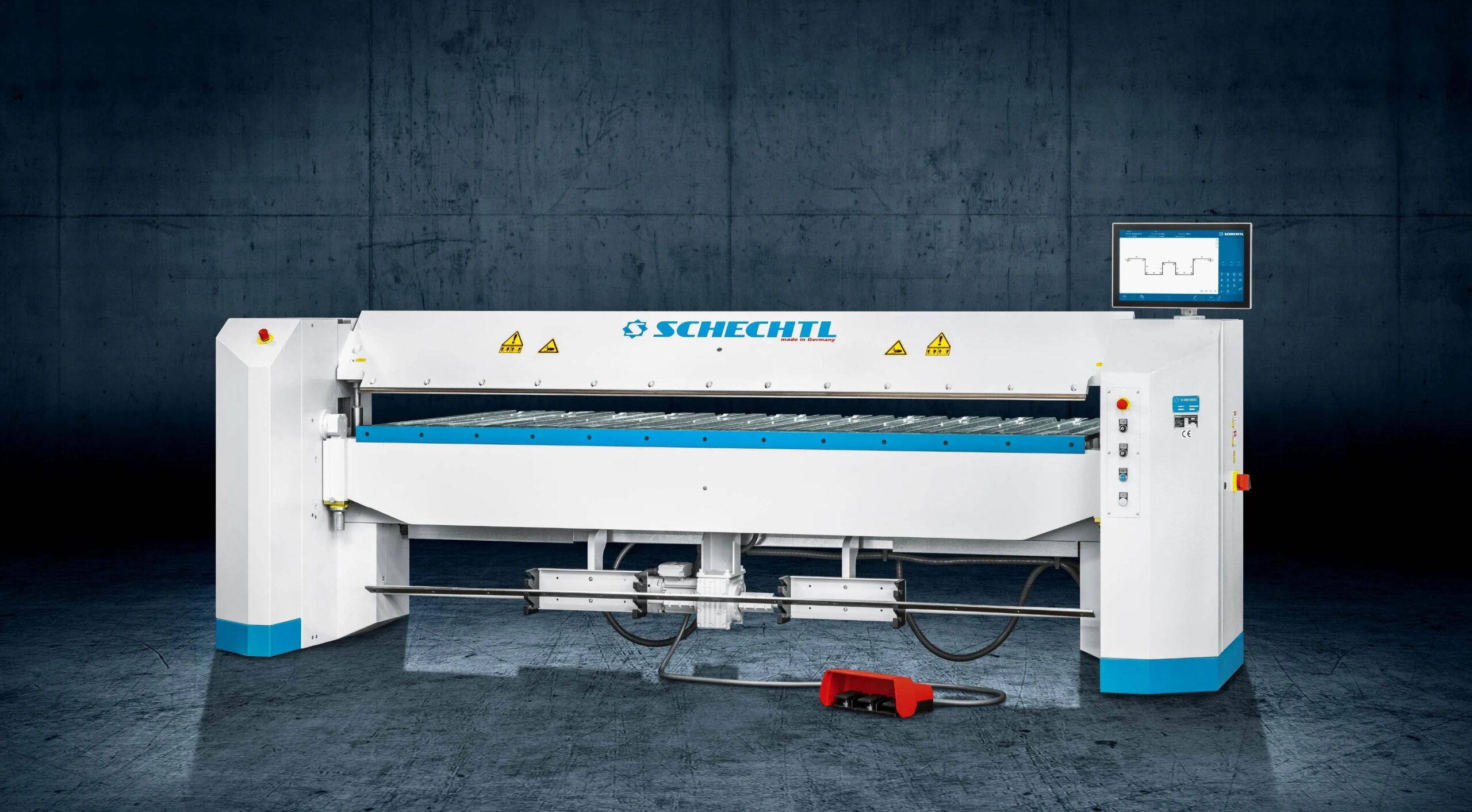

SCHECHTL MAX

Details

The Schechtl MAX is perfect, where there is extensive work to be done on roofs and exteriors. With a range of control systems and backgauge options as well as a wide selection of rails, the MAX can be fully customised to suit your wishes.

Version:

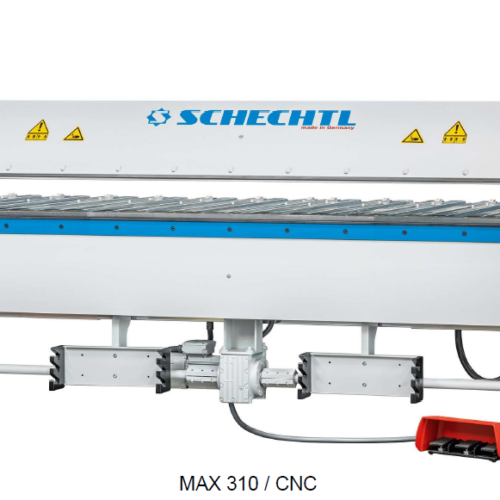

MAX 250

The MAX 250 motorized swivel bending machine has a working length of 2540 mm and bends 2.00 mm steel

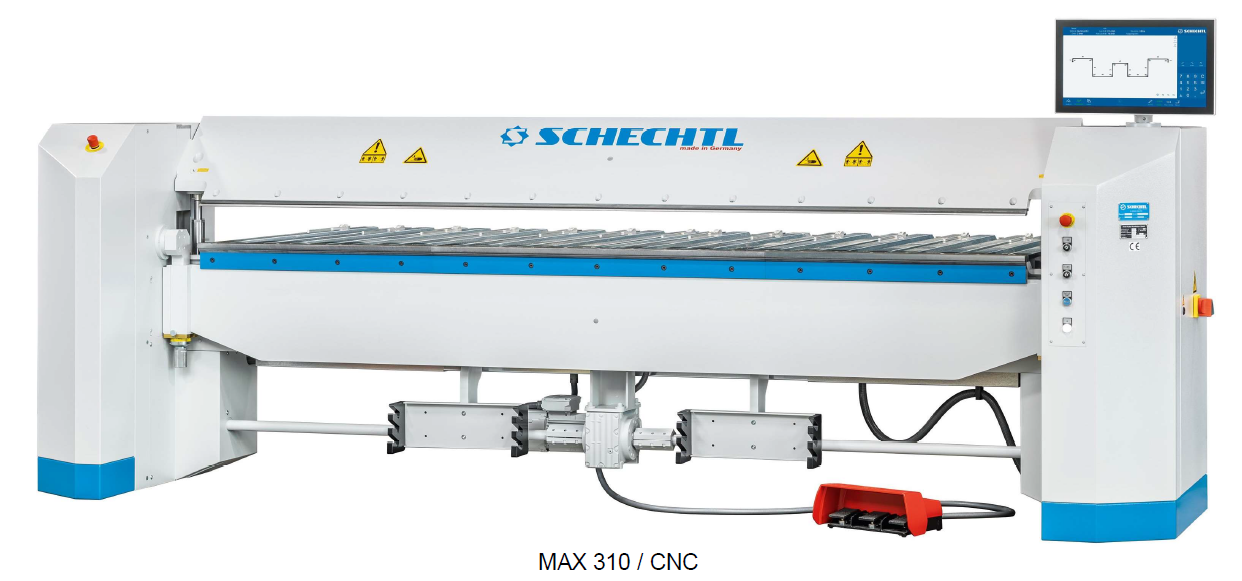

MAX 310

The motorized swivel bending machine MAX 310 has a working length of 3100 mm and bends 1.50 mm steel.

MAX 400

The MAX 400 motorized swivel bending machine has a working length of 4040 mm and bends 1.00 mm steel.

BENEFITS

Ideal for high workloads
Short bending times through extremely high swivel speed
Time-saving through 1-man operation
Minimal maintenance effort
Versatile through a comprehensive range of accessories

GETS TOP MARKS FOR PERFORMANCE AND SPEED

offers very high bending capacity while keeping energy costs low
impressively short bending times thanks to an incredible swivel speed of 90°/s and a 50mm/s opening speed for the clamping beam
faster bending process: if the bending angle is less than 90°, the clamping beam opens simultaneously
high degree of production for sheet profiles on machines with control systems and motorized back gauge

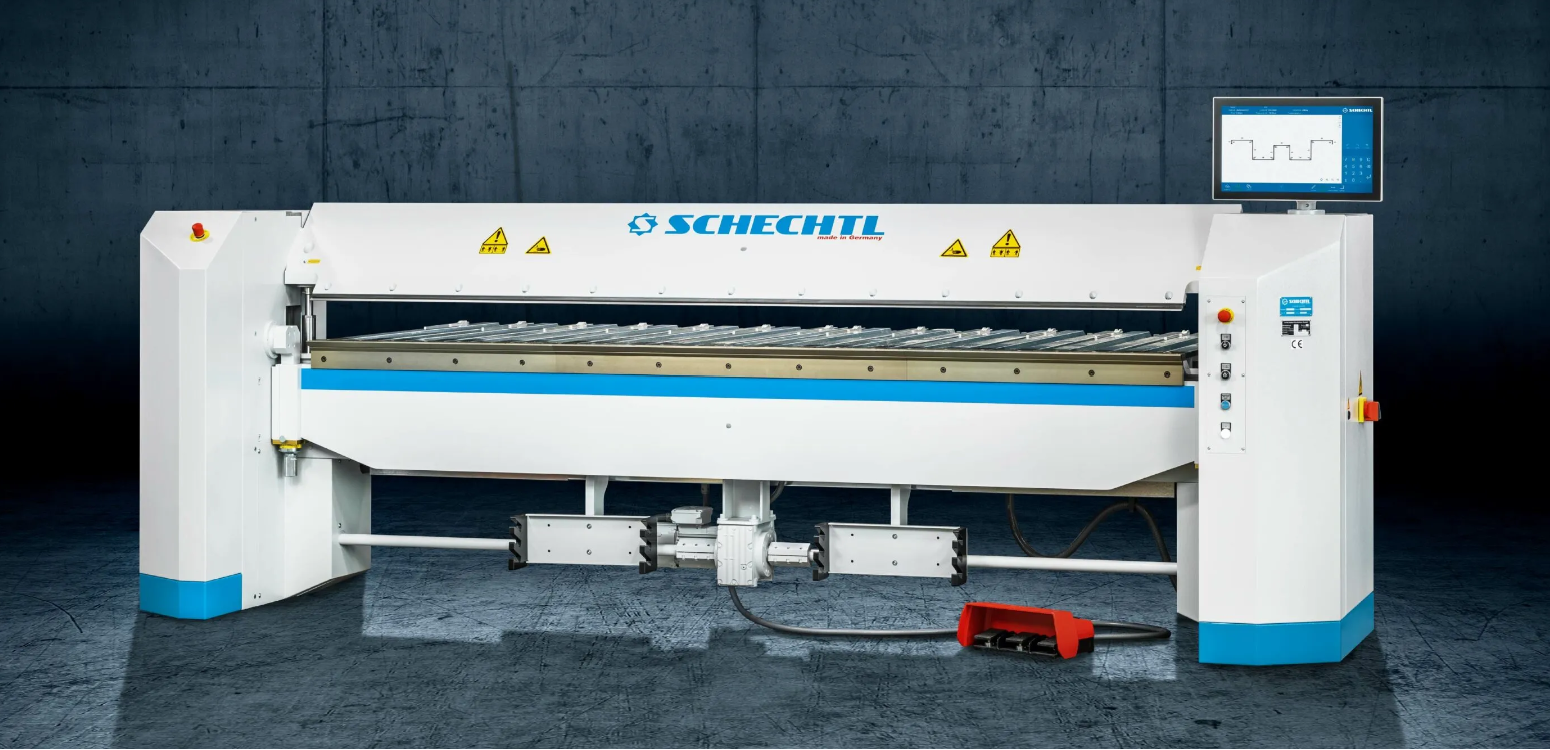

DUAL ECCENTRIC SETS THE STANDARD FOR STABILITY AND BENDING PERFORMANCE

stable drive thanks to the solid welded construction and highly rigid beam components

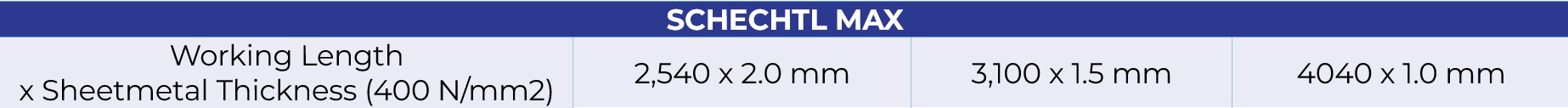

bends sheet steel thicknesses up to 1.5mm (at 3,100mm)
MAB: bends aluminium thicknesses up to 3mm (at 3,100mm)

Software

CNC S-Touch: high-resolution touch-sensitive colour display, intuitive profile creation with profile drawing, sizing, and bending-sequence setting all by fingertip, includes control of all machine functions
optional: PC offline software for creating and editing profiles on the PC
ECT: save and retrieve profile sets in tables, including direct control of the motorized backgauge
ST control, save profile sets in tables and repeat bending sequences with precision

Tools/Options

Subject to change:

SHARP RAIL 20° R 1 MM OFFSET

Sharp rail for the clamping beam
Radius 1 mm

INSERT RAIL 10 MM

Insert rail 68/10 mm for the bending beam

INSERT RAIL 24 MM

Insert rail 68/24 mm for the bending beam

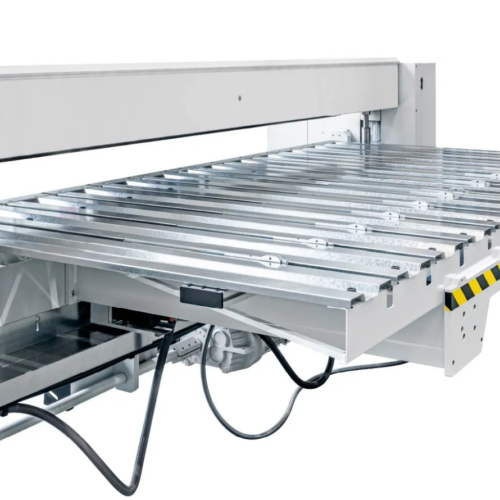

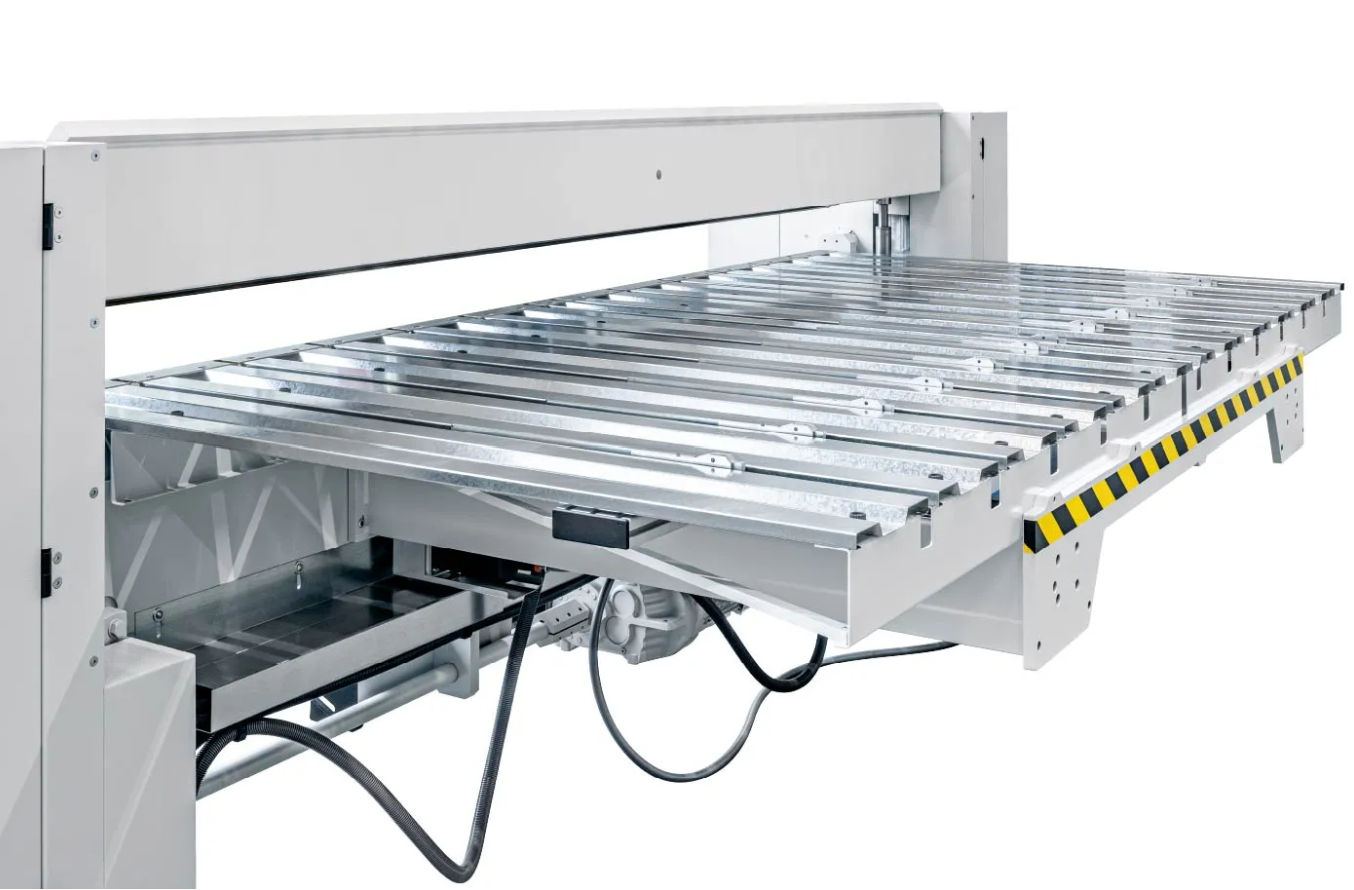

MOTORIZED BACKGAUGE 6-1000 MM

Motorized backgauge for precise
positioning of the sheets
With every new bending section, the backgauge fingers automatically move to the correct position
For optimum adjustment to the workpiece, all backgauge fingers are freely positionable over the entire bending length

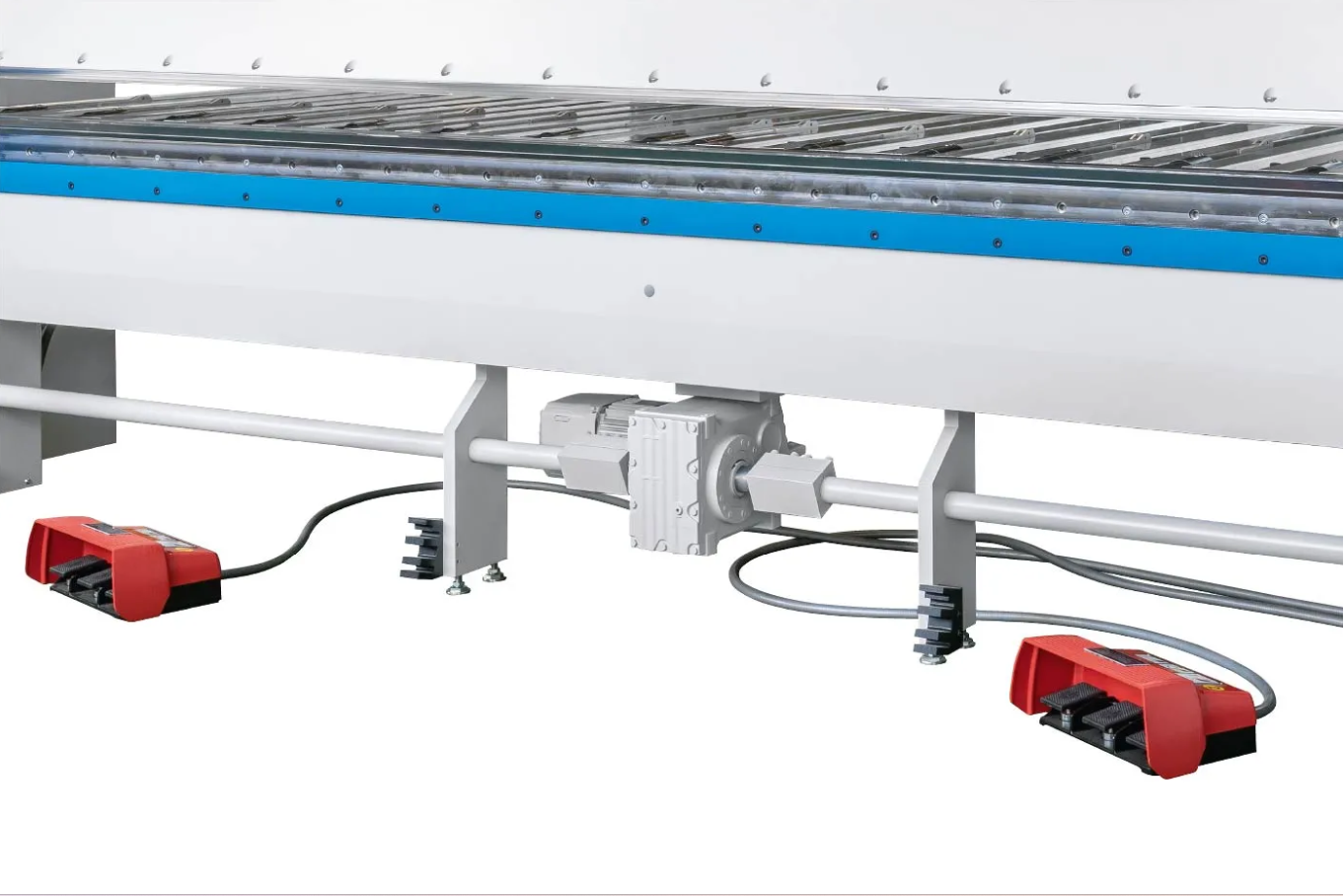

TWO FOOT SWITCHES

The following models are supplied with a second foot switch as standard:
machines with a working length of 4 m
machines with ST control and working lengths 2.5 m and 3 m

ADD-ONS:

– OPTIMISE YOUR MAX

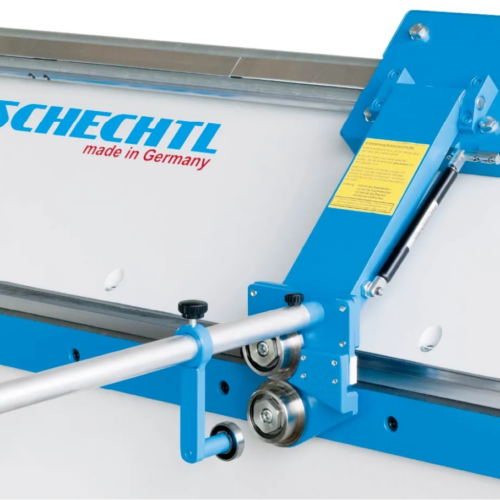

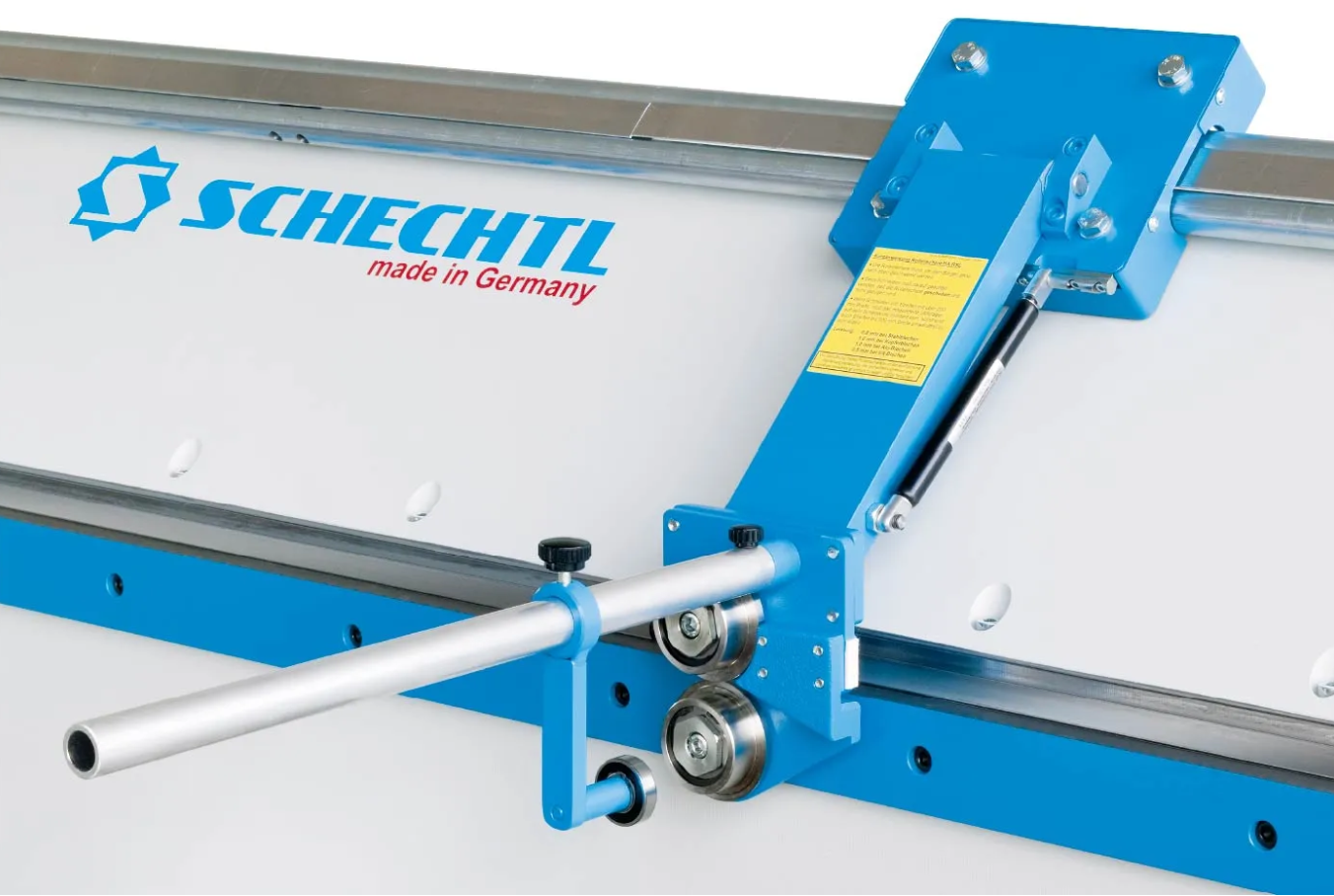

ROLLER SHEAR RSL

For a precise cut!

The simple and space-saving technology of the roller shear
allows you to cut the sheets directly at the swivel bending machine
The roller shear is equipped with a gas-pressure spring
This allows it to be folded away conveniently in an upward direction

SWIVELLING FINGER BACKGAUGE 750 MM

Precise positioning of the sheets!

The 750 mm backgauge is equipped with swivelling backgauge fingers
These ensure precise bending over the entire working length
The bending length is set by hand with a positioning wheel and measuring scale

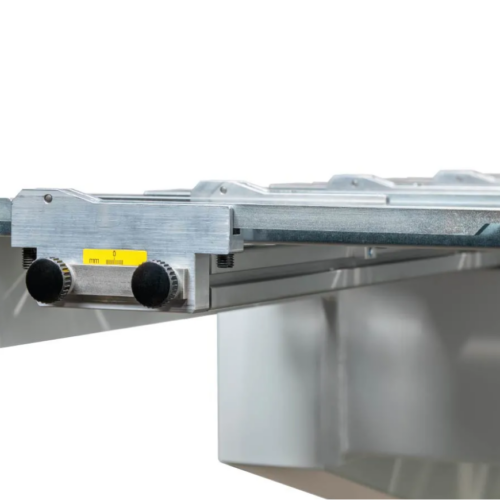

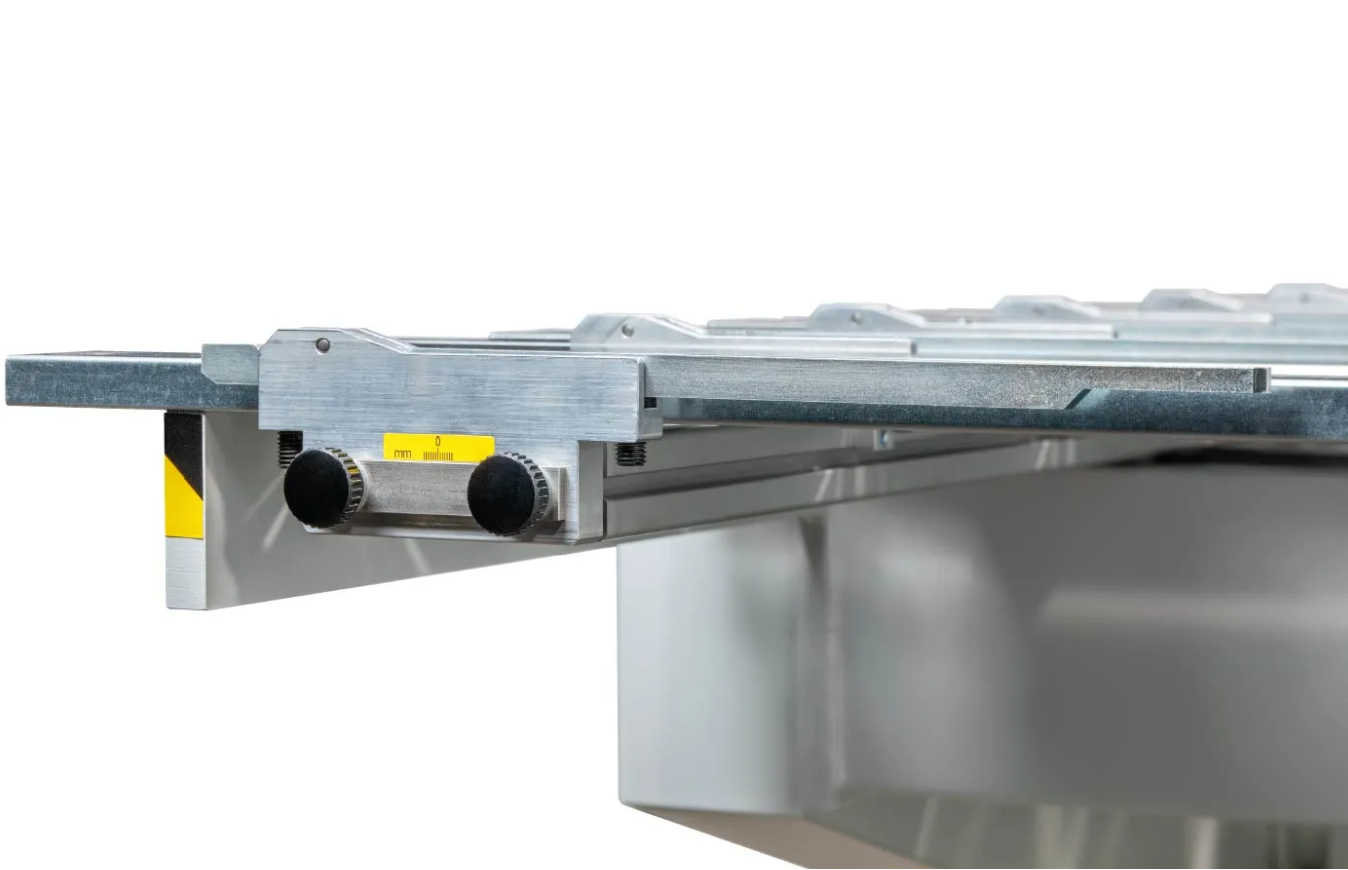

CONICAL BACKGAUGE FINGERS

Conical backgauge fingers allow easy
positioning in the case of conical bends

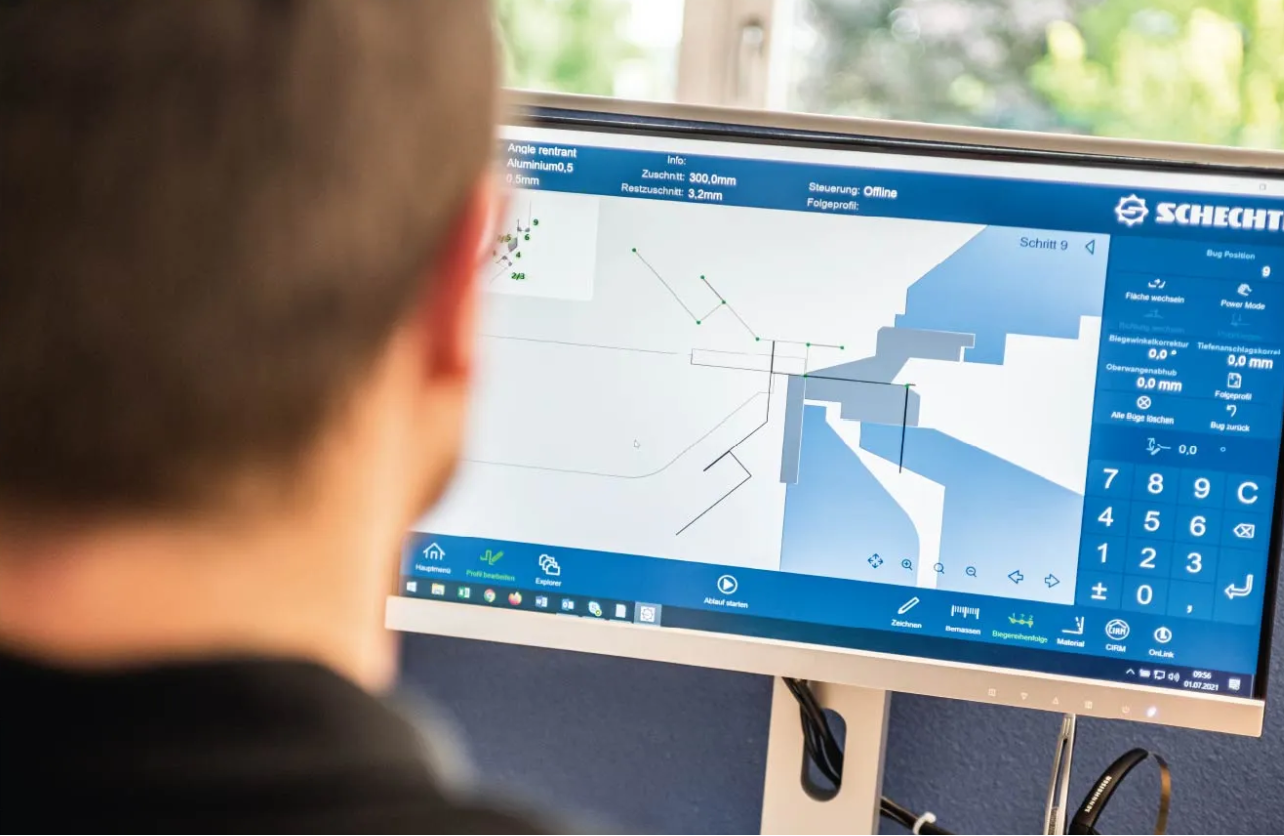

PC OFFLINE SOFTWARE

For efficient task preparation at your office workstation

The PC offline software allows you to create
and edit profiles on the PC
The profile data can then be transferred
to the machine

Test it free of charge: demo licence required!

Test and experience the PC offline software for 30 days.
Simply request a free demo licence at service@schechtl.de.

ADVICE ON RAILS

Round rails, goat’s foot tooling or special rails – we would be pleased to advise you on which product best suits your requirements!

ADVICE ON BACK GAUGES

Back gauges can be supplied in various versions
We would be pleased to advise you on backgauge depths, forms, etc.

Software

ST

REDUCES SETUP TIMES. INCREASES VALUABLE PRODUCTION TIME.

Save profile sets in tables and repeat bending sequences with precision

Shaping profiles with the ST control gives you full control over machine functions and the bending result. Saving and loading the profile data in tables speeds up the production process and reproduces even complex profiles.

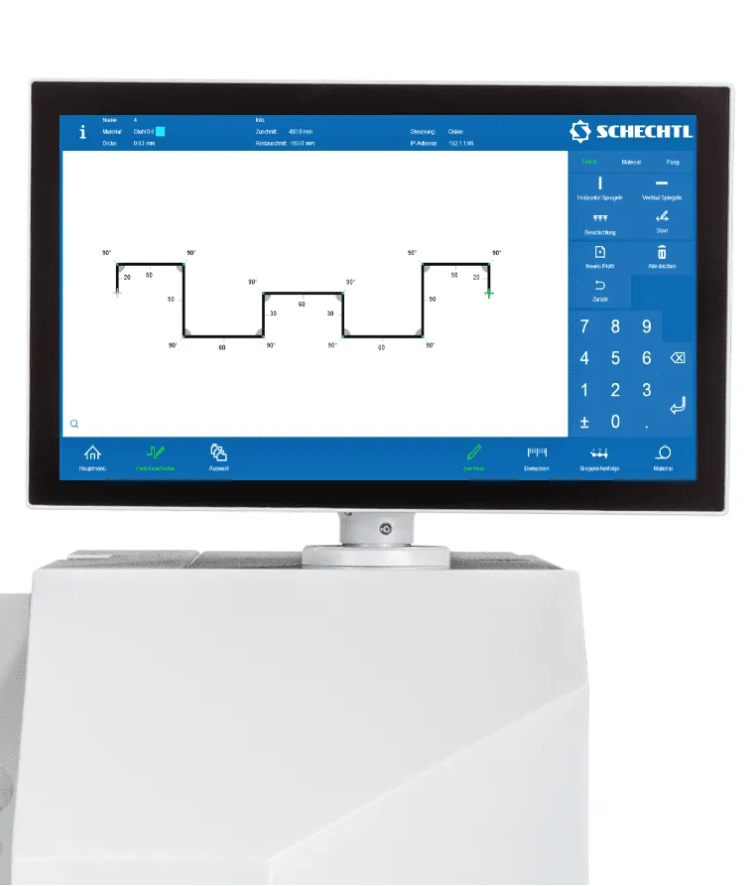

Extremely clear and modern 10.4″ display
The accustomed look & feel of the Schechtl S-Touch
Save profile sets without limits
Fast and easy-to-understand remote maintenance options
500 mm support rack for easy positioning of large-size metal sheets

ECT

REDUCES SETUP TIMES. INCREASES VALUABLE PRODUCTION TIME.

Save profile sets in tables and repeat bending sequences with precision
incl. control of the motorised backgauge

Shaping profiles with the ECT control gives you full control over machine functions and the bending result. Saving and loading the profile data in tables speeds up the production process and makes even complex profiles reproducible.

Extremely clear and modern 10.4″ display
The accustomed look & feel of the Schechtl S-Touch
Save profile sets without limits
30 bending angles per profile set
Additional functions: Stamping and bending beam adjustment
Teach-in of the bending beam
Material, profile and tool management in the local database
Cutting program for roller shear
Fast and easy-to-understand remote maintenance options
Bending precision and convenience through motorised backgauge 6-750 mm

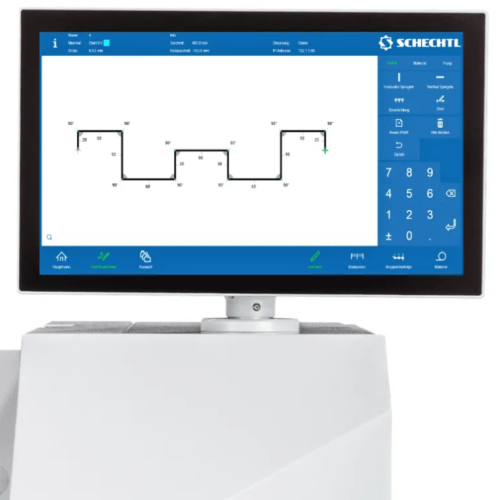

CNC S-TOUCH

INTUITIVE. EASY. FASTER.

Draw complex bending sequences with your fingertips and graphic control

With the CNC S-Touch, sheet metal profiles are created simply and interactively with your fingertip on the display and detailed in a dimensioning menu. The control system automatically recognises how the workpiece needs to be turned and repositioned and which tools are required.

21.5″ LCD Touch colour display with high-resolution graphics
USB port for backup and transfer of programs
Integrated WLAN
Remote Support (TeamViewer)
Graphic representation of the bending process
Graphic representation of the position of the inserted sheet before every bend
Operator guidance in text – each work step is explained visually
Correct profiles directly by tapping the desired limb
Bending angle correction can be programmed
Set repetitions for special bend radii
Quick entry mode and sketch selection
Cutting program for roller shear
Permanent storage of all programs
Freely selectable program name
Search for profiles via name
Select from 16 languages
Logging of machine data and runtimes
Bending precision and convenience through motorised backgauge 1000 mm

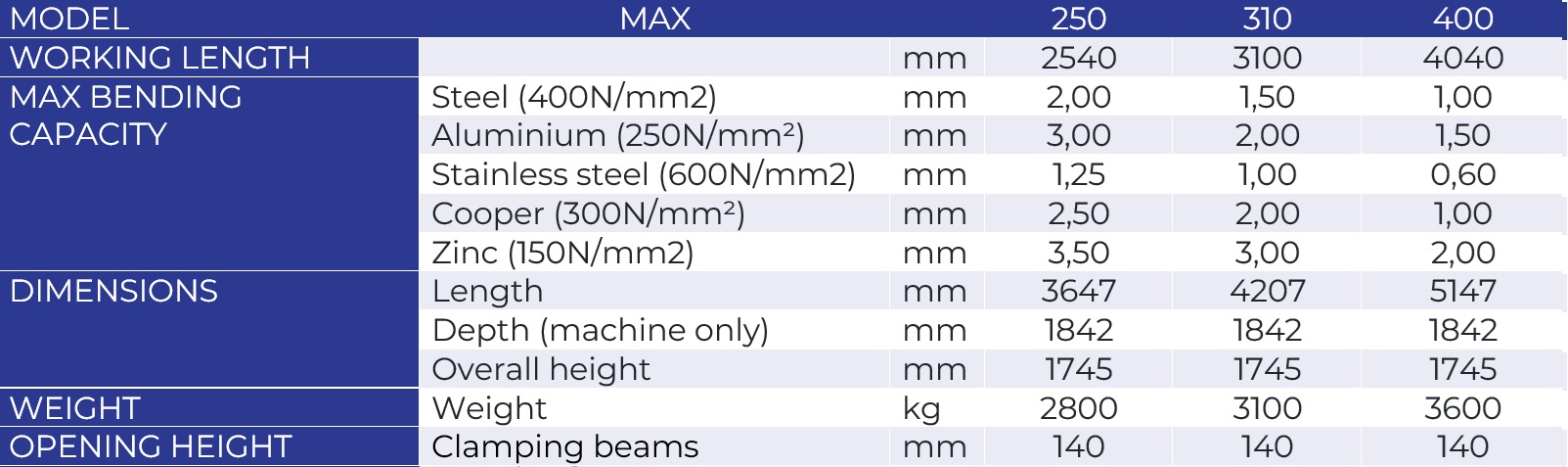

Technical data

Brochure Catalogue

The Schechtl MAX is perfect where there is extensive work to be done on roofs and exteriors. With a range of control systems and backgauge options as well as a wide selection of rails, the MAX can be fully customised to suit your wishes.
