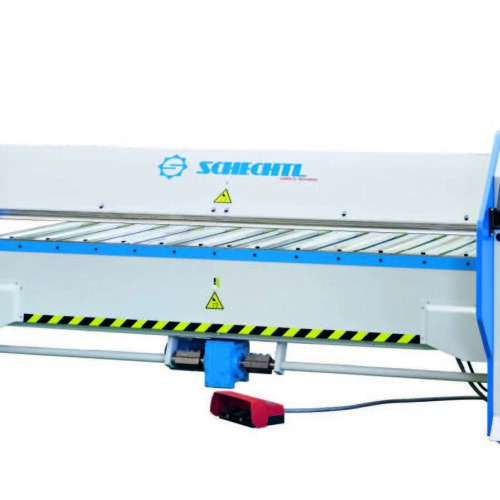

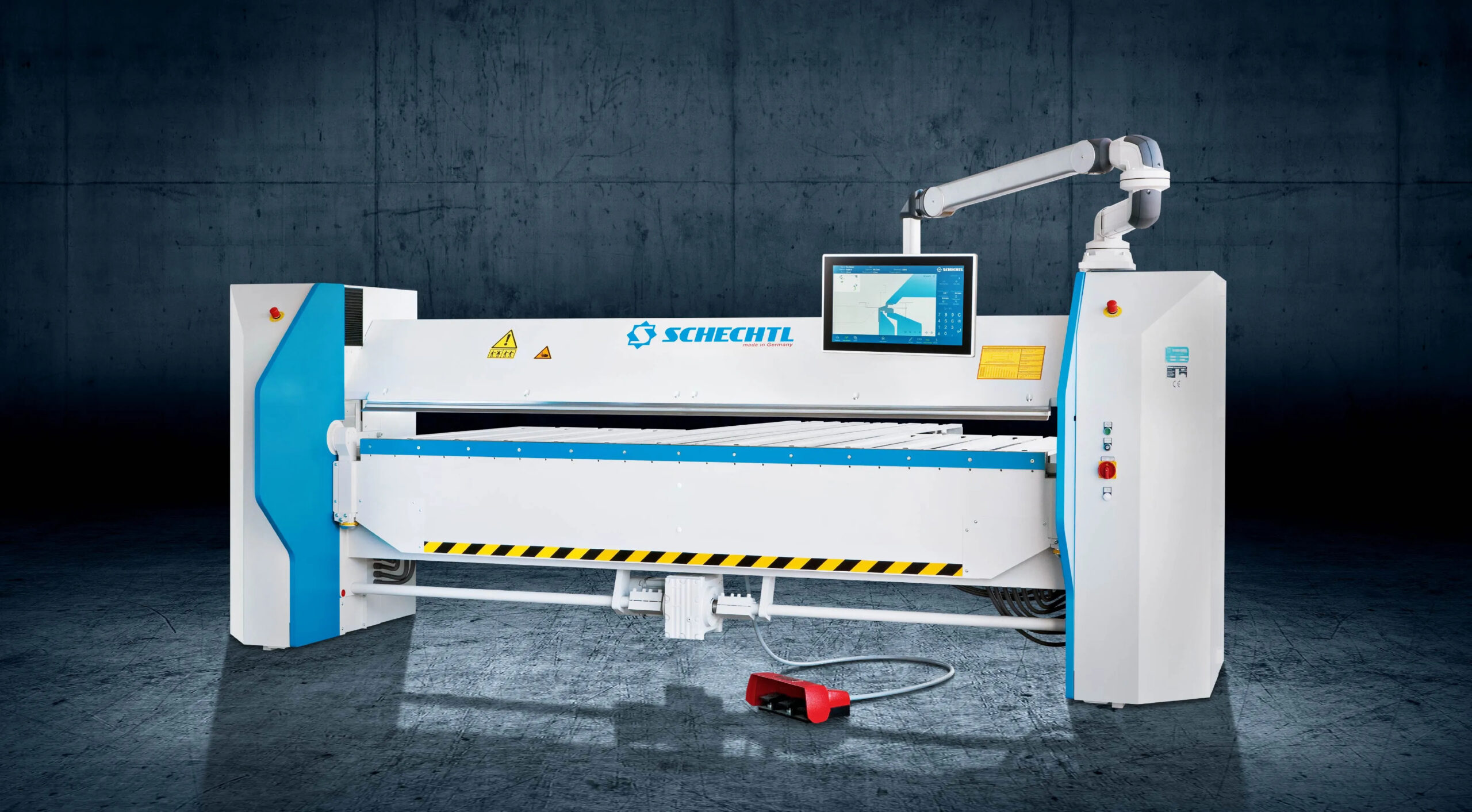

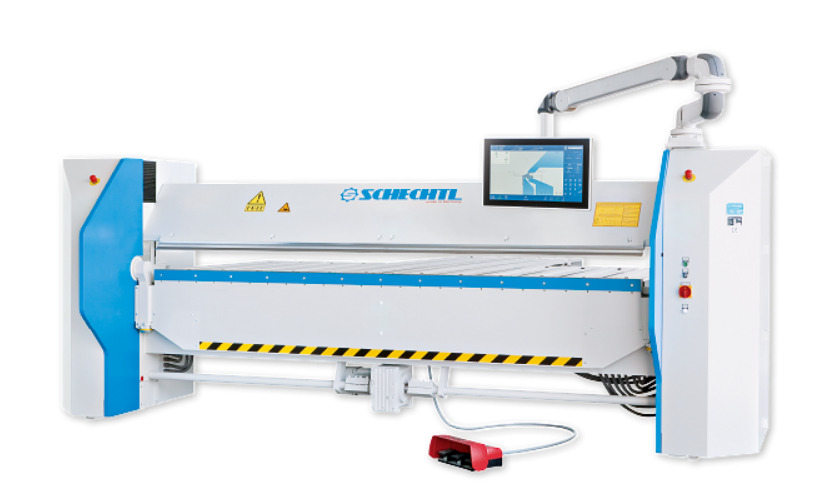

With cutting-edge technology, the Schechtl MAZ boosts productivity and flexibility in producing metal edge profiles. The eccentric drive offers convincingly high clamping force. The Click System comes as standard, minimises set-up times and allows easy retrofitting of special tools at any time. At the same time, the solid, torsion-free welded construction ensures a long machine service life even with consistently heavy loads.

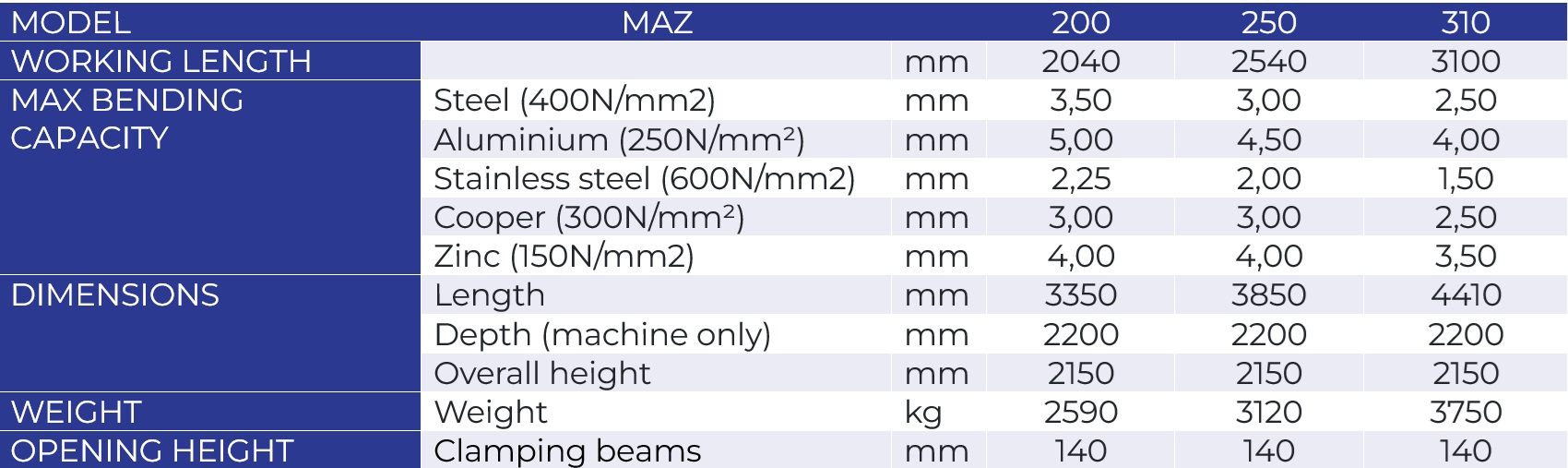

Version:

MAZ 200

The motorized swivel bending machine MAZ 200 has a working length of 2040 mm and bends 3.50 mm steel. The MAZ is the strongest and at the same time the most flexible in the team of eccentric machines.

MAZ 250

The motorized swivel bending machine MAZ 250 has a working length of 2540 mm and bends 3.00 mm steel. The MAZ is the strongest and at the same time the most flexible in the team of eccentric machines.

MAZ 310

The motorized swivel bending machine MAZ 310 has a working length of 3100 mm and bends 2.50 mm steel. The MAZ is the strongest and at the same time the most flexible in the team of eccentric machines.

MAZ 400

The motorized swivel bending machine MAZ 400 has a working length of 4040 mm and bends 1.75 mm steel. The MAZ is the strongest and at the same time the most flexible in the team of eccentric machines.

Benefits

• Strong and fast thanks to the powerful eccentric drive
• Click System as standard – for individual tool mounts
• Minimised set-up times and rapid bending sequences

• Flexible: special tools can easily be retrofitted at any time
• Uniform bending precision over the entire length

Software

• CNC S-TOUCH

Subject to change:

SHARP RAIL 20° R 1.5 MM WITH CLICK SYSTEM

• Sharp rail for the clamping beam
• Radius 1.5 mm

INSERT RAIL 10 MM

• Insert rail 68/10 mm for the bending beam

INSERT RAIL 24 MM

• Insert rail 68/24 mm for the bending beam

SEGMENTED LOWER BEAM INSERTS 40 MM

For a working length of 4,040 mm

• The segments can be combined as desired
• Segment division: 12 x 250 mm / 2 x 340 mm / 1 x 360 mm

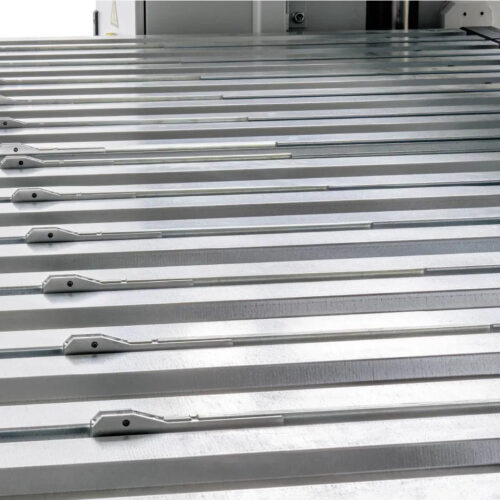

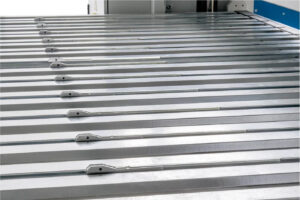

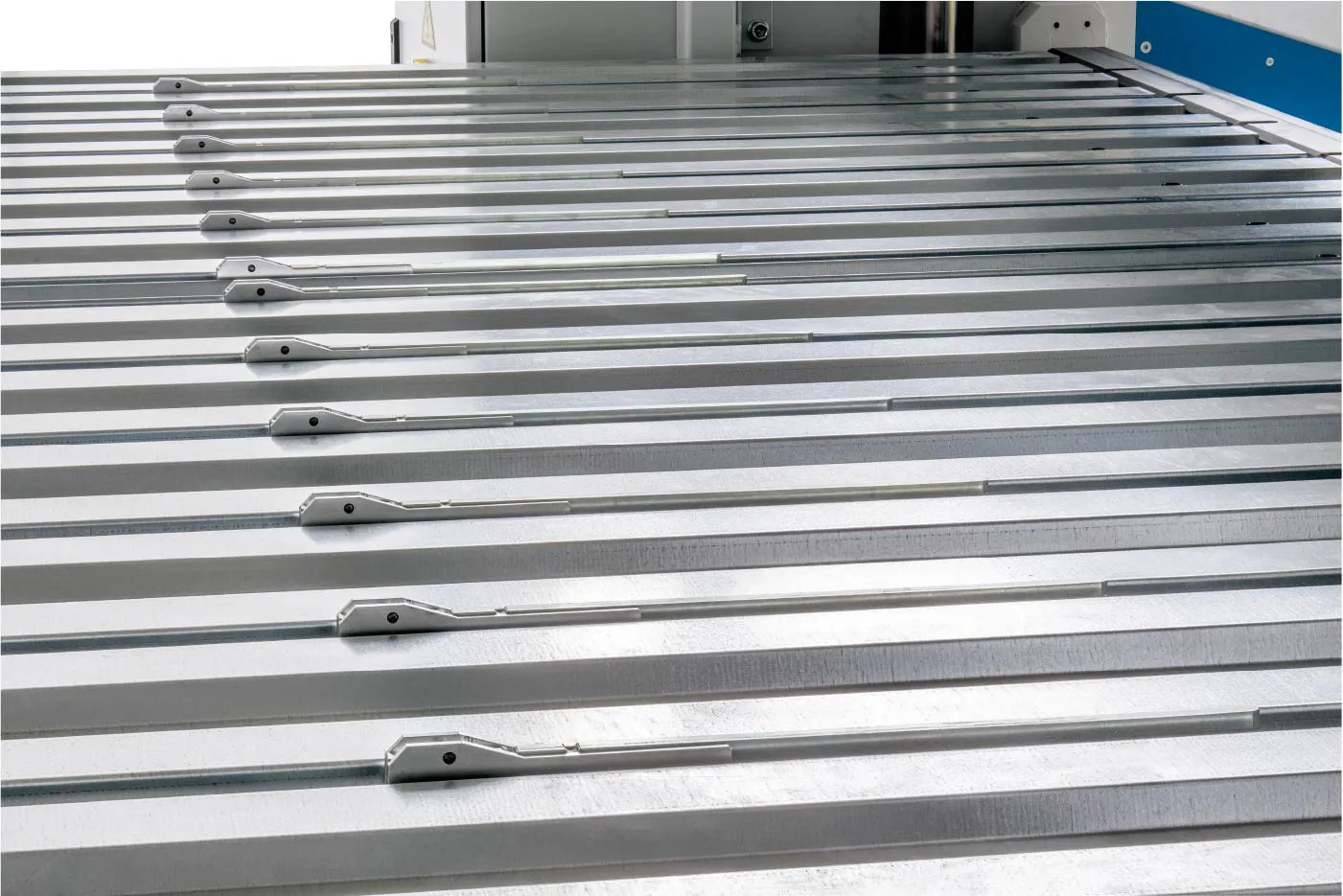

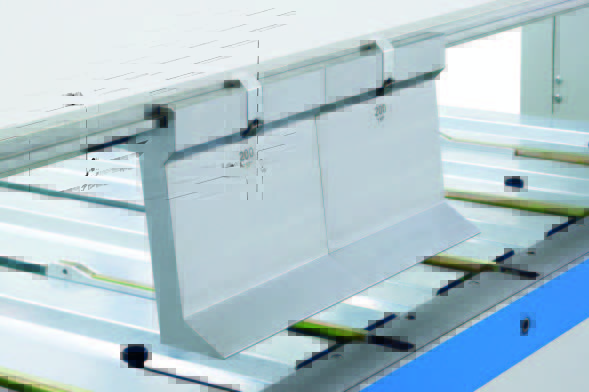

MOTORIZED BACKGAUGE 6-1000 MM

• Motorized backgauge for precise
  positioning of the sheets
• With every new bending section, the backgauge fingers automatically move to the correct position.
• For optimum adjustment to the workpiece, all backgauge fingers are freely positionable over the entire bending length.

ADVICE ON RAILS

• Round rails, goat’s foot tooling or special rails – we would be pleased to advise you on which product is best-suited for your requirements!

ADVICE ON BACK GAUGES

• Back gauges can be supplied in various versions
• We would be pleased to advise you on backgauge depths, forms, etc.

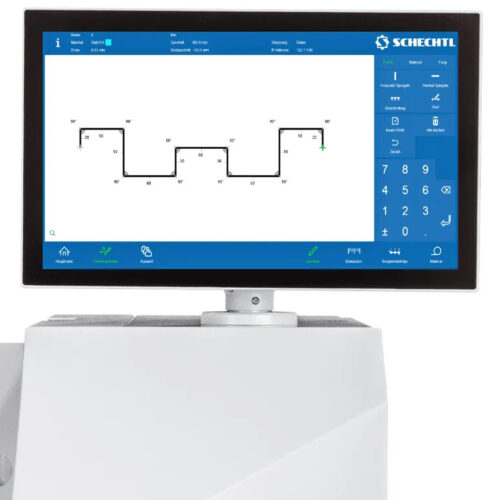

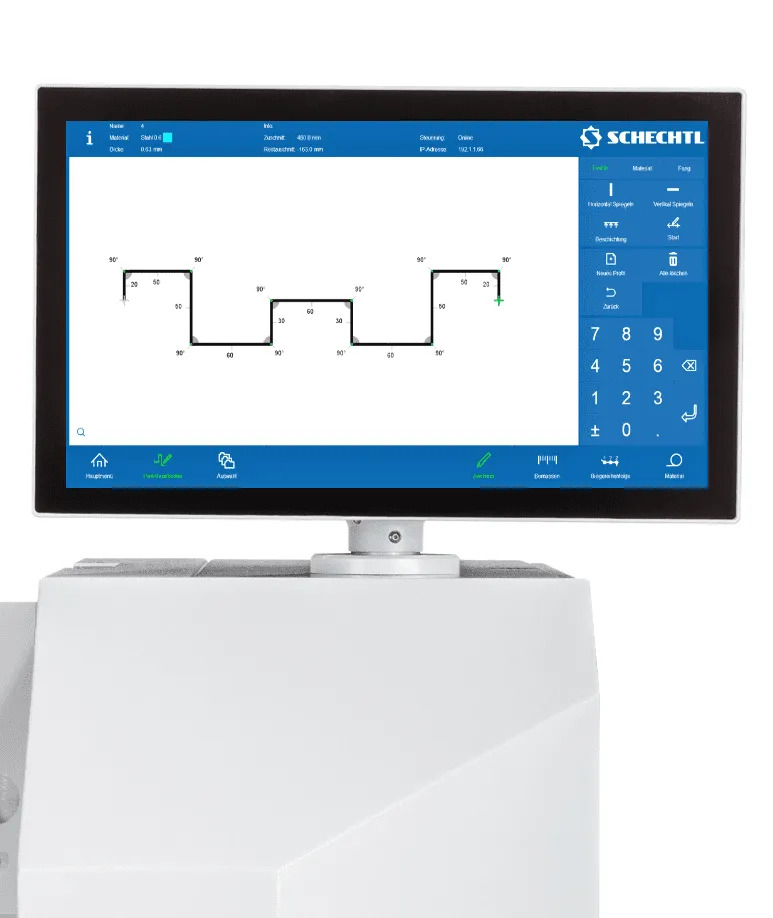

CNC S-TOUCH

INTUITIVE. EASY. FASTER.

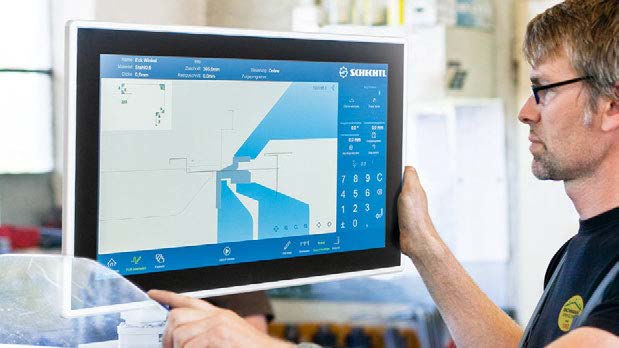

Draw complex bending sequences with your fingertips and graphic control

With the CNC S-Touch, sheet metal profiles are created simply and interactively with
your fingertip on the display and detailed in a dimensioning menu. The control system automatically recognises how the workpiece needs to be turned and repositioned and which tools are required.

• 21.5″ LCD Touch colour display with high-resolution graphics
• USB port for backup and transfer of programs
• Integrated WLAN
• Remote Support (TeamViewer)
• Graphic representation of the bending process
• Graphic representation of the position of the inserted sheet before every bend
• Operator guidance in text – each work step is explained visually
• Correct profiles directly by tapping the desired limb
• Bending angle correction can be programmed
• Set repetitions for special bend radii
• Quick entry mode and sketch selection
• Cutting program for roller shear
• Permanent storage of all programs
• Freely selectable program name
• Search for profiles via name
• Select from 16 languages
• Logging of machine data and runtimes
• Bending precision and convenience through motorised backgauge 1000 mm
