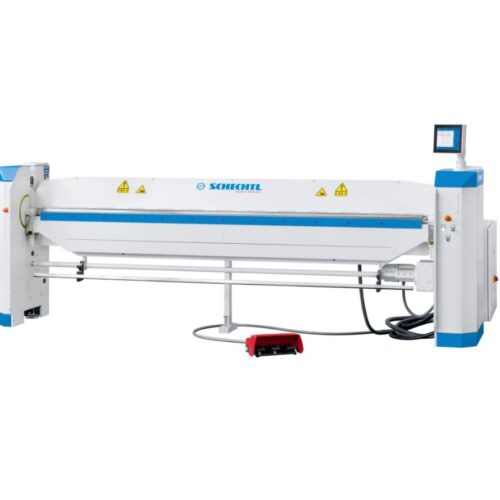

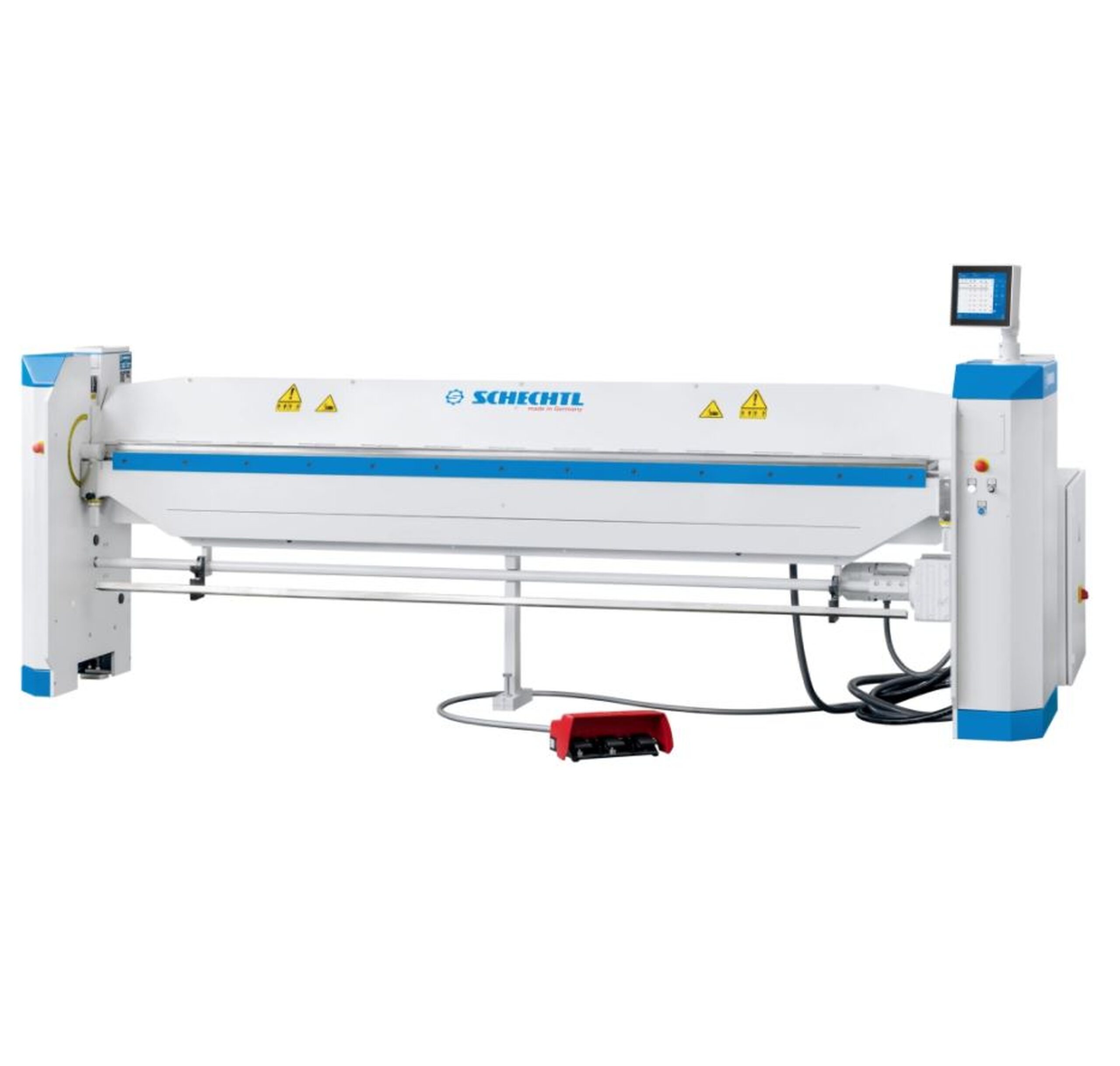

Where manual swivel bending machines reach their limits, the MBM brings you a huge increase in functionality and efficiency. The MBM is ideal for thin-sheet processing of up to 1.00 mm sheet steel, for recurring single-piece production and small batch production Even complex profiles are easily reproducible with the ECT control, which is installed as standard.

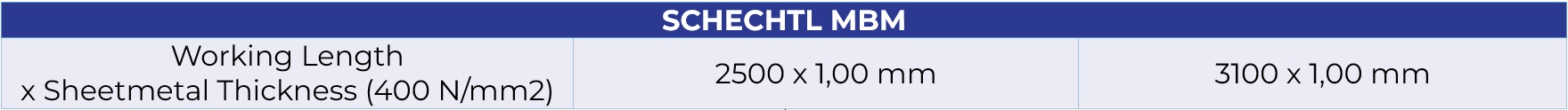

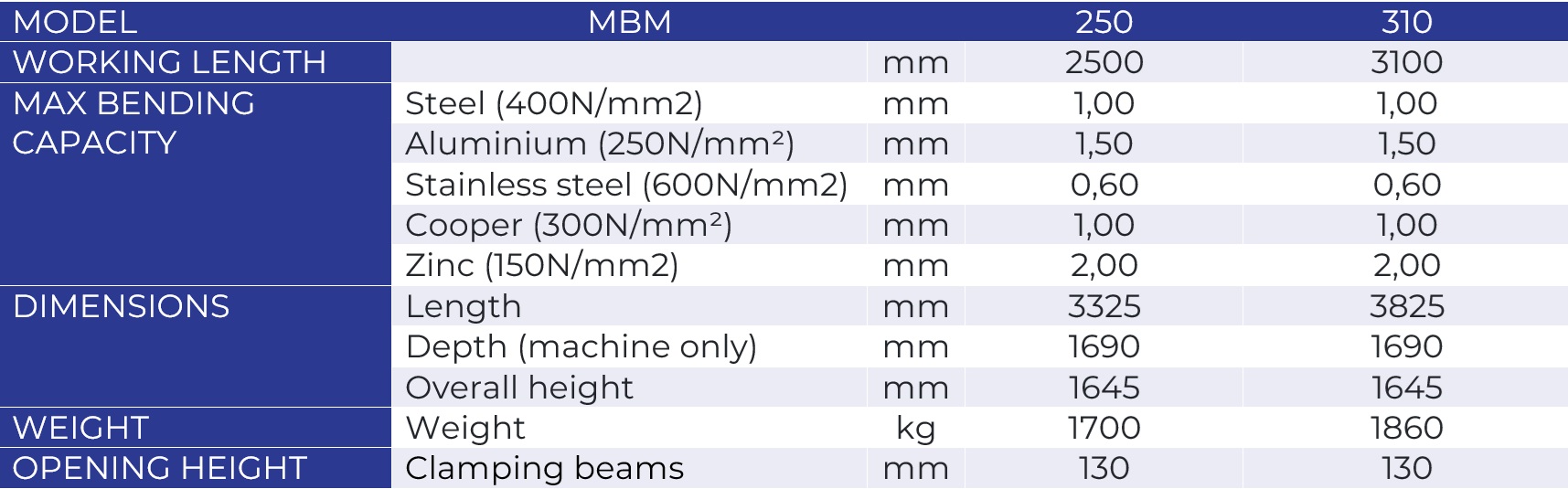

Version:

MBM 250

The motorized swivel bending machine MBM 250 has a working length of 2500 mm and bends steel sheets up to max. 1.00 mm.

MBM310

The motorized swivel bending machine MBM 310 has a working length of 3100mm and bends steel sheets up to max. 1.00 mm.

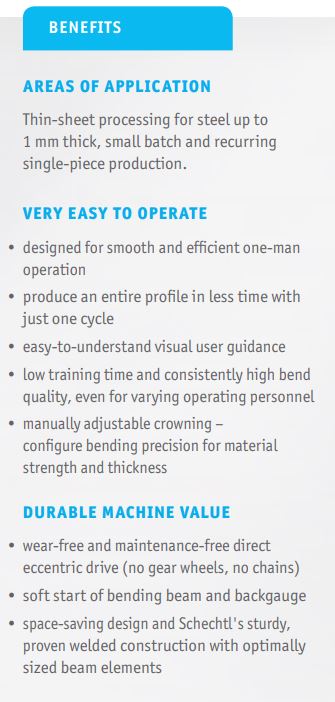

Benefits

• Lightweight all-rounder for thin-sheet processing

• Sturdy construction with optimally dimensioned beam elements
• ECT control for precisely reproducible profile quality
• Time-saving 1-man operation
• High working convenience – back-friendly working height

• Thin-sheet processing for steel up to 1mm thick, small batch and recurring single-piece production.
  designed for smooth and efficient one-man
  operation

Software

The MBM is available with the following control system:

• ECT Control

Subject to change:

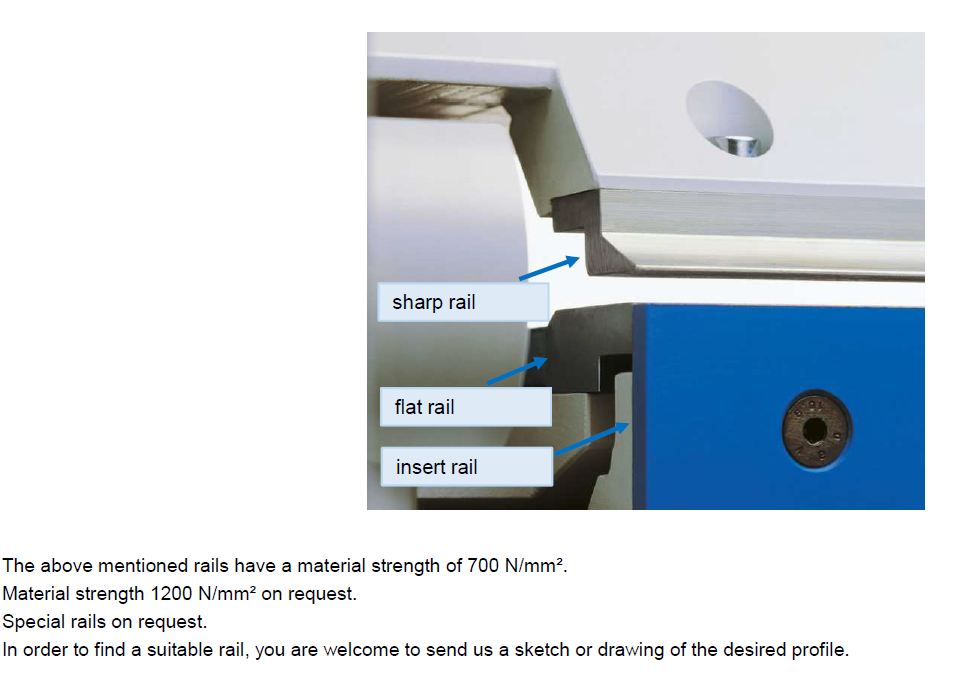

SHARP RAIL 20° R 1 MM OFFSET

• Sharp rail for the clamping beam
• Radius 1 mm

INSERT RAIL 10 MM

• Insert rail 68/10 mm for the bending beam

INSERT RAIL 24 MM

• Insert rail 68/24 mm for the bending beam

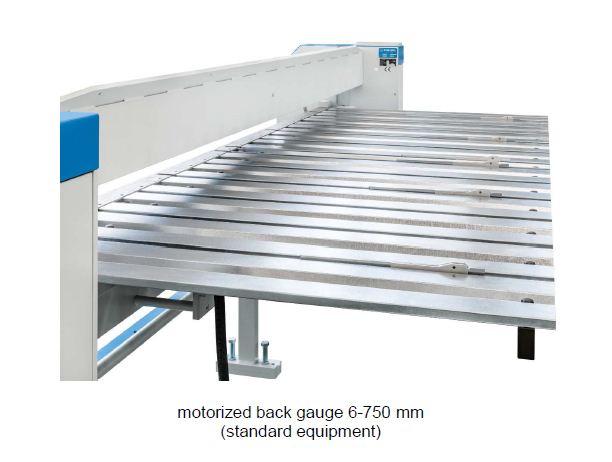

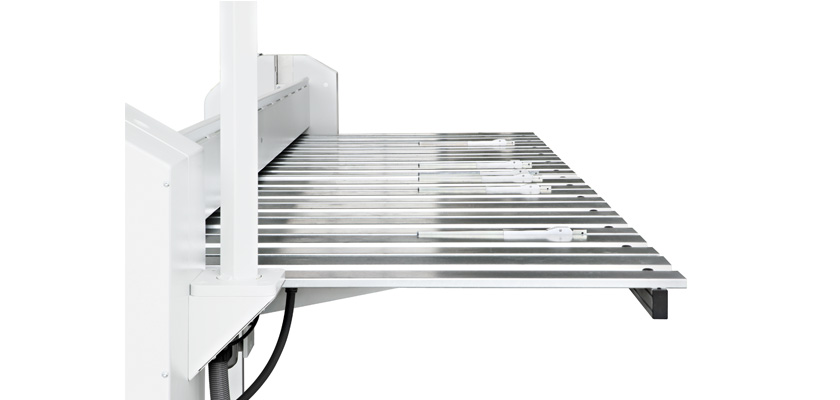

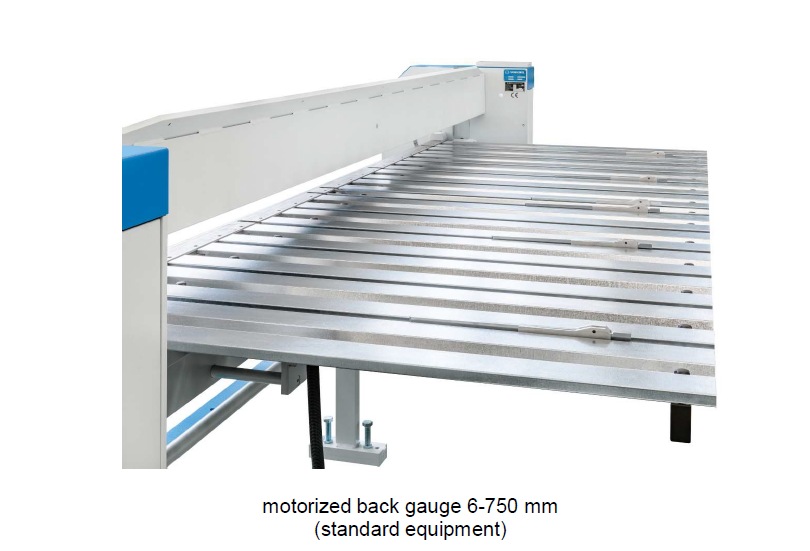

MOTORIZED BACKGAUGE 6-750 MM

• Motorized backgauge for precise
  positioning of the sheets
• With every new bending section, the backgauge fingers automatically move to the correct position
• For optimum adjustment to the workpiece, all
  backgauge fingers are freely positionable over the entire bending length

FOOT SWITCH

• Moveable foot switch as an operating element
  for convenient 1-man operation
• Note: In the case of 2-man operation, the accident insurance carrier requires a second foot switch

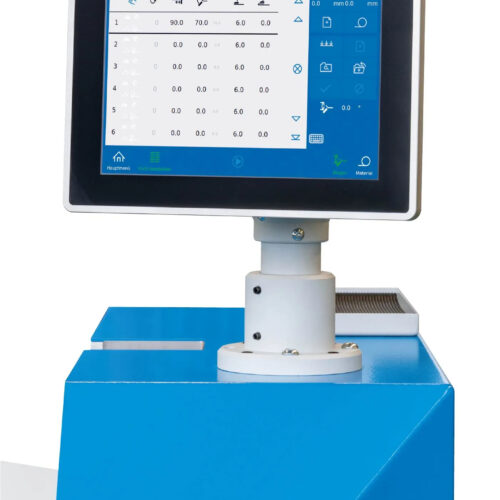

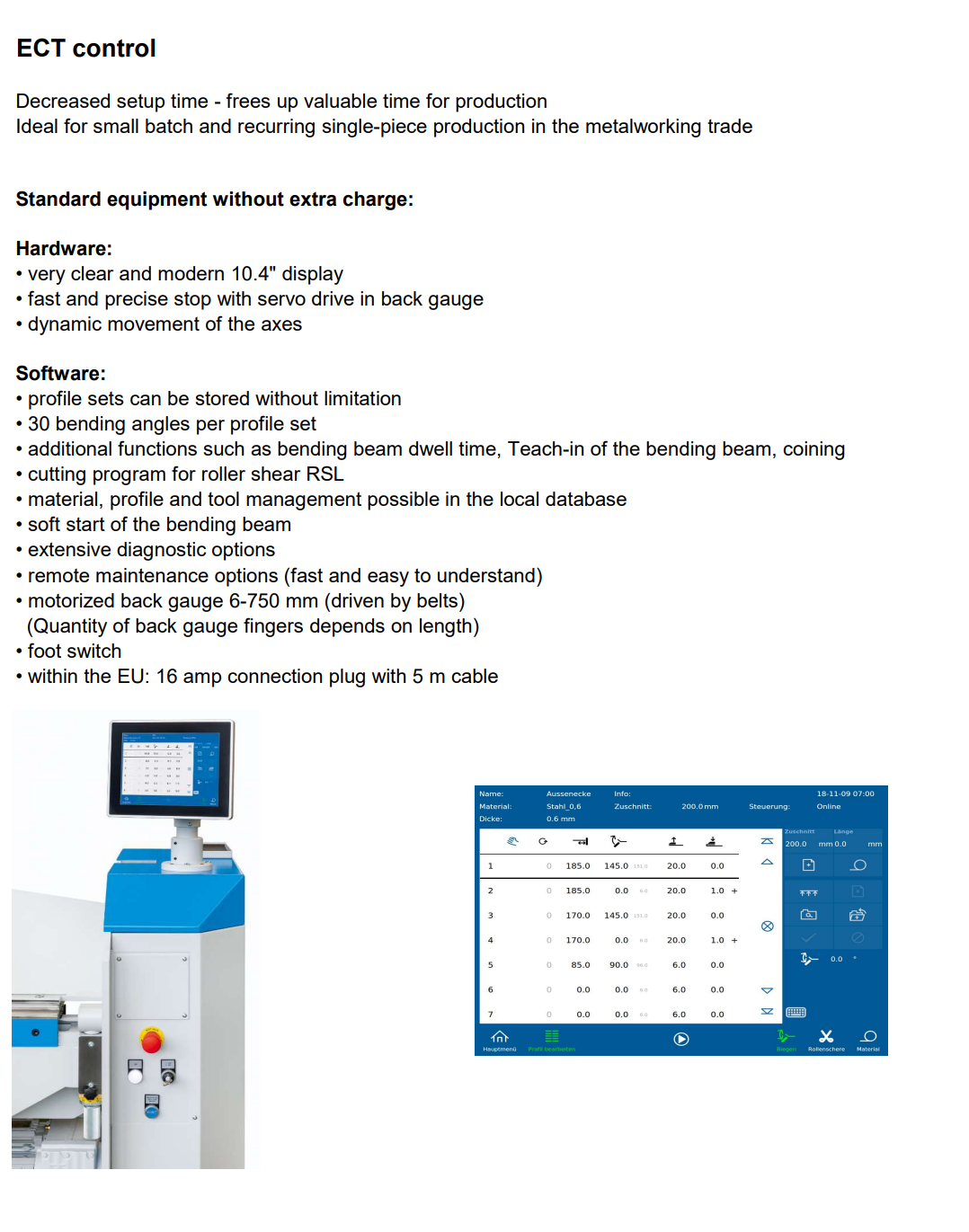

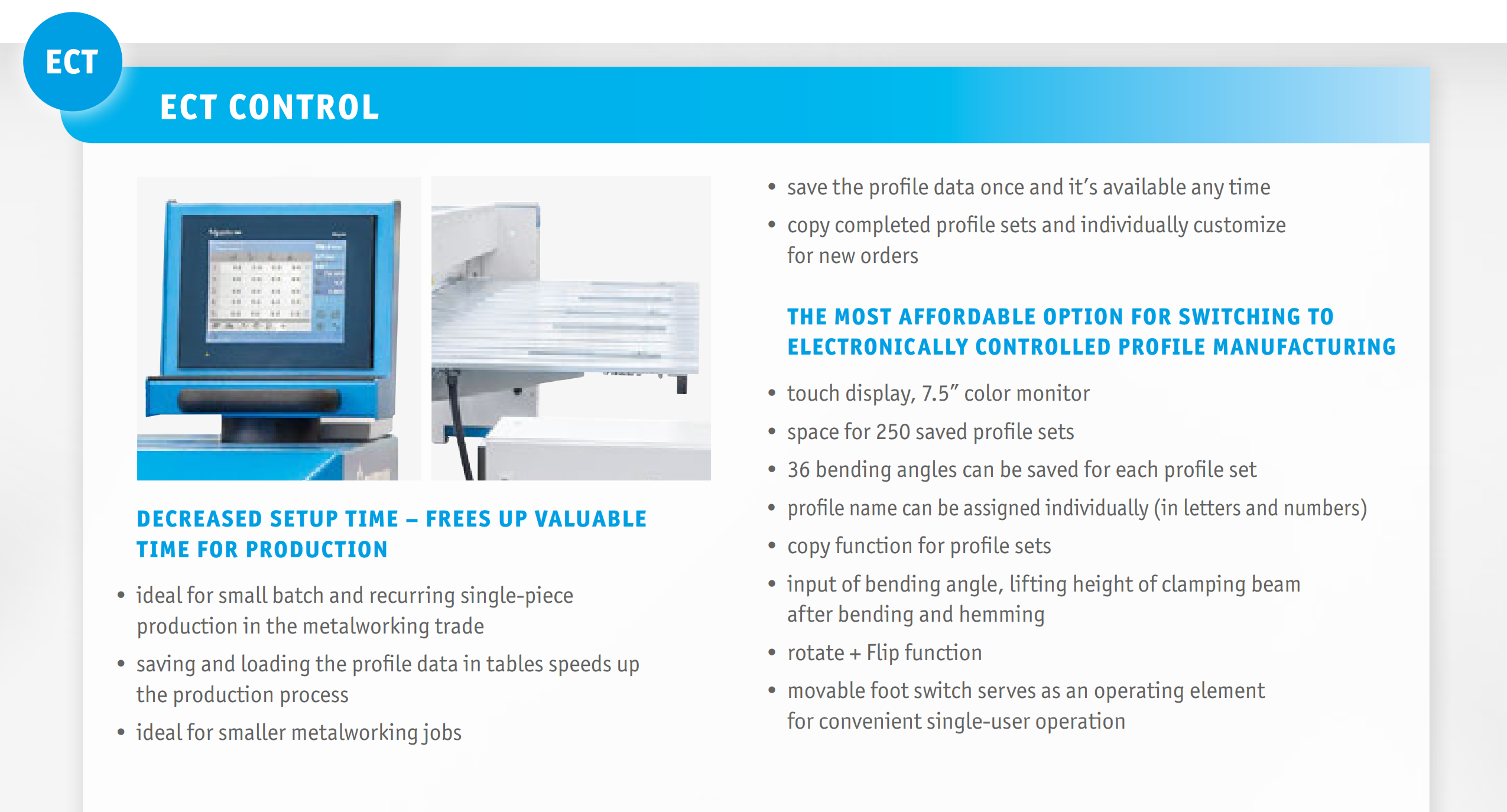

ECT

REDUCES SETUP TIMES. INCREASES VALUABLE PRODUCTION TIME.

Save profile sets in tables and repeat bending sequences with precision incl. control of the motorised backgauge

Shaping profiles with the ECT control gives you full control over machine functions and the bending result. Saving and loading the profile data in tables speeds up the production process and reproduces even complex profiles.

• Extremely clear and modern 10.4″ display
• The accustomed look & feel of the Schechtl S-Touch
• Save profile sets without limits
• 30 bending angles per profile set
• Additional functions: Stamping and bending beam adjustment
• Teach-in of the bending beam
• Material, profile and tool management in the local database

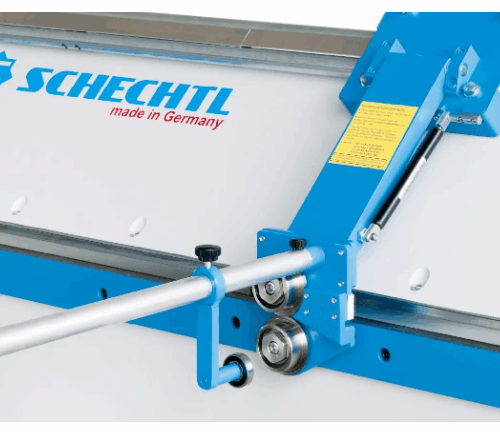

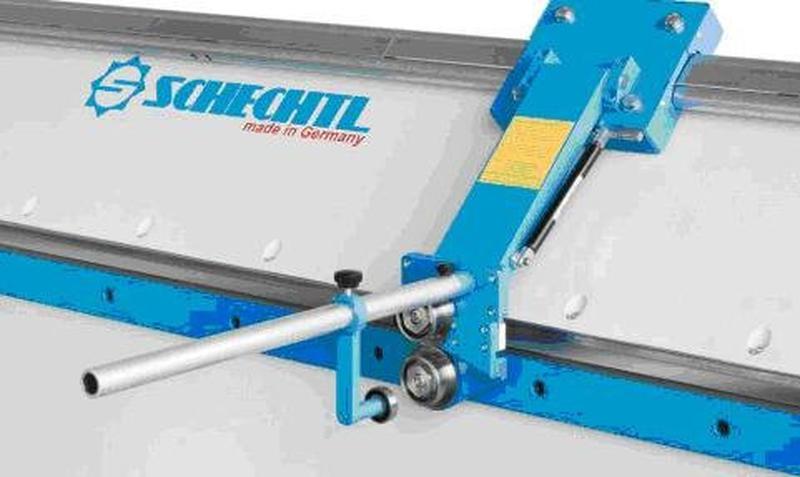

• Cutting program for roller shear
• Fast and easy-to-understand remote maintenance options
• Bending precision and convenience through motorised backgauge 6-750 mm
