VARIOBEND EB 2.0

Details

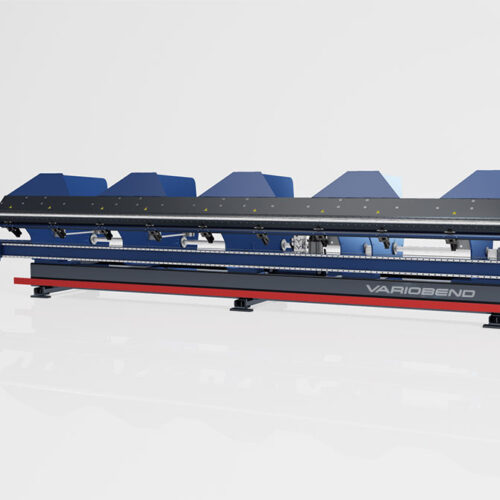

The Variobend Long-length bending machine – Model series EB

The EB models impress with their precise versatility and attractive cost-effectiveness. They combine the best quality with easy operation.

Model series EB are powerful long-length bending machines. The patented bending system with the transverse rear-facing bending apron permits a diversity of profiles unprecedented up to now. The large free space created by the tilted bending apron enables the production of profiles which are only possible on VARIOBEND long-length bending machines. ASCO innovations, such as the conical bending and slotting of profiles, the segmented bending and clamping beams made of high-strength steel as well as the manual crown bow system, servo technology and the new arched top beam are available as options.

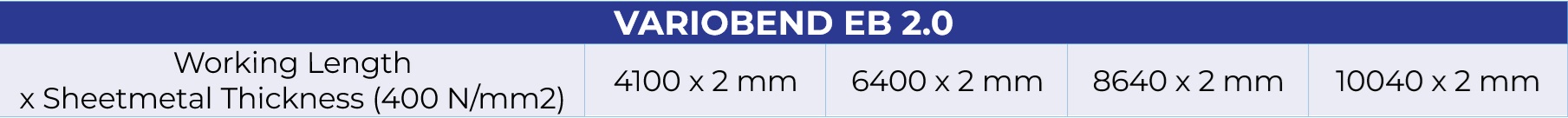

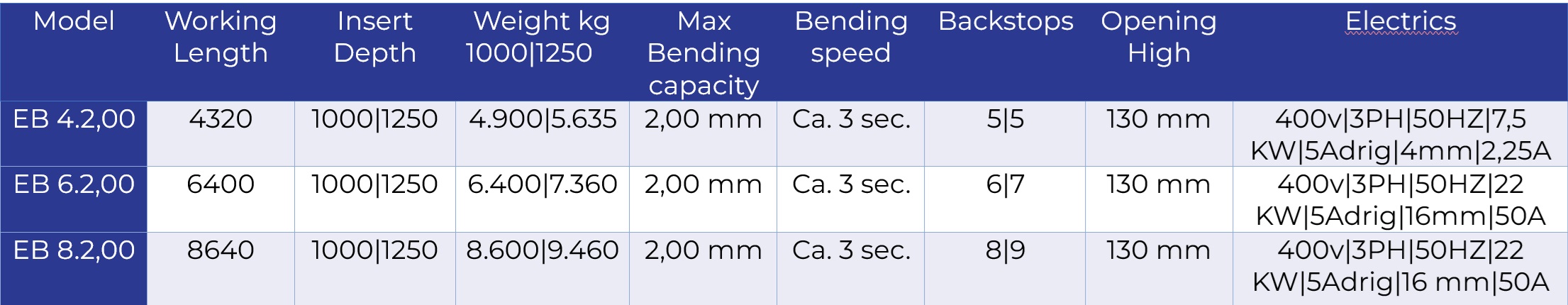

The EB models are available in lengths of 4 to 12 metres and have a bending capacity of 1.50 mm to 2.00 mm of steel sheet.

Apart from the precision of the edge parts, the focus of every purchase decision is on the production time as well. By means of the VARIOBEND V-TOUCH control included in the standard unit, your overall productivity is increased, which combines efficiency and user-friendliness in an unprecedented relationship. The software stands out for its user-friendliness and clear structure. Any number of profiles and folders can be set up in profile management. They can be moved, copied or exported by a simple touch.

AUTOMATED CROWNING SYSTEM The automated crowning system by servo technology guarantees highly precise flashings with a high degree of automation.

THE VARIOBEND TORSION BAR allows a controlled hemming over the full length to a pre-determined value.

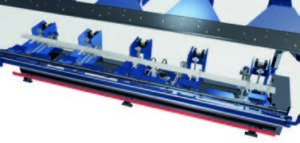

THE VARIOBEND BACK-GAUGE, driven by maintenance-free high precise ball screws, guarantees perfect positioning. Back-gauge range 5 – 1.000 mm optional 1.250 mm.

VARIOBEND CUTTING DEVICE guarantees perfect cutting results. The cutting device is directly attached to the chassis. This leaves the bending beam free from any guide rails.

VARIOBEND DRIVE CONCEPT combines highest bending speed with lowest power consumption. By using a Start|Stop technology the energy consumption reaches a minimum. With the optional Servo technology much higher bending speed with an even further reduction of energy consumption can be reached.

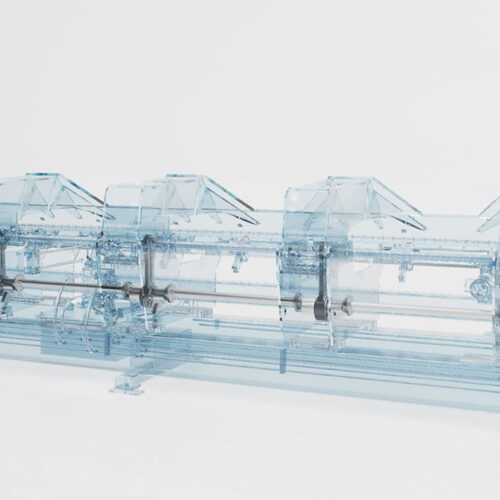

THE VARIOBEND CHASSIS – the solid base frame for the highest level of bending precision

STANDARD EQUIPMENT VARIOBEND 2.0

Patented bending system with angularly positioned bending beam
Hydraulic slitter up to 1,25 mm steel
Variobend 3D Touch Control
Variobend Office Software package
CNC – back gauge driven by ballscrews
Torsion bar clamping system for controlled hemming
Extra hardened segments for clamping and bending beam
Multifunction Pedal for bending, clamping and cutting operation
Insertion depth 1.000 mm
Variobend control on the swivel arm
Safety package incl. Light beam protection
Automated radius adjustment
Hydraulic Slitter up to 2,00 mm steel
- Slitter incl., distance, and gap adjustment
- Both sides sharpened
- Up to STEEL | ALU| STAINLESS STEEL = 2,00 mm | 3,00 mm | 1,0 mm
Servo drive motor
- Variobend RP-Technology (Start|Stop)
- Higher output because of approximately 30 % more bending speed

Tools/Options

EXTRA EQUIPMENT EB 2.0:

Insertion depth 1.250 mm

Control panel on roll-top

Cutting device with automated Overlap- and Gap adjustment by Servo technology

Slitter incl. automated distance and gap adjustment
Both sides sharpened
Up to STEEL | ALU| STAINLESS STEEL = 2,50 mm | 3,00 mm | 1,50 mm

Taper back gauge incl. stick together function

Stick together function, Multipart taper over many profiles
Easy montage on the construction side
Max. Taper +/- 100 mm over 6 meter

Full automated crowning system

Variobends full automated crowning system. Every machine stand is driven by a separate servo drive.
The crowning system is operated by the Variobend Touch Control. The Variobend Touch control shows the exact positioning of each stand. The operator can easily move each stand. This system ensures perfect bending results over the complete working length.

V-Curved clamping beam

With the unique V-curved geometry, the Variobend becomes more flexible. With the curved clamping
beam, you have more space to produce a bigger variety of profiles.

Variobend roll former

Max. Rollforming capacity:
0,8 mm steel (400 N/mm²)
1,0 mm alu (190 N/mm²)
0,5 mm stainless steel (600 N/mm²)
Smallest possible shank length with roll forming:
A: 45 – 60 mm
B: 25 – 32 mm

Moveable working table

Thanks to the moveable worktable, you can increase your variety of profiles and optimize your
Workflow.
Each insert table can be individually moved backwards by 145mm.

Variobend digital package

The newly introduced digital package from Variobend offers you the best possible networking for your machine. Overview of digital package Variobend

Networking Variobend and Slinet
Incl. PDF export with square meters and weight information of the flashings
Incl. DXF import on the Variobend
Including DWG import on the Variobend
Including barcode reader
Including interface for third-party software such as Bendex, NuIT or Sema
Including XML interface for integration into ERP systems or other software
Including 3 annual licenses for the Variobend app
ASCO production software is ready

Software

VARIOBEND 4.0 software solutions

Markets are subject to permanent change. In sheet metal forming, this also leads to an ever higher complexity of products and processes. Effective, highly flexible, but also user-friendly solutions are needed. The software solutions of ASCO will help you to get a grip on precisely these challenges, reducing expenses in the process as well. Networked production reduces the risks of error and increases profitability.

VARIOBEND Pro 4.0

Increase your output

Many orders and small lots mean that your machine operators or programmers must program faster – error-free! With VARIOBEND Pro 4.0, you have sufficient time for efficient work preparation. VARIOBEND Pro 4.0 software displays all process steps for an efficient planning process. With VARIOBEND Pro 4.0, you do not program your long-length bending machine or your twin bending machine at the machine but in one or several workplaces parallel to production. This process reduces auxiliary process times distinctly and thus increases the machine availability dramatically. No time-consuming training of the machine. Thus, your VARIOBEND works productively without brakes.

Save time and increase your overall productivity

Once the order has been set up, the data are transferred to the machine paperless. In addition, the production order can be exported as a PDF and can be provided with a unique QR code. This PDF is handed over to the machine operator. The machine operator scans the profile to be produced. By means of the QR scanner, the profile prepared in the office previously is called up with all characteristics and can then be produced immediately. Avoid unproductive times – use the intelligent and highly efficient

VARIOBEND Pro 4.0.

Modern dashboard for easy navigation
Clearly arranged profile management
Import function (CAD file, V-MOBILE, other interfaces SEMA, NuIT, etcetera)
User-friendly drawing and dimensioning of the profile
Input of material characteristics (material, thickness, length and number of units)
3D animated thumbnails of the profiles
Automatic cutting pattern calculation including K factor (proof sheet for leg length by bend deformation)
Automatic bending sequence calculation calculated the ideal bending sequence
Animated bending procedure to check for collisions
Calculation tool (estimated bending time*, cut calculation)
Paperless transmission directly to the machine
Control of two machines by one computer only
Preparation of production orders by QR code via PDF

* only for twin bending machines with gripper system

VARIOBEND V-TOUCH | Machine control

As fast as never before – from sketch to bending programme

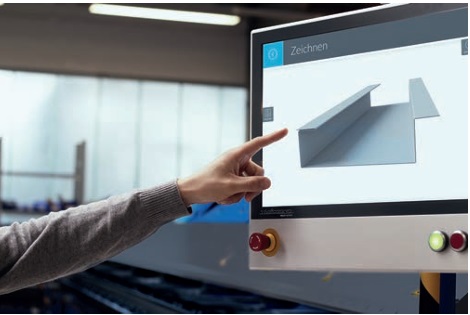

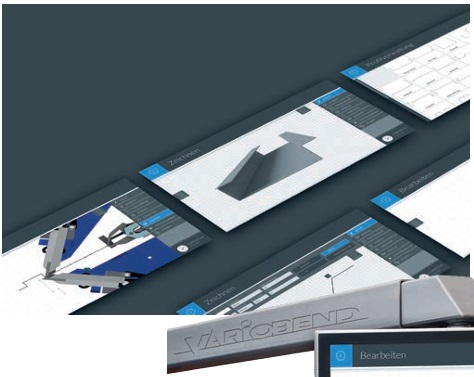

VARIOBEND V-TOUCH is the only software that combines efficiency and user-friendliness in an unprecedented relationship. The series VARIOBEND TOUCH control stands our for its user-friendliness and a clear structure. Any number of profiles and folders can be set up in profile management. They can be moved, copied or exported by a simple touch. Functions, such as conical bending or slotting of profiles as well as bending simulation, are a standard. The modern 21.5” flat screen in HD resolution permit ideal input and display.

V-TOUCH AT A GLANCE:

Modern dashboard for easy navigation
Clearly arranged profile management
New profiles can be drawn and dimensioned with a finger in a user-friendly way.
Presentation in 2D and 3D
Automatic cutting pattern calculation including K factor (proof sheet for leg length by bend deformation)
Automatic bend sequence calculation to reduce material handling
In simulation, the complete bending process can be checked for the absence of collision
Graphic display of the colour or visible side
Animated bending sequence in 2D to check for collisions
Prospective bending time calculation *
Material database for automated angle correction depending on material and thickness
Cutting programme including conical cut function
Import and export function
Interface to several Software solutions (SEMA, BENDEX, NuIT) and merchandise management systems
Saving of more than 10,000 profiles is possible
