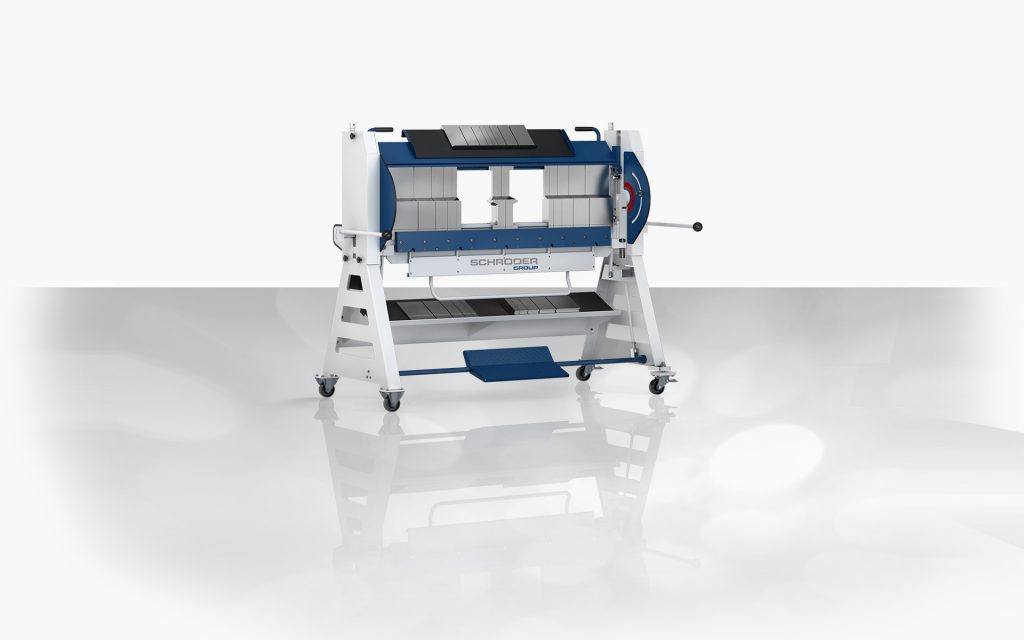

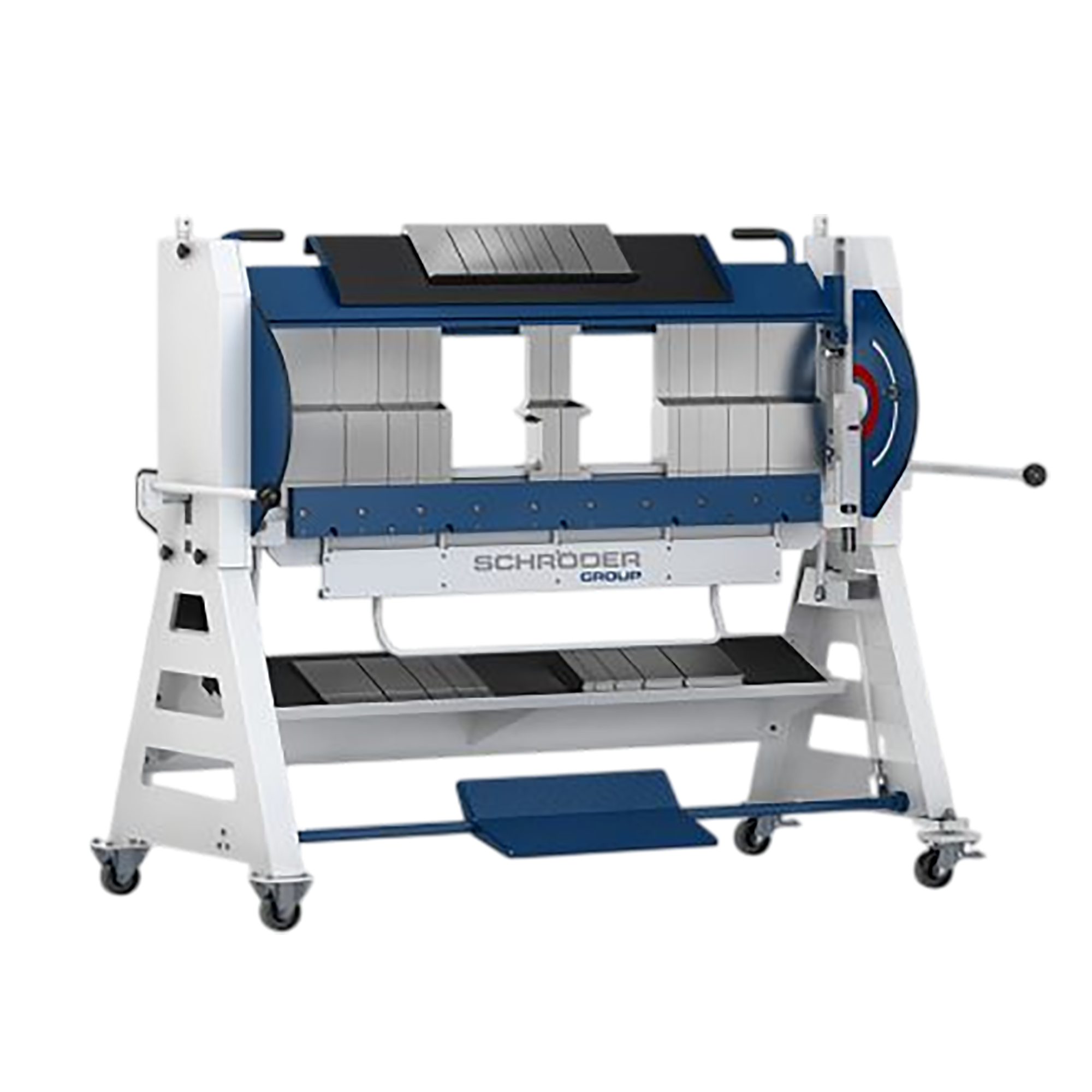

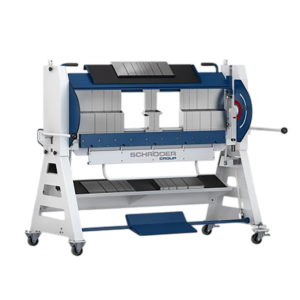

Schroeder ASK 3

Details

The Flexible 3rd-Generation Manual Folder for Real Sheet Metal Specialists. It’s the next evolution in high-performance workshop and on-site sheet metal processing, bringing expanded clearance, enhanced ergonomics, and unmatched flexibility to your production line.

Applications & Best uses

The machine’s application flexibility comes down to its “Free Space”.

Boxes and Pans: The primary application of the high, segmented “goat’s foot” blades is to allow the operator to fold all four sides of a box. The high clearance (up to 180 mm) means deep boxes can be folded without the previously bent sides hitting the tooling.
Cassettes and Facade Panels: Creating architectural wall panels that require returns (bends) on all four edges for mounting and structural rigidity.
U-Profiles and C-Channels: The segmented bottom and folding beams allow bending of negative or reverse profiles (where the metal folds back under the clamping beam) without the machine getting in the way.
Hemming and Crushing: Creating safe, stiff edges on flashing or panels by folding the metal over completely flat (a hem). The ASK 3’s “push-back” angle gauge makes this process much smoother.

The ASK 3 advantage

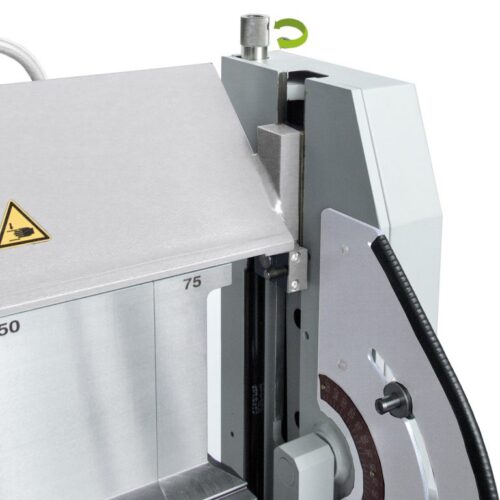

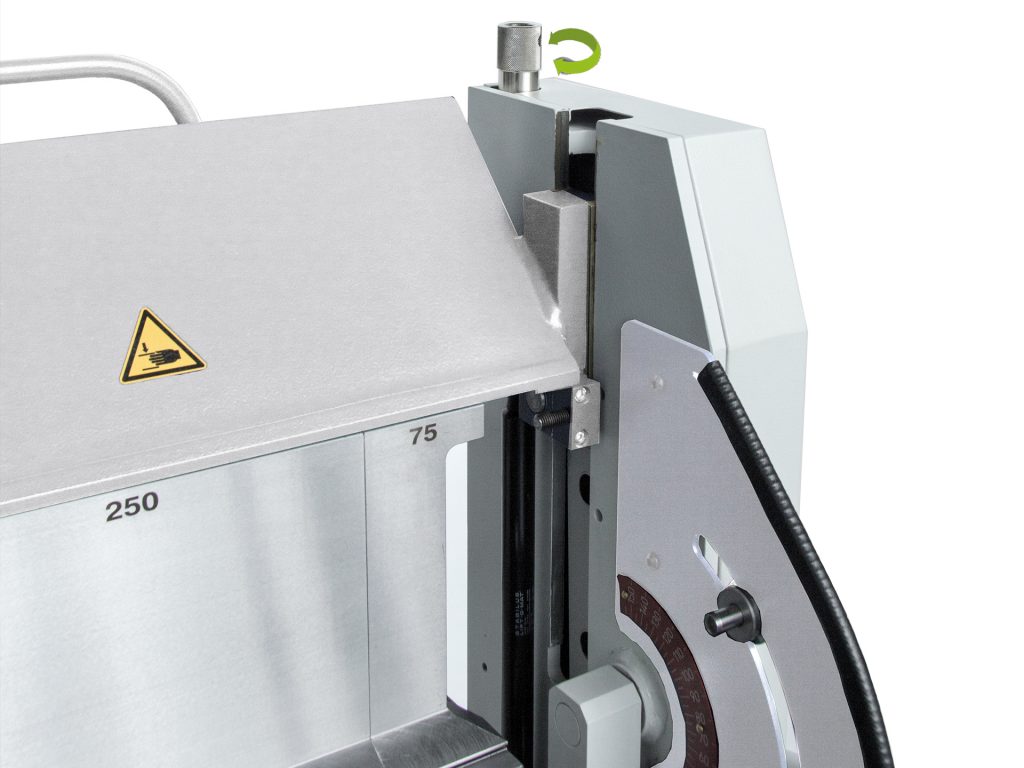

Patented Quick-Clamping System

Schroeder’s patented eccentric quick-clamping device on both the clamping and folding beams allows you to change tools or adjust your setup with a single hand movement, resulting in a near-zero re-equipping time and a seamless workflow.

Hands-On Performance:

Multi-Stage Clamping Drive: Instantly adjust the machine to accommodate four different tool heights, vastly increasing your flexibility compared to older generation folders.

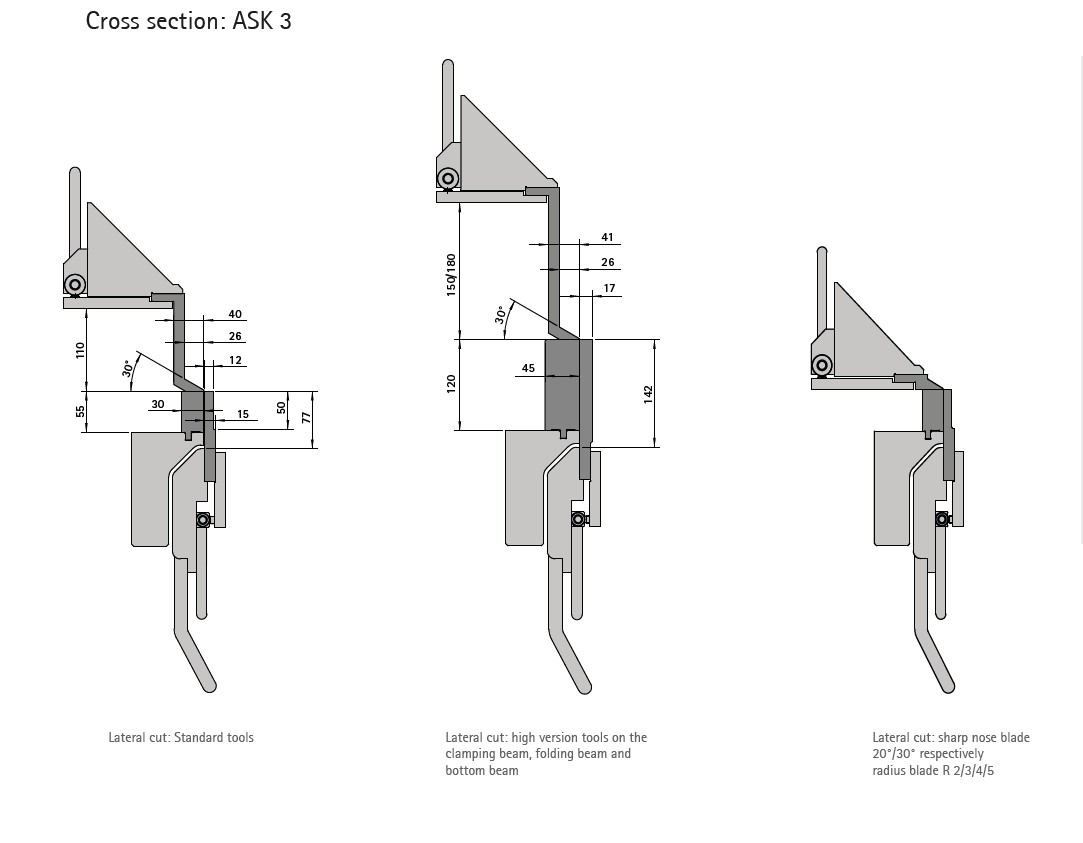

Massive Free Space & Clearance: Offers up to 180 mm of free space at the clamping beam, up to 120 mm at the bottom beam, and up to 142 mm at the folding beam to clear highly intricate reverse bends.
Ergonomic Foot Pedal: Keeps your hands free to position sheet metal with 100% accuracy.
Integrated Storage & Mobility: Built-in tool storage on both the clamping beam and the lower frame plate keeps your tooling organised, while height-adjustable steering handles and lockable castors ensure effortless transport.

Standard configuration:

Patented quick clamping device with eccentric for quick changing of clamping and folding beam tools
Multi-stage clamping beam drive to accommodate 4 different tool heights

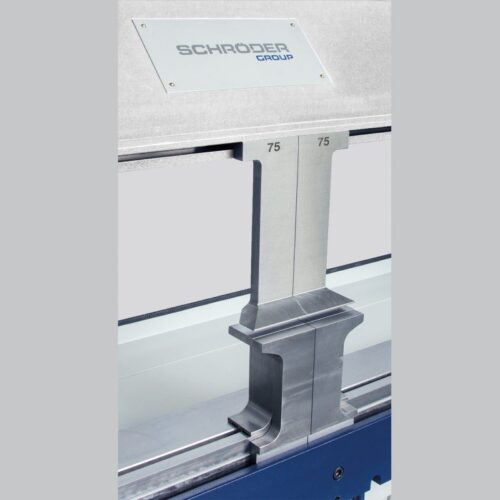

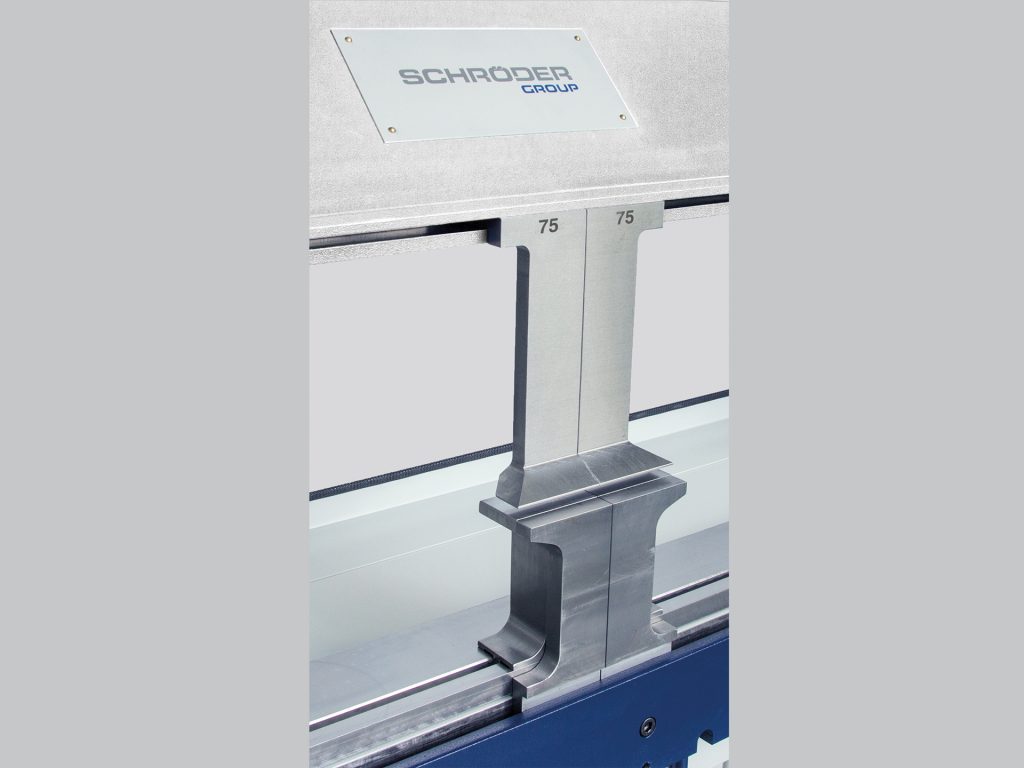

Goat’s foot blade tooling: Height = 130 mm, 30°, sharp, 26 mm of clearance, foot width 41 mm, free space 110 mm, segmented tools incl. corner parts, material strength ca. 700N/mm²
Bottom beam blade: segmented tooling, free space 55 mm, ca. 700 N/mm²
Folding blade combination: Height: 120 mm, 12/15 mm wide, free space 77 mm, segmented tooling incl. corner parts, ca. 700 N/mm²
Segmentation of tools for the 1,000 mm machine: 30/50/70/100/150/200/300 mm + 2 x 75 mm corner parts; + 250 mm segments for the longer machines
Clamping beam stroke 110 mm
Tooling storage on the clamping beam
Secondary tooling storage below the clamping beam
Foot pedal for opening and closing the clamping beam
Bending angle indicator
Angle gauge

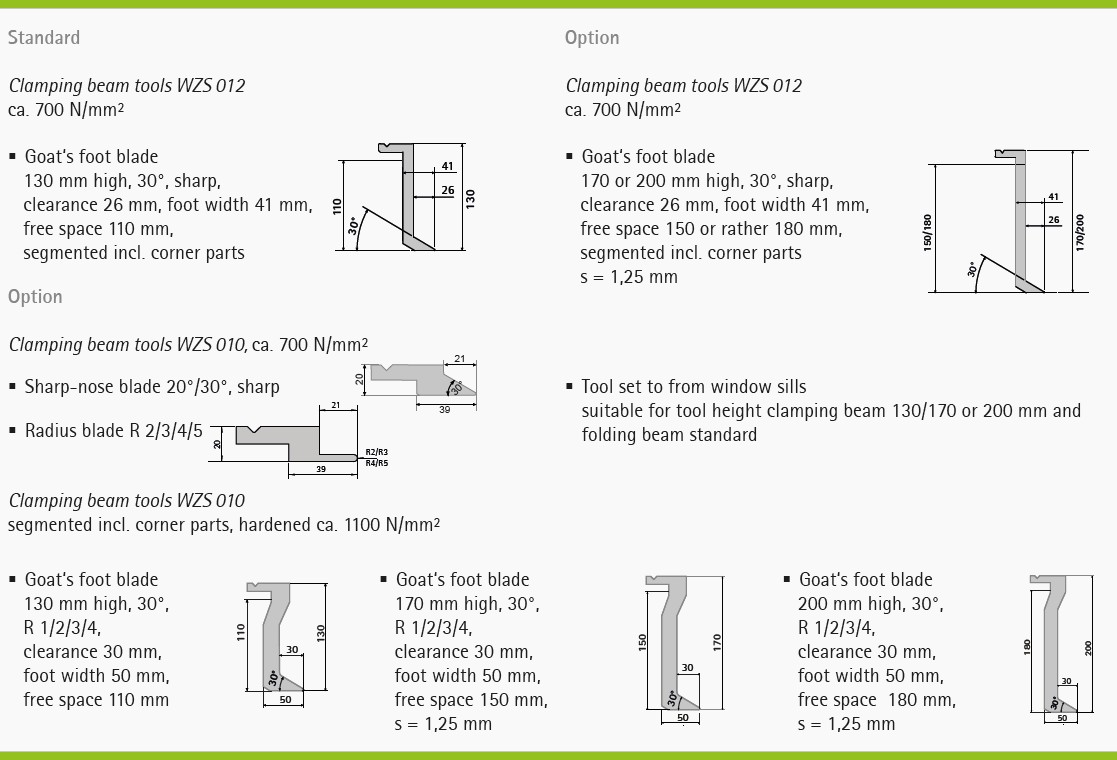

Tools/Options

Clamping beam

Hardened goat’s foot blade, H = 130 mm, 30°, R 1/2/3/4, clearance 30 mm, foot width 50 mm, free space 110 mm, segmented incl. corner parts – ca. 1100 N/mm²
Sharp-nose blade 20° ca. 700 N/mm²
Sharp-nose blade 30° ca. 700 N/mm²
Radius blade R2/3/4/5 ca. 700 N/mm²
Tool set to form window sills
Mangan-phosphated clamping beam tooling (with hardened tooling)

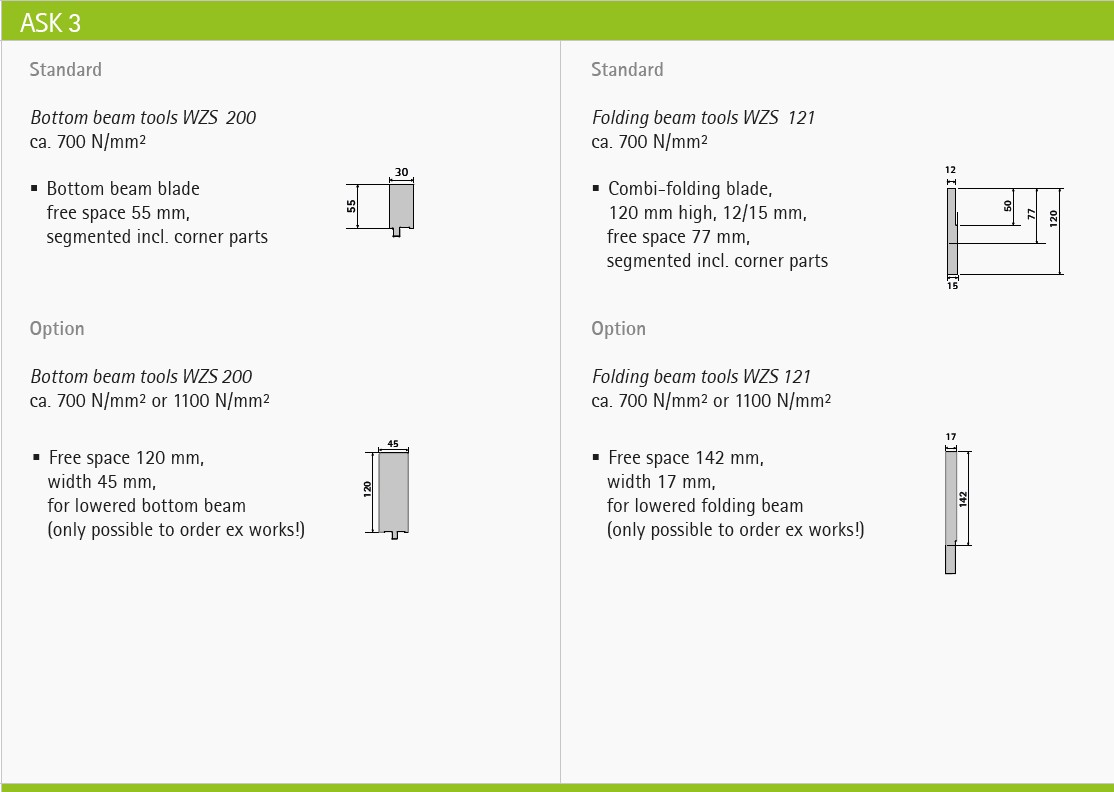

Folding and Bottom beam

Surface-hardened – (recommended for stainless steel applications)

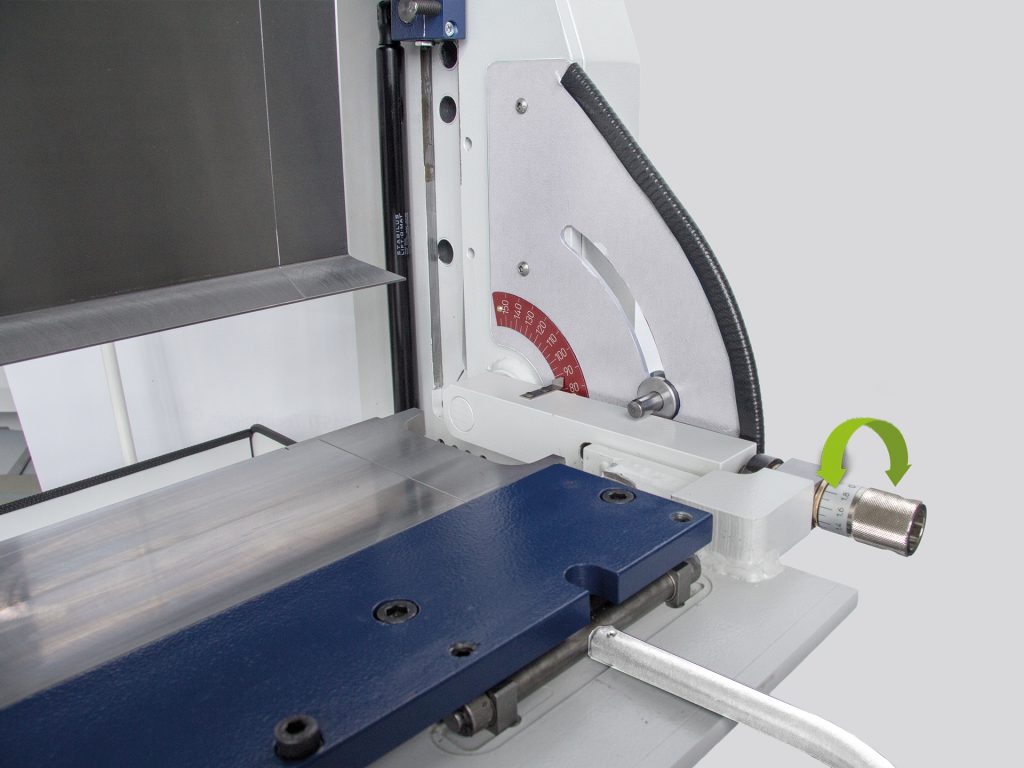

Lowering of the folding and bottom beams (Only possible to order ex works!):
– Folding beam opening 142 mm, width 17 mm
– Bottom beam opening 120 mm, width 45 mm

Table and back gauge

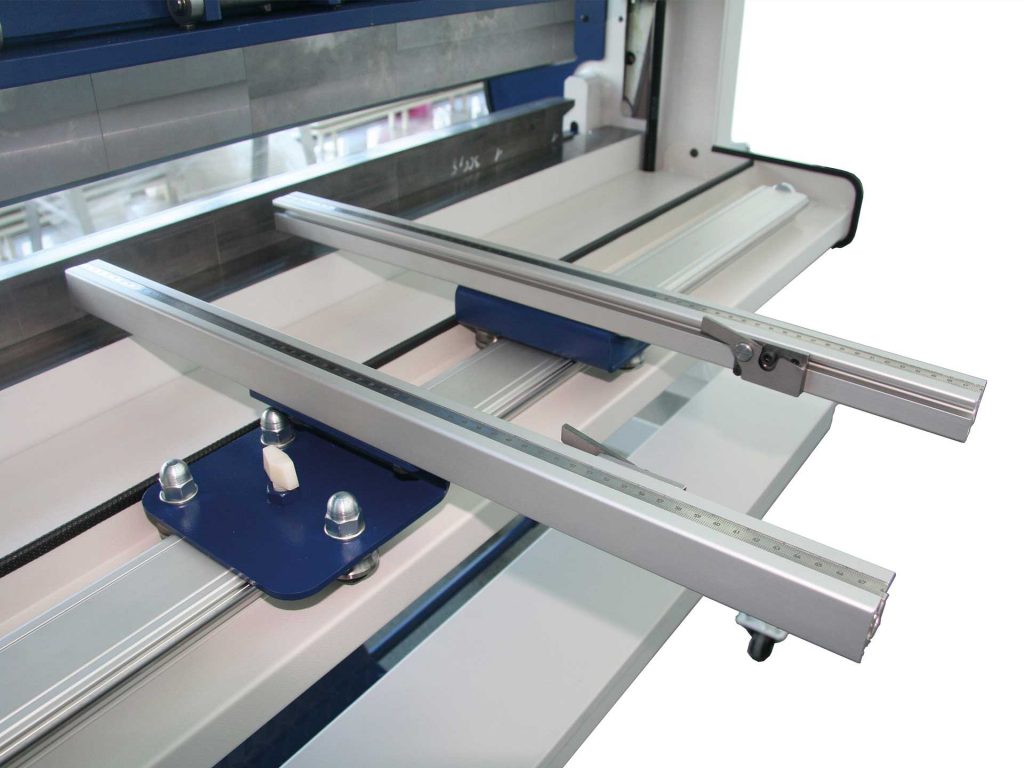

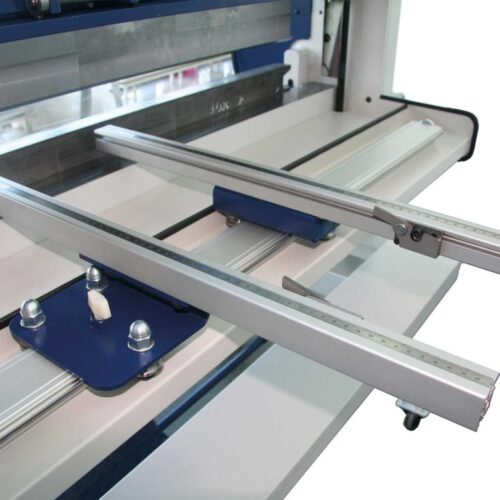

2 variable gauge arms 600 mm, with a built-in scale, movable on a linear guide, including 2 tipping gauges for insertion in T-slot
An additional pair of tipping gauges

Others

Additional bending angle gauge
Zinc-phosphated corrosion protection for the standard tooling set
Slitting device for up to 0.8mm St37 (only applicable to standard folding beam height)
Tool case
Castor wheels for the base frame

Technical Data

FRIBESCO’s reasons:

Why Choose the ASK II folder?

✅ Ultimate 3-Beam Flexibility: Segmented tools across all three beams (clamping, bottom, and folding) open up massive clearances—up to 180 mm
✅ Patented Quick-Clamping System: Change tools or adjust your setup with a single hand movement
✅ Multi-Stage Clamping Drive: Engineered to adapt seamlessly to four different tool heights—doubling the height adjustment capacity of the ASK II
✅ Smart Push-Back Angle Gauge: A highly practical feature that lets you keep your exact angle adjustment locked in, while easily pushing the gauge back to clear the folding beam for fast, seamless hemming.
✅ Optimised Workspace Ergonomics: Features a generous, integrated tool storage deck right on the machine stand,

The Schroeder folder gives professional roofers the edge: faster throughout, consistent accuracy, and long-term reliability.

Contact us today to discuss your requirements and arrange a demo.

Brochure

The segment folding machine ASK 3 has a multi-stage clamping-beam drive for four different tool heights, with up to 180 mm free space at the clamping beam, up to 120 mm at the bottom beam, and up to 142 mm at the folding beam.
